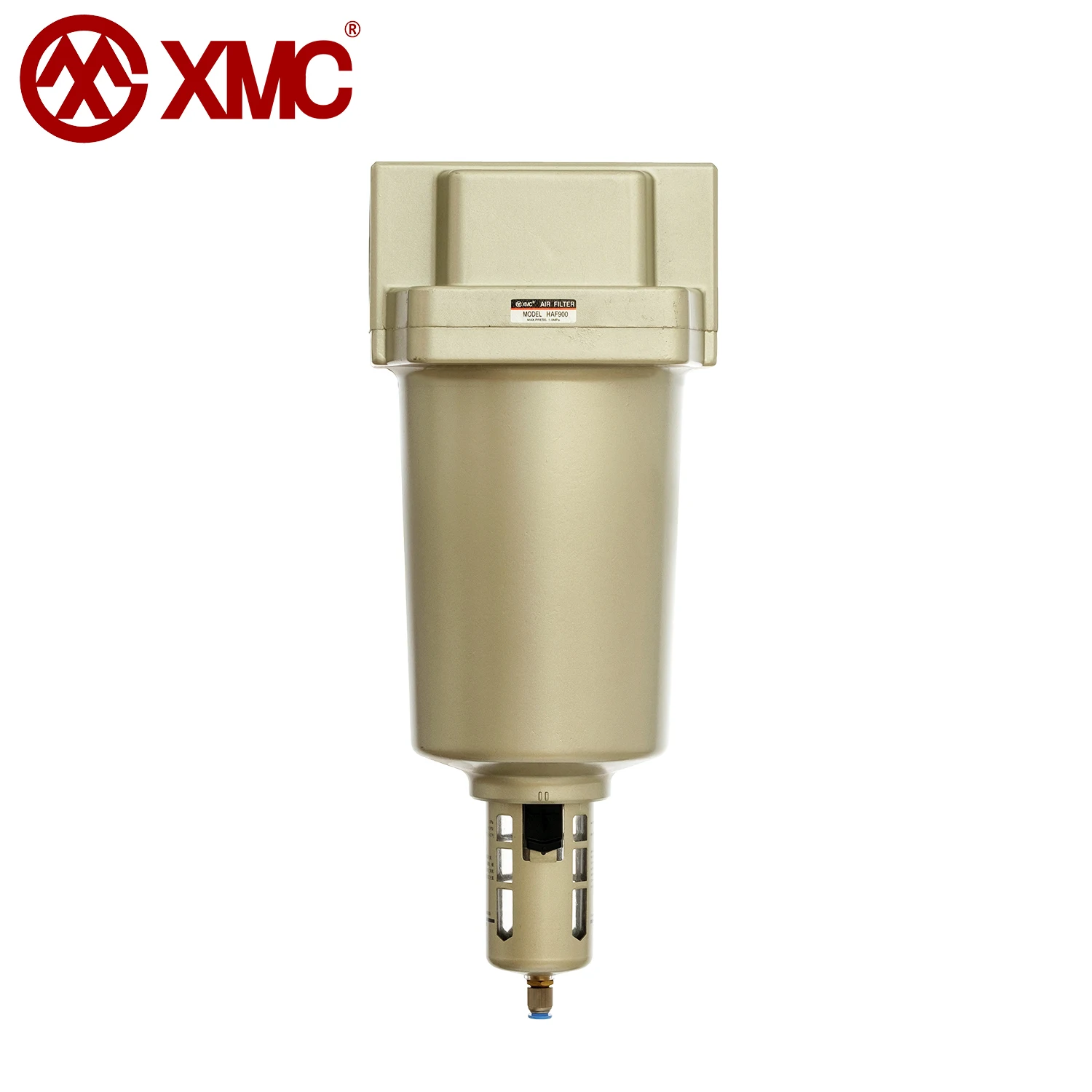

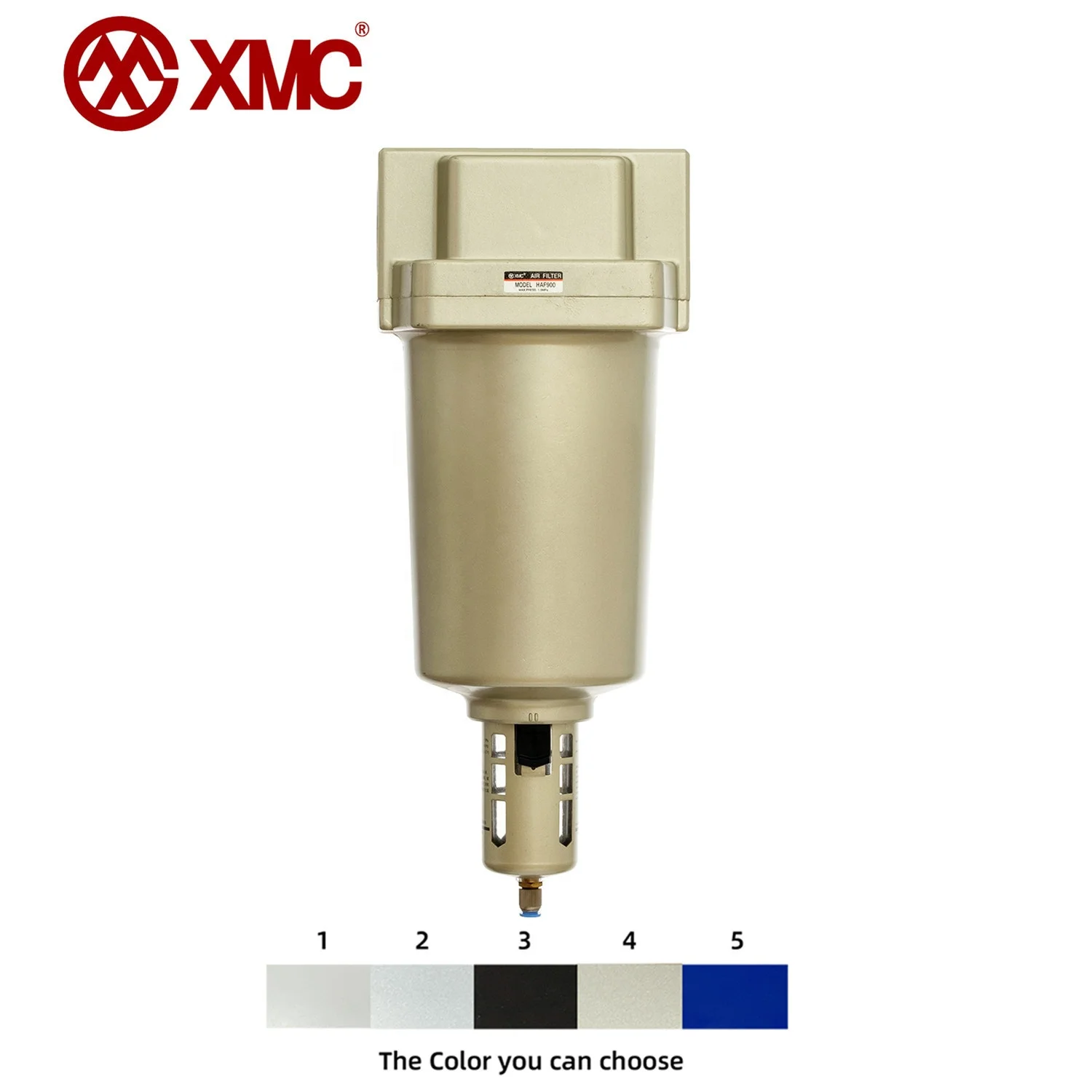

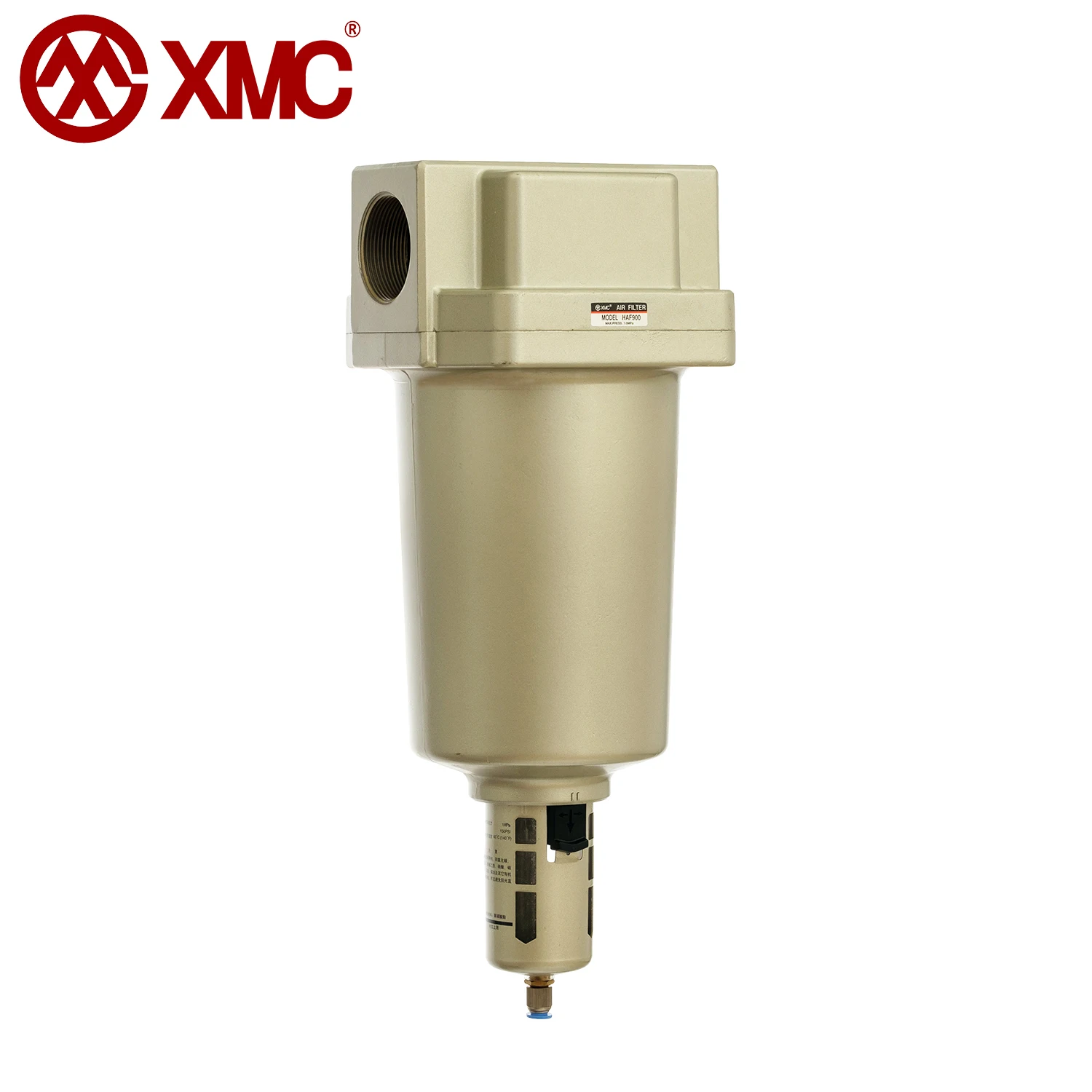

XMC HAF900-20 Large Diameter 2'' Pneumatic SMC AF900 Air Source Treatment Unit Air Filter








Model code





Specification



Order No.
HAF900-20
Ensured Pressure Resistance
1.5MPa (15kgf/cm2)
Highest Working Pressure
1.0MPa (10kgf/cm2)
Ambient and Fluid Temperature
5~60℃
*Filter Precision
25μm
Filter Material
Brass
Container Material
Polycarbonate
Protective Cover
Available
Pressure Regulating Range
0.05~0.85MPa(0.5~8.5kgf/cm2)
Nalve Body Material
Aluminum Die Casting


*5μm, 50μm available in addition (Optional)



Model Table

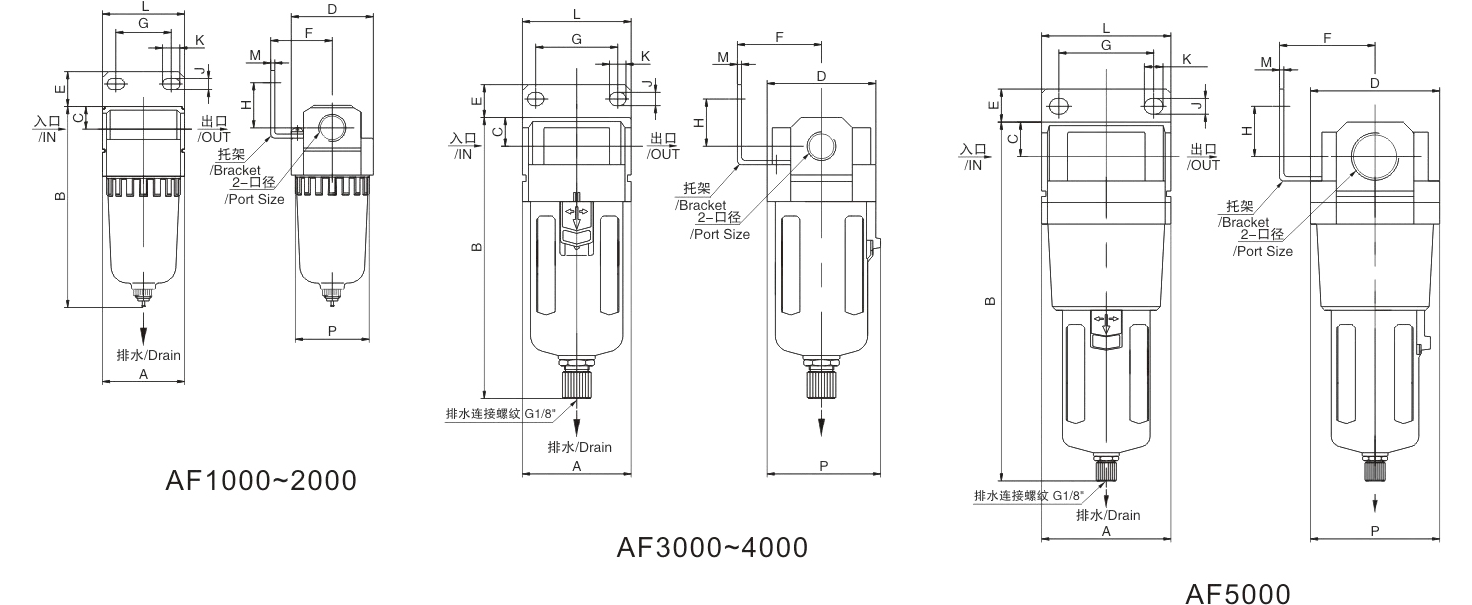

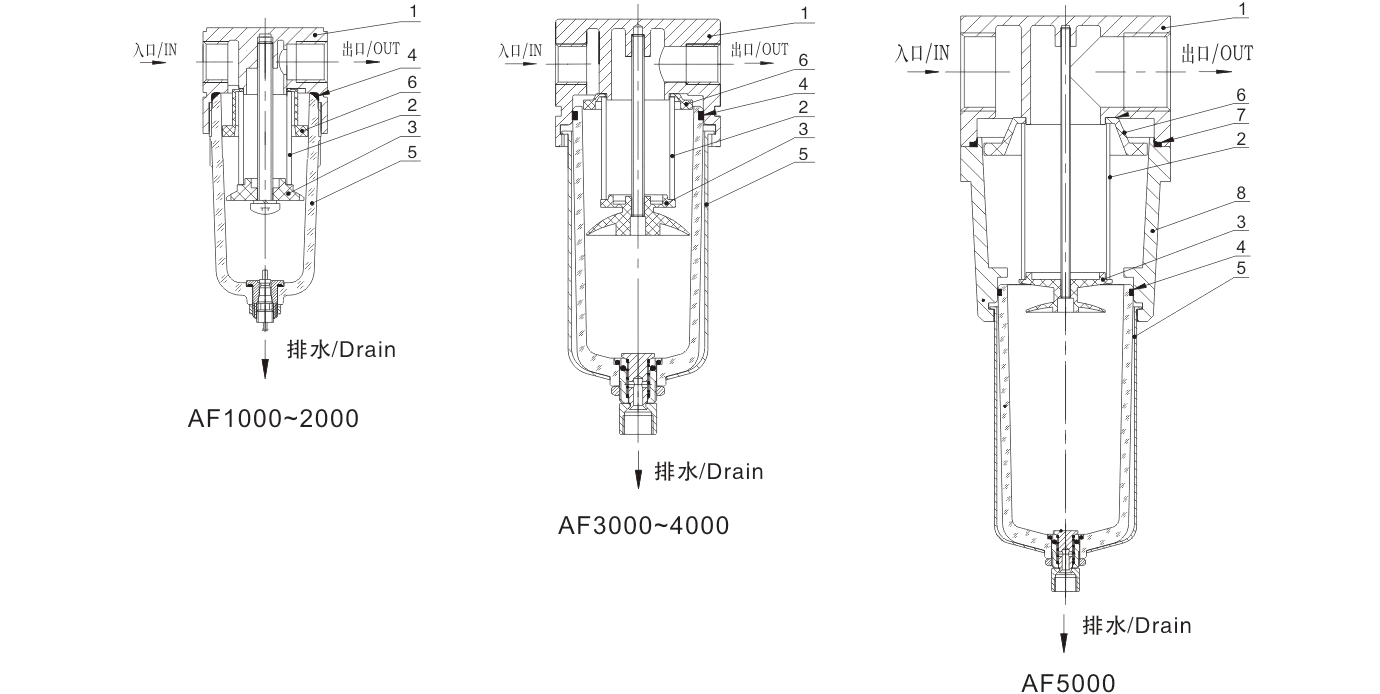

Overall Dimension Drawing (mm)







Overall Dimension Sheet (mm)
