Wi Fi адаптер EDUP, 802.11AC, 600 Мбит/с
- Category: Network Cards >>>
- Supplier: Shenzhen,EDUP,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
EDUP High Quality Cheap 802.11AC wireless lan card 600Mbps Wifi Dongle Wireless USB Dual Band Wifi Adapter
- Wireless USB Dual Band Wifi Adapter
- High Quality Cheap 802.11AC wireless lan card
- 600Mbps Wifi Dongle
Product Description
Product Description for EDUP 802.11n wireless lan usb adapter driver / 8811AU chipset wifi adapter

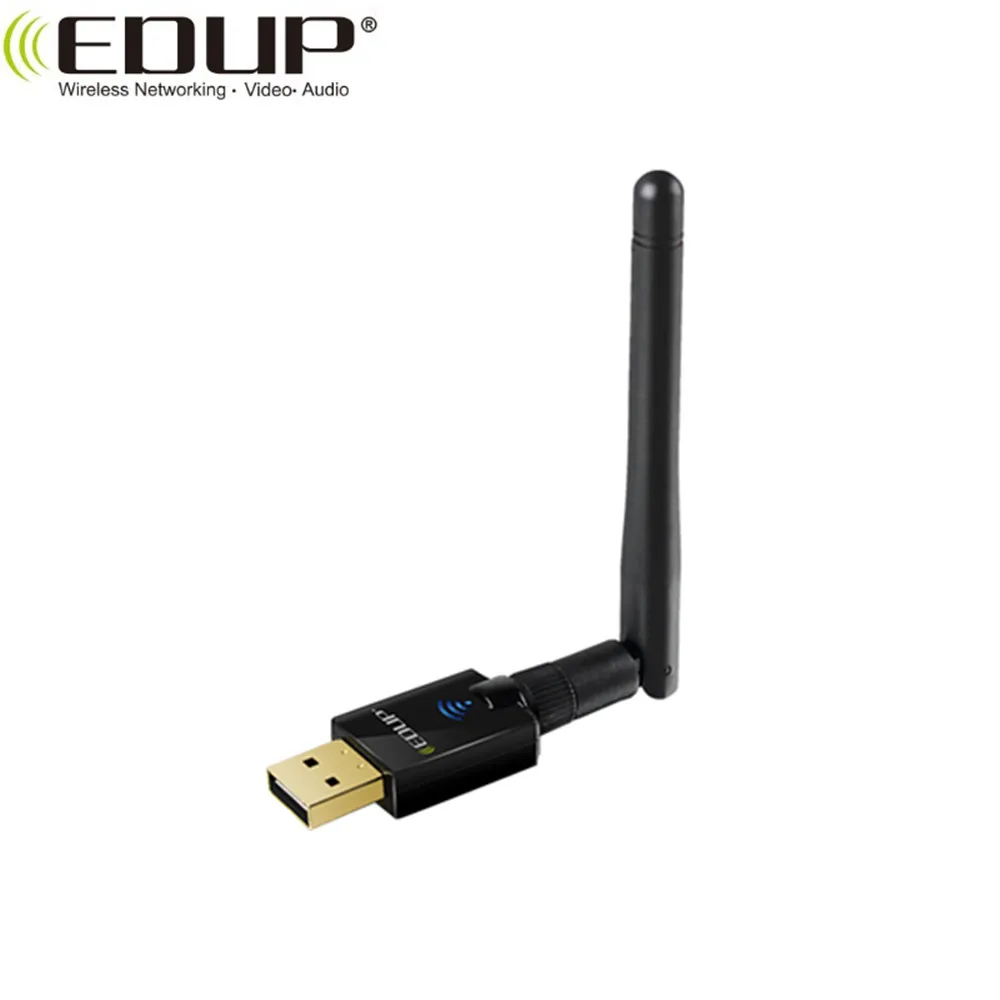

The AC Dual Band wifi usb EDUP EP-AC1607 is a 802.11ac USB Wireless adapter using a Realtek 8811au chipset providing a maximum transfer rate of 600Mbps.This product can be used for computer, PSP, media player or other device which needs the flexibility of a wireless connection. It can be configured as an AP during installation,allowing you to share the internet connetion to other Wi-Fi device. The WPS button allows very convenient encryption . With the inscluded AUTO-RUN CD, even novice user can install EP-DB1607 easy and quickly.
Features for EDUP 802.11n wireless lan usb adapter driver / 8811AU chipset wifi adapter
Support USB2.0
Support 20MHz/40MHz/80MHz frequency
5G compatible with IEEE 802.11ac and IEEE 802.11a standard
2.4G compatible with IEEE 802.11n, IEEE 802.11g, IEEE 802.11g standard
Detect the network and change transmit speed automatically
Support WPA/WPA2/WPA-WPA2/802.1x and 64/128 bit WEP encryption
Internal Omni-directional Antenna
Support 2.4G and 5G dual band
Support Wi-Fi Direct
Support Multiple BSSID
Support QoS-WMM, WMM-PS
Support WPS: PIN, PBC
Support Infrastructure mode, Ad-Hoc mode and Soft AP three modes
Support Cisco CCX
Low consumption management
Supported OS: Window 2000/XP/Vista/Win7/Win8/Win8.1/Win10 Mac OS/Linux
Specification for EDUP 802.11n wireless lan usb adapter driver / 8811AU chipset wifi adapter
Wireless Standards | IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.11ac IEEE 802.11a |
Transmit Speed | 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps 802.11n: up to 433Mbps |
Frequency Range | 2.412~2.4835GHz 5.180~5.320GHz 5.500~5.700GHz 5.745~5.825GHz |
Work Channel | 1 ~ 14 (2.4G) 36 ~ 165 (5G) |
Work Power | 18dBm (Typical) |
Sensitivity | 11n: -68dBm@130M; -68dBm@108M 11g: -69dBm@54M 11b: -85dBm@11M 11ac: -59dBm@867M |
Wireless Security | WPA/WPA2/WPA-WPA2/802.1x 64/128 bit WEP WPS (PIN, PBC) |
Support Operation System | winxp,winvista,win7;mac10.5~mac10.12; Linux Driver for Kernel 2.6.18~2.6.38 and 3.0.2;Android 1.6~2.3 and 4.0 |
Chipset | Realtek8811AU |
Host Interface | USB 2.0 |
LED(BLUE) | Link/Act |
Antenna Type | Internal Omni-directional Antenna |
Size(cm) | 6.0cm×3cm×8.9cm |
Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -20℃~75℃ Operating Humidity: 10% ~ 90% RH (Non Condensing) Storage Humidity: 5% ~ 95% RH (Non Condensing) |
EDUP 802.11n wireless lan usb adapter driver / 8811AU chipset wifi adapter
Product Pictures
Similar Pictures
Similar Products
 |  |  |
EP-N8508GS | EP-AC1607 | EP-AC1683 |
Packaging & Shipping
What is the packaging for option?
1.Blister package or color gift package
2.Standard Carton:K=K
What is the shipping way?
UPS/DHL/TNT/EMS/FedEx and any other shipping way as you prefered.
Pls contact us directly and we will use your preferred ways.
Our Services
What are the payment terms ?
We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.
Over 1000pcs,we can do OEM and accept 30% deposit in advance .
What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Company Information
Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.
