Машины для изготовления канатов из рафии/оборудование для изготовления пластиковых канатов

Share on (60774374442):


Price:

Quantity:


Product Overview

Description


Introduction

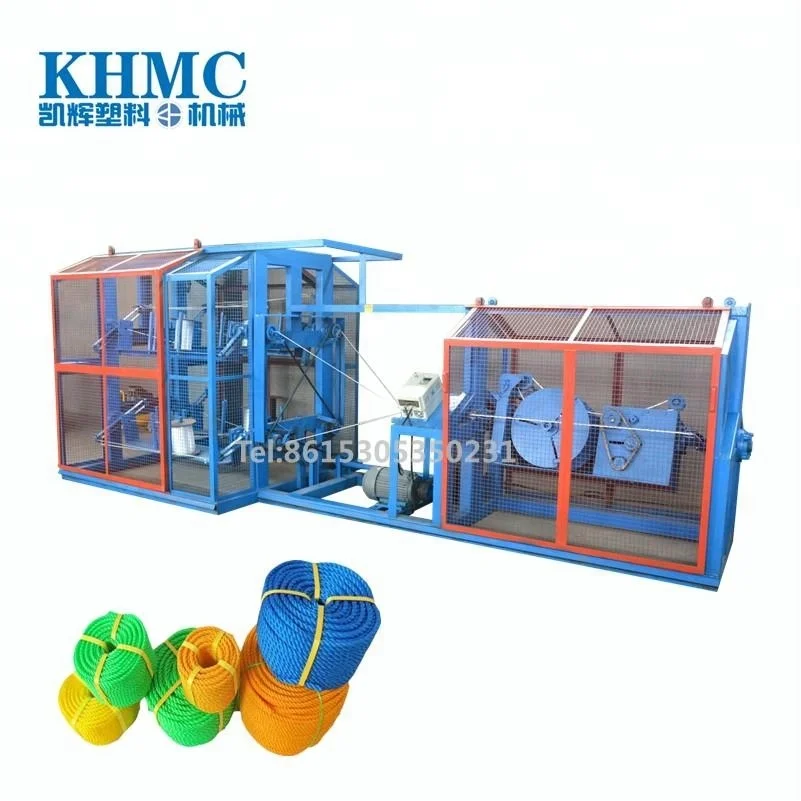

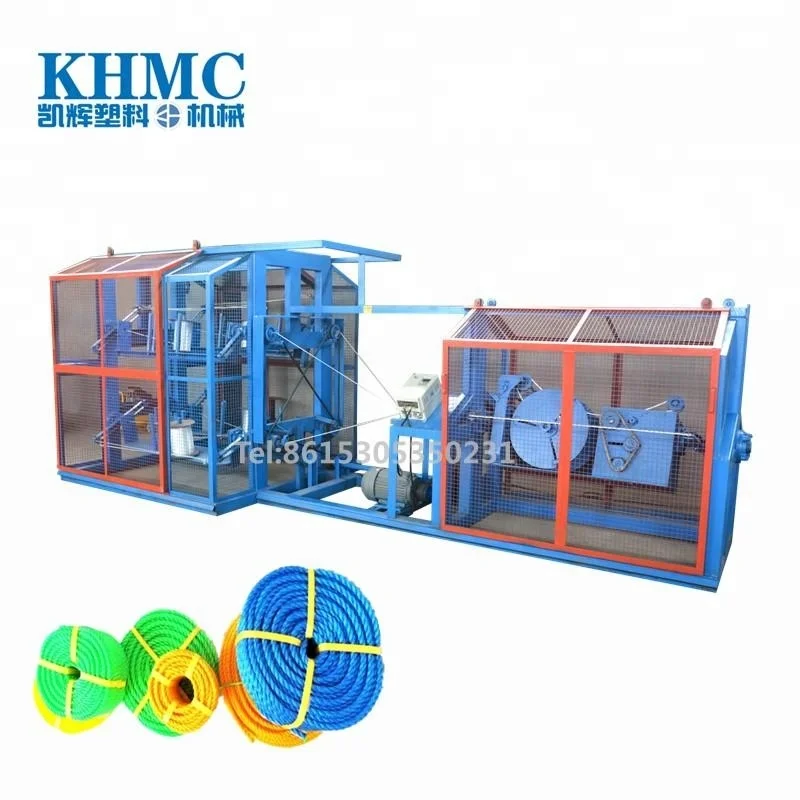

The rope twisting machine is used to make 3-40 mm twisted rope;

The degree of twistis adjustable;

The twisting machine can work with monofilament rope, danline twine, baler twine, nylon rope, cotton rope ,etc;

3strand and 4 strands are common, we can also make complicated design depends on the requires.


Specifications

Model

M88

M77

M66

M55

M44

M33

Revolution of principal Axis

300 r/min

320 r/min

350 r/min

420 r/min

620 r/min

900 r/min

Rope Diameter

32-40mm

20-32 mm

18-26 mm

12 -18 mm

5 -12 mm

3 -7 mm

Direction of twist

s/z

s/z

s/z

s/z

s/z

s/z

Motor power

20KW-4

18KW-4

15KW-4

7.5KW-4

5.5KW-4

3KW-4

Dimension (m)

14*2.2*2

12 * 2.2* 2.1

9.2* 2.2 * 1.9

7.8* 2.2* 1.8

5.2* 2.* 1.8

4.2*1.8* 1.7

Output (t/day)

1.4-2

1.4-1.8

1-1.5

1-1.2

0.7-1

0.2-0.6

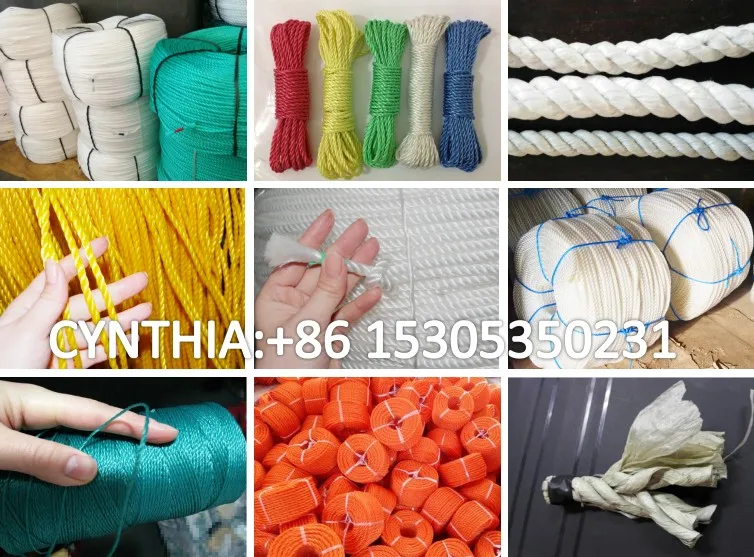

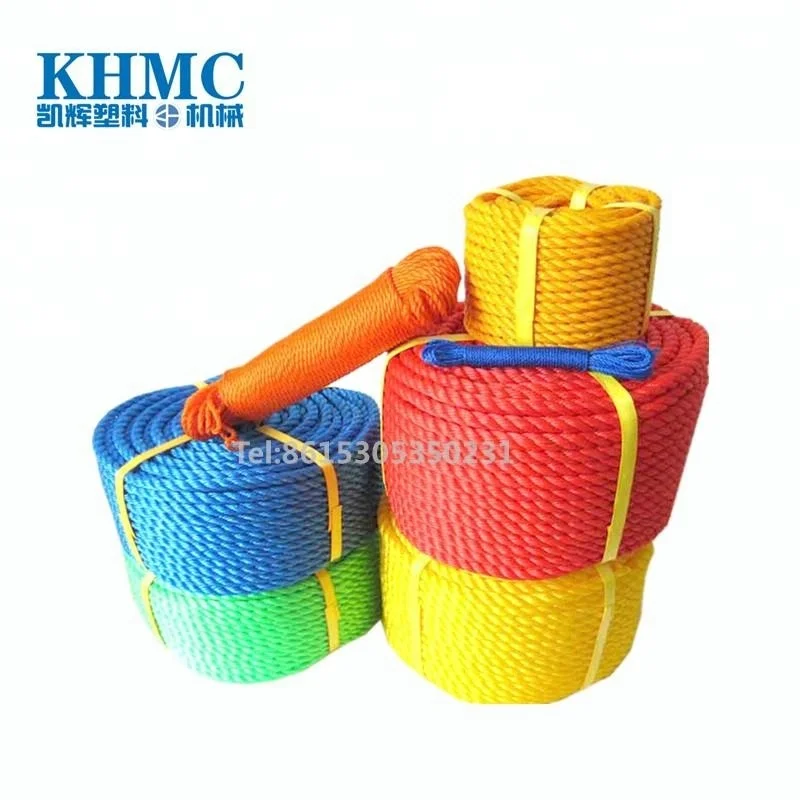

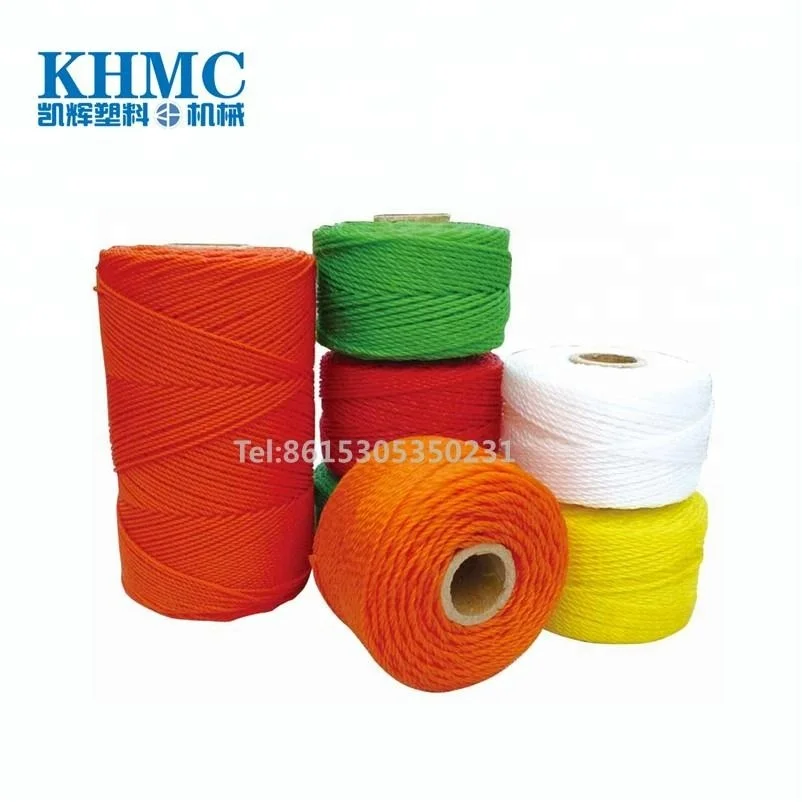

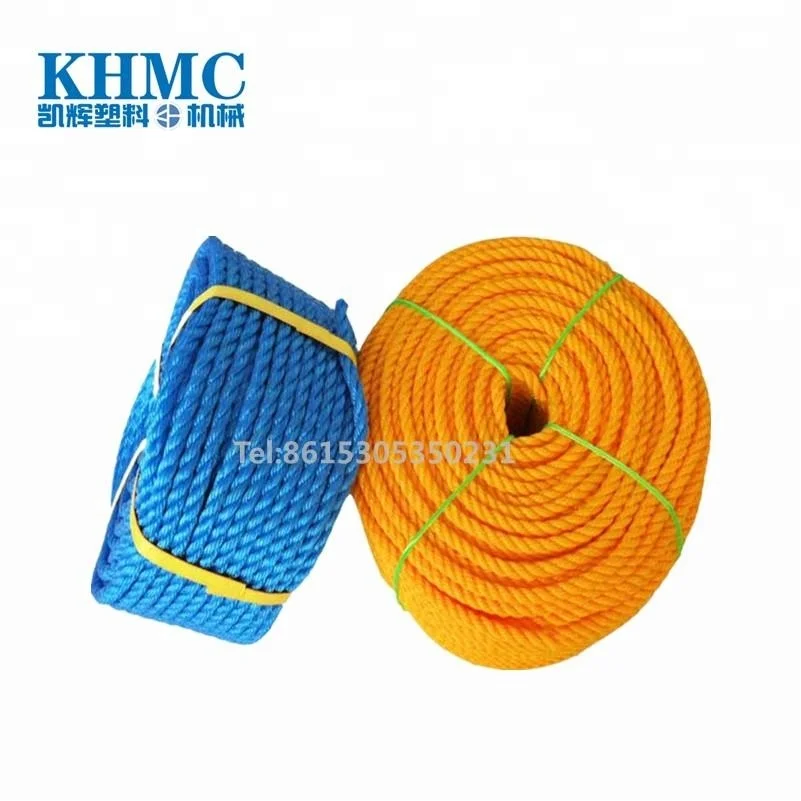

Finished Products

Varied rope for choose, we can also make the machine according to your sample.

the diameter is adjustable

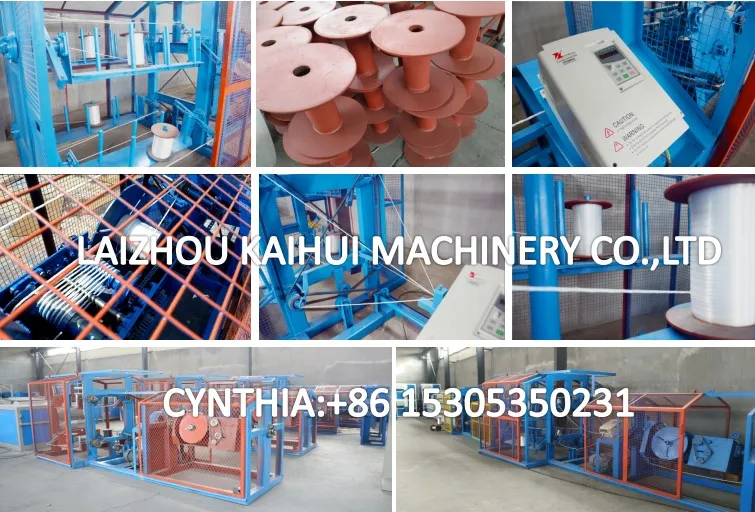

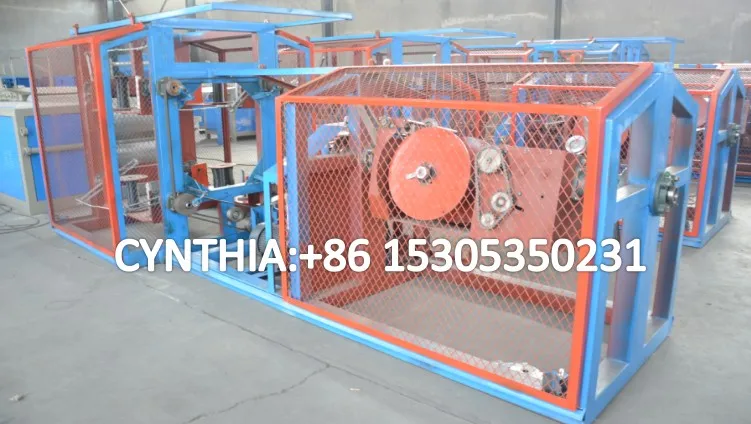

Machine details

Easy to operate for a new operator

Power-saving, low power consumption

Safety protection device, the machine can restart & stop automaticlly when the door closed &open.


High value-added

 Ring twisting machine  can be added into the production line to increase production, for example the danlian rope.

With our the M type twisitng machine, the ring twisting machine can make 1-3mm rope, fishing rope, and fishing net.

sdfsaewapoe f.JPGrelational production

The twisting machine always work with plastic extruding machine.

the extruding machine make the plastic material(granules or flakes ) into yarn. than, the twisting machine make the yarn into rope twine.


Services



1.Professional pre-sale service

Our sale team are experienced enough to help you to choose the most suitable machine according to your requirements.

2. Responsible after-sale service

We have experienced after-sale service team to help you with installation and train you to use the machines.


Friendly Reminder

For further information about technology parameters or any others, please be not hesitated to contact with me. Detailed pictures and videos can be provided if needed.
