China open channel UV sterilizer for wastewater treatment / sewage / waste water treatment system
- Category: >>>
- Supplier: Zhongshan Huron Environmental Technology Co. Ltd.
Share on (60774414853):
Product Overview
Description
Product Description

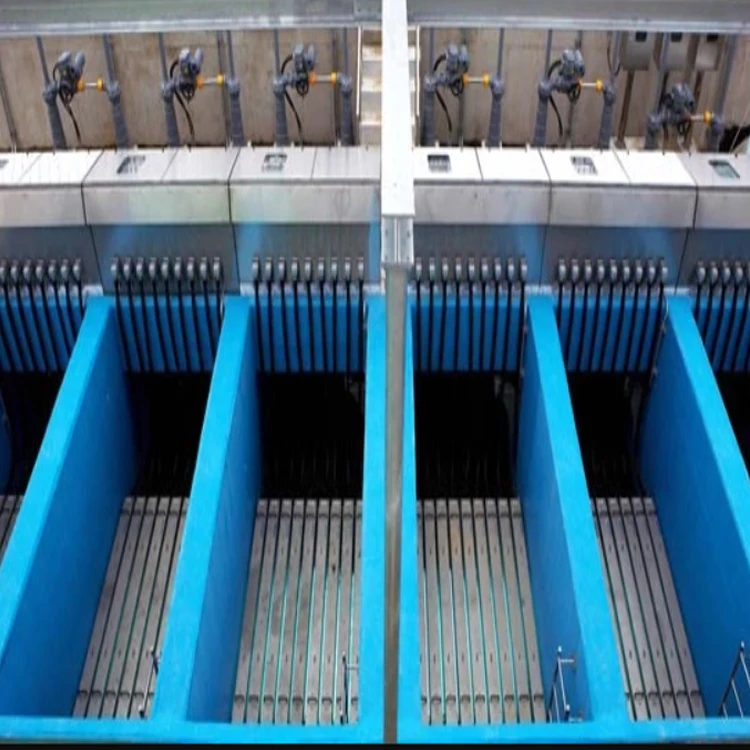

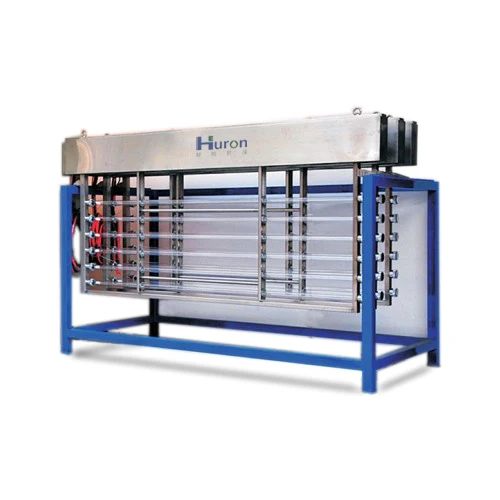

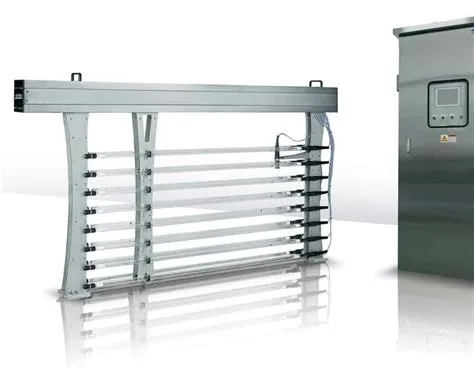

Open channel UV disinfection system
With individually removable modules and streamlined hydraulic design,in accordance with the industry standards,Huron Open Channel UV Disinfection is a safe,environmentally friendly and effective way to disinfect water.It can effectively reduce the head lose,safeguard the whole system, enjoy good sealing performance,and ensure UV dose delivery.It’s applied in large and medium size wastewater plants,municipal wastewater plants,reclaimed water projects,industrial wastewater,aquaculture farming and other places
In terms of the system design, our designers have paid full attention to the attenuation of light intensity of UV lamp tubes within the service life and decrease of sterilization rate due to reduction of light intensity caused by sedimentation on the surface of the quartz tubes. Therefore, a large margin has been set when designing the disinfection system. Even when the light intensity of the lamp tubes drops to 60% of the rated value, the whole system can maintain normal operation. It has so far been broadly accepted in more and more fields for its unique and good performances (particularly in disinfection of large water bodies and recycled reclaimed water)..
Key Parameters
Note:the following table is only for your reference.Other different product models not included can be customized on demands.
| Model | HUVO-200 | HUVO-400 | HUVO-600 | HUVO-800 |
| Flow Rate (m3/h) | 300 | 400 | 600 | 800 |
| Installation Dimensions (cm) | 900*80*100 | 900*80*120 | 1100*150*140 | 1100*150*140 |
| Level A standard Lamps power rate (kw) | 5.76 | 12.8 | 20.48 | 25.6 |
| Level A standard Lamps quantity | 18 | 40 | 64 | 80 |
| Level B standard Lamps power rate (kw) | 2.56 | 6.4 | 9.6 | 12.8 |
| Level B standard Lamps quantity | 12 | 24 | 40 | 56 |
| Material | SS316L for underwater frame，SS304 or aluminum alloy for other components | |||
| Protection grade | IP68 grade for underwater，IP65 Grade for above water | |||
| Automatic rinsing system | Manual, Automatic machine cleaning and auto+chemical are optional. | |||
| Control System | Temperature monitor, UVC intensity monitor,water level control system. | |||

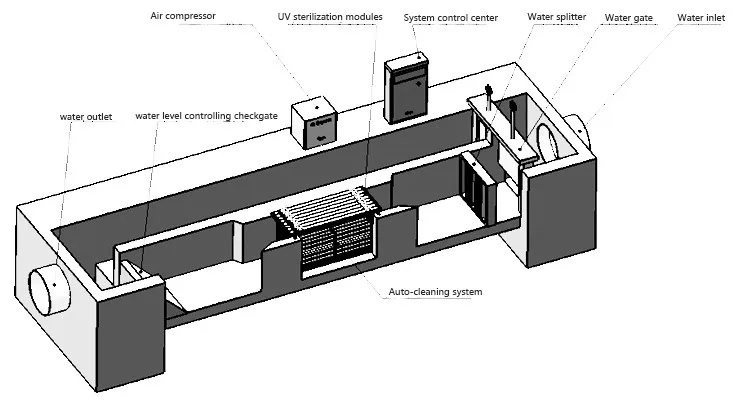

Composition

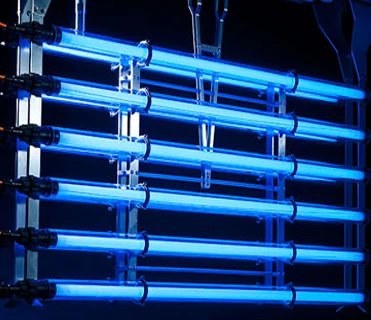

•UV Modules（UV lamps， Support rack）
•Electronic Ballast
•System Control Center
•Sleeve Wiping System
•Water Level Controller
Features & Advantage
●Cost-efficient frame design, stainless steel material. Individually removable modules..Easy to take out for maintenance and replace.
●Advanced Imported amalgam lamps,more than 12000 hours life time.
●Excellent light transmittance & high-purity quartz sleeves.
●Automatic sleeve wiping system.The wiping sequence occurs automatically at preset intervals without operator involvement excellent performance electronic ballast.
●With its high stability, good heat dissipation,constant UV output,power coefficient over 0.99,variable output (50-100% power),stepless regulation and programmable preheated start,it prolongs the UV lamps’life time more than 20%
●Based system control center continuously online monitors and controls UV lamp status,light intensity,light transmittance and temperature,easy for operator to monitor and control the whole system.

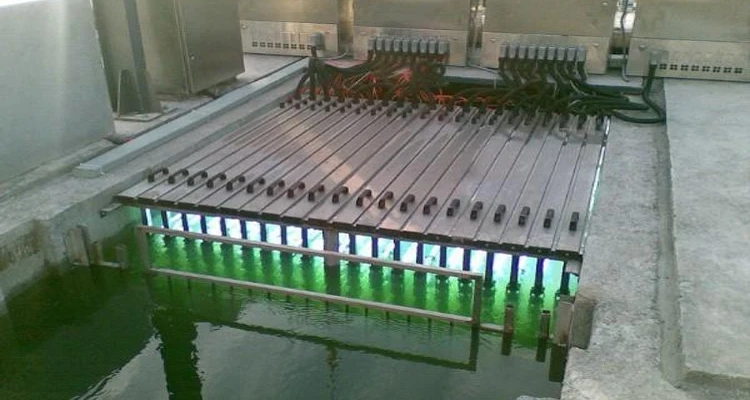

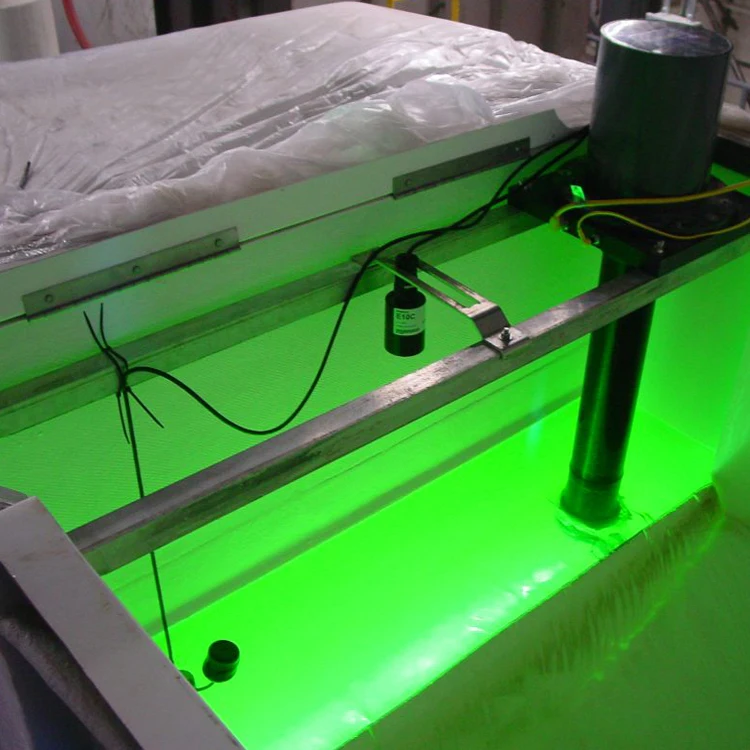

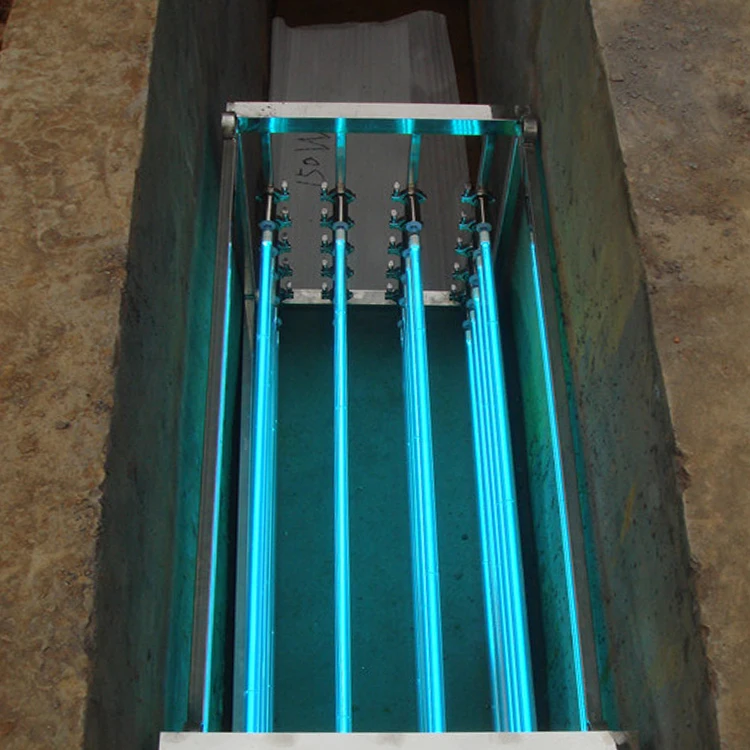

Detailed Images

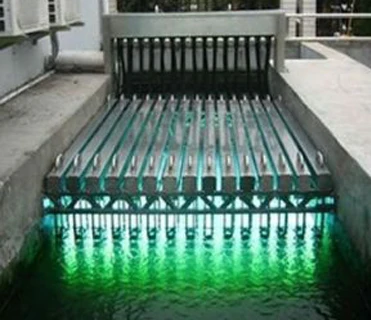

APPLICATIONS
APPLICATIONS
The open sewer disinfection technical system adopts the advanced UV-C disinfection technology through the special process design. high-efficiency, high-intensity and long service life UV-C lamp tubes, superior for the ballasts of reliable performance and electric-control system. It adopts the UV-C wave (T253.7nm) in high-efficiency and broad-spectrum killing of the bacteria and viruses so as to achieve the goal of water purification and disinfection.
About Huron
Zhongshan Huron Environmental Technology Co., Ltd., headquartered in the Torch Industrial Park of Zhongshan City of Guangdong Province, is an integrated high-tech environmental-friendly enterprise supported by the government. As an environmental-friendly equipment manufacturer and solutions designer, we focus on advanced oxidation technologies. The company has introduced and absorbed the cutting-edge technologies from both home and abroad, and holds many patents for its independent development of a series of disinfection products, such as UV sterilizer, ozone generator, PSA high purity oxygen generator, sodium hypochlorite generator, photocatalytic oxidation exhaust gas treatment device, etc.
The Factory Building
Certifications and Honor
The workshop
Trade Show
Provide technical consultation, and assist customers on continuous quality improvement.
International customers consult business and seek common development with us.
Our company on the IE expo China 2018
Customers are consulting with us on site of the IE expo China 2018
Our Services
. Consulting service available and custom designs are welcomed!
. We offer practical solutions, premium quality products along side competitive prices and prompt delivery.
. All the equipment are guaranteed for 2 years and life-time warranty,except for the wearing parts.
. Support onsite installation and sending engineer for debugging on demands.
. After-sales service and content: If the quality problems occur; even the equipment lose the ability of working, the supplier will repair or replace them free of charge during the warranty period. The product is life-long maintenance and the supplier provides all-round services. (except for factors such as artificial damage or irresistible force)
Packing & Delivery
Packing
We will send the pictures of the machines you order before we pack them with standard export wooden boxes.
We supply different standard export wooden boxes for different size products. All the details will be sent to you by email.
Delivery
1. Delivery by sea
When the products are delivered to seaport, the time of shipping and arrival will be confirmed with you. All the origin documents will be sent to you by Express .
2. Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport is optional.The Express tracking number will be send to you.
3.Delivery to the warehouse on your demand is optional. The express tracking number will email to you.
