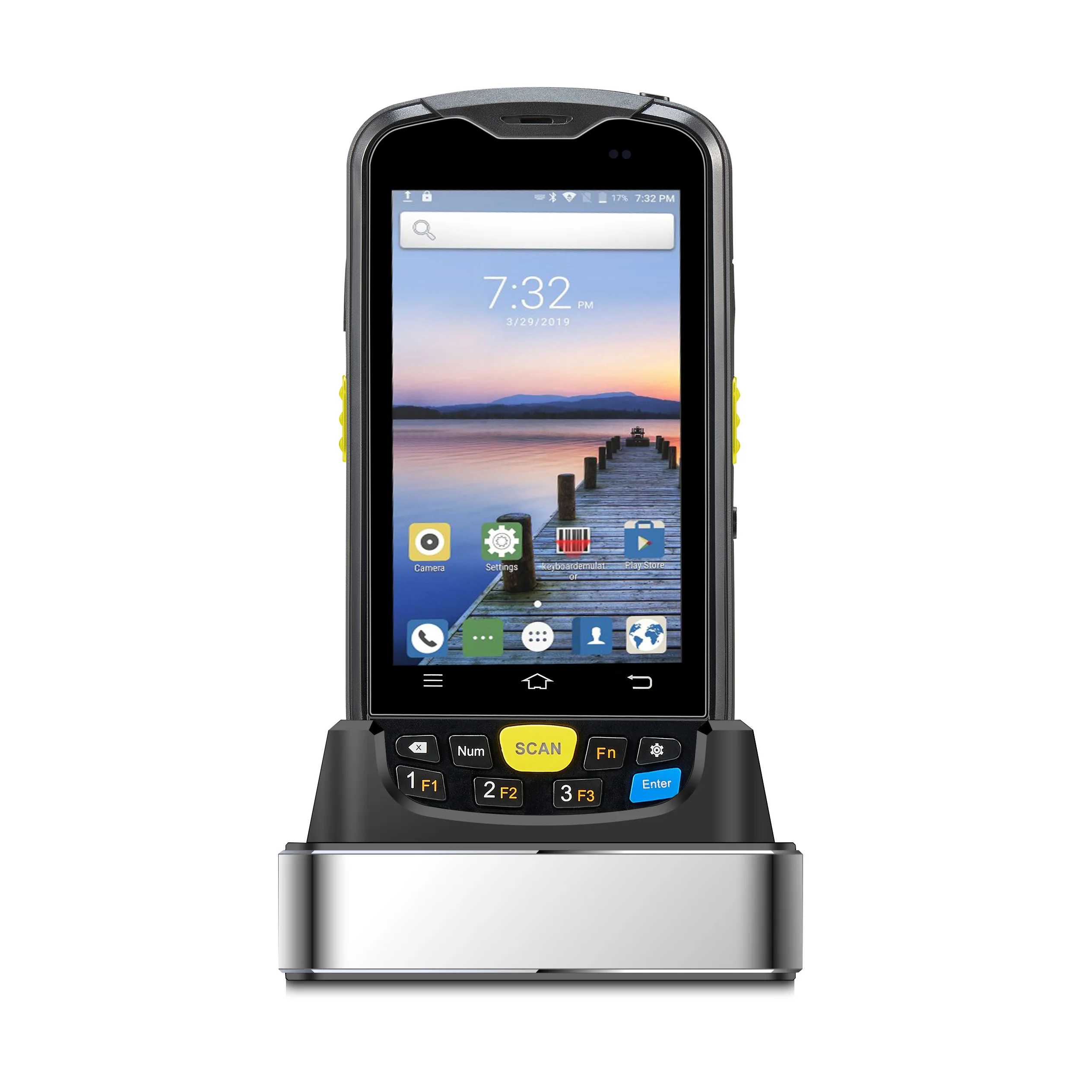

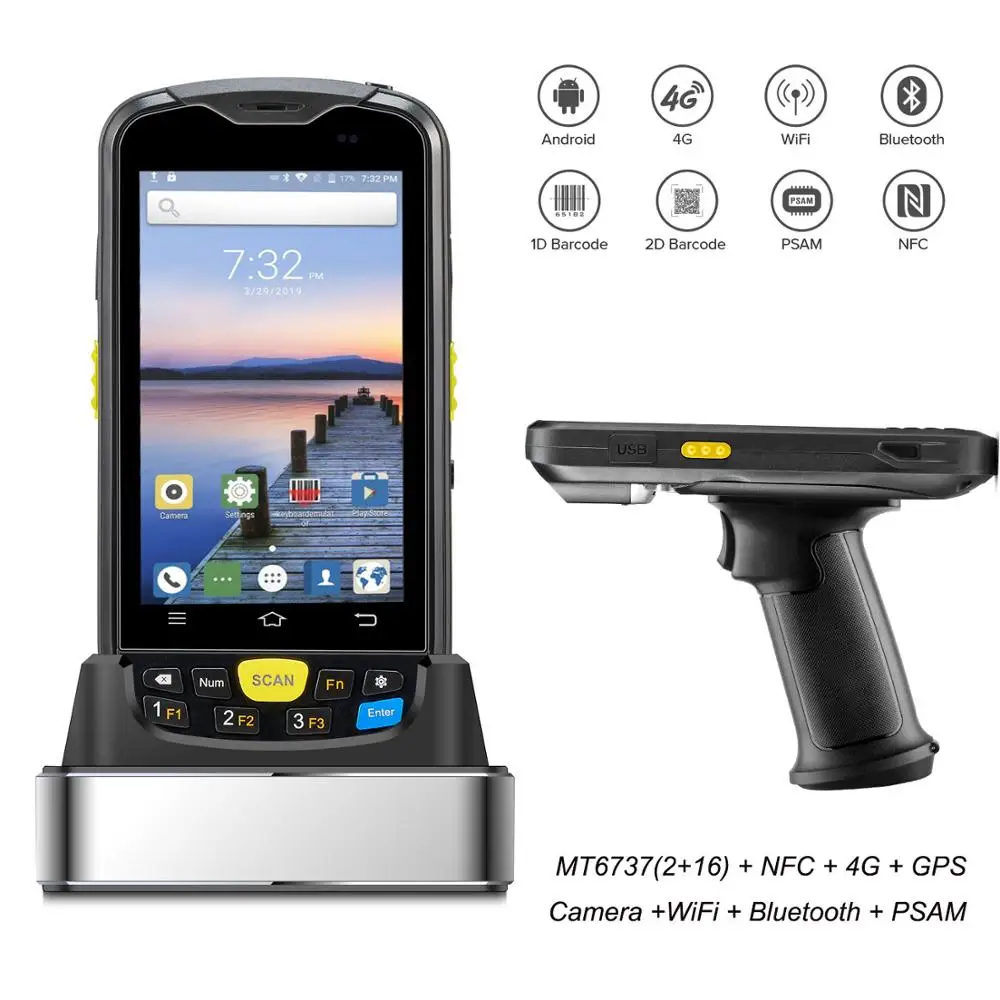

RUGLINE RT6000 Android 6.0 PDA 2D barcode scanner Handheld Nfc Reader Long Range

Share on (60774416303):


Price:

Quantity:


Product Overview

Description


RUGLINE RT6000 Android 6.0 PDA Handheld Nfc Reader Long Range






Quick Details






Features:


Android 6.0 OS,


4G/Dual-band WiFi,


IP65 Sealing,


2m Drop Proof,


Removable Battery(4000mAh Powerful Battery),


water-proof, dust-proof, 2.0m drop-proof,


Power: Main battery, Li-ion, rechargeable, 4000mAh,


Standby: over 300 hours,
Continuous use: over 12 hours (depending on user environment),
Charging time: 3-4 hours (with standard adaptor and USB cable),


Interfaces: USB Micro-B, OTG,

Keypad: 3 TP soft keys, 3 side keys, numeric keyboard,










Functions:

1. Industry-leading Scan Head,

2. NFC,

3. 8/13MP Camera,

4. Accurate GPS,

Secure PSAM

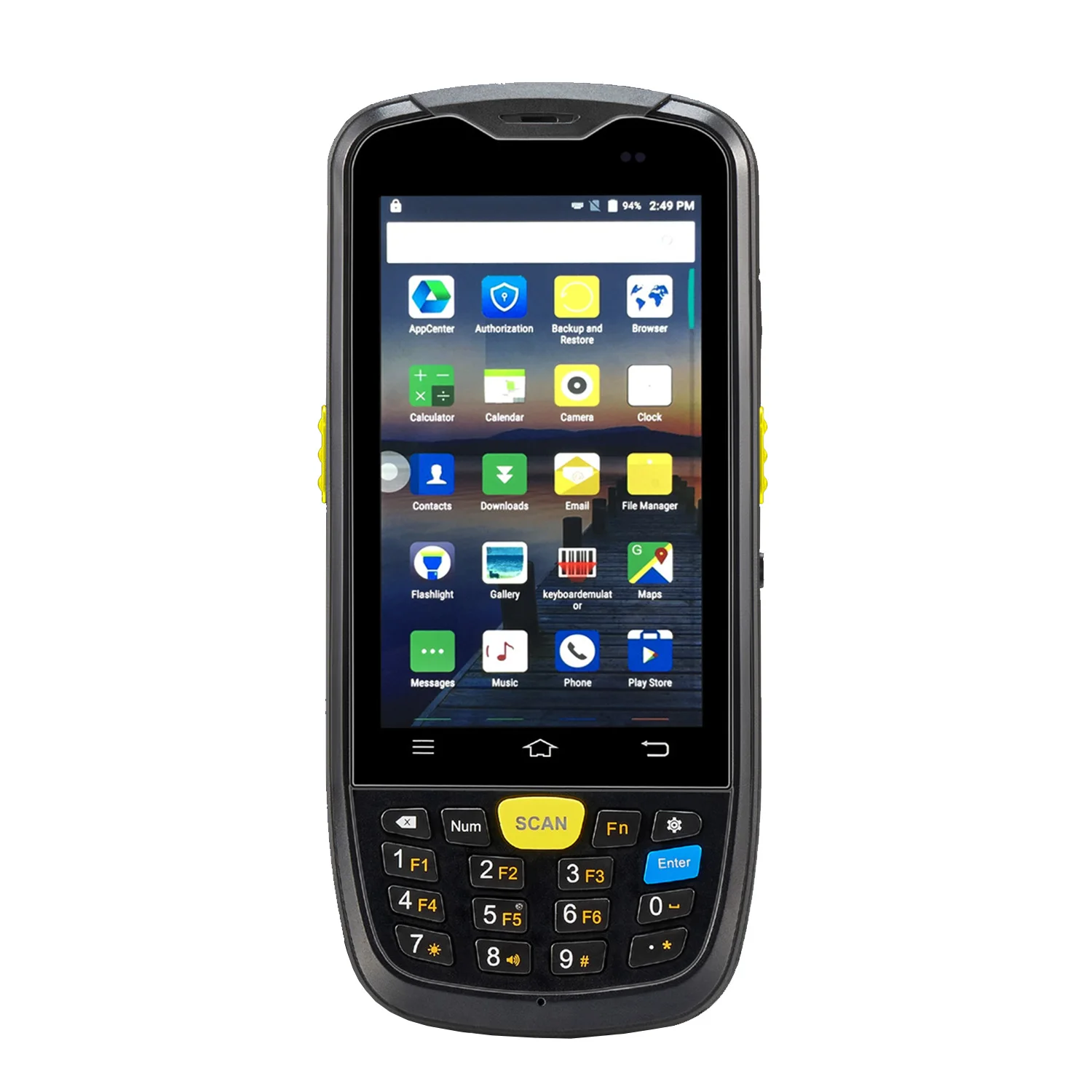

handheld pda (5).jpghandheld pda (9).jpghandheld pda (11).jpg






































































































































































































































HANDHELD NFC READER SPECIFICATION CHART


Physical Characteristics


Dimension


157.6 x 73.7 x 29 mm


Display


4 in. TFT-LCD touch screen with backlight, 16.7M colours, 480W x 800L (WVGA)


Touch Panel


Rugged dual touch capacitive touch panel


Keypad


Numeric


Power


Main battery: Li-ion, rechargeable 4000mAh


Expansion slots


1PSAM, 1SIM, 1MicroSD(TF) slot


Audio


0.5W speaker, build-in microphone


Interfaces


USB Micro-B


Sensors


Light Sensor, Proximity Sensor


Performance


CPU


Cortex-A7  1.0GHz quad-core


RAM


2GB


ROM


16GB


Expansion


Supports up to 32GB Micro SD card


Programming Environment


Operating System


Android 6.0


SDK


Chainway software development kit


Language


Java


Tool


Eclipse / Android Studio


User Environment


Operating Temperature


-10 to 50℃ / 14 to 122℉


Storage Temperature


-40 to 70℃ / -40 to 158℉


Humidity


5% - 95%RH (Non-condensing)


Sealing


IP65, IEC Compliance


Drop Specification


Multiple 1.5m drops to concrete across the operating temperature range


Tumble Specification


1000 x 0.5m / 1.64ft. falls at room temperature


Communication


WLAN


WiFi IEEE802.11 a/b/g/n





WWAN (1)



2G: GPRS (900/1800MHz)


3G: WCDMA B1, B8


4G: FDD-LTE: B1, B3, B7, B8, B20





WWAN (2)



2G: GPRS (850/1900MHz)


3G: WCDMA B1, B2, B5


4G: FDD-LTE: B2, B4, B7, B17


BT


BT 4.0


GPS


GPS, AGPS


Barcode Scanners (Optional)


1D Linear Scanner



1D Laser/CCD


Symbol SE965


Symbologies


All major 1D barcodes


2D Imager Scanner



2D CMOS laser scanner


Symbol SE4500


Symbologies


Data Matrix, QR Code, Aztec Code, PDF417, US Planet, UK Postal, etc


RFID Reader (Optional)


HF



Frequency


13.56MHz


Protocol


ISO14443A/B, ISO15693


Range


3-8cm


NFC



Frequency


13.56MHz


Protocol


ISO/IEC 18092 (ECMA 340), ISO/IEC 21481 (ECMA 352)


Range


2-4cm


Other Modules (Optional)


Camera


8MP autofocus camera with flash


*NOTICE: Product specifications are subject to change without notice.
