Linkable led linear light bar fixture for warehouse
What's the benefits of our Linear Trunking System?
Standard Linear Lighting Working on trunking+lamp system With emergency lighting function, dimming & Multi-sensor system
1.Cost-effective light-line solution for industry,commercial and other applications
2.Good quality of light with high lumen output to meet different requirements
3.Easy to order and install,requiring less time,reducing packaging waste and complexity
4.Flexible solution
Parameter
Item
LL-35
LL-50
LL-70
Gross Power
35W
50W
70W
Length
1500mm
Phase
3
Color temperature
2800-6500K
LED type
SMD2835
Operating voltage
AC100-240(European Standard) or AC100-277V (North America Standard)
Material
Steel
Dimming
DALI, 1-10V, PMW
Luminous flux
5600lm
8000lm
11200lm
Luminous efficacy
>160LM/W
IP rating
IP20

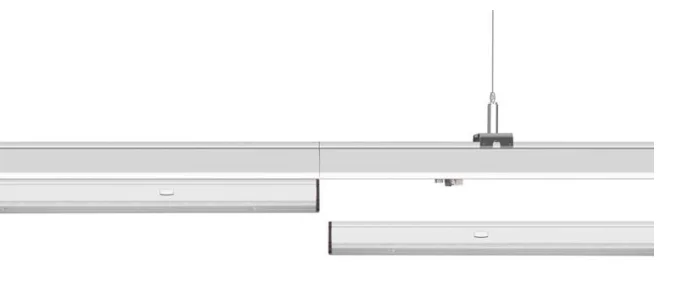

Node Connector
T, L, X for cross lines
CRI
Ra80
Working temperature
-40 to 60 degree
Power factor
>0.95

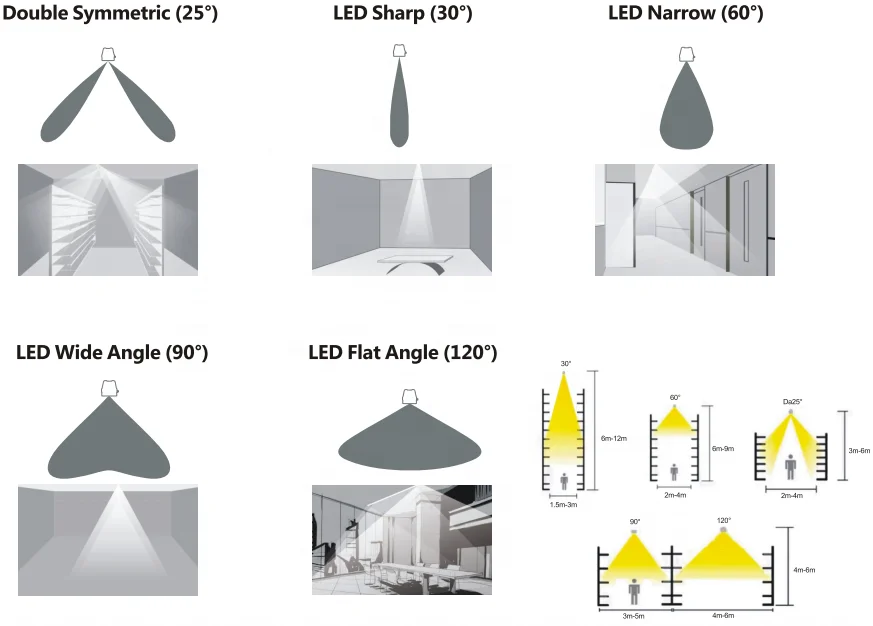

Beam angle
30°, 60°, 90°, 120°, double asymmetrical,symmetrical,flat PC cover
Advantages:
1. High luminous efficiency (>160lm/w) due to good quality LED whose source from Samsung chip in Korea. Life time of our led linear is more than 50000hrs. 2. Multi-functional dimming: DALI, 1-10V and switch dimming are available.
