Product Overview
Description
Product Description
Vibration Meter VM-6360
Vibration Measuring Tester Measuring Instrument VM-6360
Applications:
China vibration meter Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Vibration meter tester Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.

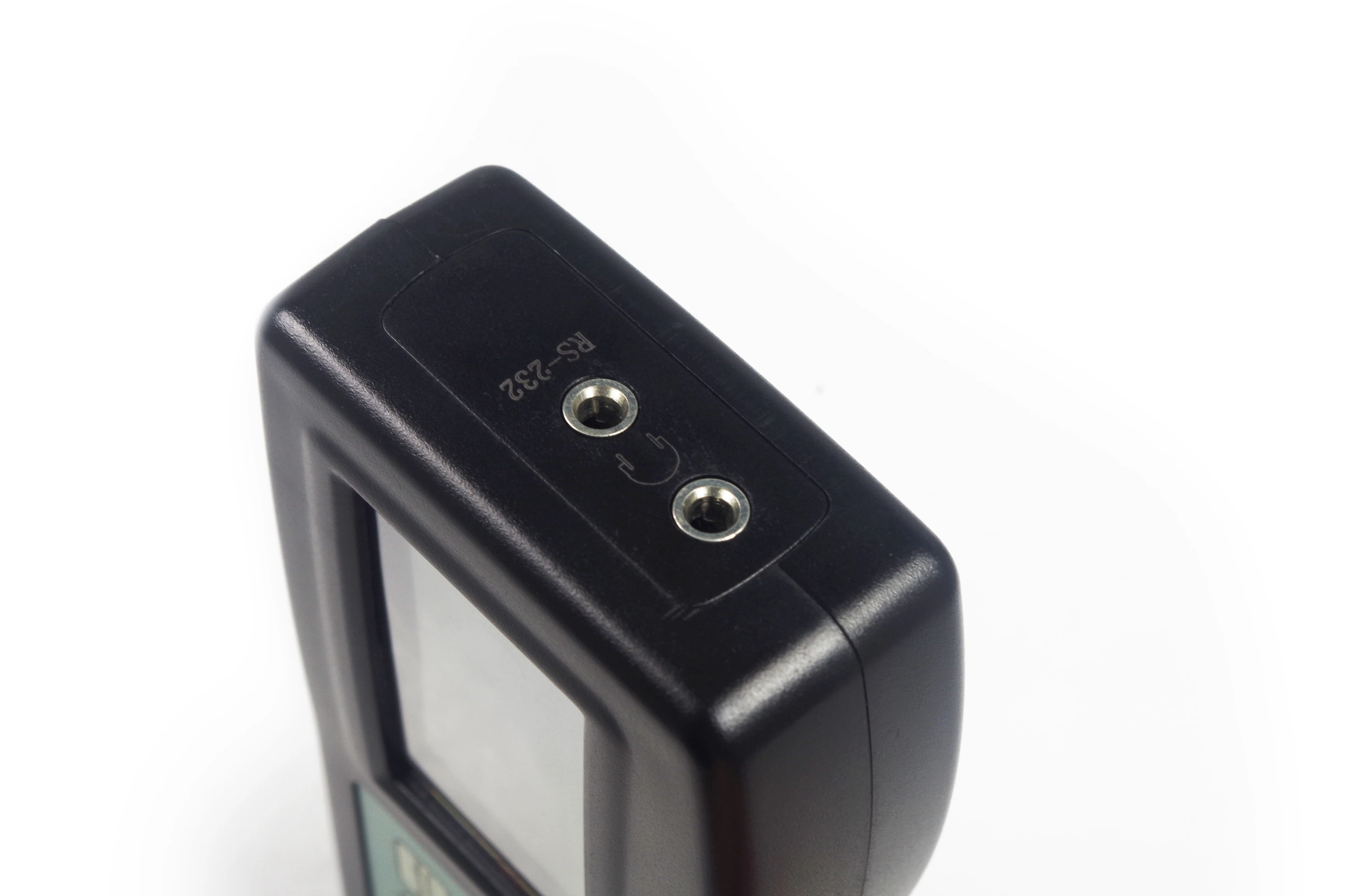

* Use “USB data output” and “RS-232 data output” to connect with PC. vibration meter usb
* Provide “Bluetooth ™ data output” choice.
Details
Model | VM-6360 |
Sensor | Piezoelectric Transducer |
Measuring Range
| Acceleration:0.1m/s²~400m/s² |
Velocity:0.01mm~400mm/s True RMS | |
Displacement:0.001mm~4.0mm Equivalent Peak-peak | |
Frequency Range
| Acceleration:10Hz~10kHz |
Velocity:10Hz~1kHz | |
Displacement:10Hz~1kHz | |
Accuracy | 5% of Reading+2 digits |
Operating Conditions
| Temperature:0℃~50℃ |
Humidity:<90%RH | |

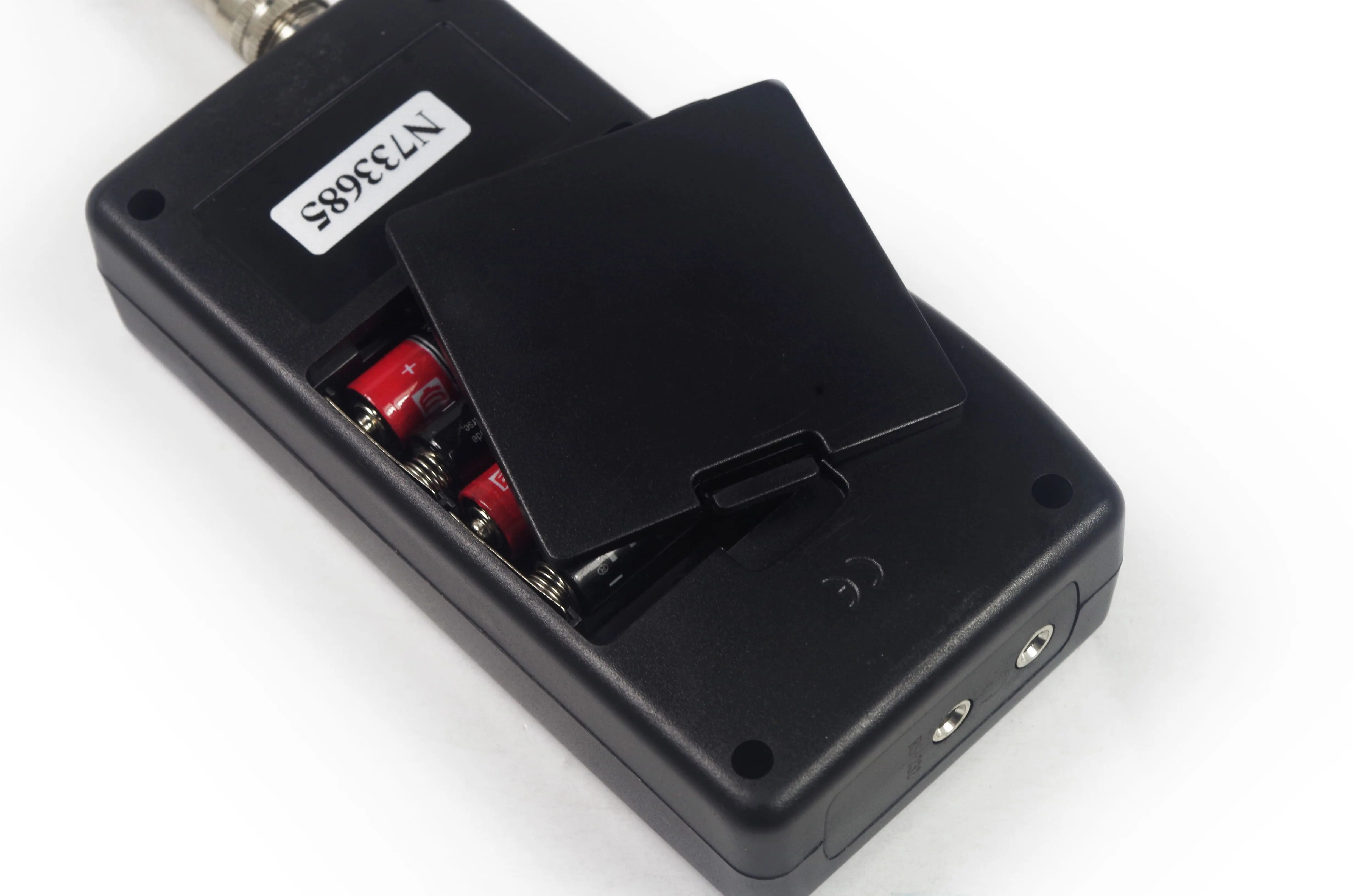

Power Supply | 4x1.5V AAA(UM-4)Battery |
Dimensions | 124mmx62mmx30mm |
Weight | 120g(Not Including Batteries) |

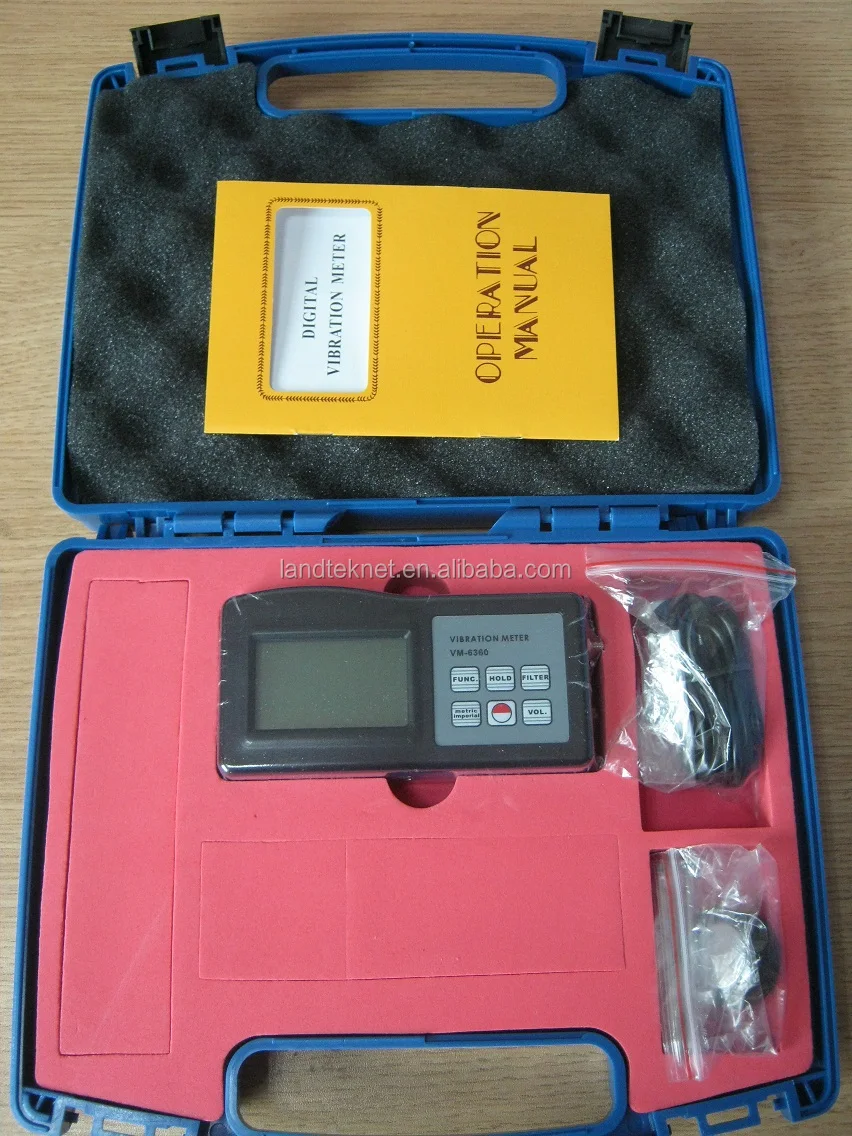

Standard Accessories
| Main Unit |

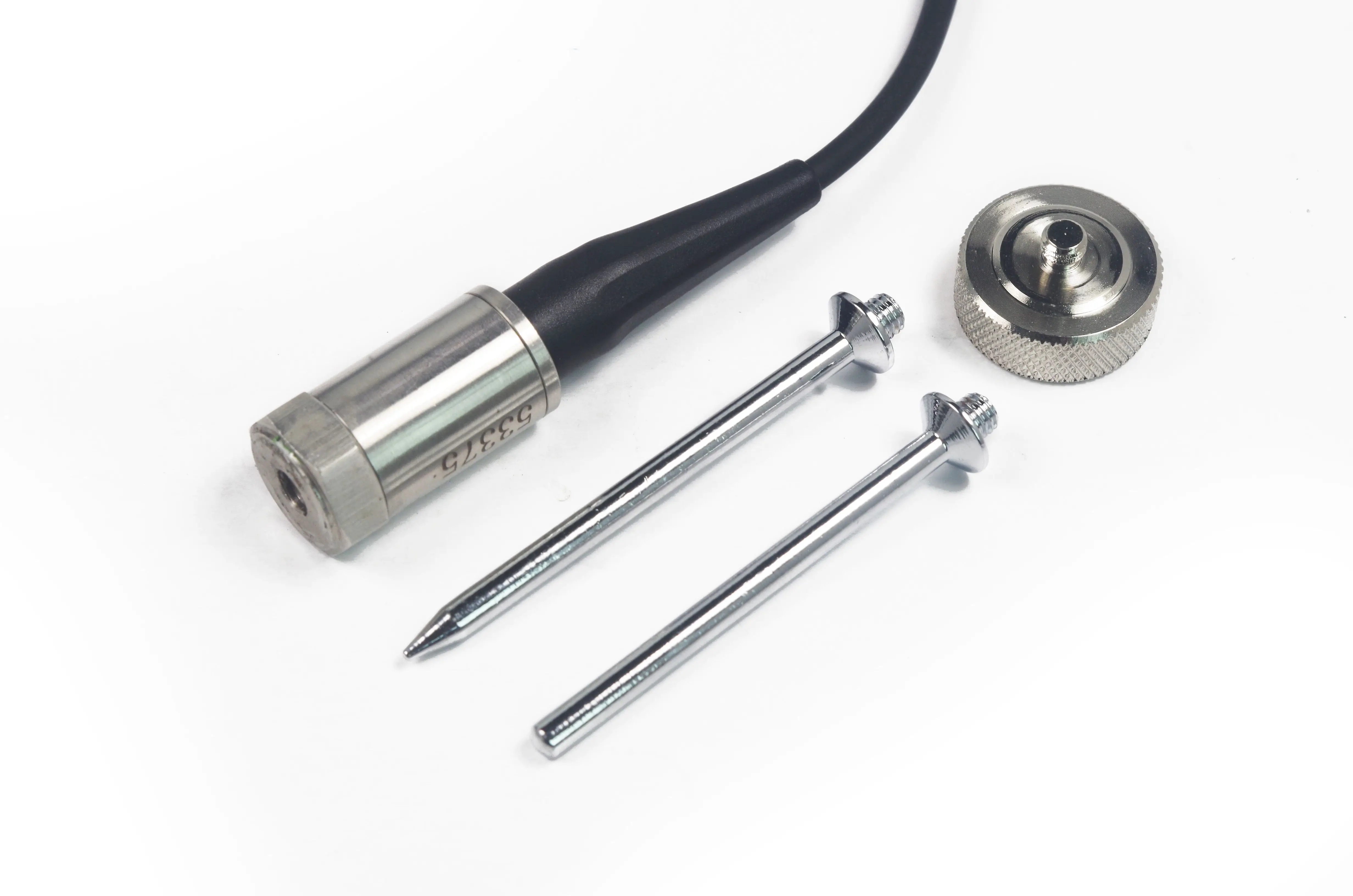

Piezoelectric Transducer | |
Powerful Rare Earth Magnet | |
Probe(Cone)&Probe(Spherical) | |
Carrying Case(B04) | |
Manual Book | |
Optional Accessories
| Headset |
RS-232C Data Cable with Software | |
Bluetooth Data Adapter with Software |
For more details,please feel free to contact us.Thank you!
Packaging & Shipping
1 unit, the gross weight is 1.5kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 9.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 17.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA
Our Services
Quality assurance for one year,and forever maintainence.
