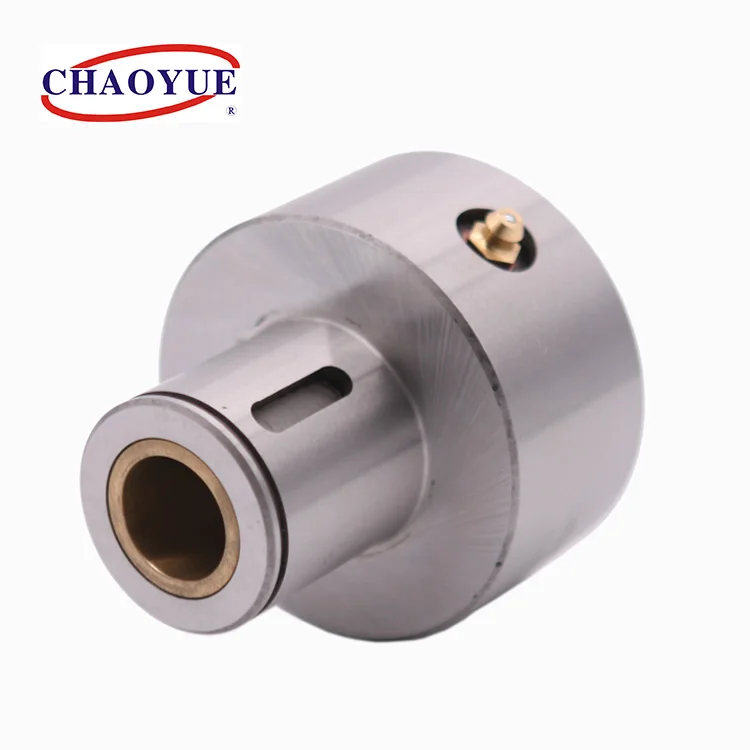

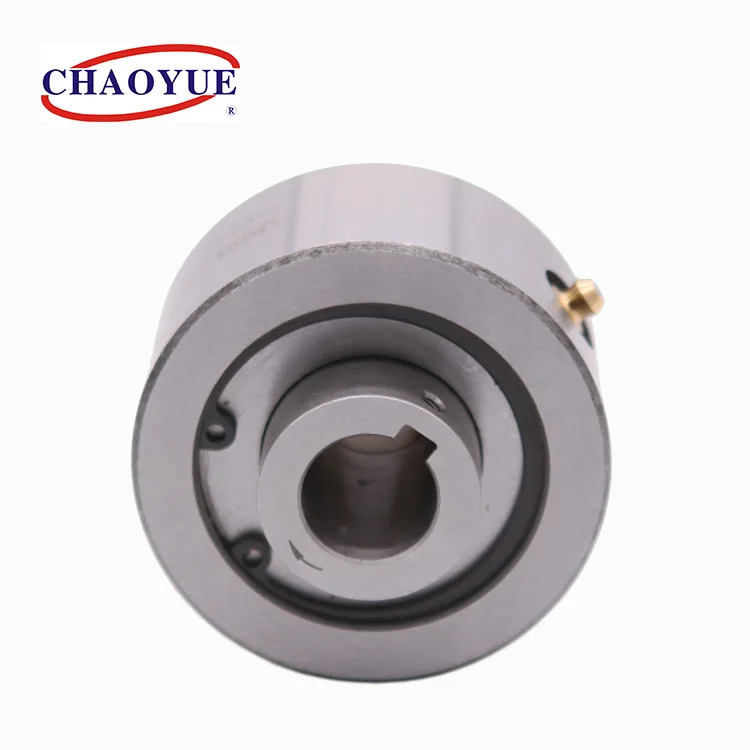

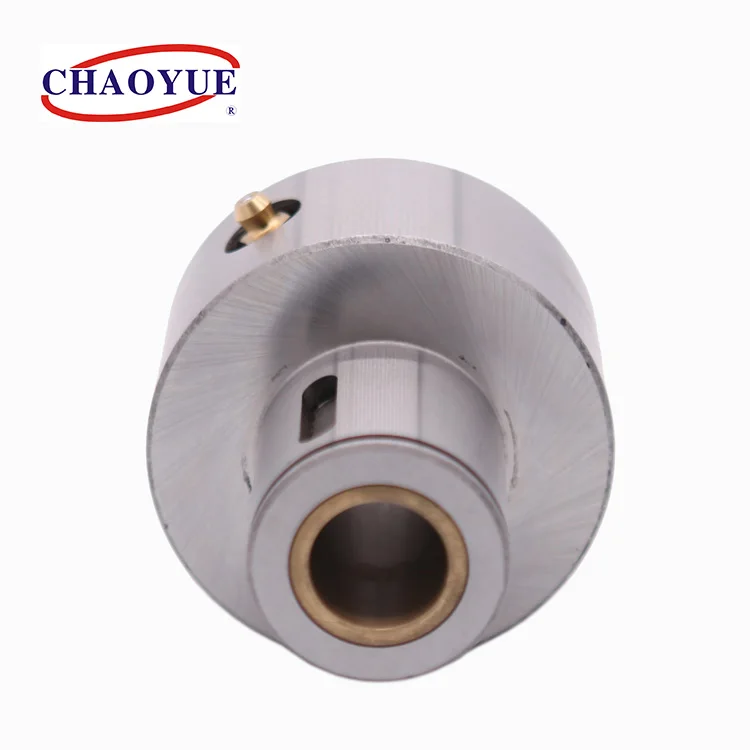

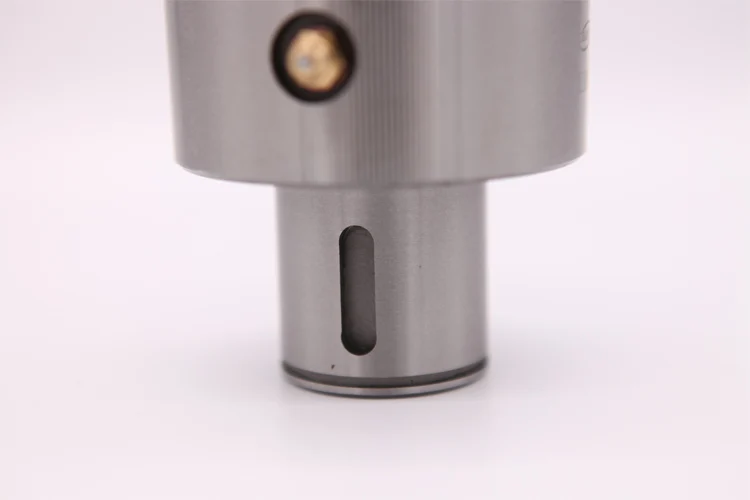

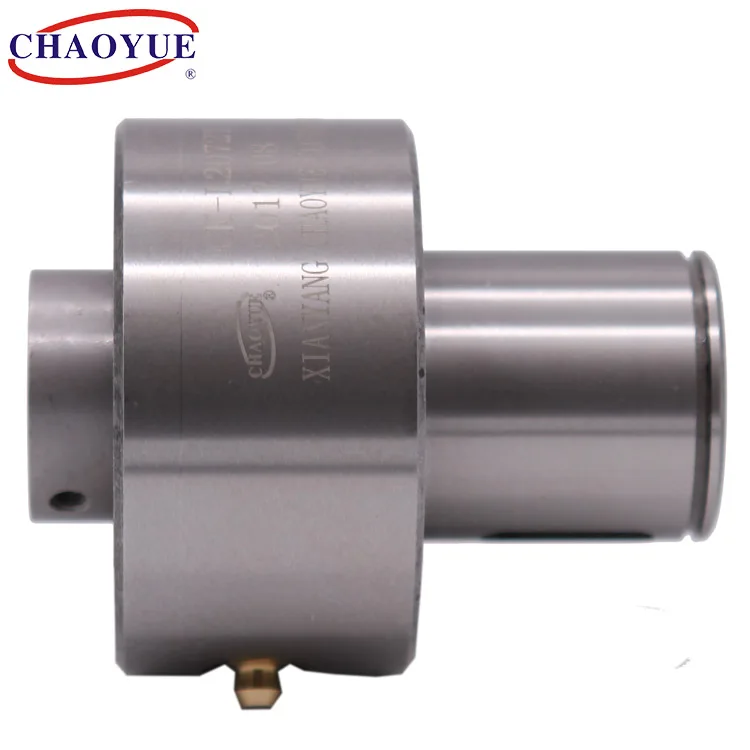

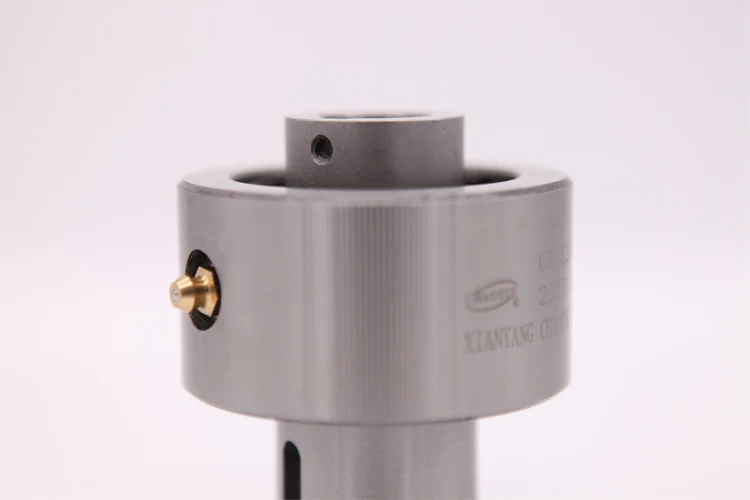

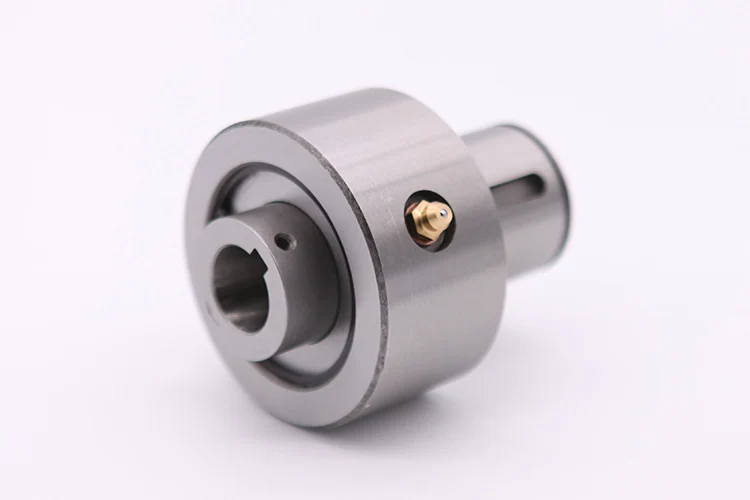

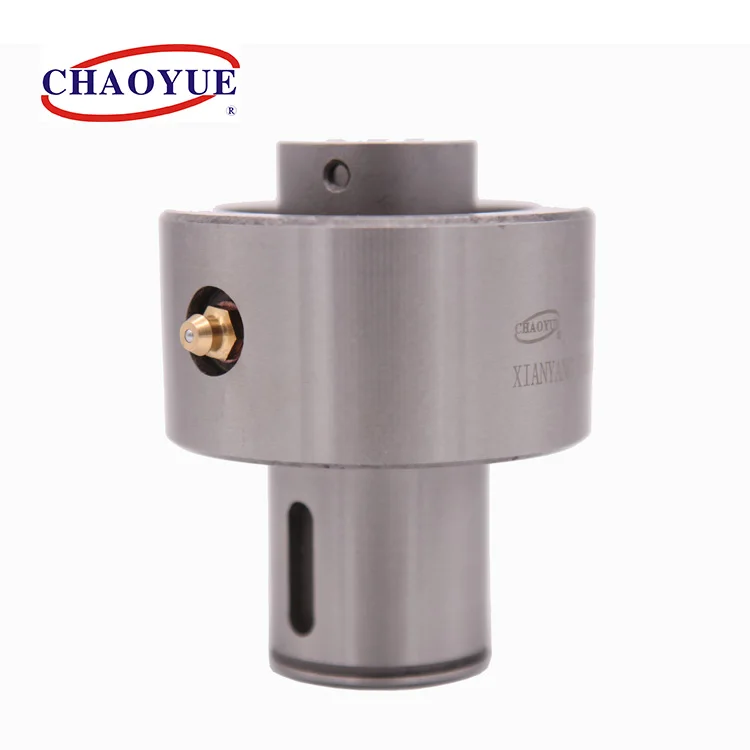

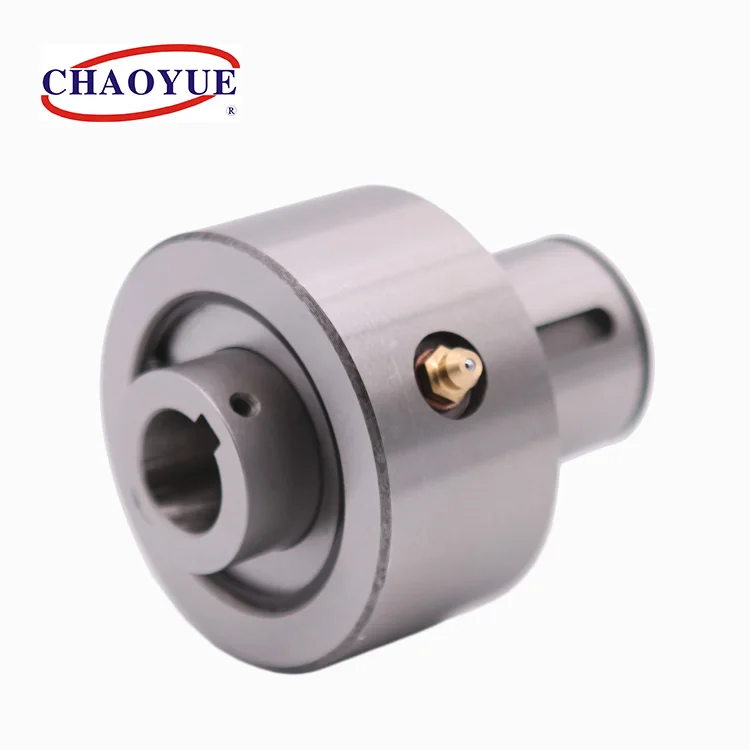

Description: Type CK-L is a sprag type freewheels, bearing supported. It mainly used in occasion of lower speed and insufficient space. It needs seal and grease when used.

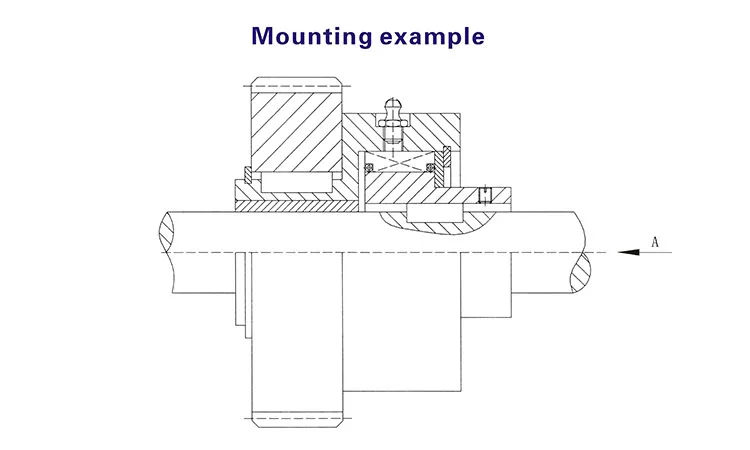

This series can connect with gears, Sprocket. But can not bear flash and use as coupling. Please specify inner race direction of rotation seen from the A side.
This series extensive used in mechanism of packing, printing, weaving and so on, to realize overrunning, indexing and Backstop.
Parameter of PB8 Cam Clutch Bearing One Way Clutch Supplier
TYPE
RATED
TORQUE
[N·m]
OVERRUNNING
SPEEDS [r/min]

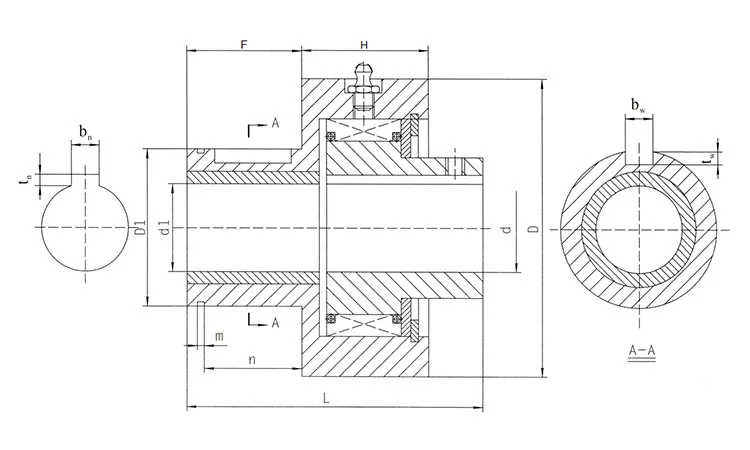

DIMENSION
WEIGHT
[kg]
INNER
RACE
OUTER
RACE
d
[H7]
d1
[F8]
D
D1
[h7]
F
H
L
m
n
bw×tw
bn×tn
CK-L1560
86
1260
765
15
15
60
32
25
32
70
1.3
21
6×3.5
4×1.5
0.58
CK-L2072
225
1050
680
20
20
72
38
33
38
82
1.7
29
6×3.5
6×2.8
1.17
CK-L2585
330
840
552.5
25
25
85
45
33
40
85
1.7
28
14×4.5
8×3.3
1.67
CK-L3085
330
840
550
30
30
85
48
35
35
85
1.7
31
8×4
8×3.3
1.78
CK-L3095
490
700
340
30
30
95
60
37
41
92
2.2
30
8×4
8×3.3
2.50
CK-L40115
900
560
255
40
40
115
65
37
50
100
2.7
30
12×5
12×3.3
3.60
CK-L45135
1240
490
255
45
45
135
75
41
54
112
2.7
35
14×5.5
14×3.8
6.00
Company Information
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: Are you factory or trading company ?
A : Xianyang CHAOYUE Clutch Co., Ltd was founded in 1999. We are a professional locking assembly & clutch manufacture with 20 years' experance of R&D.
Q: How to get price ?
A: Kindly info us with the product type and we will quote you ASAP.
If you are not sure about these details , pls just tell us :
Inner diameter is mm, outer diameter is mm, width is mm, torque range is kN·m,
Q: What's the MOQ ?
A: The minimum order quantity for most of our product is 1 pcs.
