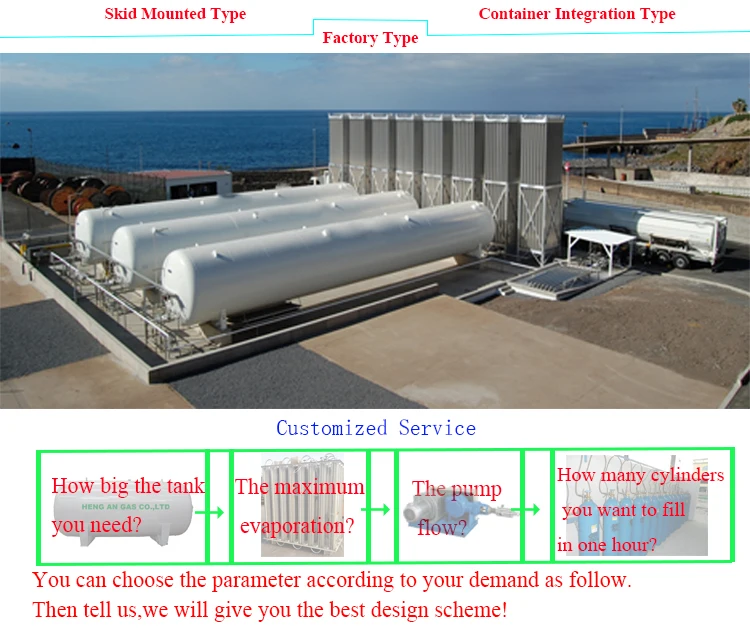

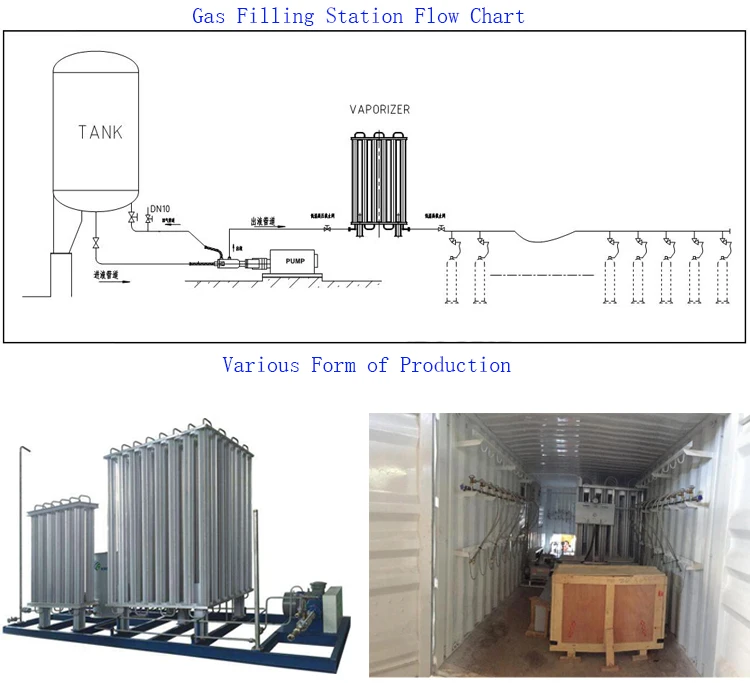

This gas filling station uses liquid gas (LO2, LN2, LAr, LCO2,LNG,LN2O) to fill high pressure gas cylinders, itis converted to high pressure gas by cryogenic pump, vaporizer, filling manifold, to fill cylinders(CO2 doesn’t use vaporizer to fill).
Factory Show
Th
The tanks type to choose
Type
Volume
(m3)
Wording Pressure
(Mpa)
Media
Way
Size
(Dia×Height mm)
CFL-2/0.785
2
0.785
liquid
oxygen
argon
nitrogen
LNG
N2O
Upright
φ1816×3350
CFL-3.5/0.785
3.5
0.785
φ2016×4750
CFL-4.5/0.785
4.5
0.785
φ2016×5450
CFL-5/0.785
5
0.785
φ2016×5800
CFL-10/0.785
10
0.785
φ2216×7100
CFL-15/0.785
15
0.785
φ2616×6950
CFL-20/0.785
20
0.785
φ2616×8760
CFL-25/0.785
25
0.785
φ2616×10600
CFL-30/0.785
30
0.785
φ3020×8900
CFL-50/0.785
50
0.785
φ3116×12060
CFL-100/0.785
100
0.785
φ3620×17250
CFL-100/0.785
100
0.785
φ3620×17250
CFL-5/1.57
5
1.57
φ2016×5800
CFL-10/1.57
10
1.57
φ2416×6120
CFL-15/1.57
15
1.57
φ2616×6950
CFL-20/0.2
20
0.2
φ2616×8760
CFL-20/1.57
20
1.57
φ2616×8760
CFL-25/0.2
25
0.2
φ3020×7900
CFL-25/1.57
25
1.57
φ3020×7900
CFL-30/0.2
30
0.2
φ3020×8900
CFL-30/1.57
30
1.57
φ2920×9600
CFL-50/0.2
50
0.2
φ3216×12060
CFL-50/1.57
50
1.57
φ3216×12060
CFL-100/0.2
100
0.2
φ3620×17250

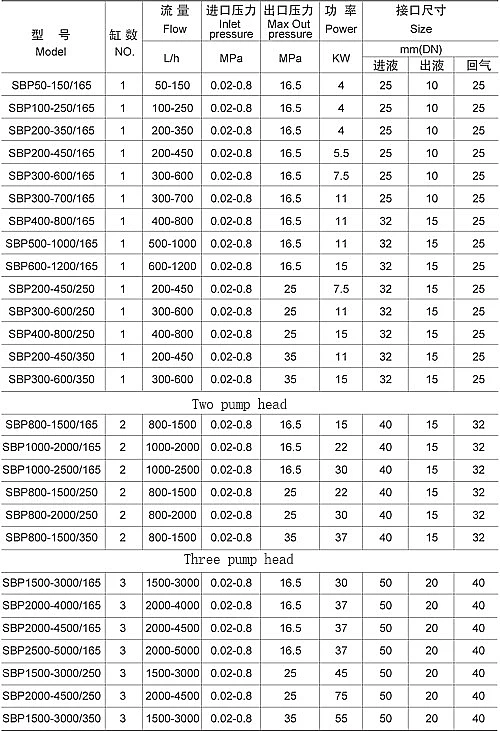

The pump type to choose
We can suggest the vaporizer and gas filling manifold size according to your choice.
High Purity Gas

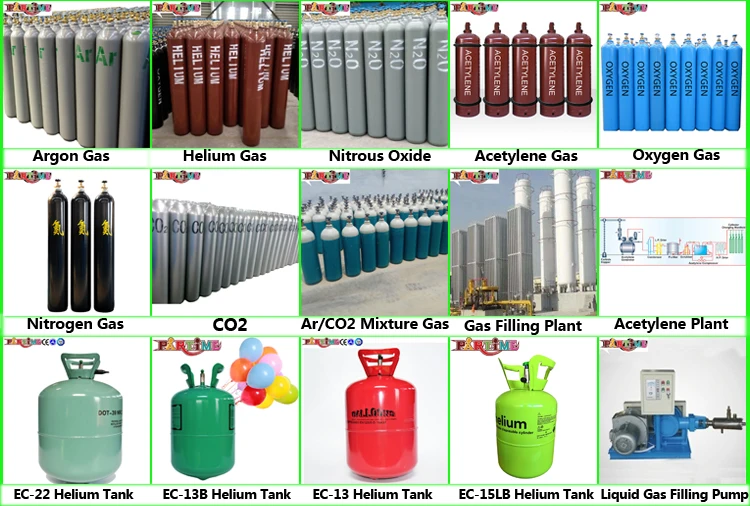

Our best selling gas:
99.999% Argon Gas
99.9% Acetylene Gas
Food Grade 99.9% N2O
99.999% Helium Gas
99.999% Oxygen Gas
99.999% Carbon Dioxide
Other Industrial Gas
We also have other high-quality popular products.Please kindly check.

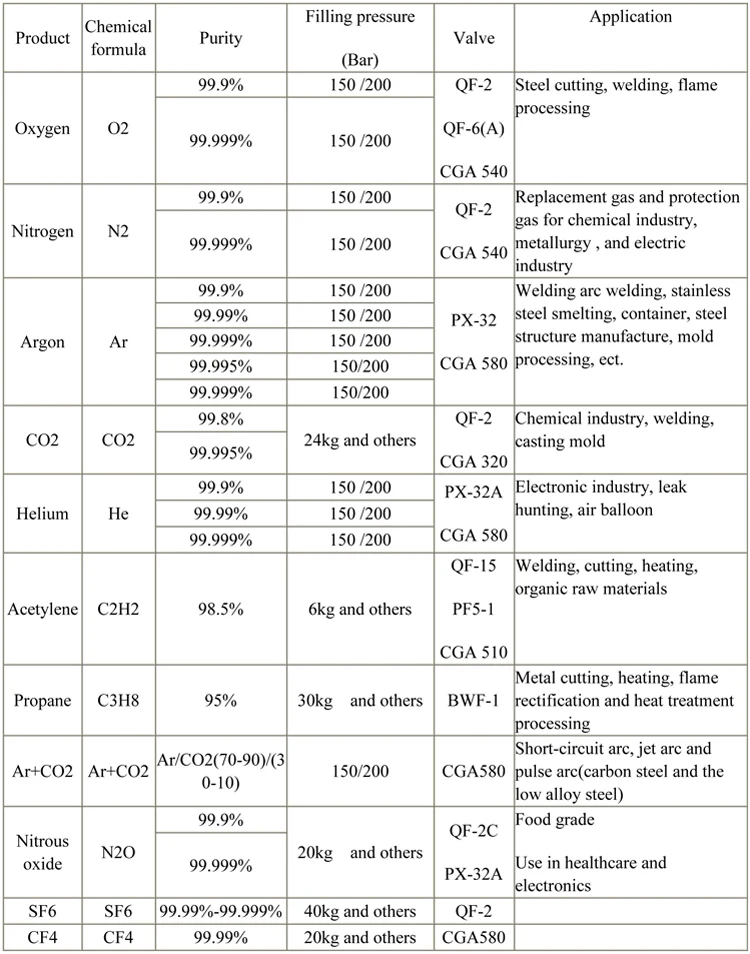

This is the gas parameter we supply.
FAQ
1: Are you trading company or manufacturer ?
We are factory and export cylinders for ourselves. It is a company integrating industry and trade.
2: How long is your delivery time?what is the items of payment?
With in 30 days after 30% TTdeposite,balance before before delivery.
3: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Th
