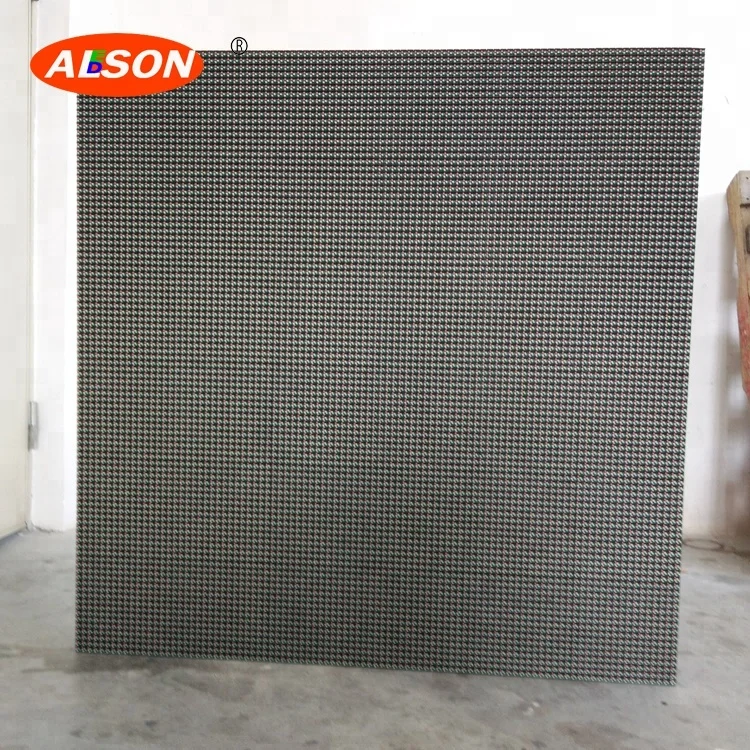

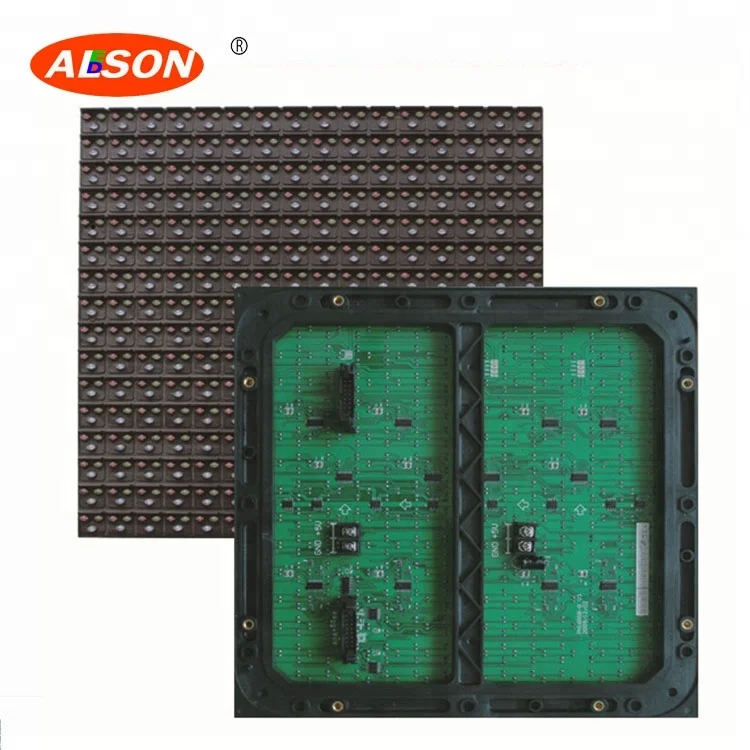

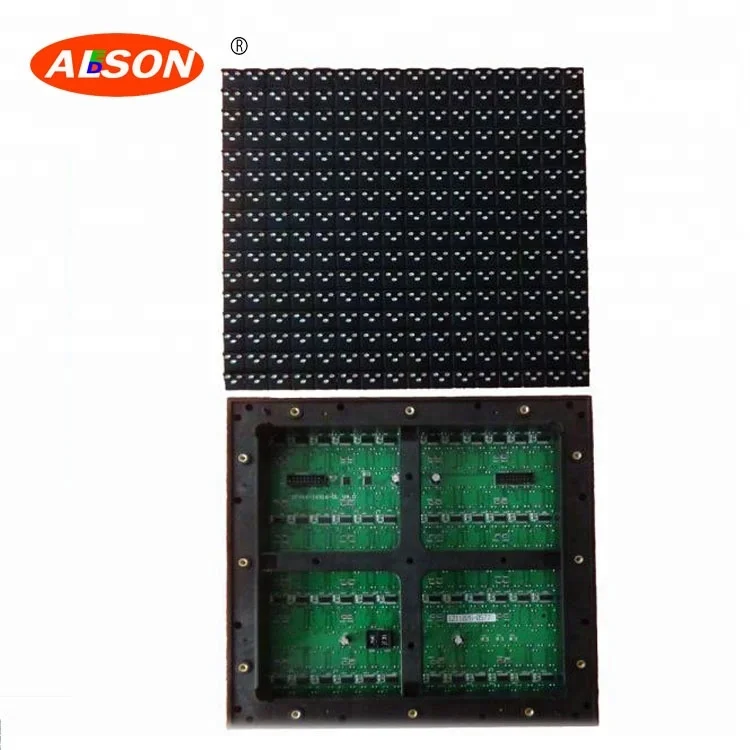

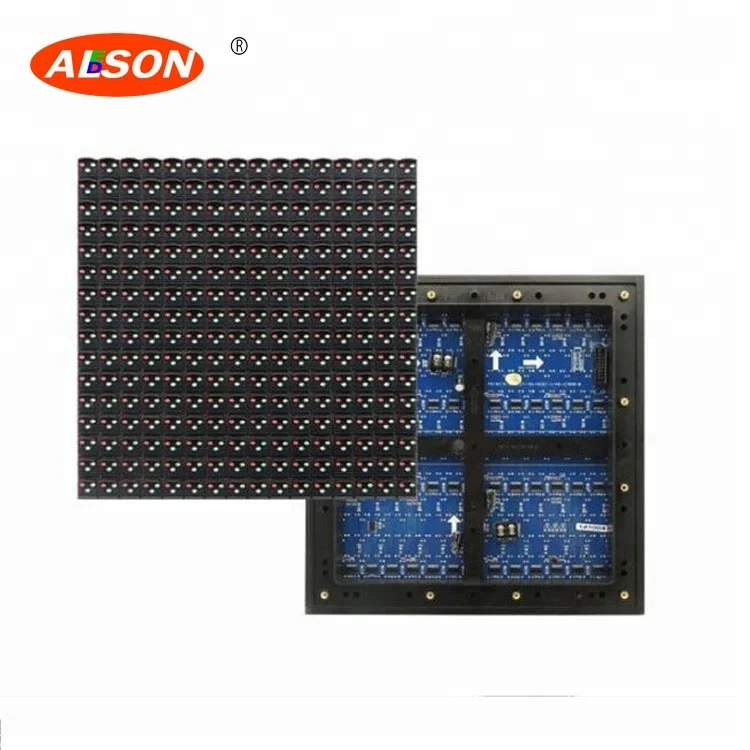

P16 Full Color LED Screen Panel, P16 DIP Outdoor LED Display Module

Product Overview

Description

P16 Full Color LED Screen Panel, P16 DIP Outdoor LED Display Module



Features:

P16 Full Color LED Screen Panel, P16 DIP Outdoor LED Display Module

1.DIP Outdoor P16 256*256mm LED advertising screen modules;

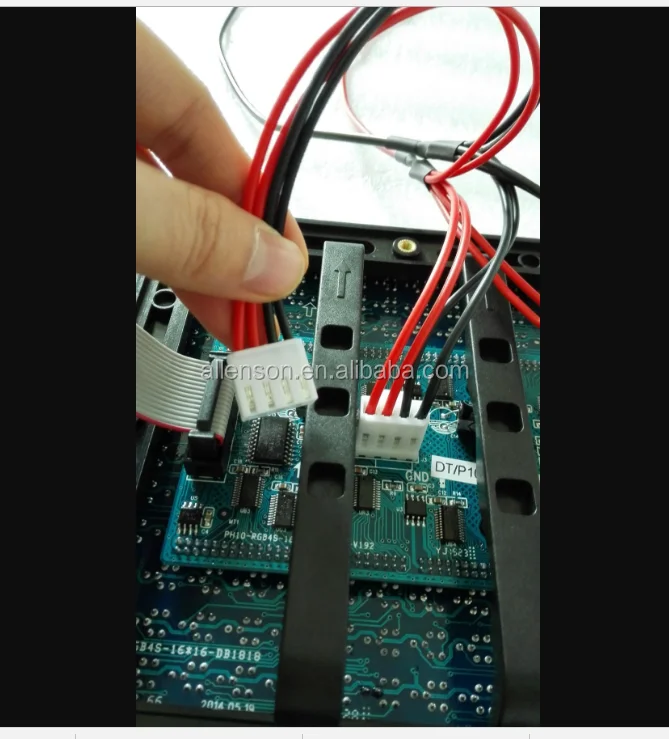

2.The Date and power cables are included in the module;
2.IP65 Water-proof and dust-proof rating, stable broadcasting in any weather condition;
3.Strict quality system control, high contrast and color uniformity;
4.High refresh rate with excellent visibility and good performance;
5.The module can work with Nova, Linsn, Colorlight, Xixun control card;
6.Two years warrenty time, ship in 24 hours, free support online;



 P16 LED Screen Panel Specification:

Item	Parameter
Name	P16 DIP Outdoor LED Display Module
Pixel Pitch	16mm(H*V)
Pixel Density	3,906dots/m2

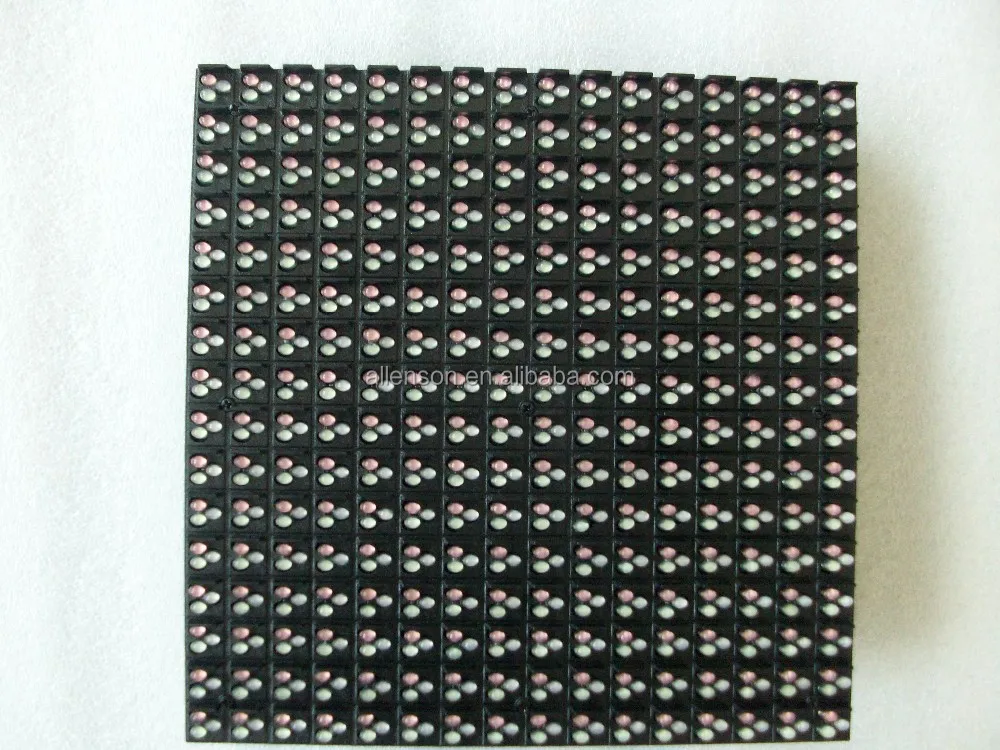

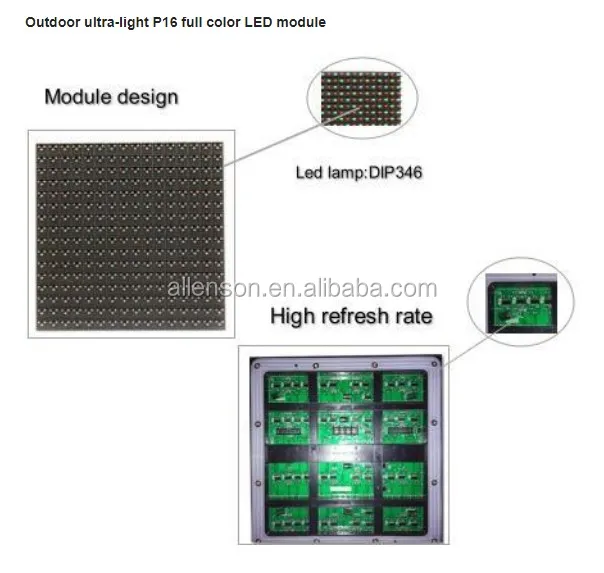

LED Shape	DIP346
LED Configuration	1R1G1B
Module Size	256x256mm
Module Resolution	16 (W)×16 (H)pixels
Driving Mode	Static

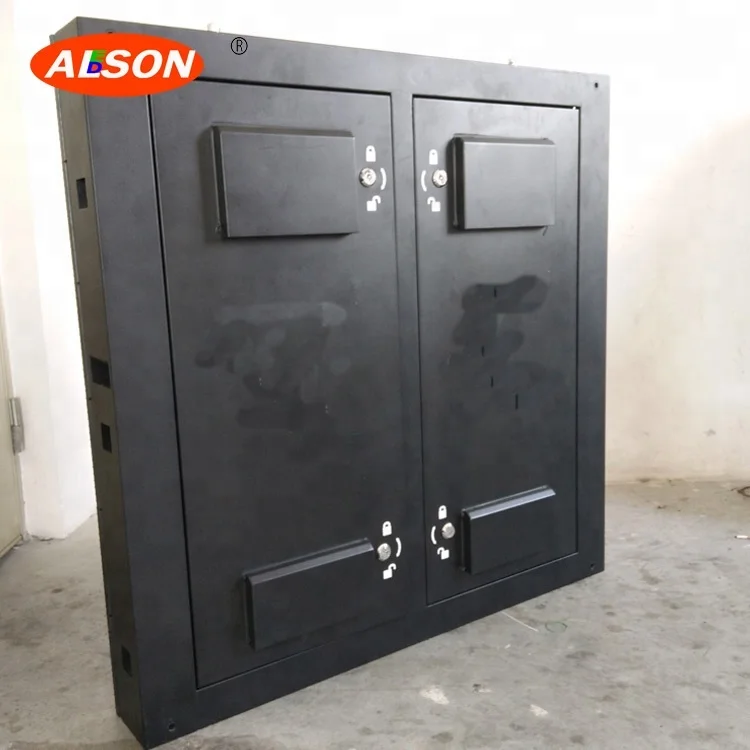

Cabinet Material	Steel or Aluminum
Brightness	≥7500cd/m2
Contrast	2000:1
View Angle	110°(horz.), 90°(vert.)
Protection Level	600 W/sq.m
Average Power Consumption	200 W/sq.m
Viewing distance	≥16m
Gray Scale	12-16bits for red,green,blue
Colors	16.7 M
Input voltage (AC)	110V ~ 240V
Frame Frequency	50Hz-75Hz
Refresh Rate	≥1200Hz
Brightness Adjustment	0-100%
Gamma Correction	(-0.5 -- 5.0)
Color Temperature	6500-9000K
Operation Control System	Nova; Linsn;Colorlight....
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Stock Temperature	(-40℃~+85℃)
Operating Temperature	(-30℃~+50℃)
Operating Humidity	10-90% RH
Life Span	100,000Hours
MTBF	≥10,000Hours
Protection Rating	IP65 waterproof
Control Distance	Cat5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km

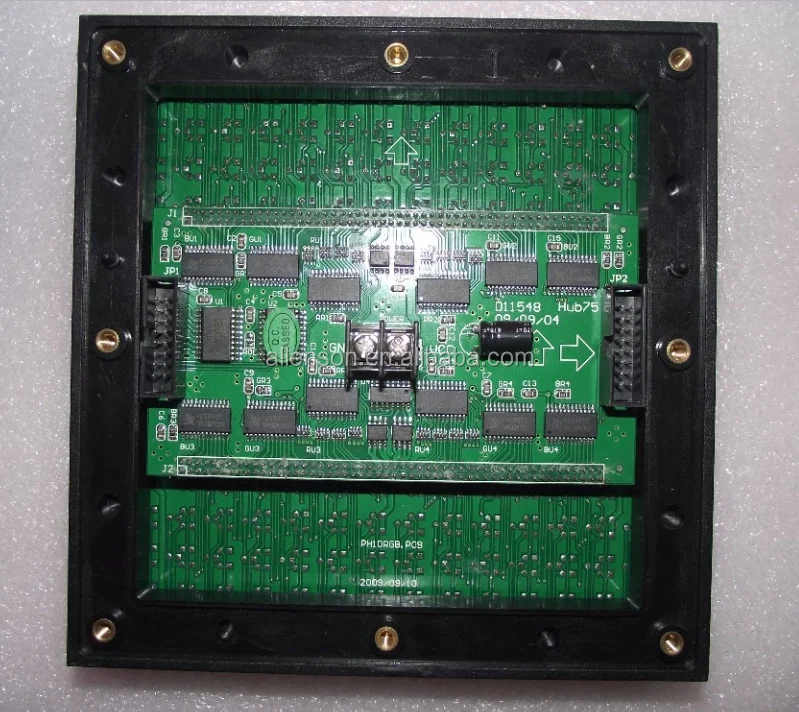

Led Billboard Details:



P16 Full Color LED Screen Panel, P16 DIP Outdoor LED Display Module
