Passive PoE Injector 10/100 Ethernet Speed Power Over Ethernet Injector Splitter for IP Camera CCTV Network

10/100 fast Ethernet PoE injector.

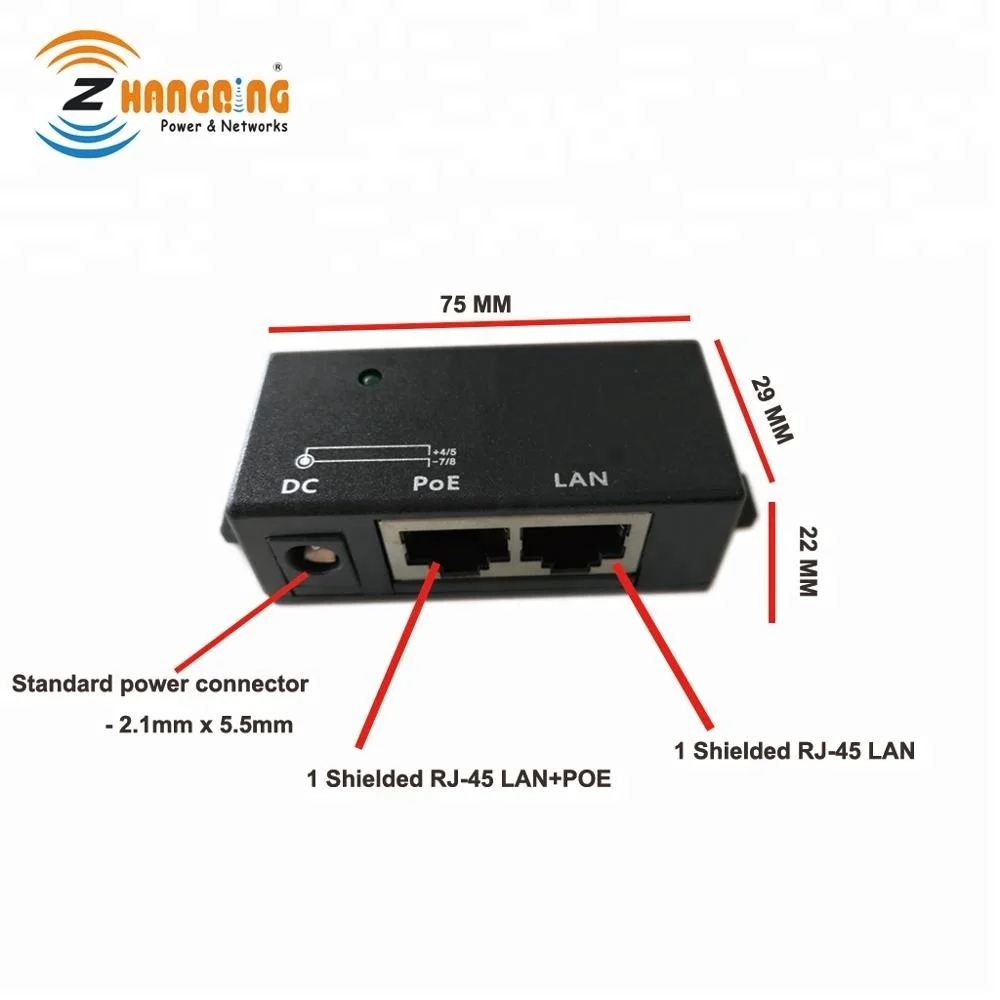

• 1 Port 10/100 Ethernet

– 1 Shielded RJ-45 LAN

– 1 Shielded RJ-45 LAN+POE

• Wall mount

• Use with any Ethernet switch

– PoE or non-PoE switches

• Standard power connector

- 2.1mm x 5.5mm

• Operating Temperature

– 0 to 65 deg C

• Mode B operation

- pins 4-5 (+) - pins 7-8 (-)

- reversing option – contact us

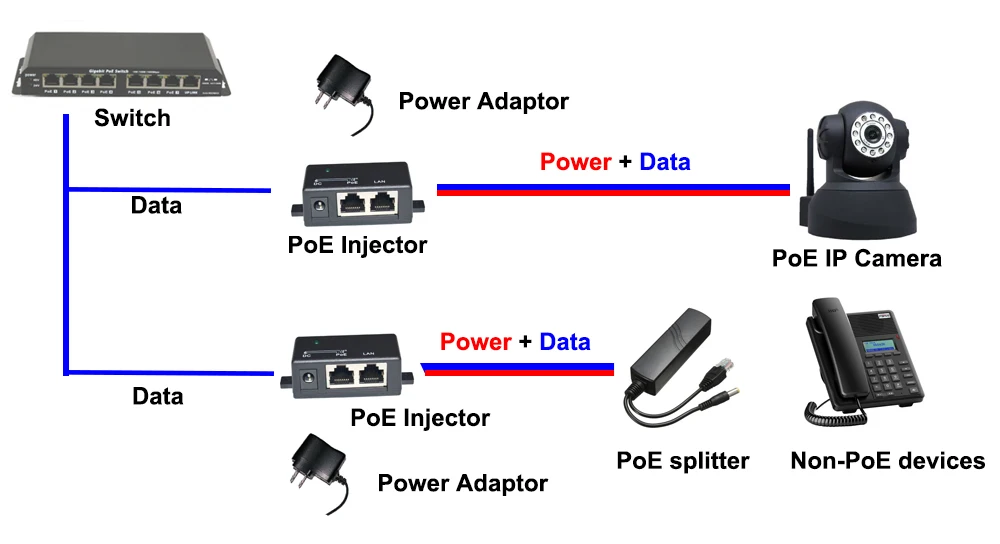

• Ideal for IP Cameras, VOIP phone, WiFi Access Points

• Power is always on

- no auto-negotiation

- powers 802.3af / 802.3at

devices “passively”
