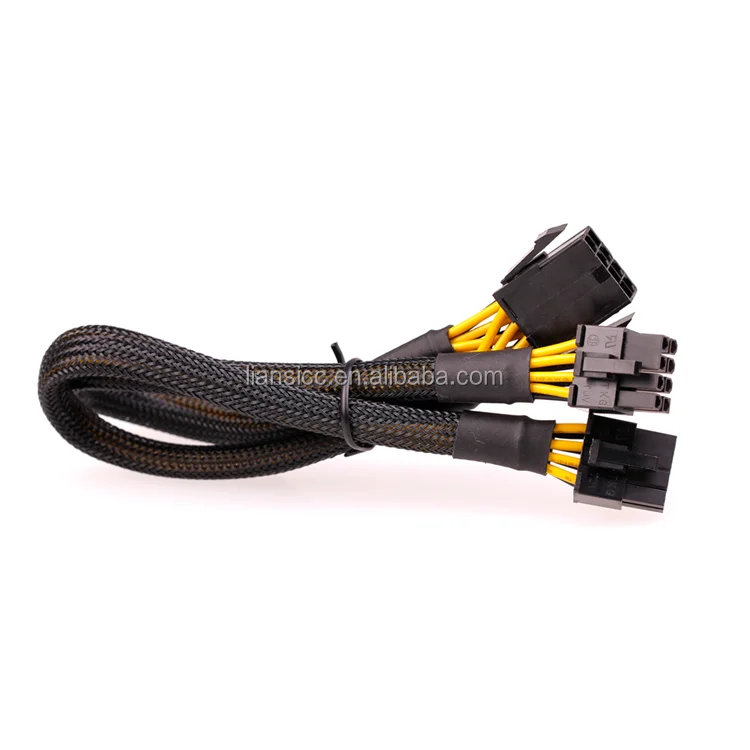

High Quality Sleeved 8pin to dual 8/(6 2)pin extension power supply cable

Product Overview

Description

LianSi ATX cable includes 4P,6P,8P,24P cable.Extension cable is usually used to extend the 4P 6P, 8P,24P cable from the PSU to the Mainboard if e.g. the Mainboard is mounted inverted or when using a bigtower.



One look and it's easy to see why LS Multisleeved Cables are superior to the competition.This level of quality means is that the cable underneath the sleeve is completely not visible, making LS Multisleeved Cables the best available on the market.





High Quality Sleeved 8pin to dual 8(6+2)pin extension cable power supply cable

8pin to 6+2pin extension cable



Product Features

• Type: ATX/PCI-E computer extension cables


• Length: 20cm,30cm,40cm and so on


• Sleeve colors: Black,White,Red, Blue,Orange,Green.....


• Customized lengths and  sleeve colors are accepted


• Application: Computers,Audio or Video


• Support small orders


• RoHS compliant


• Material: PET


• Wire: Standard 18AWG


• Connector: Male to Female



Detailed Description:

High Quality Sleeved 8pin to 6+2pin extension cable power supply cable



Materail:

1. Housing:PVC,LCP

2. Terminal:Phoshpor Bronze or gold plated

3. Singnal Wire: 26/28 AWG,Tinned Copper



Electrical:

1.  Hi-Pot Test:DC300V

2.  Insulation Resistance:10M Ohms(min)

3.  Contactor Resistance:1 Ohms(Max)

4.  100% Open Short and Miss Wire Test



Mechanic:

1.  Insertion Force:45N Max

2.  Withdrawal Force:15N Min

3.  Operating Temperature:-25 to +85 degree Celsius

4.  Transfer Rate:Supports 3.0Gbps



Friendly notice:The procducts color ,specification and length can be constomized



...
