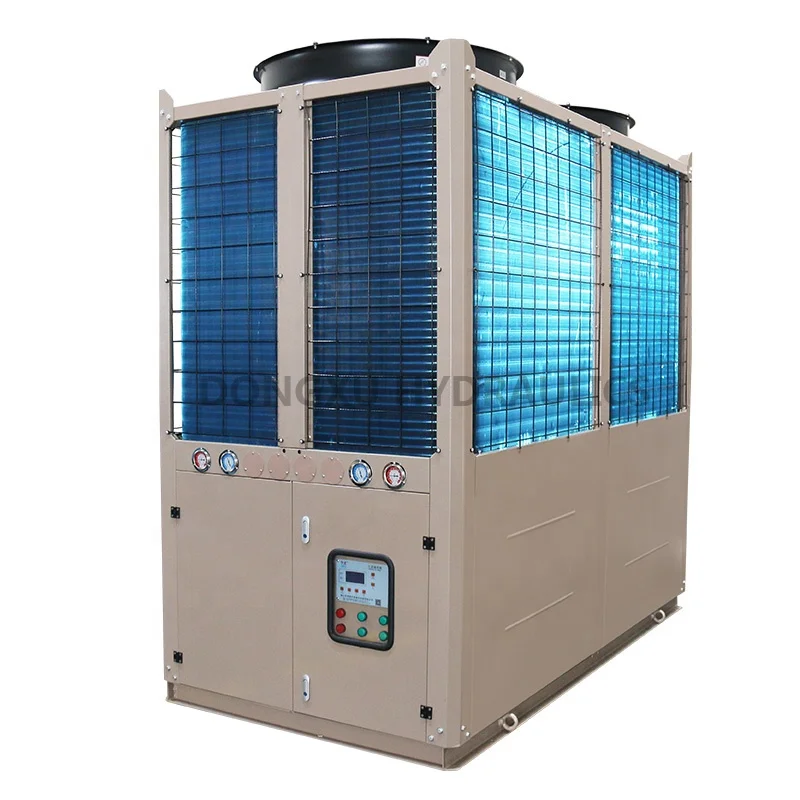

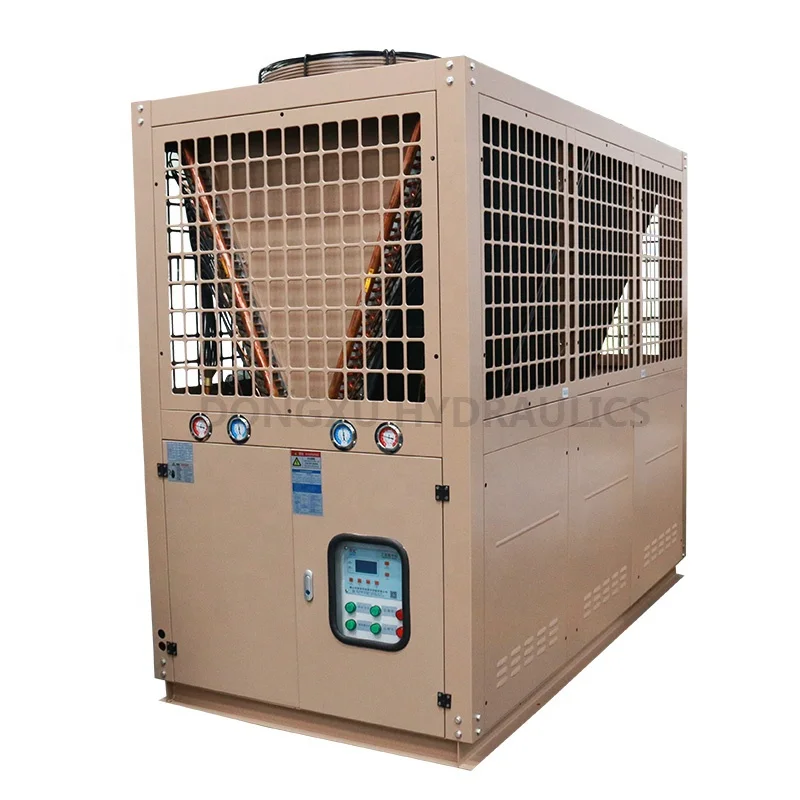

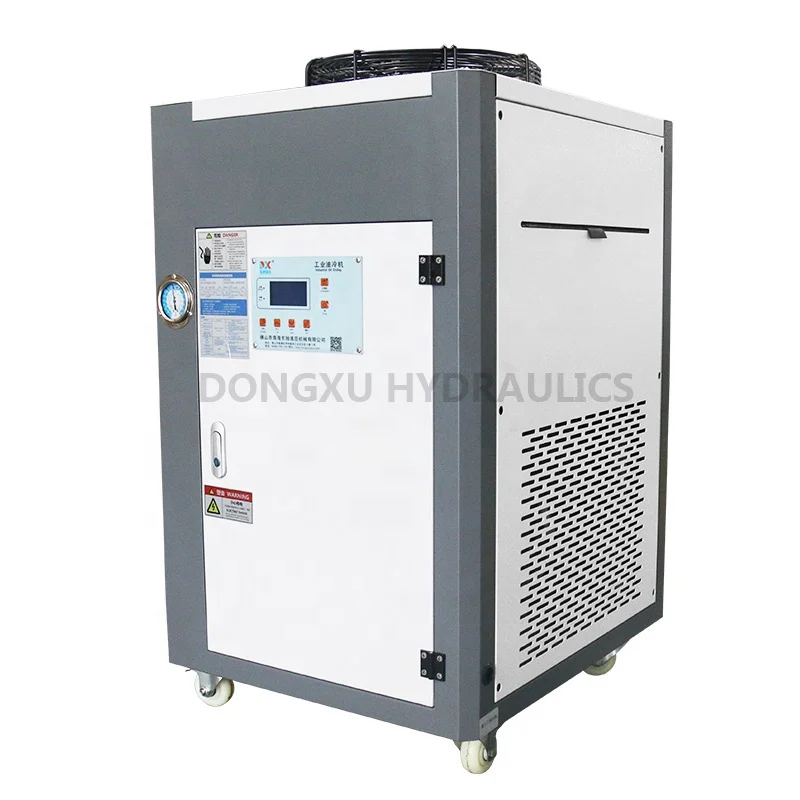

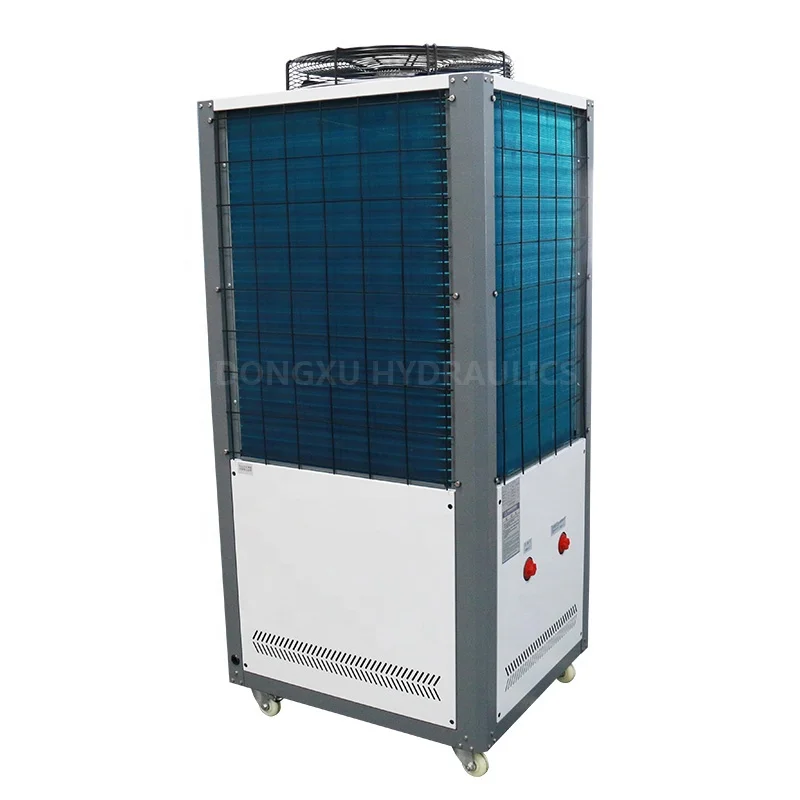

OEM/ODM Manufacturer Dongxu Chiller Refrigerant Evaporative High Efficiency Cooling DXY Oil Chiller
- Category: >>>
- Supplier: Foshan Nanhai Dongxu Hydraulic Machinery Co. Ltd.
Share on (60774604946):
Product Overview
Description
Product Description
“Superior quality level is persistence”
We always focus on quality control and our well trained QC team must 100% test each product regardless of big or small orders.
OUR ADVANTAGES
1. Made-in-famous brand Main Engine is imported by Europe, America and Japan. Reliable operation, high effective, low noice.
2. Imported Water Pump is high resistance to pressure with longer service life.
3. LCD Board with high control precision, is widely applicating in serious usage range.
4. Worry-free Electric Protection System for phase shortage & phase sequence alteration, over-load protection and prevention of high & low pressure.
REMARKS
Our finished products are properly debugged by enginners. The users just connet our products with water pipes and electric wiring.
OEM/ODM Manufacturer China Chiller and Air Cooled Chiller Water, It uses the world's leading system for reliable operation, and a low failure rate, it is suitable for Argentina customers' choice. Our company is situated within the national civilized cities, the traffic is very convenient, unique geographical and economic conditions. We pursue people-oriented, meticulous manufacturing, brainstorming, build brilliant" business philosophies. Strict quality management, perfect service, and reasonable price in Argentina are our stand on the premise of competition. If necessary, welcome to contact us via our website or phone consultation, we'll be happy to serve you.

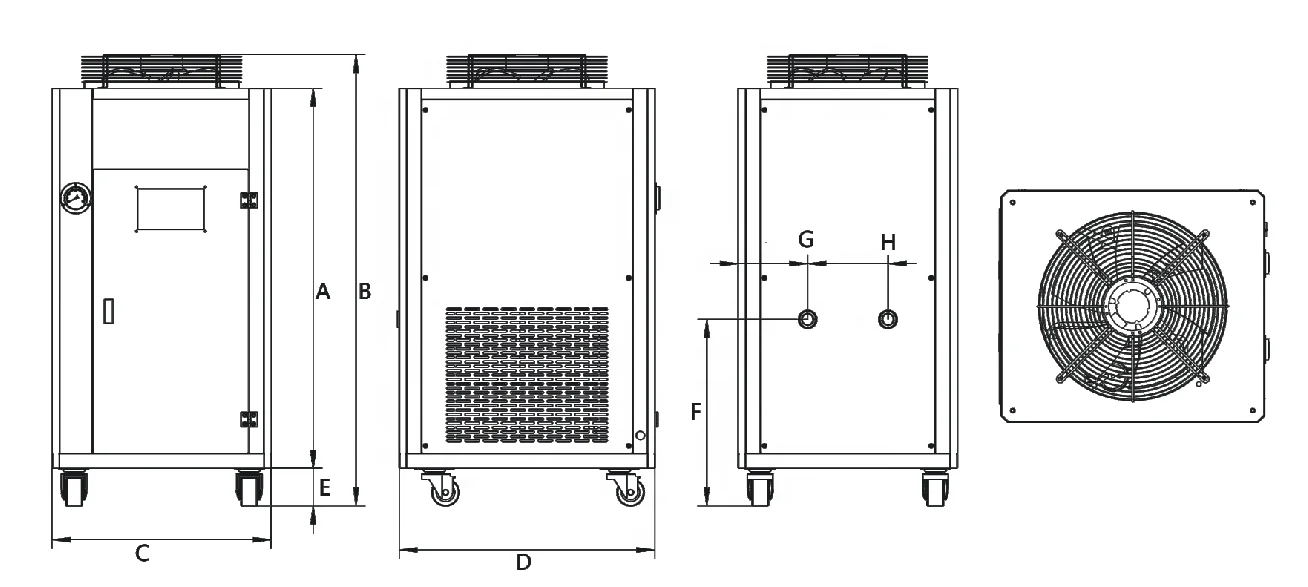

| Mounting Dimensions | |||||||||||||||
| Model | DXY-PA20 | DXY-PA30 | DXY-PA40 | DXY-PA50 | DXY-PA60 | DXY-PA80 | DXY-PA100 | DXY-PA120 | DXY-PA150 | DXY-PA200 | DXY-PA250 | DXY-PA300 | DXY-PA400 | DX-500 | DX-600 |
| A(mm) | 891 | 1041 | 1041 | 1663 | 1663 | 1559 | 1559 | 1494 | 1570 | 1750 | 1800 | 1853 | 2165 | 2165 | 2165 |
| B(mm) | 1070 | 1235 | 1235 | 1760 | 1760 | 1760 | 1760 | 1680 | 1780 | 1865 | 1925 | 1965 | 2290 | 2290 | 2290 |
| C(mm) | 600 | 600 | 600 | 700 | 700 | 830 | 830 | 755 | 900 | 1060 | 1060 | 1100 | 1200 | 1200 | 1200 |
| D(mm) | 700 | 700 | 700 | 800 | 800 | 800 | 800 | 1360 | 1520 | 1750 | 1950 | 2250 | 2400 | 2400 | 2400 |
| E(mm) | 104 | 104 | 104 | 104 | 104 | 104 | 104 | 104 | 104 | 241 | 245 | 248 | 249 | 249 | 249 |
| F(mm) | 502 | 512 | 512 | 499 | 499 | 604 | 604 | 296 | 333 | 547 | 561 | 585 | 587 | 587 | 587 |
| G(mm) | 190 | 190 | 190 | 243 | 243 | 264 | 264 | 171 | 433 | 238 | 246 | 250 | 273 | 273 | 273 |
| H(mm) | 220 | 220 | 220 | 220 | 220 | 300 | 300 | 230 | 224 | ||||||
| Technical Specifications | |||||||||||||||||
| Model | DXY-PA20 | DXY-PA30 | DXY-PA40 | DXY-PA50 | DXY-PA60 | DXY-PA80 | DXY-PA100 | DXY-PA120 | DXY-PA150 | DXY-PA200 | DXY-PA250 | DXY-PA300 | DXY-PA400 | DX-500 | DX-600 | ||
| Cooling capacity | kcal/h | 4500 | 6500 | 8000 | 12000 | 15000 | 18000 | 24000 | 30000 | 40000 | 50000 | 60000 | 80000 | 100000 | 120000 | 140000 | |
| KW | 5 | 7.5 | 9.5 | 15 | 17 | 21 | 28 | 35 | 45 | 58 | 70 | 92 | 116 | 139 | 162 | ||
| BTU/H | 19000 | 27900 | 33000 | 50000 | 58000 | 71000 | 95000 | 115000 | 125800 | 197000 | 240000 | 310000 | 394000 | 480000 | 550000 | ||
| Temp. control range | ℃ | Thermostatic(setting range:20~50℃) | |||||||||||||||
| Conditions | Ambient temp. | -10℃-45℃ | |||||||||||||||
| Oil temp. | ℃ | 10-55℃ | |||||||||||||||
| Oil type | Hydraulic oil / Spindle oil / Cutting oil / Heat transfer oil | ||||||||||||||||
| Oil viscosity | Cst | 20-100(≥100: please consult Dongxu for special order) | |||||||||||||||
| Input power | V | Three-phase four-wire | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | |
| Total power | KW | 2.5 | 3.5 | 4.5 | 6 | 7 | 9.5 | 12 | 15 | 19 | 21 | 25 | 30 | 42 | 50 | 61 | |
| Compressor | Power supply | v | 220V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Power | KW | 1.5 | 2.5 | 3 | 3.75 | 4.5 | 6.5 | 7.5 | 10 | 12.5 | 16 | 19 | 23 | 31 | 38 | 46 | |
| Oil pump | Power | KW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 4 | 4 | 5.5 | 7.5 | 11 |
| Flow | L/min | 25 | 35 | 40 | 50 | 63 | 100 | 100 | 125 | 160 | 250 | 300 | 350 | 450 | 500 | 550 | |
| Piping size(Flange) | mm | ZG1" | ZG1" | ZG1" | ZG1-¼" | ZG1-¼" | ZG1-½" | ZG1-½" | ZG2" | ZG2" | DN50 | DN65 | DN65 | DN80 | DN80 | DN100 | |
| Dimension | Height:B | mm | 1070 | 1235 | 1235 | 1760 | 1760 | 1760 | 1760 | 1680 | 1780 | 1865 | 1925 | 1965 | 2290 | 2290 | 2290 |
| Width :C | mm | 600 | 600 | 600 | 700 | 700 | 830 | 830 | 755 | 900 | 1060 | 1060 | 1100 | 1200 | 1200 | 1200 | |
| Length:D | mm | 700 | 700 | 700 | 800 | 800 | 800 | 800 | 1360 | 1520 | 1750 | 1950 | 2250 | 2400 | 2400 | 2400 | |
| Net weight | kg | 120 | 144 | 150 | 206 | 210 | 290 | 300 | 336 | 370 | 540 | 600 | 720 | 1000 | 1100 | 1200 | |
| Refrigerant | Refrigerant:R22/R407C | ||||||||||||||||
| Protective device | Phase loss protection; Motor reverse phase sequence protection ;Compressor overload protection ;Oil pump overload protection High and low pressure protection; Abnormal alarm | ||||||||||||||||
Application

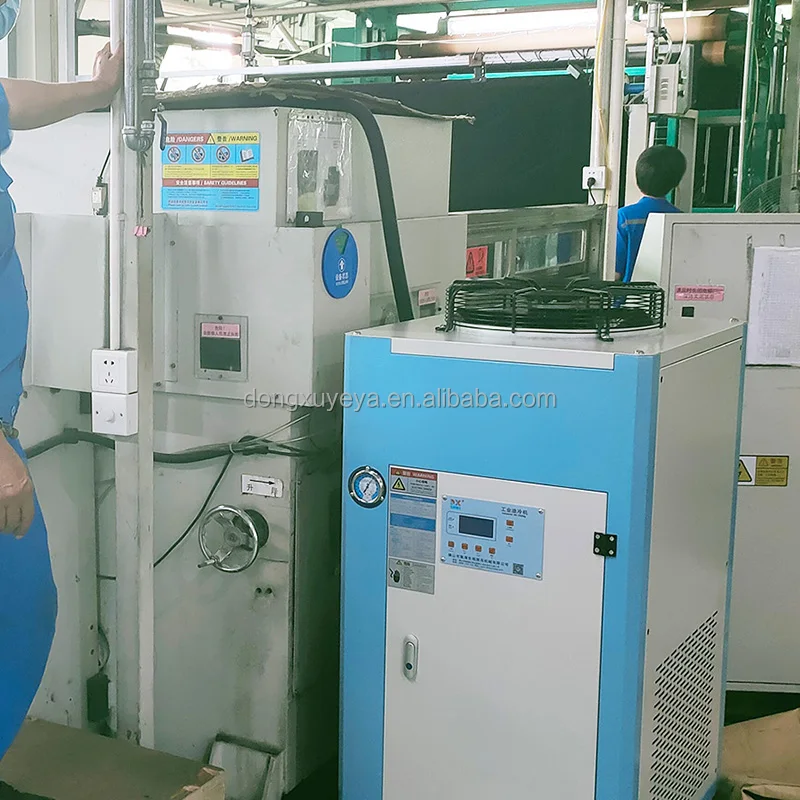

CNC Cutting Machine

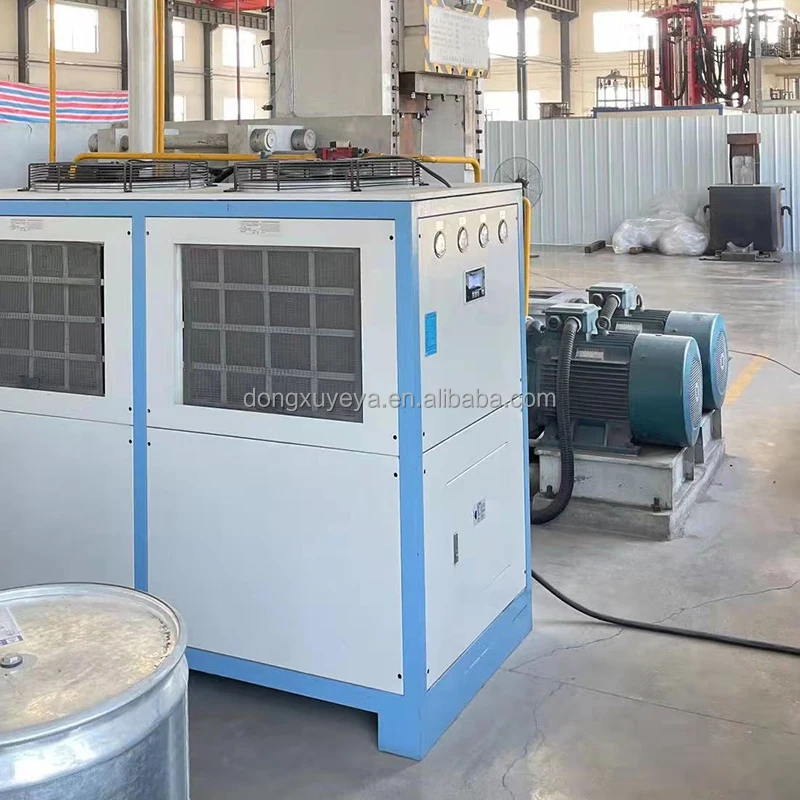

Hydraulic Machinery

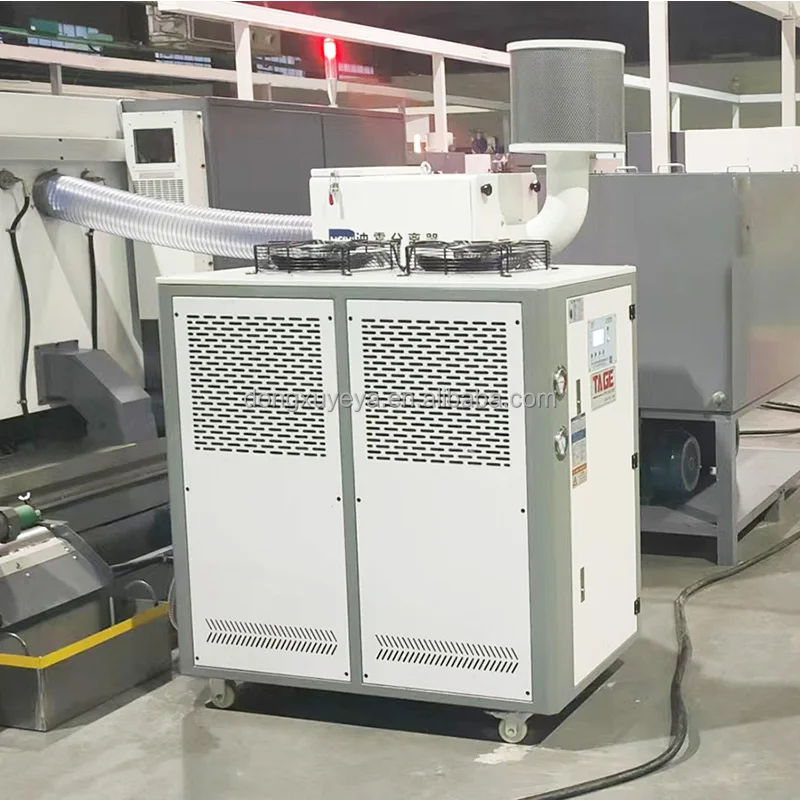

Deep Hole Drill

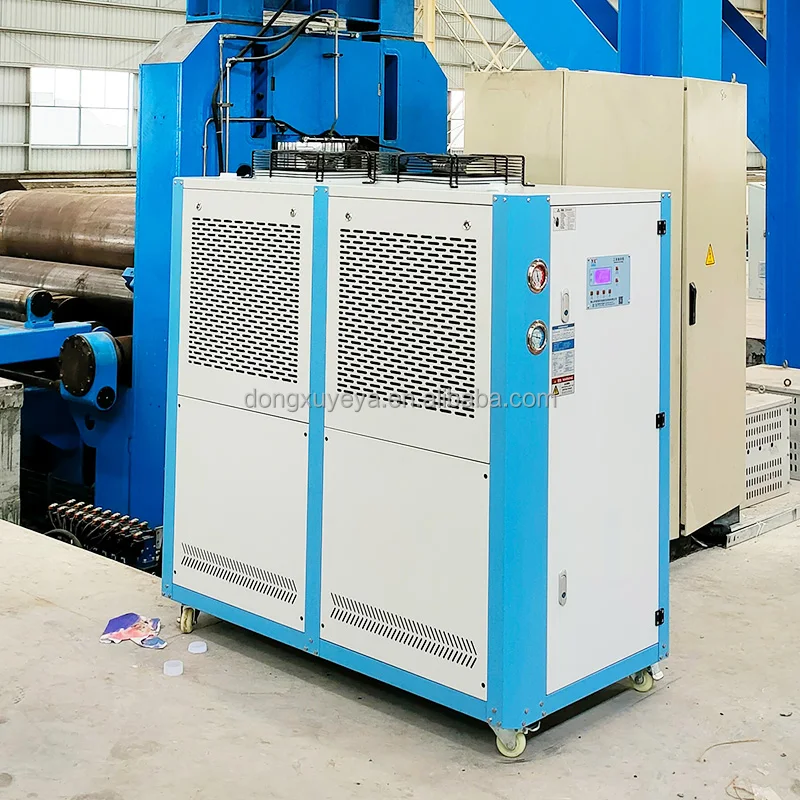

Wind Power Station

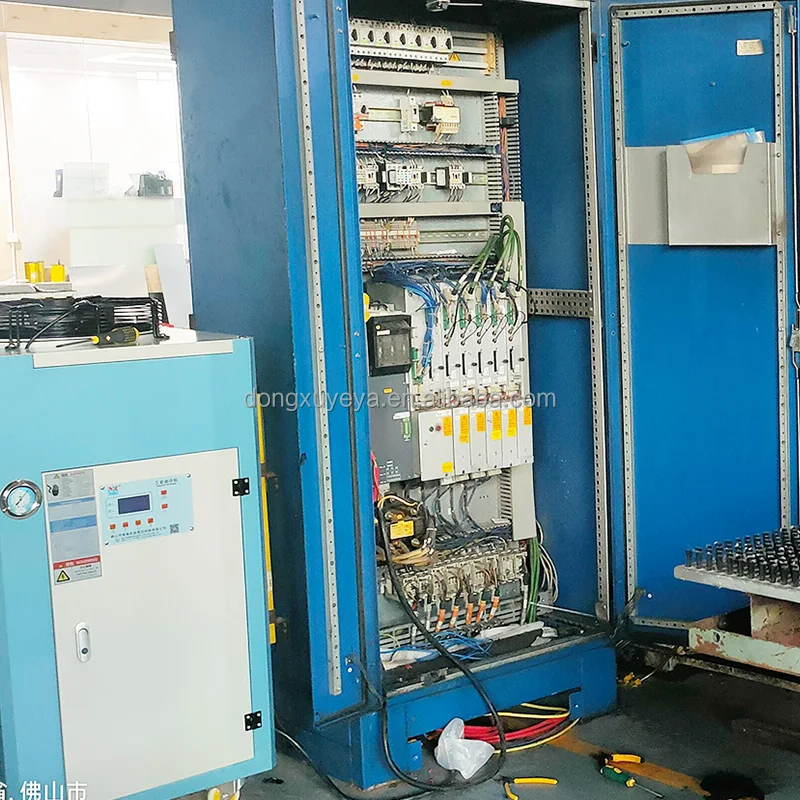

High-speed Turret Punch

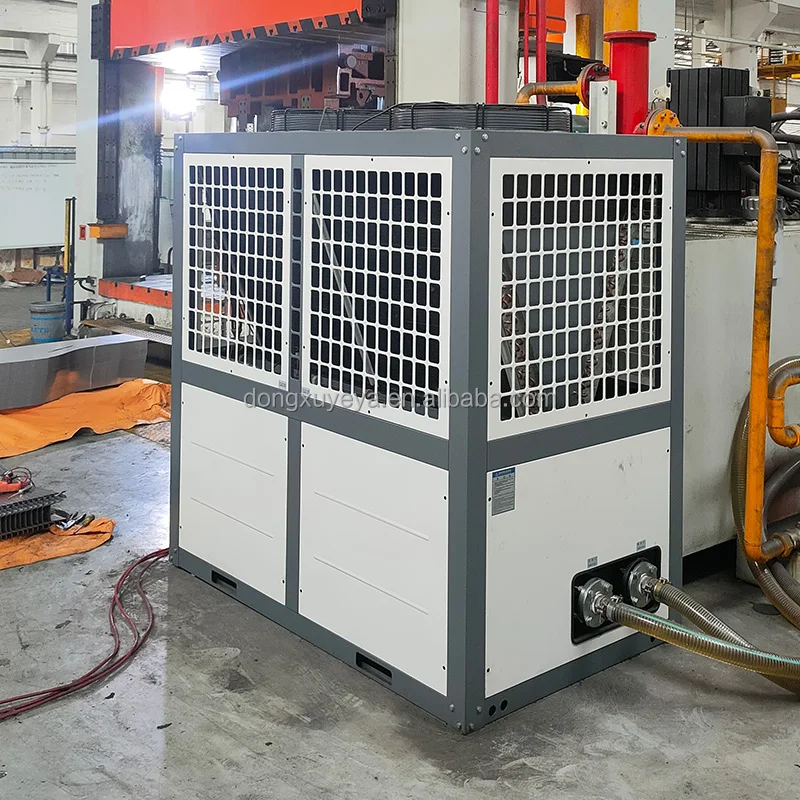

Hydraulic Press

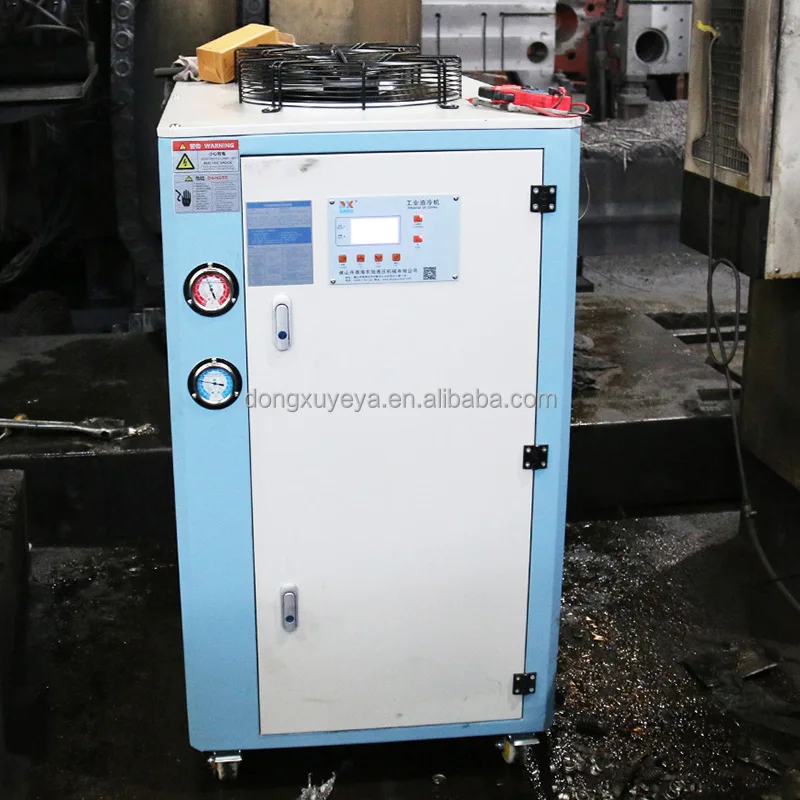

Boring Machine
