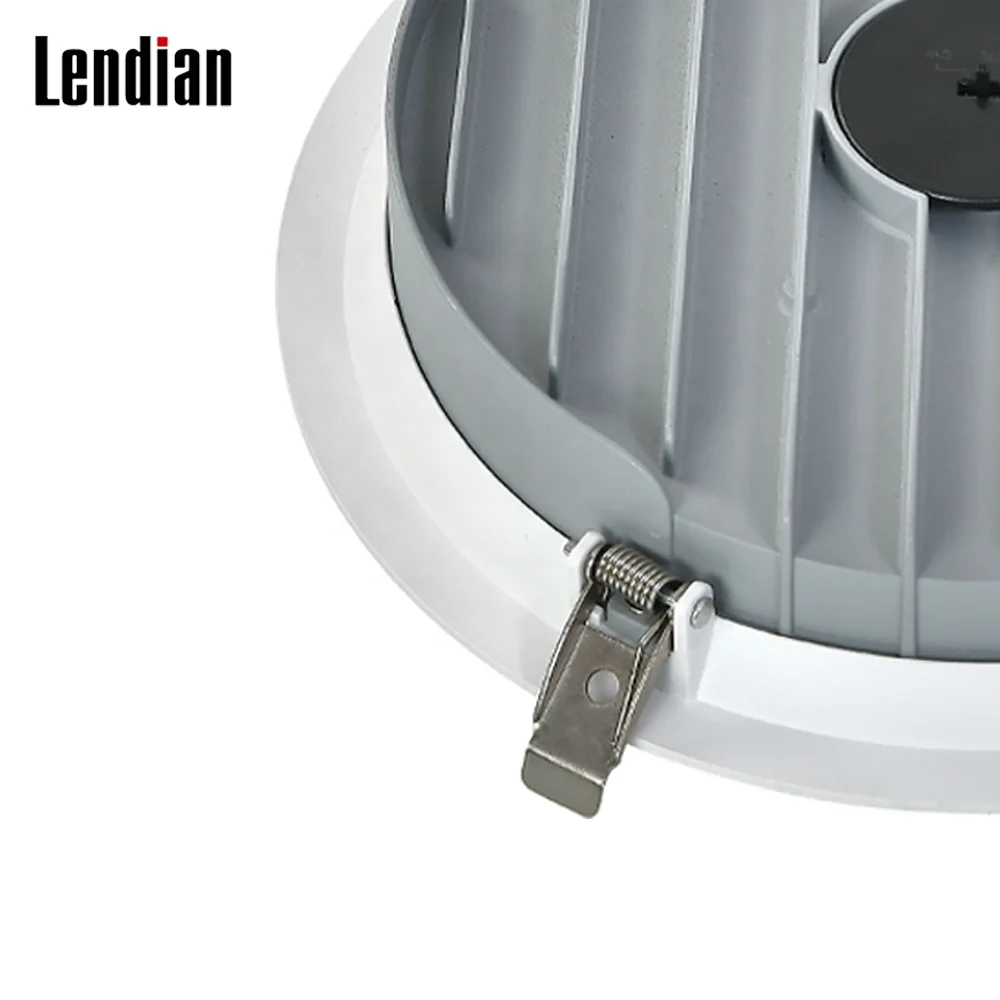

Customized dali dimmable 5 inch tri color cct changeable deep slim recessed smd cob cri90 embedded led downlight black zigbee
- Category: Downlights >>>
- Supplier: Zhongshan Lendian Opto-Electronic Technology Co. Ltd.
Share on (60774625485):
Product Overview
Description
Customized dali dimmable 5 inch tri color cct changeable deep slim recessed smd cob cri90 embedded led downlight black zigbee
Product Description
Model | Dimension(mm) | Cut out(mm) | Power | Luminous(lm) | Packing(mm） | ||||
L02203-8 | 3 inch/85x36 | 75 | 8W | 560/640 | 50pcs/CTN 600×280×300 | ||||
L02204-12 | 3.5 inch/100x36 | 89 | 12W | 960 | 50pcs/CTN 600×280×300 | ||||
L02205-15 | 4 inch/110x36 | 100 | 15W | 1200 | 50pcs/CTN 600×280×300 | ||||
L02206-20 | 5 inch/140x38 | 125 | 20W | 1800 | 40pcs/CTN 625×360×330 | ||||
L02207-24 | 5.5 inch/155x38 | 140 | 24W | 2160 | 20pcs/CTN 415×360×330 | ||||
L02208-30 | 6 inch/165x38 | 150 | 30W | 2700 | 20pcs/CTN 415×360×330 | ||||
L02209-40 | 8 inch/215x41 | 200 | 40W | 3600 | 20pcs/CTN 535×475×330 | ||||
Input Voltage | AC85-270V | ||||||||
Light Source | SMD/COB | ||||||||
CCT | 2700K/3000K/4000K/5000K/6500K | ||||||||

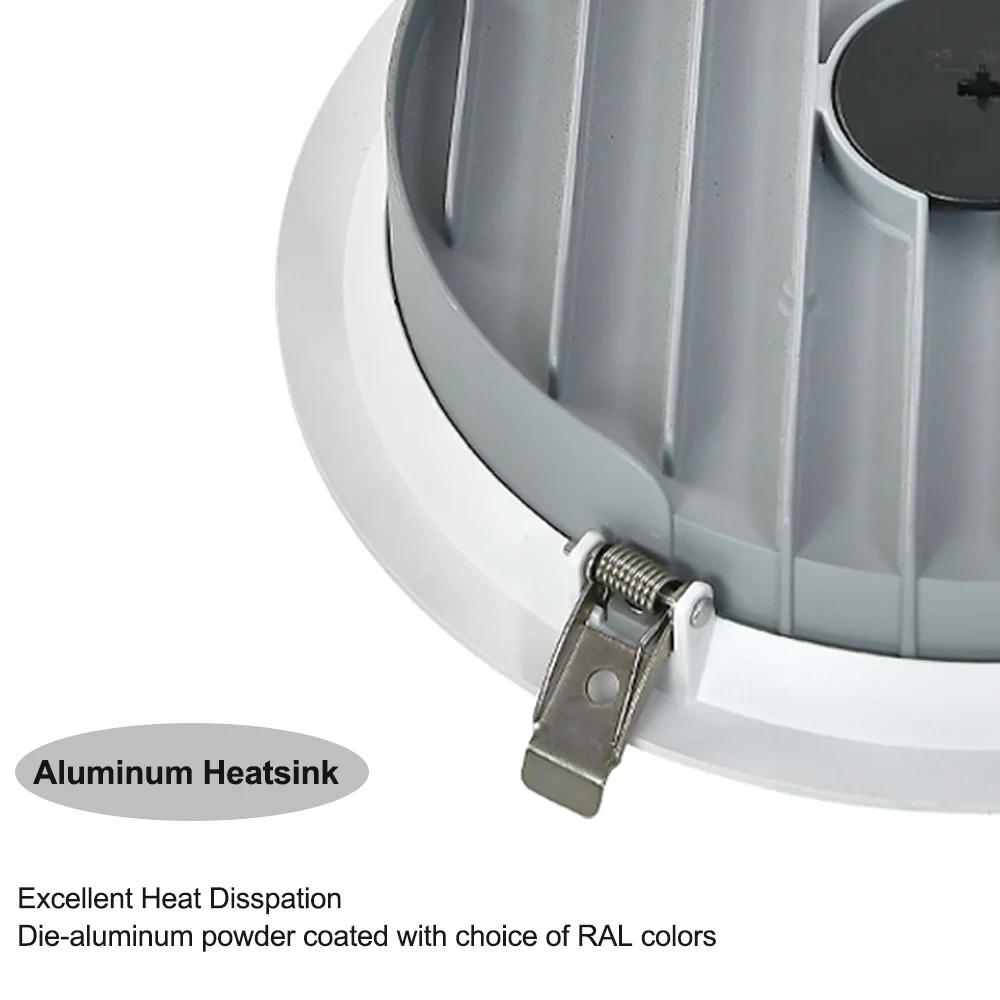

Material | Die-cast aluminum | ||||||||
Driver Options | Non Flicker/Dali Dimmable/Traic Dimmable/0-10V Dimmable/Standard | ||||||||
Finishing color | Black/White | ||||||||
CRI | Ra>80/Ra>90 | ||||||||

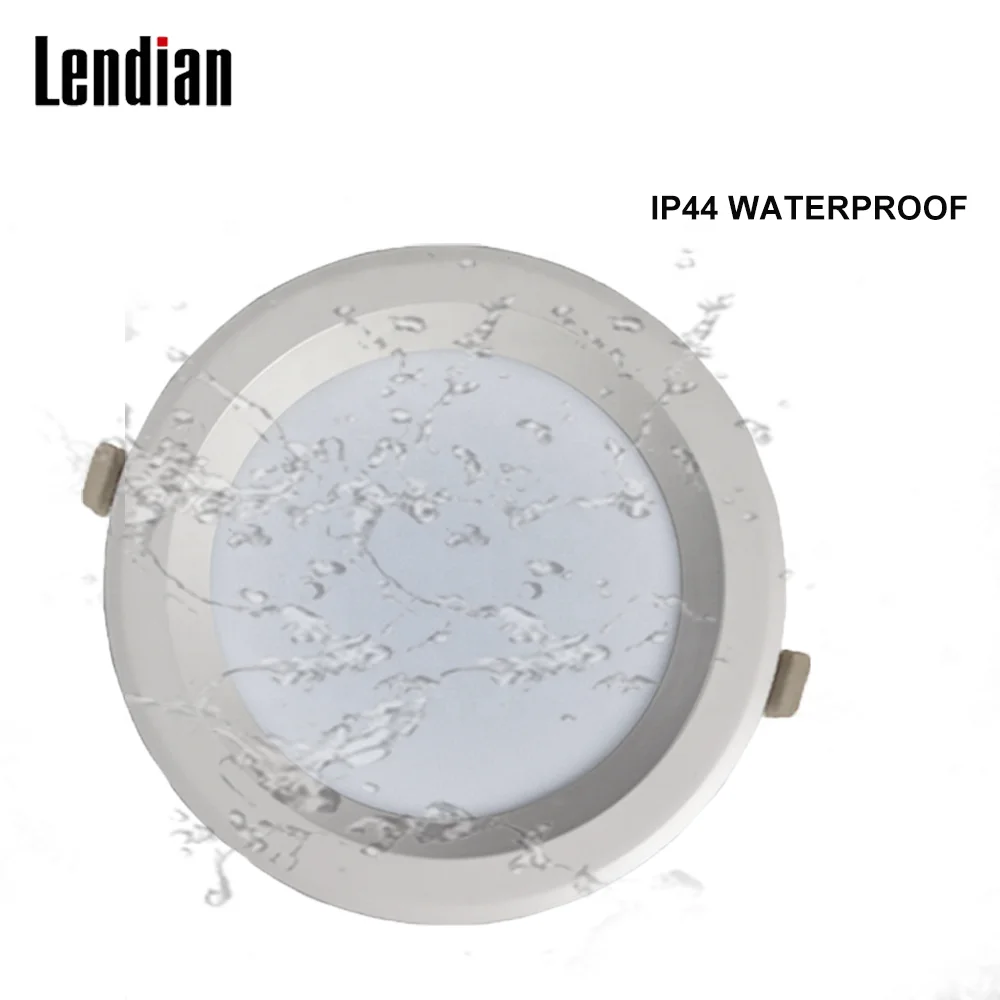

IP Rate | IP20/IP44 | ||||||||
Beam Angles | 110° | ||||||||
Certificates | CE/CCC/SAA/TUV/RoHS/SASO | ||||||||
Warranty | 3/5 years | ||||||||

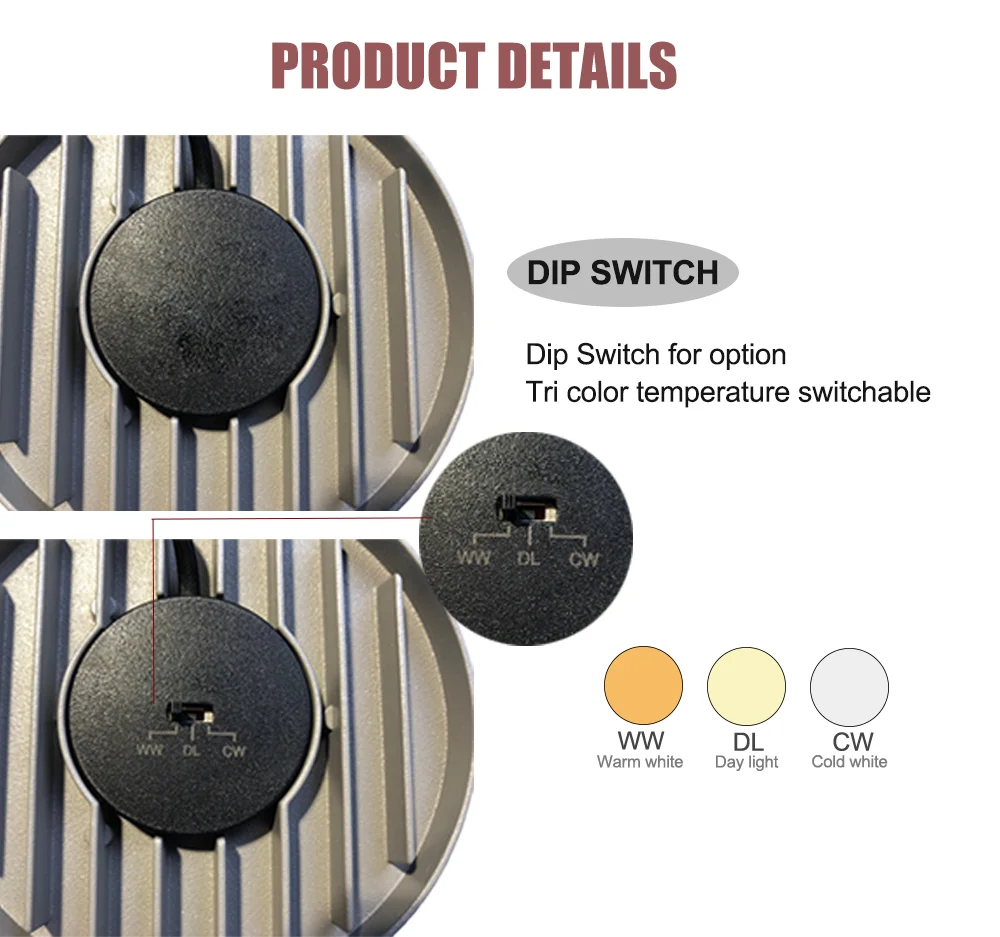

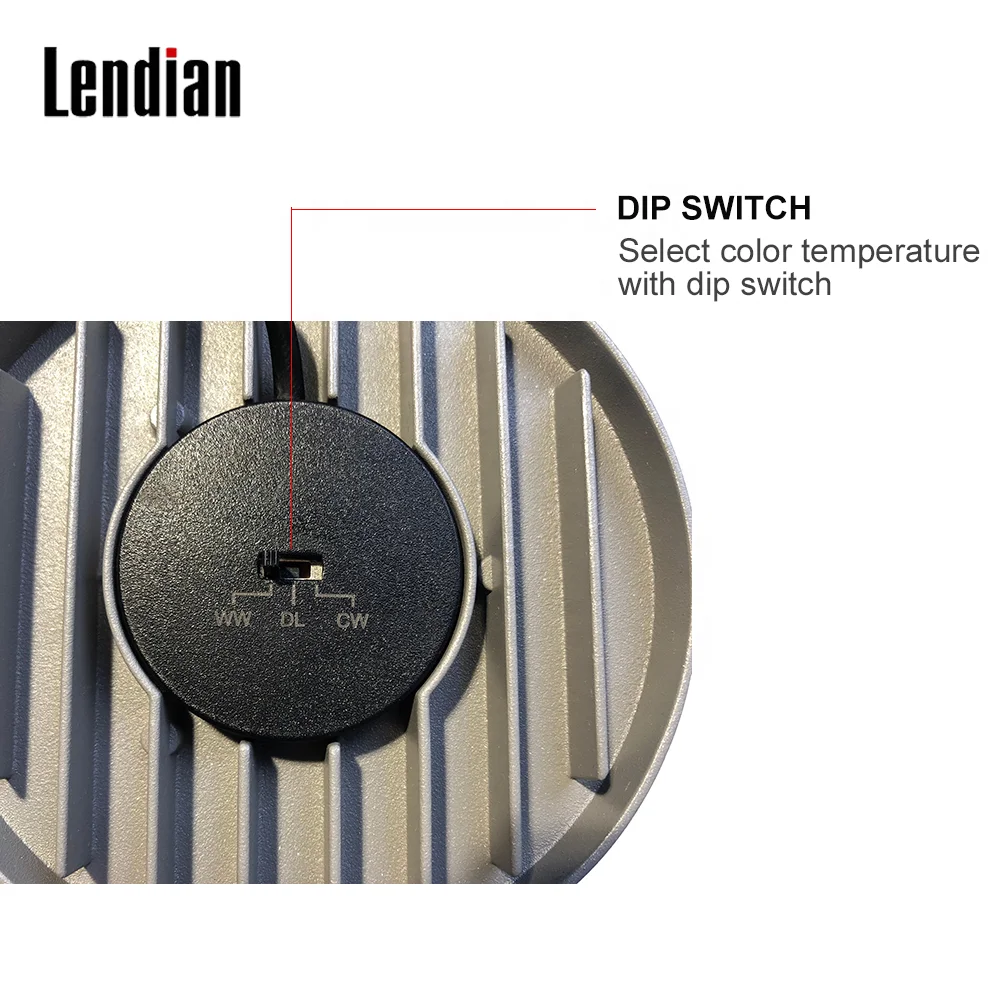

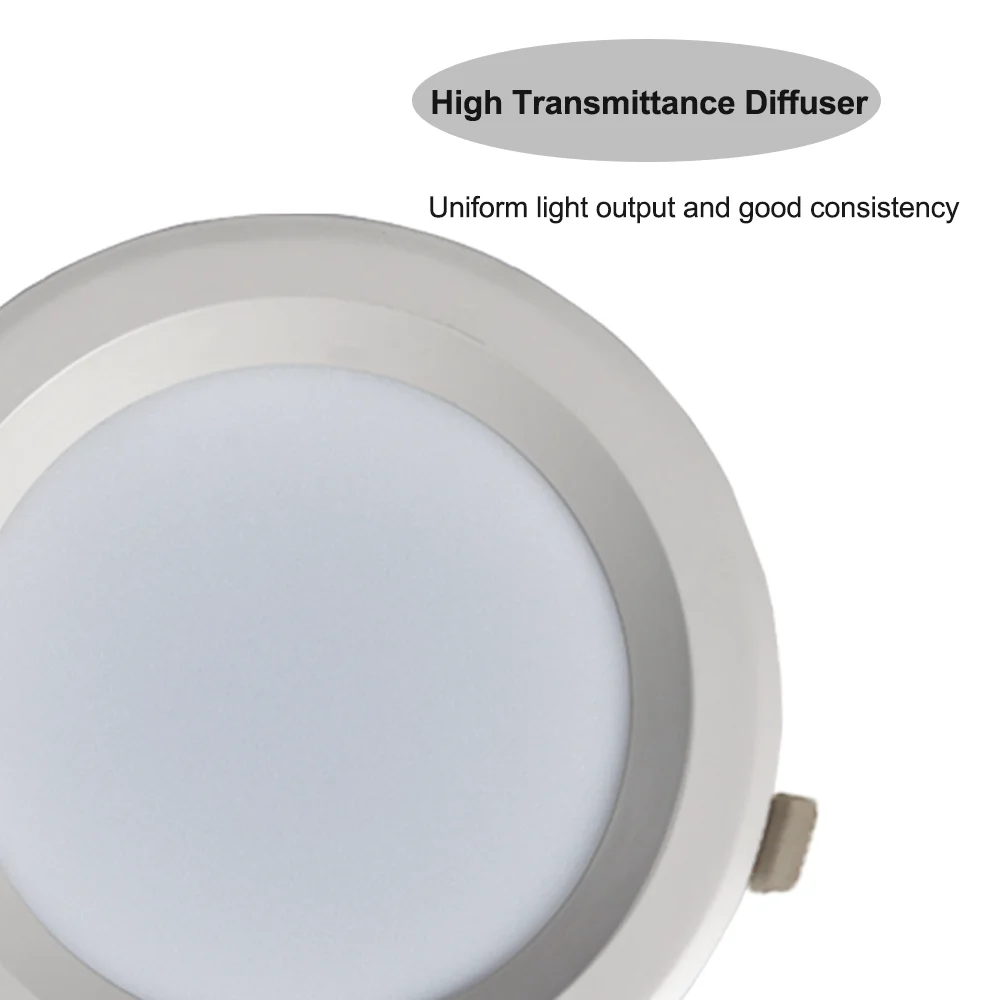

Product Feature | 1.Dip Switch 3CCT 2.Application: General lighting for museums, galleries, showrooms and commercial app 3.Housing: Die cast aluminum powder coated with choice of RAL colors. 4.Optic: Difusser LED: Epistar, Bridgelux, CREE, OSRAM, Philips Power 5.Supply : Lifud, Eaglerise,Philips, Tridonic or Customized brand 6.Standard: Manufactured in accordance with tested as per IEC 62722. 7.Profile: Wide Beam with High Lumen Performance. | ||||||||
