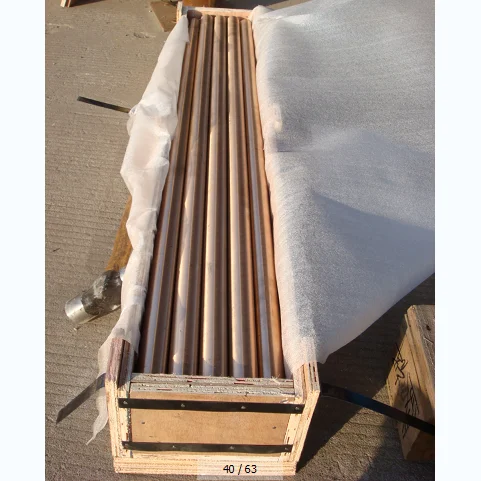

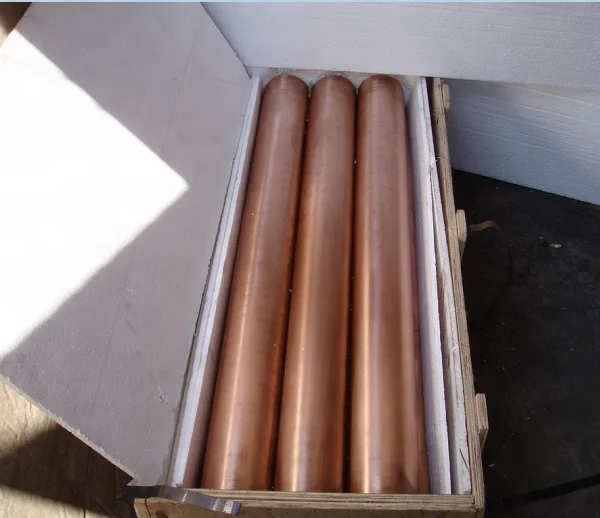

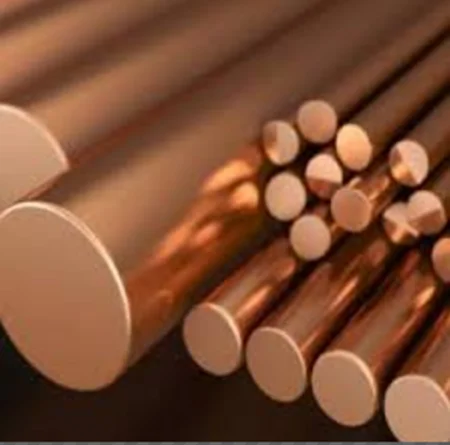

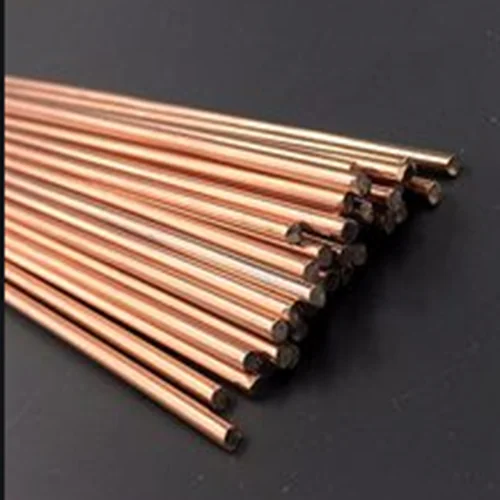

CuBe2 Bar C17200 Beryllium Copper Price

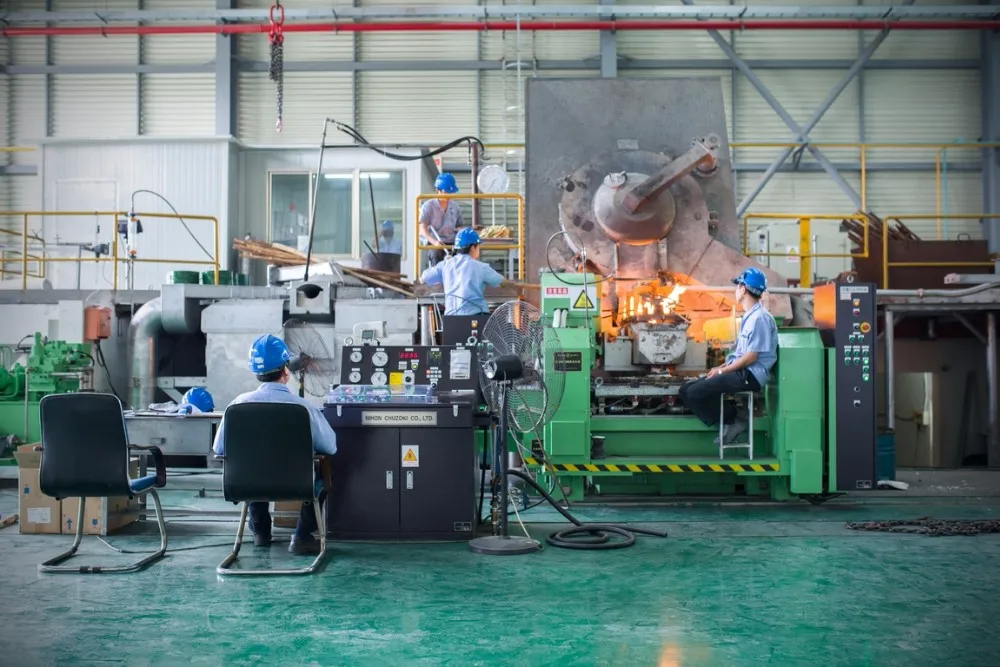

ALB (Xiamen) Material Company Limited, a member of ALB group, has been the leading Chinese manufacturer and supplier of copper beryllium alloy material and copper beryllium semi-finished & finished machining parts since its establishment.

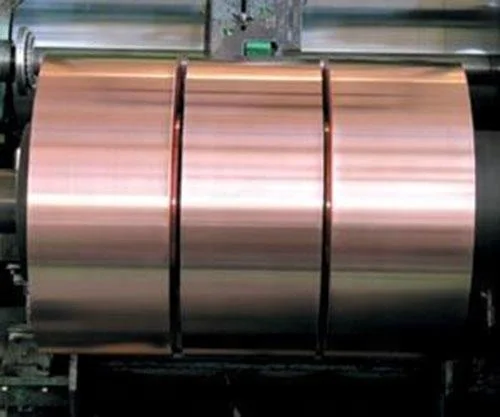

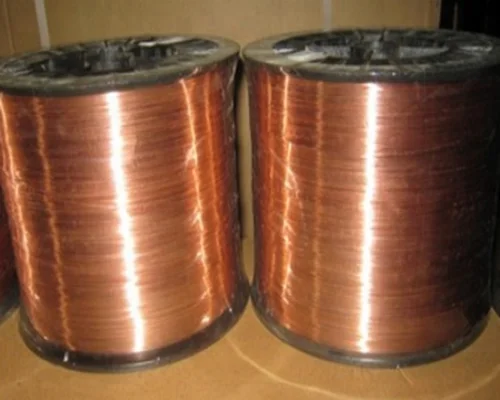

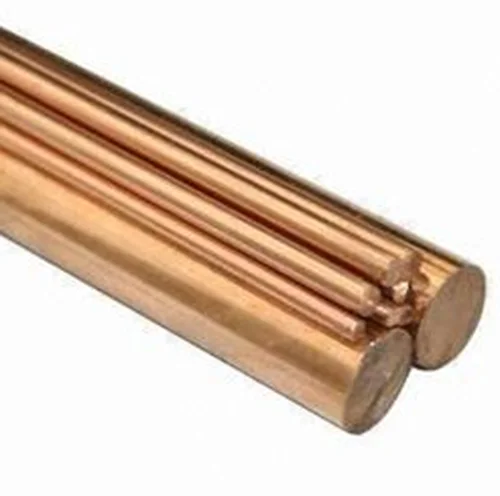

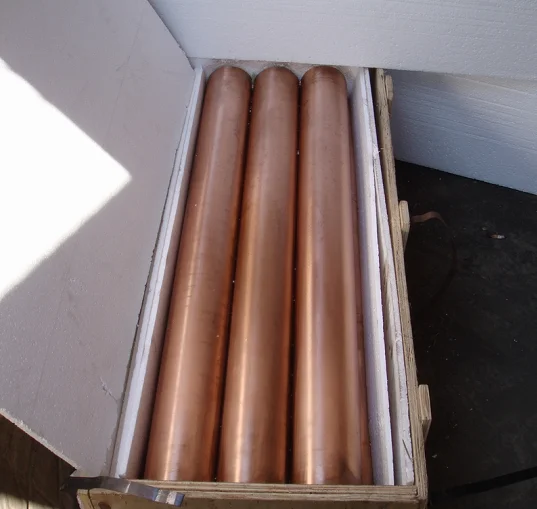

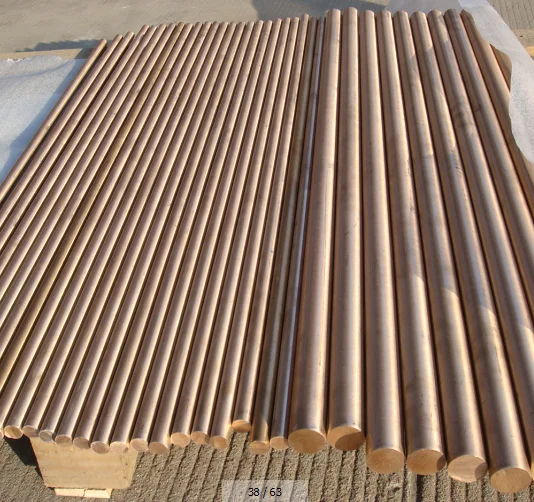

We are specialized in producing beryllium copper alloy strips, rods, bars, wires, plates, sheets, tubes, discs with materials of CuBe1.7-UNS.C17000,CuBe2-UNS.C17200, CuBe2Pb-UNS.C17300, CuCo2Be-UNS.C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be-CW103C as well as beryllium copper machining & finished & turned parts.

Be: 1.80-2.0%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.

Others; 0.5% Max
Cu: Balance
Note: Cu+Be+Co+Ni+Fe 99.5% minimum.

Density (g/cm3): 0.302Ib/in3 at 68F
Specific Gravity: 8.36g/cm3
Melting Point(Liquidus): 1800F
Melting Point(Solidus): 1600F
Electrical Resistivity:: 46.2 ohms/cmil/ft@68F
Electrical Conductivity: 22%IACS@68F(heat-treated)
Thermal Conductivity : 62.0Btu ft ata 68F
Modulus Elasticity in Tension: 18500ksi
Modulus Rigidity: 7300ksi

Note:

1). the units are based upon Metric.

2). the typical physical properties apply to age hardened products.

Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows.
