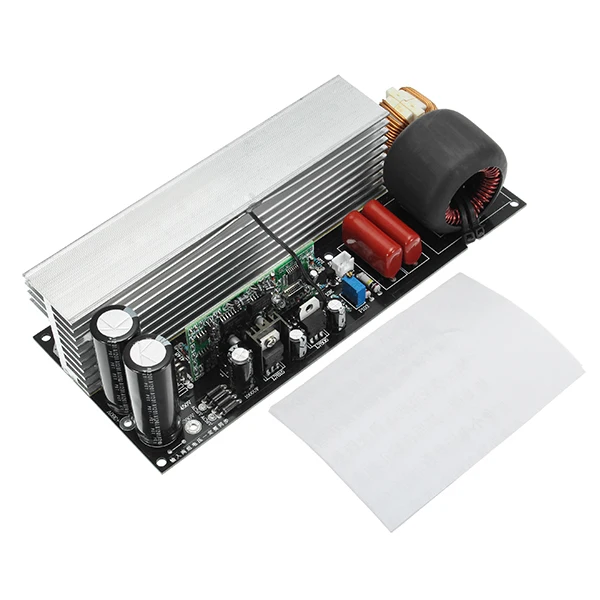

3000W Pure Sine Wave Inverter Power Board Post Sine Wave Amplifier Module Board Assembled

Share on:

Price:RUB 75.40 - RUB 5,278.00
Price in USD:Details


Product Overview


Payment Items

E3F-DS50C4 3-Wire Infrared Sensor Photoelectronic Switch Module

1. We accept PayPal, Trade Assurance, MonryGram, Western Union and Bank T/T.

2. Our Quotation includes goods cost, shipping cost and trading charges.

3. The buyers should be responsible for the trading charges.

4. The prices we quoted are correct at this time, but maybe subject to change after few days because of the currency fluctuations and the order quantity.

Shipment Items

E3F-DS50C4 3-Wire Infrared Sensor Photoelectronic Switch Module

1. We can ship the items by DHL, FedEx, TNT, UPS, EMS, Aramex and China Mail Post.

2. We need 1-3 days to process the goods after the payment arrived.

3. We are not responsible for any accidents or delays when goods were picked by logistics company.

4. The buyers should be responsible for the import fees when goods arrived at the destination.

Contact Us


All messages will be answered within 30mins.

If it's out of working time, please be patient, we will reply when we come back to work.

Please feel free to contact us via trademanager or email if you have any questions.


Company Name:  Shenzhen Jiaxinjie Technology Co., Ltd.
Office Address:  Room 1505, Dingcheng Building, Zhonghang Road, Futian District, Shenzhen, China
wechat or whatsapp:008615622206170


Technical Parameters:
Product Name: Modified sine wave inverter change pure sine wave stage plate
Input voltage: DC380V.
Input voltage: AC16V.
Output voltage: AC220V.
Output frequency: 50 / 60HZ (adjustable)
Output waveform: pure sine wave.
PCB Specifications: 200X85X50MM.
3000W power tube use: 8 / 47N60
Product are modified wave inverter charge sine wave inverter, can make modified wave inverter 3000W, etc ...,
as modified pure sine wave inverter.First, remove the power tube after correction inverter
.look at the transformer secondary circuit is
connected in parallel or in series, and then add the transformer parameters, modified wave
transformer secondary is parallel , In each transformer secondary plus 16 laps.
The secondary of the modified transformer is a series type, plus 8 laps per transformer
secondary. Then in the correction transformer which transformer one empty foot plus a small
voltage parameter, the small voltage parameters using 0.6 copper wire, in the transformer
inside around: 5 laps, the small voltage is linked AC: 16V position. (Note: Do not open the magnetic ring
when the add transformer with the parameters) After the addition of transformer
parameters, we must correct the modified wave inverter high voltage capacitors in exchange
for 220UF / 450V, Remember: modified wave inverter high-voltage capacitor has a
positive feedback Resistance, the resistance is a few hundred K, but also need to change a large
resistance, or the voltage will not rise. After testing the voltage of high-voltage capacitor  (positive/negative) voltage is DC380V,
the test voltage is normal, the use of cable to the sine  wave after the board, after the board output voltage: AC220V / 50HZ,
the output waveform: pure sine wave.


0.016 s.
