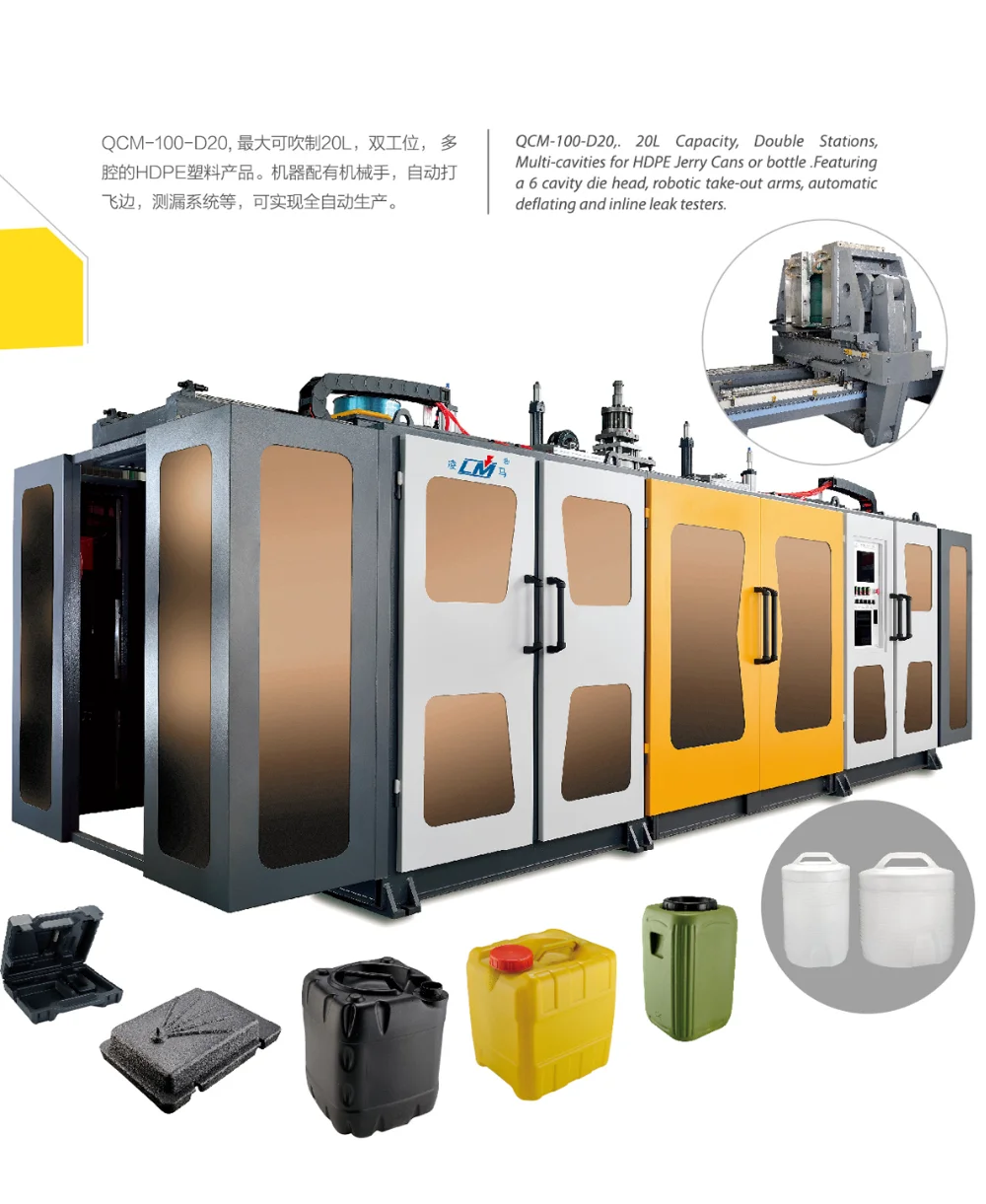

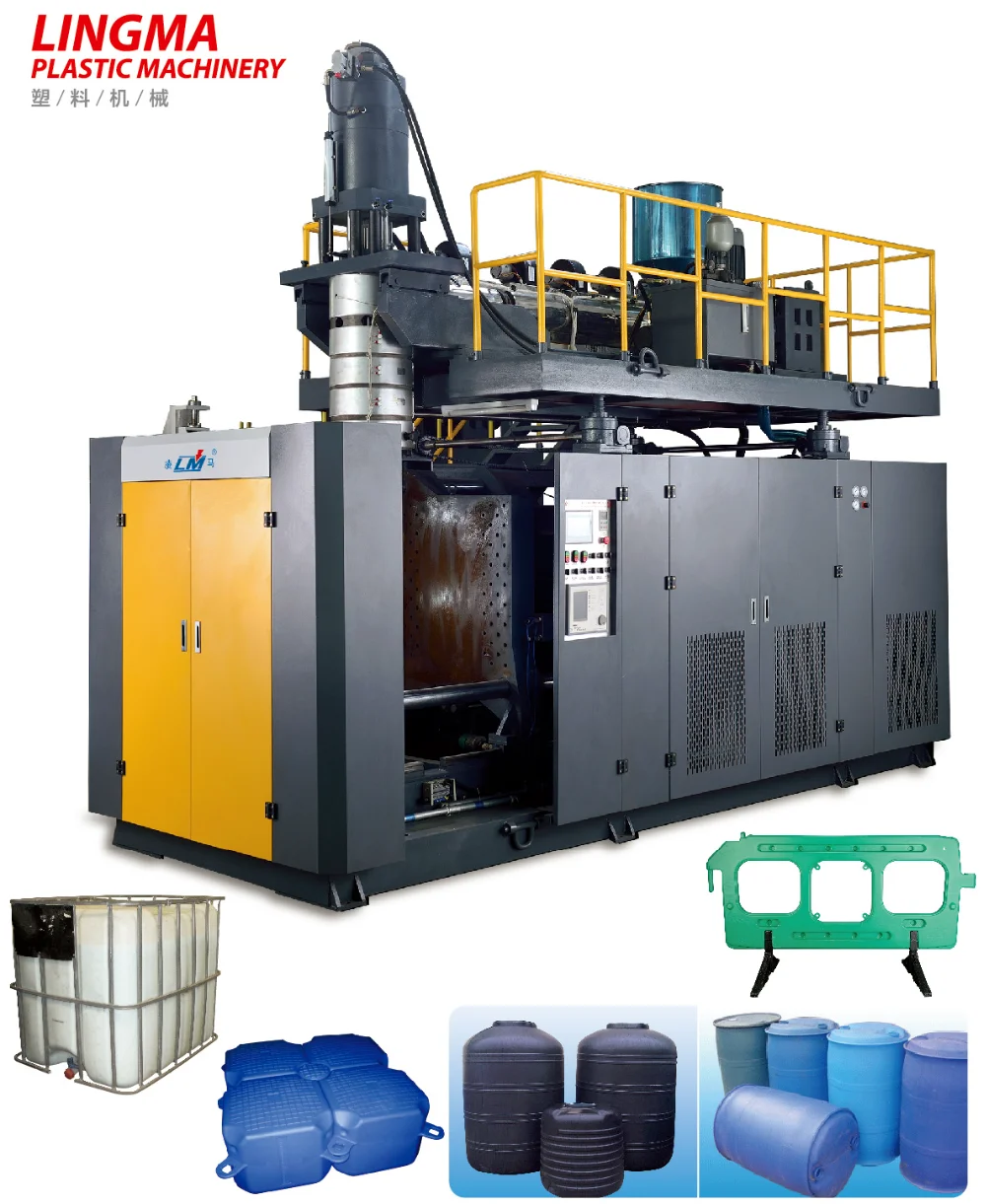

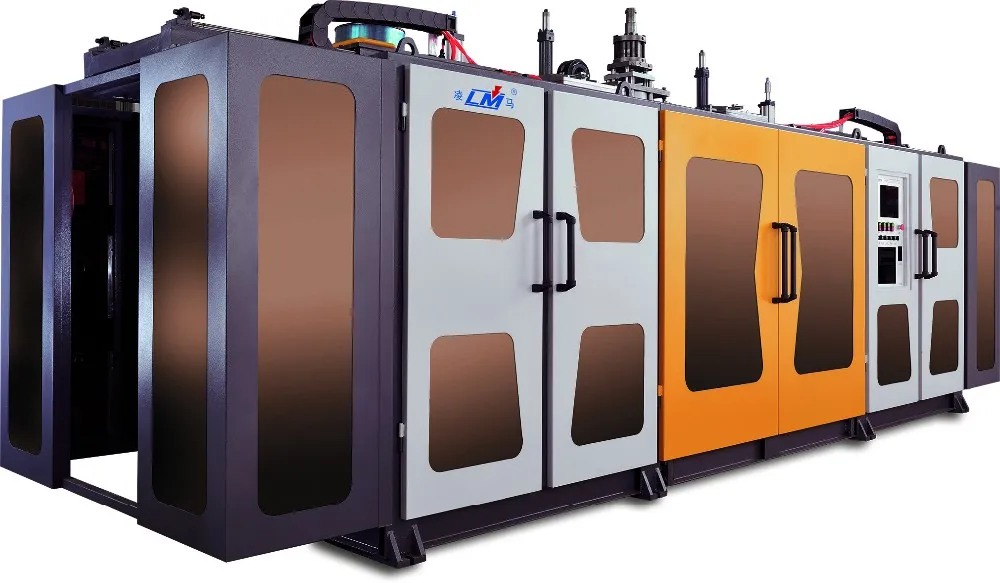

20 Liter bottle blow molding machine extrusion machine
- Category: >>>
- Supplier: Lingma Plastics Machinery Co. Ltd. Of Huangyan Zhejiang
Share on (60774688617):
Product Overview
Description
Product Description
| SPECIFICATIONS FOR QCL-100-160L | ||
| Specification | Number of die | 1 set |
| Max. container capacity | 20L | |
| Machine dimension | 4.6*6.5*3.2m | |
| Total weight | 13Ton | |
| Clamping force | Clamping force | 200KN |
| Platen opening stork | 380-720mm | |
| Platen size(W*H) | 550*630mm | |
| Mould thickness | 390-420mm | |
| Extruder Unit | Screw diameter | 100mm |
| Screw L/D ratio | L/D24 | |
| Plasticizing capacity | 150-220kg/h | |
| Number of heating zone | 4 | |
| Screw heating power | 16Kw | |
| Power of screw -bar machine | 0.68Kw | |
| Extruder driving power | 55~75Kw | |
| Machine Head | Number of heating zone | 3 |
| Power of die heating | 6.4Kw | |
| Max. die-pin diameter | 220mm | |
| Energy-consumption | General power of machine | 118Kw |
| Oil pump power | 22+4Kw | |
| Air pressure | 1Mpa | |
| Average energy consumption | 85Kw | |
| Operating pressure | 12~16Mpa | |
Full-automatic HDPE Bottle Etrusion Blowing Machine Bottle Making Machine Bottle Moulding Machine

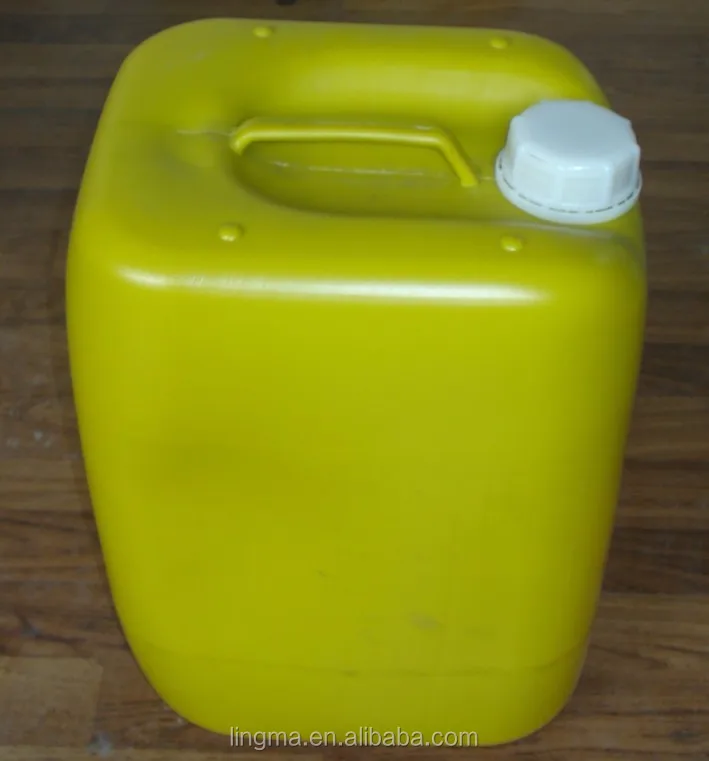

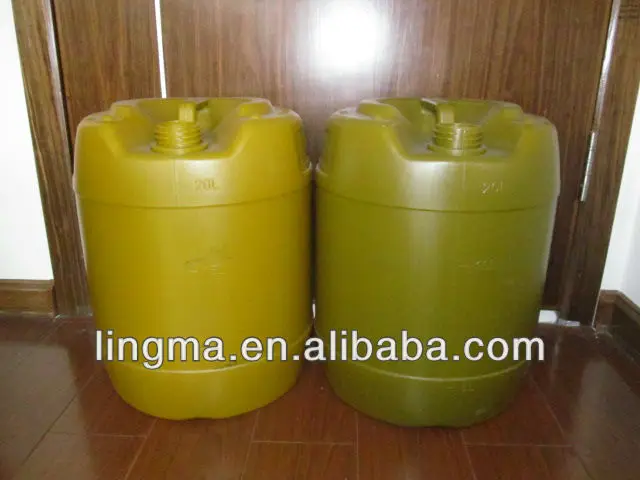

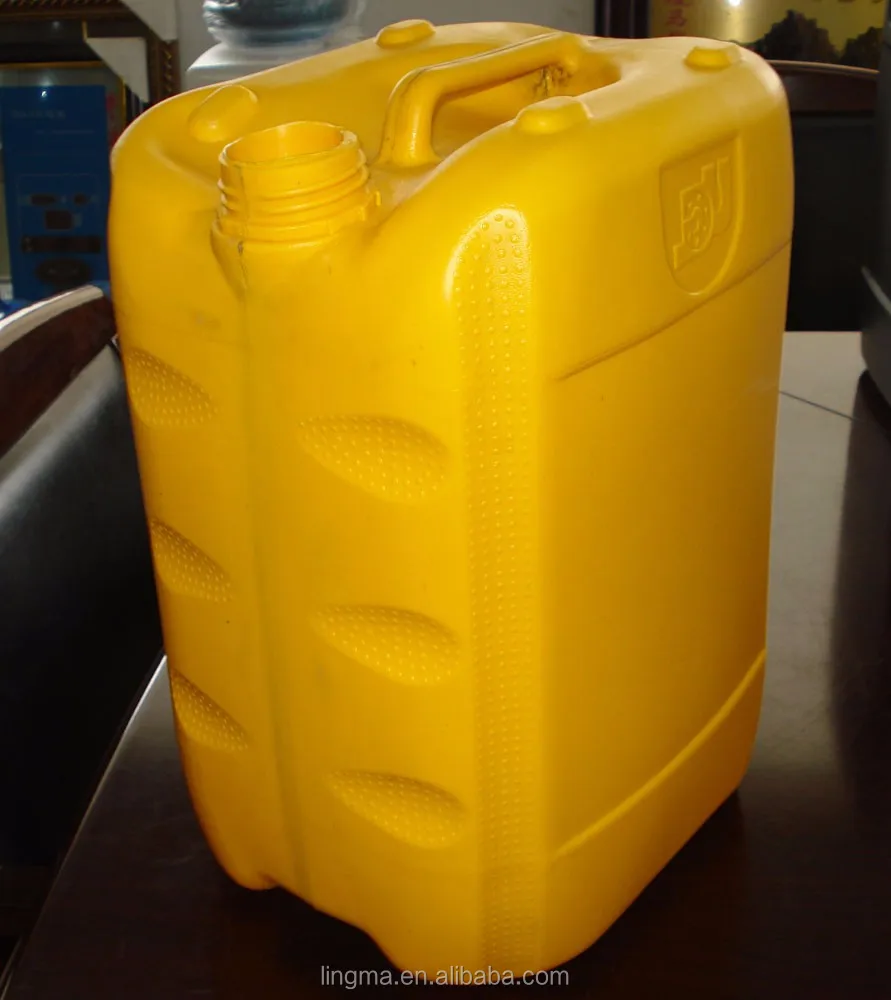

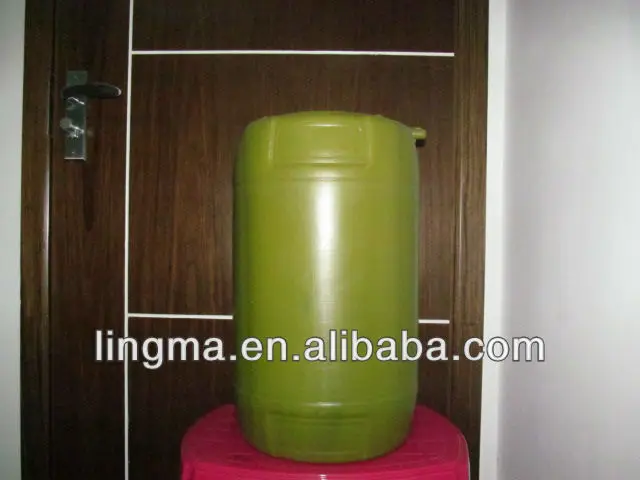

HDPE Bottle Making Machine is suitable for producing PE plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

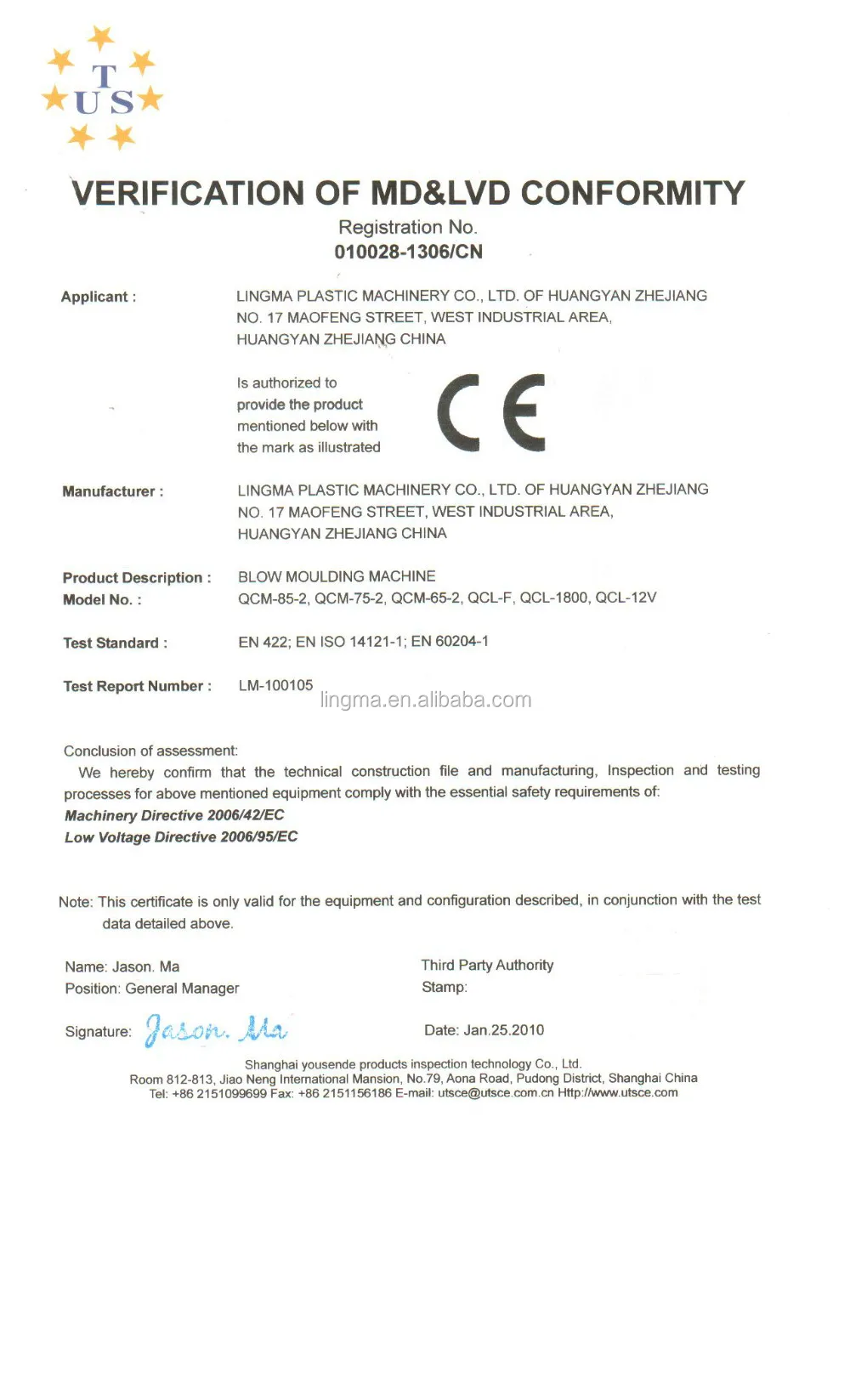

Certifications
Configuration
Machine parts:Control system
Brand: SIEMENS
Siemens PLC human-machine interface control system, automatic fault-alarm, credible and highly automatic work, available for 40 molding process data in the computer. Capable of manual, half-automatic and full-automatic operating methods.
Machine parts: Parsion control
Brand: MOOG
Feature：Accurately control the container thickness to keep good quality and good-looking bottle

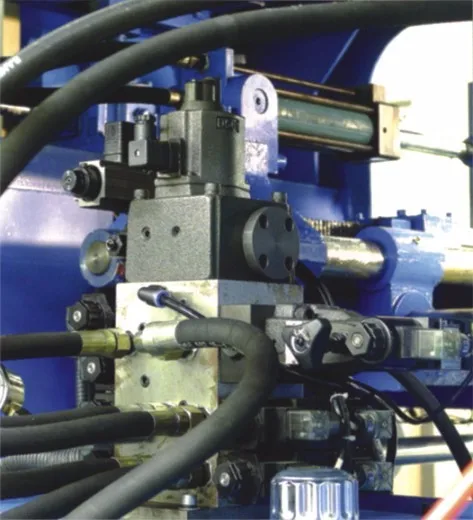

Machine parts： Hydraulic unit
Brand: Yuken
Features: Optimized hydraulic oil loop design gains a stable, fast, energy saving consumpton.
Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheate

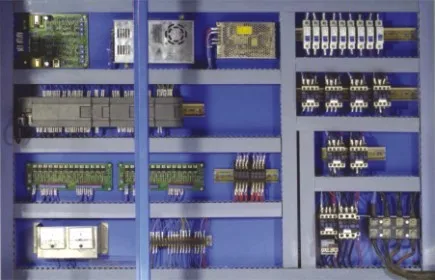

Machine parts: Electrical
Brand: Schneider
Features:Stable performance with advanced PLC.
Conveying preforms automatically with conveyor.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheate
Machine parts: Extrusion system
Drives by a generator with frequency conversion, our extrusion system can realize the requirement of a transformable rotate speed of the screw for the blow machine process,Screw with a big length-diameter ratio, has a good capability for processing all kinds of plastic with high plasticizing efficiency, low power expenditure.
Controlled by computer, the raw material accumulator heats by resistance-circle can be heats promptly with a stable and well-distributed temperature.
Controlled by computer, the raw material accumulator heats by resistance-circle can be heats promptly with a stable and well-distributed temperature.
Product Show
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Company Information
Zhejiang Lingma Plastic Machine Co.Ltd is one of the earliestly-established company specializing in production and researching of plastic molding machine and plastic molds with the strength of CE and ISO.
Founded in 1994, the company has all kinds of advanced automatic mechanical processing equipment and has a group pf team-spirit and experienced service technicians providing high quality and satisfactory services for customers at any time.Meanwhile,the company long-term cooperated and communicated with famous research institutes at home and abroad and imported the most advanced technologies Europe and America to keep product technology at the same pace with the world level.
Lingma produces the QCM series fully automatic hollow molding machines and QCL series two stage reheat stretch blow molding machine for PET bottle have not only been sold all over China, but sold to overseas markets in southeast Asia, Middle East, Africa,Europe, South America,etc.Accordingly, Lingma brand has enjoyed the good reputation in and out of China.
Our company will constantly adhere to business philosophy to create maximum profits for customers and to seek maximum welfare for working staff, with great potential to grow and with business objectives to achieve.Finally,Lingma hopes to create a brilliant future with you.
