USB And Serial Dual Communication P10 LED Display Panel Board

Share on (60774708322):


Price:$5.80 - $6.90

Quantity:


Product Overview

Description


Product Description

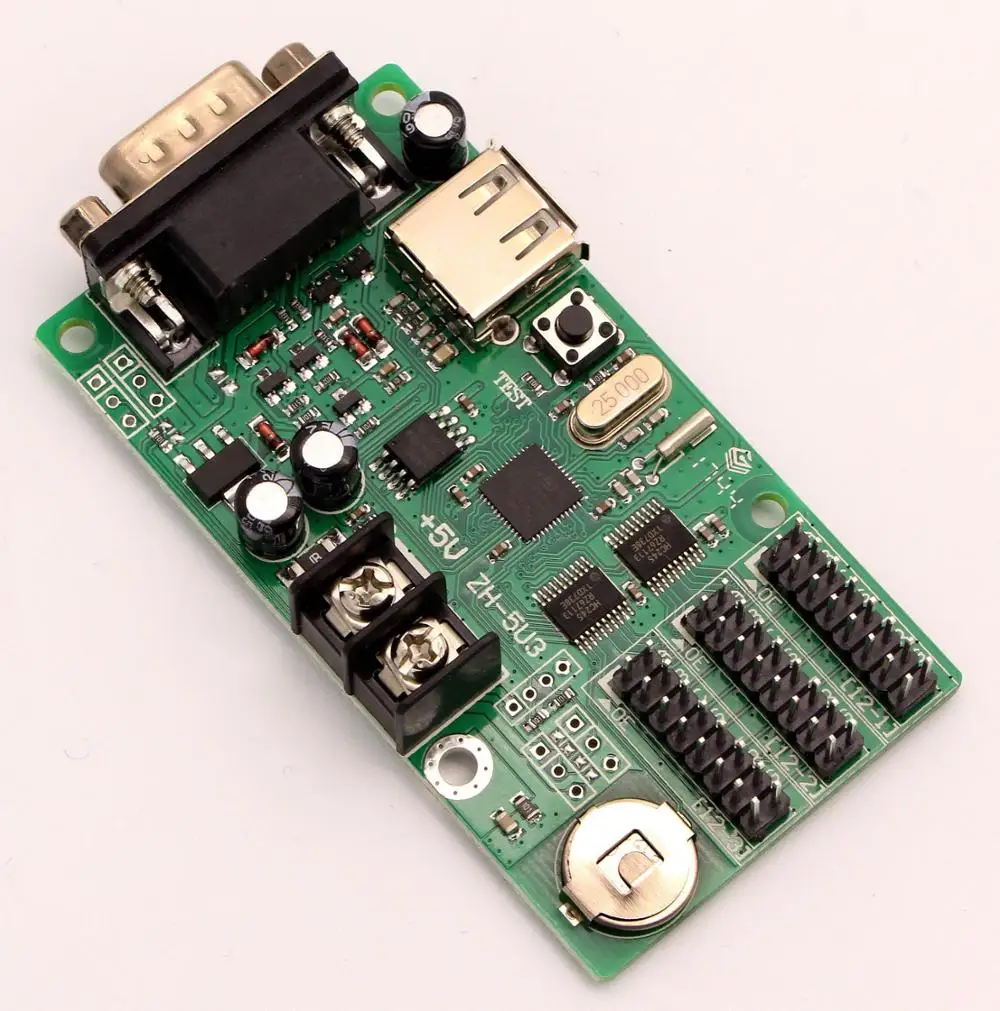

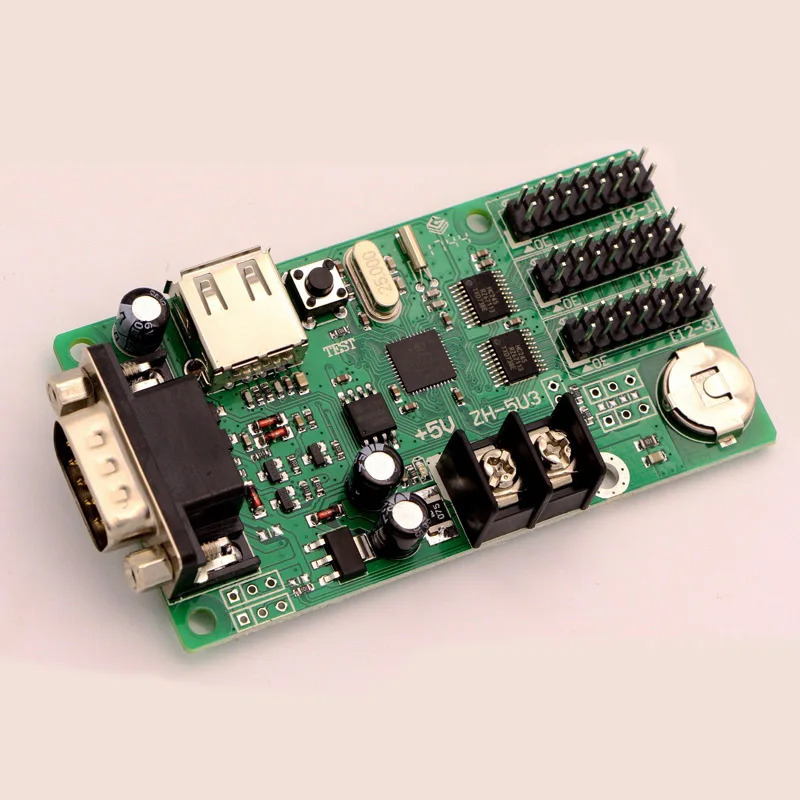

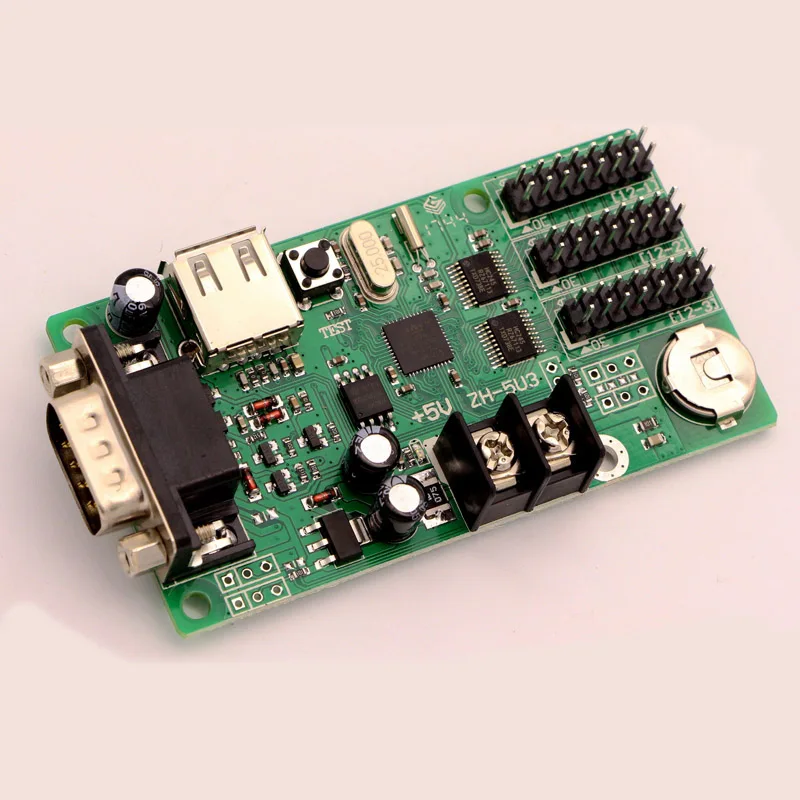

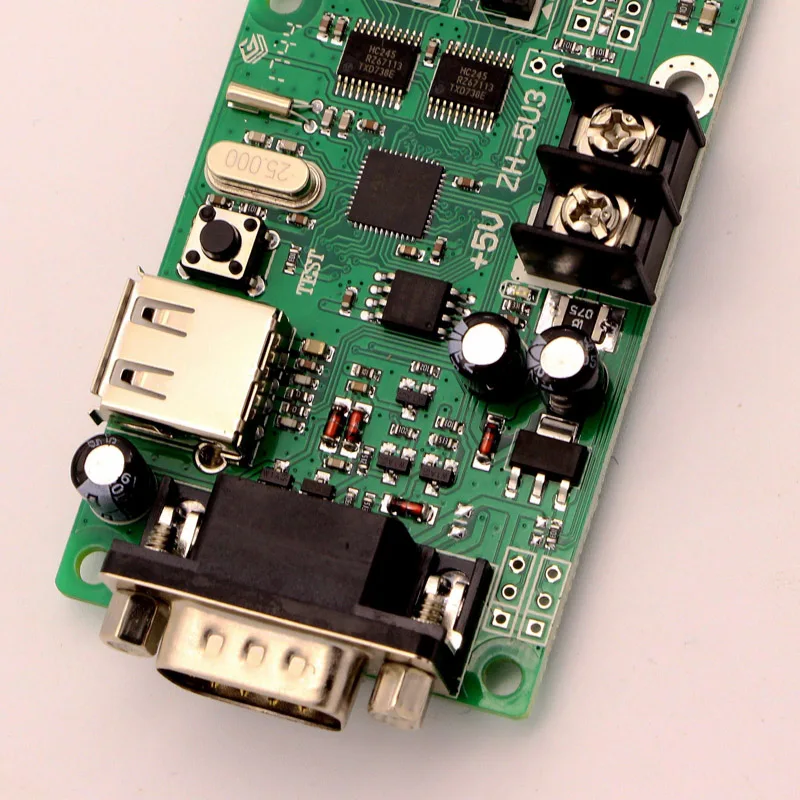

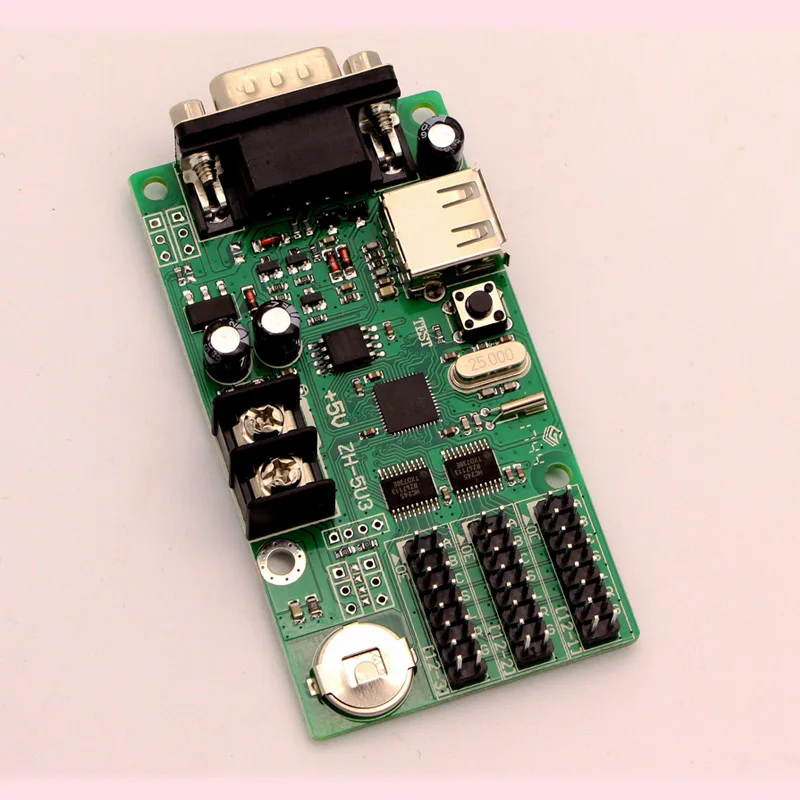

USB And Serial Dual Communication P10 LED Display Panel Board

Model Number : ZH-5U3


1. USB Communication Types;
2. Very Simple Software Operation Steps;
3. Super Stable Effect, Super Compatibility.
\t
Control Line
\t
3-line
\t
Control Area
\t
32*960 48*640
\t
Hub Port
\t
3*hub 12
\t
Communication
\t
USB + RS232

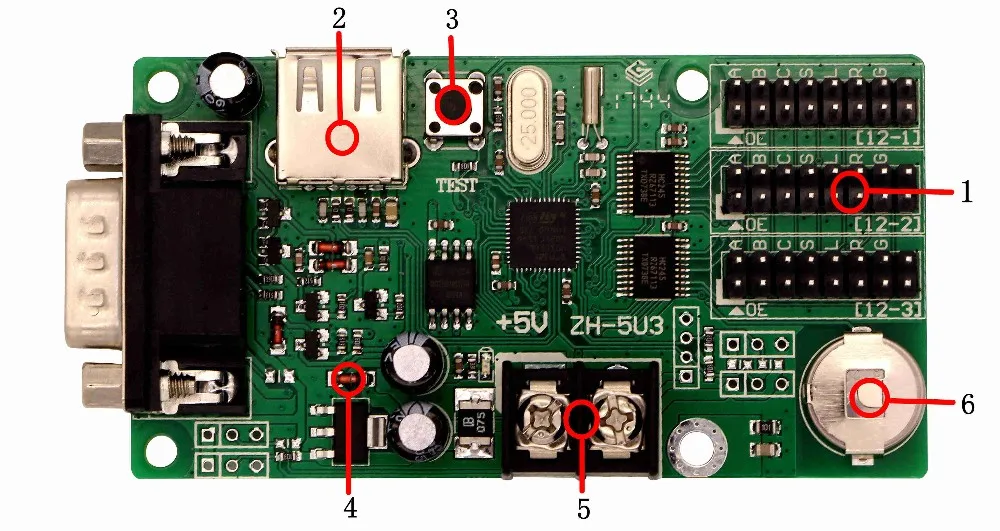

Specification

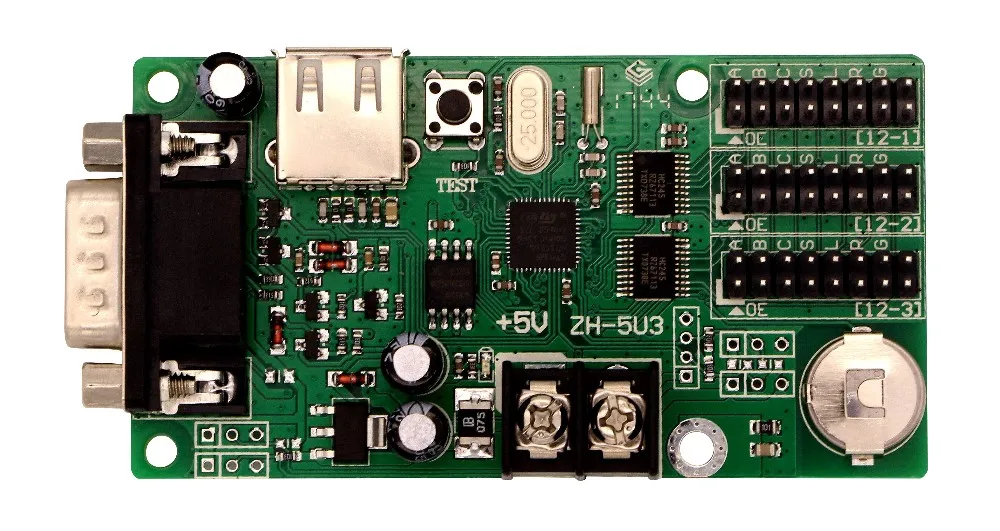

\t
Item
\t
Interface Name
\t
Description
\t
1
\t
Hub Port
\t
Connect hub board
\t
2
\t
USB Port
\t
USB Port
\t
3
\t
Multi-function Button
\t
1.Test LED panel   2.Reset to defaults
\t
4
\t
5V Power Indicator
\t
Indicating power state
\t
5
\t
5V Power Port
\t
Voltage range support 3.2V-5.5V
\t
6
\t
RTC Button Battery
\t
RTC battery,Voltage 3V
\t
PC Software
\t
LED Control System V5.1.18
\t
Pixel
\t
32*960 48*640
\t
Hub Port
\t
3*hub 12
\t
Communication Port
\t
USB + RS232
\t
Support Module Type
\t
All kinds of single/dual color LED display modules
\t
Software Function
\t
Multi-language/Multi-program/Multi-partition
\t
Program Number
\t
65536 programs, 16 partitions for each program.
\t
Play Type
\t
Text, Graphic, Animation, Time, Clock, Timer, Temperature.
\t
Running Side
\t
Over 10 kinds of running sides, support single partition running side.
\t
Clock Display
\t
Digital clock, Analog clock, Positive timing, Negative timing.
\t
Memory
\t
1 MByte
\t
Brightness Adjustment
\t
15 levels brightness, automatically adjust by time.
\t
Remote Switch
\t
Support timing turn on/off, turn on/off by software.
\t
Working Voltage
\t
3.2V-5.5V
\t
Max Power
\t
≤0.5W
\t
Working Temperature
\t
-30℃~70℃
\t
Secondary Development
\t
Offer development protocol
Company Information


Zhengzhou Zhonghang Software Development Co.,Ltd.



1. Located in Hi-tech District of Zhengzhou City.
2. 8 years focuses on LED display control card system research and development, production, sale, and service.
3. Professional team, high quality products, excellent service make our company become the professional manufacturer and main supplier of LED display control system around the world.
Software download

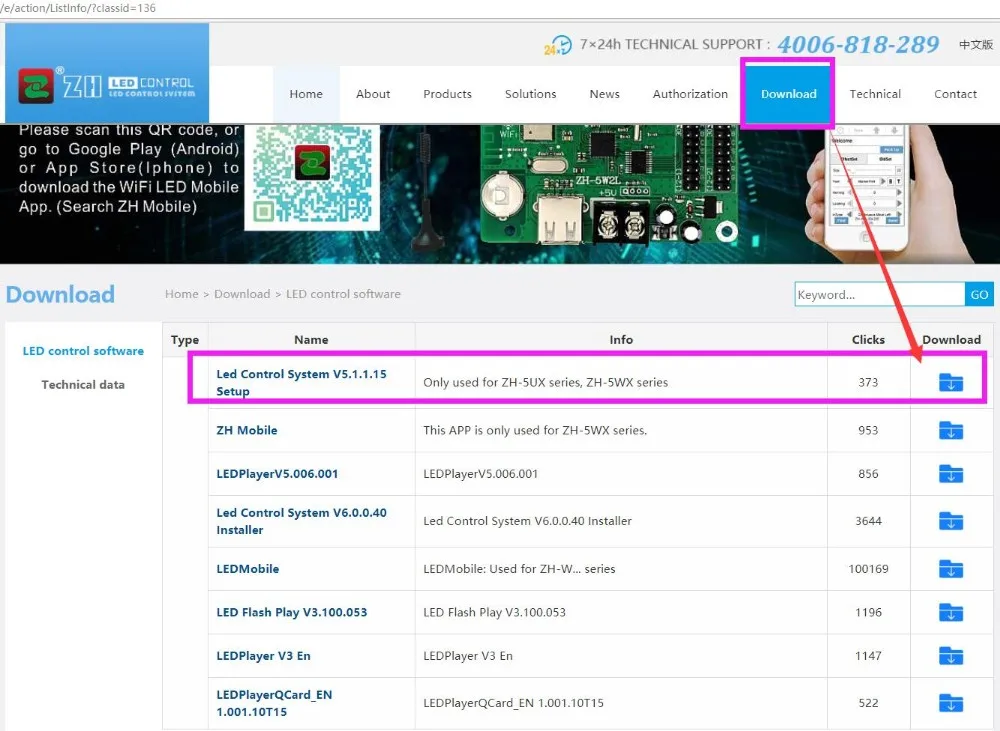

USB series cards how to download the software?

(1). Download Website: www.zhonghangled.com/en.

(2). Software Name: LED Control System V5.1.1.15.


The PC software interface as follows:

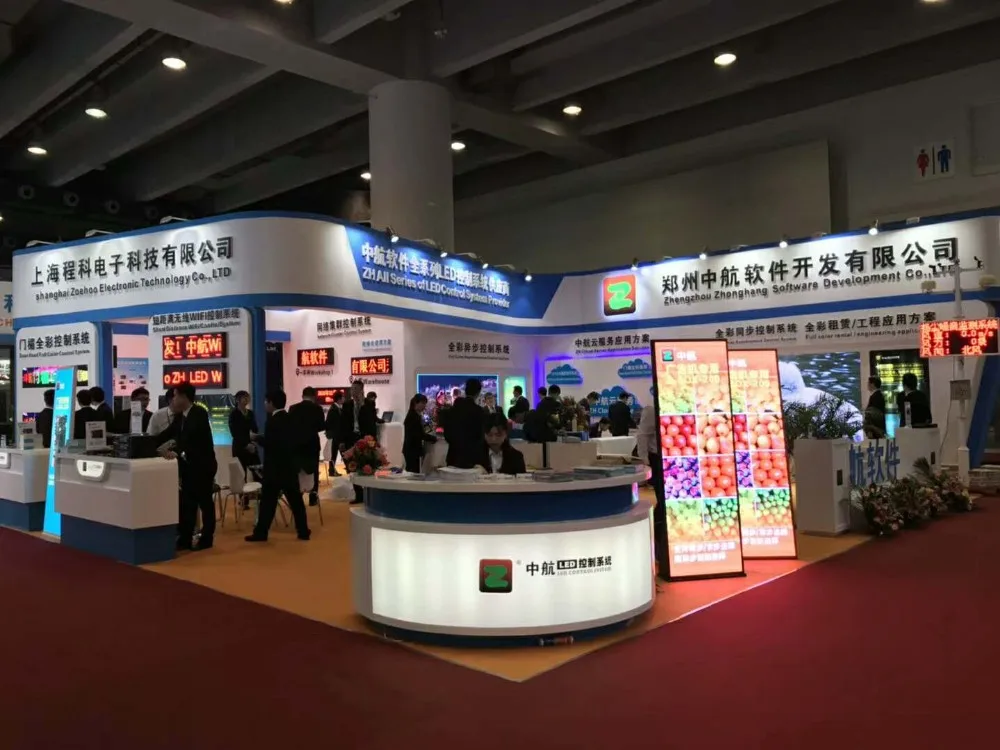

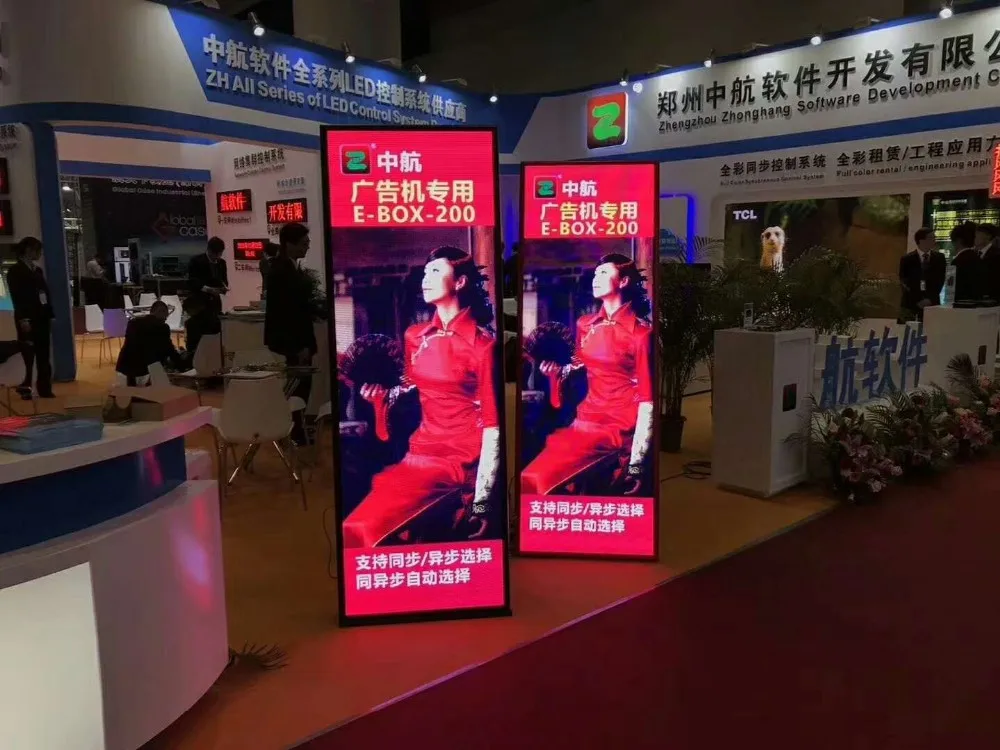

Exhibition
Certifications


Our products have won many certificates and are familiar around the world.Offer high quality products, competitive price, best service for our customers is our business philosophy.


Order & Delivery

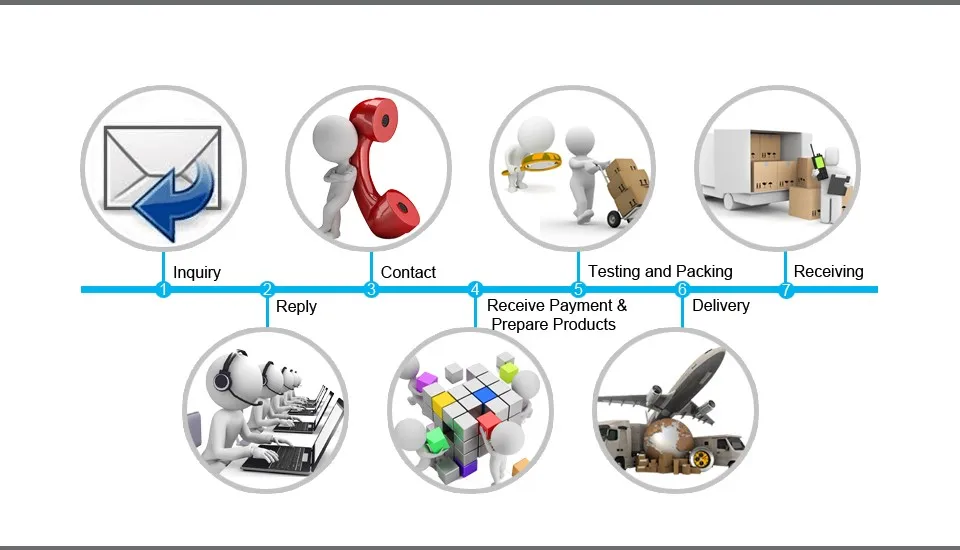

                                                Trading Process
