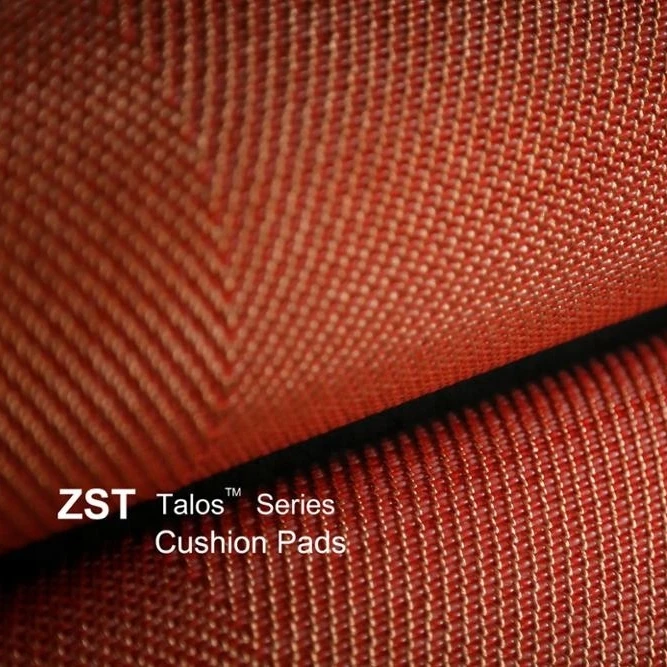

Silicon Cushion Pad,cushion Pad Hot Press Cushion Pad, Hot Press Woven Brass for Wood Laminate Unlimited Talos sb CN;BEI 2 2.5

Product Overview

Description

ZST Talos series cushion pad features

²  Thermal Characteristics

   Elasticity does not change after 1000hours of operation at 260℃

²  Chemical Characteristics

   Excellent chemical resistant. Material is resistent to hot oil, benzines, olefines etc. Acids do not attack the elastomer. Elastomer material resistent. A 24 hour oil test at 230℃ did not show any loss of elasticity.

²  Environmental Characteristics

   The elastomer does not oxydize. Not affected by ozone.

²  Fabric Characteristics

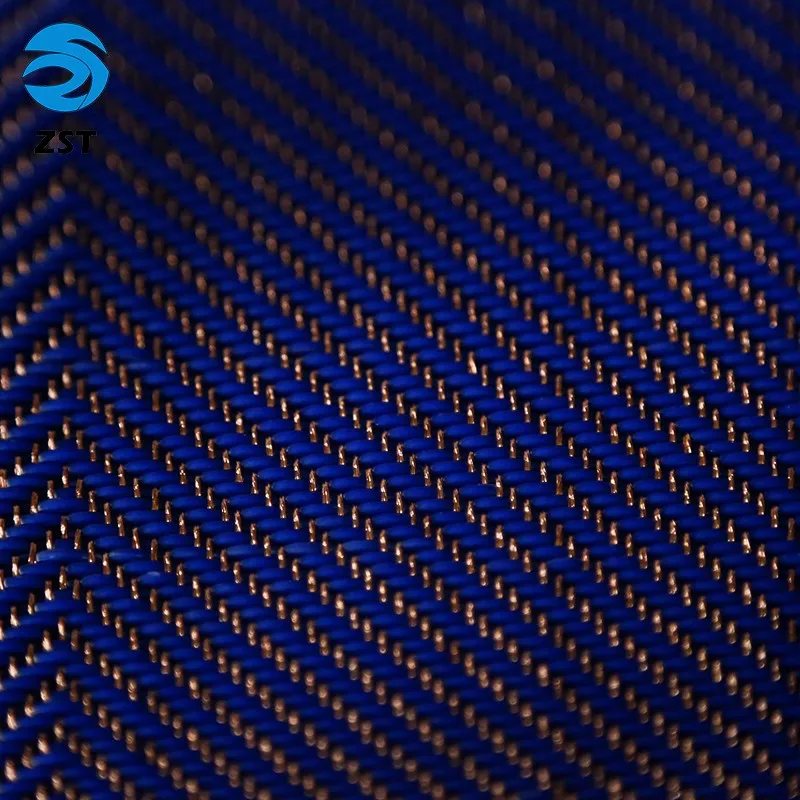

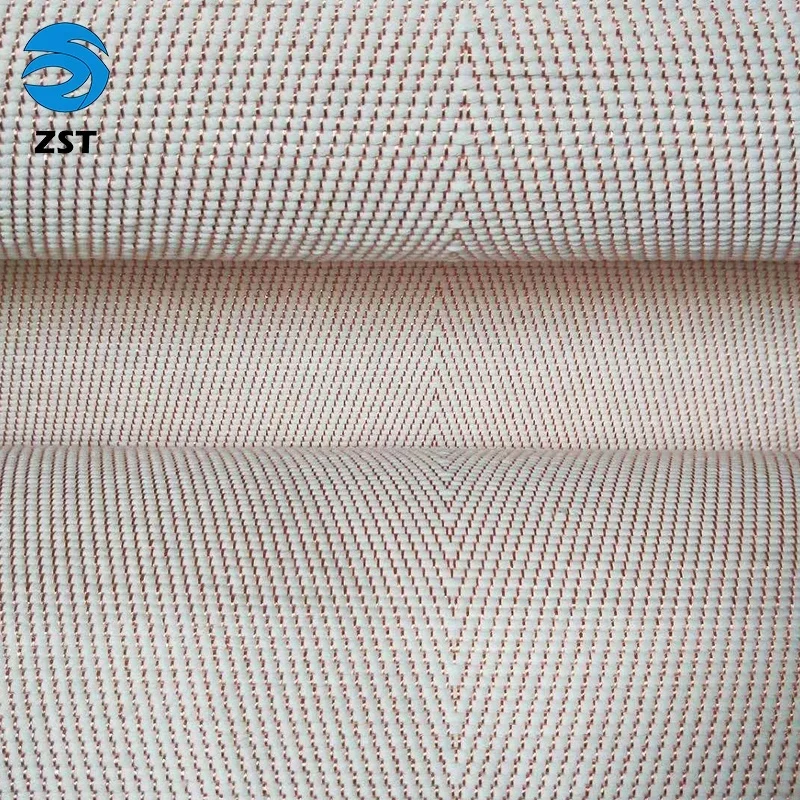

   The fabric construction reduces warp shrinkage to 0.8% or less. The elastomer allows the brass threads to imbed in the weft, which protects them against abrasion and extends the lifetime of the pads.





Model	Unit	Talos-SC	Talos-SB	Talos-FC	Talos-FB	Talos-CC	Talos-CB
Material		Germany silicon+copper	Germany silicon+brass	Fiber+copper	Fiber+brass	Copper+copper	Copper+brass
Type of weave		Plain weave/Twill weave	Plain weave/Twill weave	Twill weave	Twill weave	Twill weave	Twill weave
Thickness	mm	2-2.5	2-2.5	3-6	3-6	1.2-2.5	1.2-2.5
Width	mm	≤3300	≤3300	≤3300	≤3300	≤3300	≤3300
Length	mm	unlimited	unlimited	unlimited	unlimited	unlimited	unlimited
Continuous thermal load (Service temperature)	℃	≤260	≤260	≤230	≤230	≤300	≤300
Continuous pressure (Service pressure)	MPa	≤35	≤35	≤35	≤35	≤35	≤35
Weight	g/sqm	3000-4500 g/sqm		5000-5500 g/sqm		20000-36000 g/sqm
Color		Blue	Blue	White	White	Yellow	Yellow
