MRJ Laser metal laser engraving machine
- Category: >>>
- Supplier: Chengdu Mrj-Laser Technology Co. Ltd.
Share on (60774732341):
Product Overview
Description
Hot Sales
Portable Fiber Laser Marking
For metals, ABS, PC and plastic
532nm Green Laser Marking
For Glass, non-metal with higher precision
355nm UV Laser Marking
For Electronics, Crystal, Sapphire, higher class marking
Laser Welding Machine
For welding purpose
Fiber Laser cleaning machine
For rust, paint, decoat, etc
Fiber Laser rust removal
For mining, food factory, shipyard, etc
Click above picture to enter product page now.
Product Desciption
Model | MRJ-FL-20I | MRJ-FL-30I | MRJ-FL-50I | ||
Laser Power | 20W | 30W | 50W | ||
Laser Wavelength | 1064nm | 1064nm | 1064nm | ||
Beam Quality | M²<1.6 | M²<1.6 | M²<2.0 | ||
Repetition Frequency | 20-80KHz | 30-80KHz | 50-120KHz | ||
Marking Field | 110mmx110mm | 110mmx110mm | 110mmx110mm | ||
Marking Depth | ≤1.2mm | ≤1.5mm | ≤2.0mm | ||
Marking Line Speed | ≤14000mm/s | ≤14000mm/s | ≤14000mm/s | ||
Minimum Line Width | 10um | 10um | 10um | ||
Minimum Character | 0.15mm | 0.15mm | 0.15mm | ||
Repetition Precision | ±0.005mm | ±0.005mm | ±0.005mm | ||
Power Consumption | ≤600W | ≤800W | ≤1000W | ||
Maintenance-free Time | 100000hours | 100000hours | 100000hours | ||
Input Power | Single Phase110VAC/220VAC/50-60Hz | ||||
Cooling Method | Air Cooling | Air Cooling | Air Cooling | ||
Application
Applied Industries:
Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.
Food package: Plastic packages, etc.
Marking Material:
Superiority:
Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.
Food package: Plastic packages, etc.
Marking Material:
Metals: Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc,
rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals: Plastics, rubber, resin, carton box, etc.
rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals: Plastics, rubber, resin, carton box, etc.
Main Parts:
Fiber Laser Source: IPG, SPI, Raycus, Max, JPT (optional)
Scan Head: SINO-GALVO
Marking Software: EZCAD/self-developed
Others: F-theta Lens; Computer
Fiber Laser Source: IPG, SPI, Raycus, Max, JPT (optional)
Scan Head: SINO-GALVO
Marking Software: EZCAD/self-developed
Others: F-theta Lens; Computer
Superiority:
R & D:
Professional engineering design and the smallest size;
Warranty and service:
100,000 hours life time with 2 years warranty and oversea after-sales.
Certificates:
Customized products with CE, EN60825 and test certificates.
Professional engineering design and the smallest size;
Warranty and service:
100,000 hours life time with 2 years warranty and oversea after-sales.
Certificates:
Customized products with CE, EN60825 and test certificates.
Our Service
Why MRJ Laser
Versatile:
MRJ laser engraving machines can be customized for your specific industrial or educational applications and our machines can easily be adjusted for a wide range of materials. One-off prototypes, small or larger production runs are all easily catered for with a laser machine.
Precise:
MRJ's laser engraving machines can engrave a wide range of materials to a high degree of accuracy, ensuring top results every time - even intricate or complex detail can be produced effectively.
Fast:
Because laser engraving is faster than traditional techniques, you can achieve greater output and increased productivity, giving you a better return on your investment and ultimately leading to more profitability!
Safe and Clean:
Laser engraving is a contact-free engraving process - materials do not need to be clamped down or adjusted and the laser machines never expose the operator to moving parts. All MRJ machines are fully tested, CE approved and comply with industry safety standards. This is a clean and efficient process, especially when used in conjunction with a MRJ filtration/ventilation system.
Ease of use:
Whether you are new to laser engraving or an expert, MRJ laser engraving machines are easy to operate. Once the design software file has been imported and the laser settings adjusted, it is as simple as operating a microwave, laser printer or CD player!
Value:
MRJ laser engraving machines represent excellent value for money. The compact machine footprint compared to the working bed size makes MRJ laser machines an extremely attractive option.
MRJ laser engraving machines can be customized for your specific industrial or educational applications and our machines can easily be adjusted for a wide range of materials. One-off prototypes, small or larger production runs are all easily catered for with a laser machine.
Precise:
MRJ's laser engraving machines can engrave a wide range of materials to a high degree of accuracy, ensuring top results every time - even intricate or complex detail can be produced effectively.
Fast:
Because laser engraving is faster than traditional techniques, you can achieve greater output and increased productivity, giving you a better return on your investment and ultimately leading to more profitability!
Safe and Clean:
Laser engraving is a contact-free engraving process - materials do not need to be clamped down or adjusted and the laser machines never expose the operator to moving parts. All MRJ machines are fully tested, CE approved and comply with industry safety standards. This is a clean and efficient process, especially when used in conjunction with a MRJ filtration/ventilation system.
Ease of use:
Whether you are new to laser engraving or an expert, MRJ laser engraving machines are easy to operate. Once the design software file has been imported and the laser settings adjusted, it is as simple as operating a microwave, laser printer or CD player!
Value:
MRJ laser engraving machines represent excellent value for money. The compact machine footprint compared to the working bed size makes MRJ laser machines an extremely attractive option.

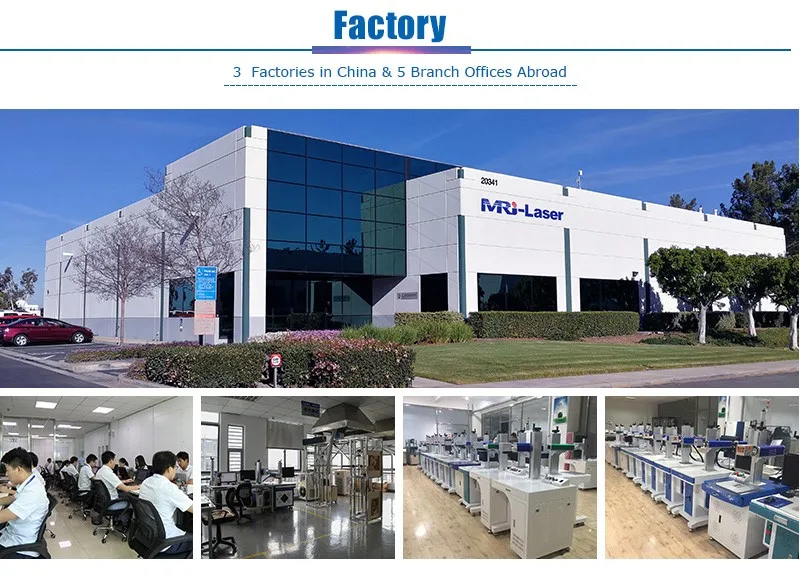

Comapny Information
Chengdu MRJ-Laser Technology Co., Ltd is a professional high-tech enterprise which is located in Hi-tech South Zone in Chengdu of Sichuan province, specialized in laser marking, welding, visual inspection and related application control system's development, production and sales. With an outstanding talent team, strong technical force and the first-class products R&D center, we are dedicated to provide all-around laser application solutions to meet the demands of laser equipment customization in different fields for worldwide customers.
Certifications
FAQ and Contact
FAQ:
Q1: How can I get suitable machine?
Pls inform us the following things, then we could recommend you the suitable products:
Pls inform us the following things, then we could recommend you the suitable products:
A. Marking material
B. Marking area and marking depth(if you have such requirements)
C. Marking content,then we could mark a sample FYI.
Q2: This is the first time I use this kind of machine, is it easy to operate?
Firstly, it is quite easy to operate the machine.
Secondly, user manual and guide video in English easily help to know how to run the machine.
Thirdly, "Teamviewer" online help software for remote control to solve your problem.
Fourthly, we can communicate by phone, email or other contact ways.
Q3: If the machine has problem in my place,what should I do?
You will get free parts in warranty period if machines have any problem under "normal use".
Q4: How long is the delivery time?
Q4: How long is the delivery time?
For standard machines, it would be 7-10 days;
For non-standard machines and customized machines, it would be 15 to 30 days.
Q5: How's the payment?
For non-standard machines and customized machines, it would be 15 to 30 days.
Q5: How's the payment?
Telegraphic Transfer (T/T)/Ali Trade Assurance Payment
Q6: Do You Arrange Shipment For The Machines?
Q6: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you.By sea,by air or express.
Of course, appointed forwarder is welcome
Of course, appointed forwarder is welcome
