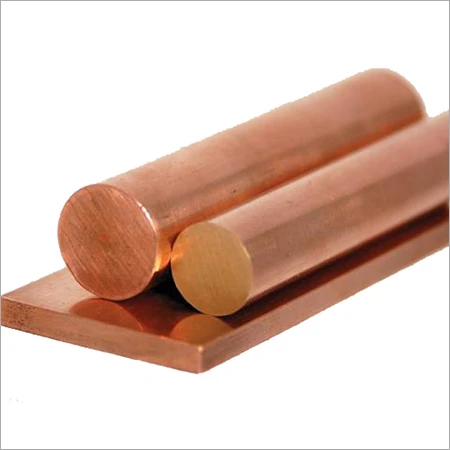

UNS C17300 beryllium copper rod price price per ton copper

Product Overview

Description

               C17300 CuBe2Pb beryllium copper

Density(g/cm3)	8.26
Modulus of elasticity(KN/mm2)	131
Thermal conductivity{W/(m*K)}	105
Coefficient of thermal expansion (10-6/℃ 20/℃~100/℃)	17.5



Temper	Tensile Strength	Yield Stength	Elongation A50	Hardness	Electrical Conductivity
	(Rm,Mpa)	Rp0.2,Mpa	%	HV	IACS%(20℃)
TB00	410-590	140	20min	45-85	15-19
TD04	620-900	520	8min	88-103	15-19
TH04	1140-1380	930	20min	27-44	23-28



Be	1.8-2.0
Ni+Co	≥0.2
Ni+Co+Fe	≤0.6
Cu	Bal





 Probe,Coaxial connector,Photomultiplier tube,Hihg precision instrumentation



      Shanghai Kinmachi Industry Co.,Ltd. is a professional servicer of providing

metal materials and solutions for the automotive electronics industry.

         After many  years of  accumulation and development  in  the  automotive

electronics  industry , we  accumulated  rich  experience  and  a large  number

 of  professional  data,  we  can   provide   new  material   and   optimization  of

high -performance  and low-cost,which including raw materials,  electroplating

 stamping,   assembly,  injection  moldingand  so on.  We   have   become   the

first   choice  as  a  majo r  service  provider  for  manyautomotive electronics

manufacturers
