PP Woven Bag Production Line Machine

Product Overview

Description

PP Woven Bag Production Line Machine

Application:

This machine is suitable to cut the laminated pp woven bags & sew the bottom edge of the bags automatically. Such as chemical bags,flour bags,rice bags,feed bags and other woven bags with lamination. The machine is fully electric control, no need air pump, so it is quite convenience & easy to operate, especially in cold weathers. The photosensitive devices could control the length of the cutting bags accuracy. Since the machine can finish the processes of cutting & sewing of the bags synchronous, so the machine can save labors and improve the quality of the bags evidently.



Features:

  Integration of cutting and sewing as a whole.

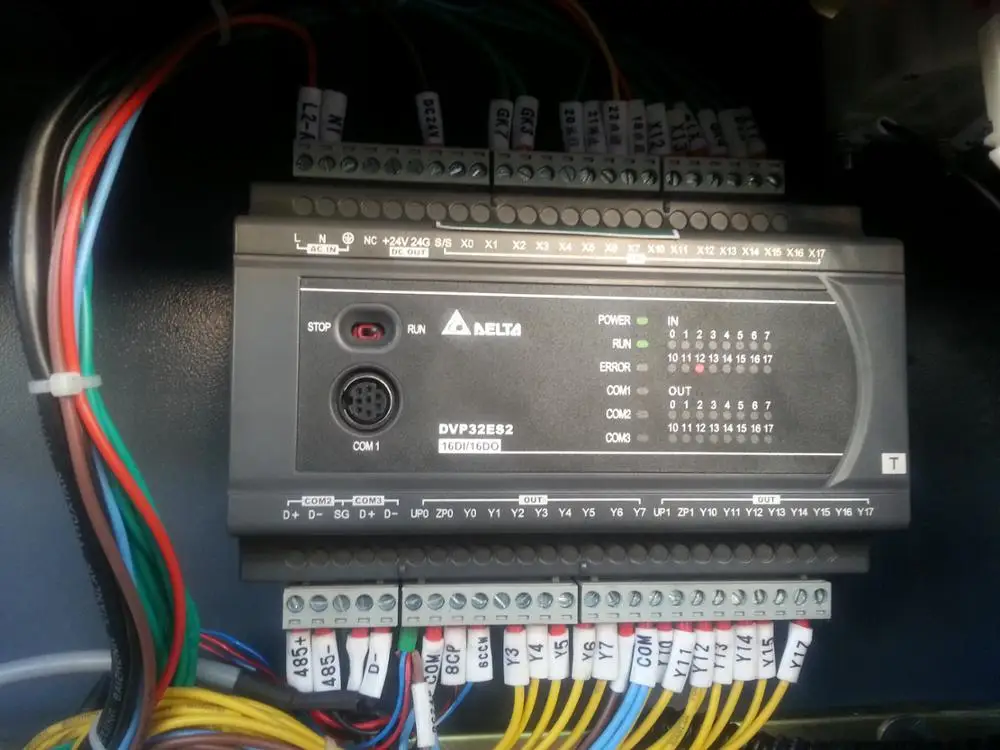

  Fully electric control, no need air pump, stable and reliable

  The cloth wind-driven tension automatic control.

  Chase the mark cut,fixed-length cut.

  Sewing machine thread break, automatically alarm.

  Set the bag number, then it will auto collect and move.



Specification:

Model	LQF-800
Cutting Speed	40-50pcs/min
Max.Diameter of Cloth Roller	1500mm
Cutting Width	300-800mm
Cutting Length	500-1300mm
Cutting Precision	±2mm
Bottom Sewing Fold width	20-30mm
Total Power	15 kW
Power Supply	220V or 380V
Weight	1700kg

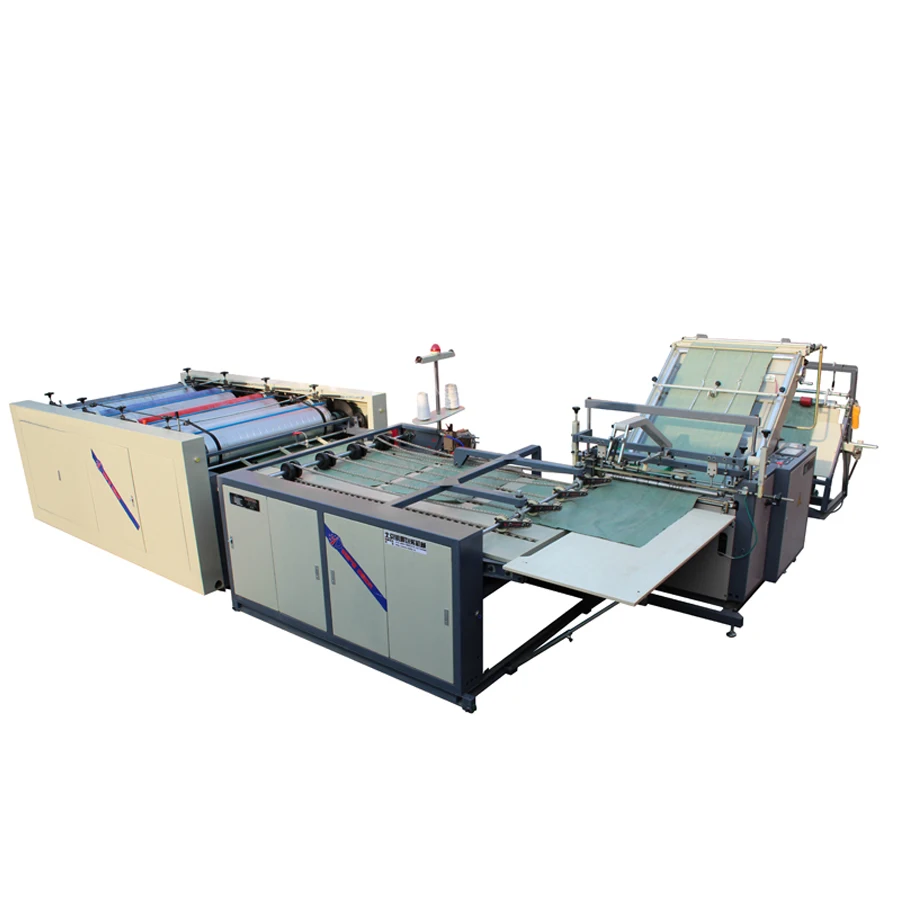

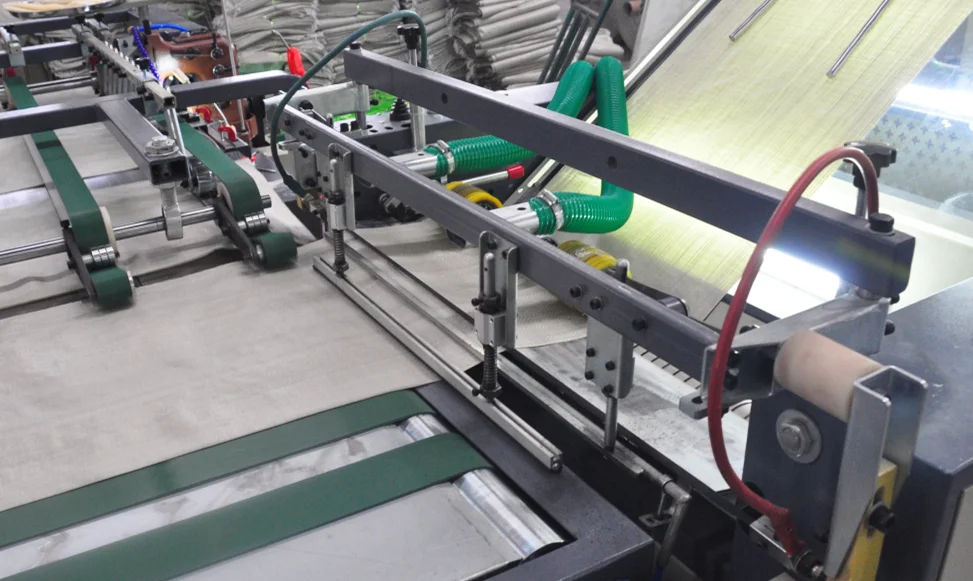

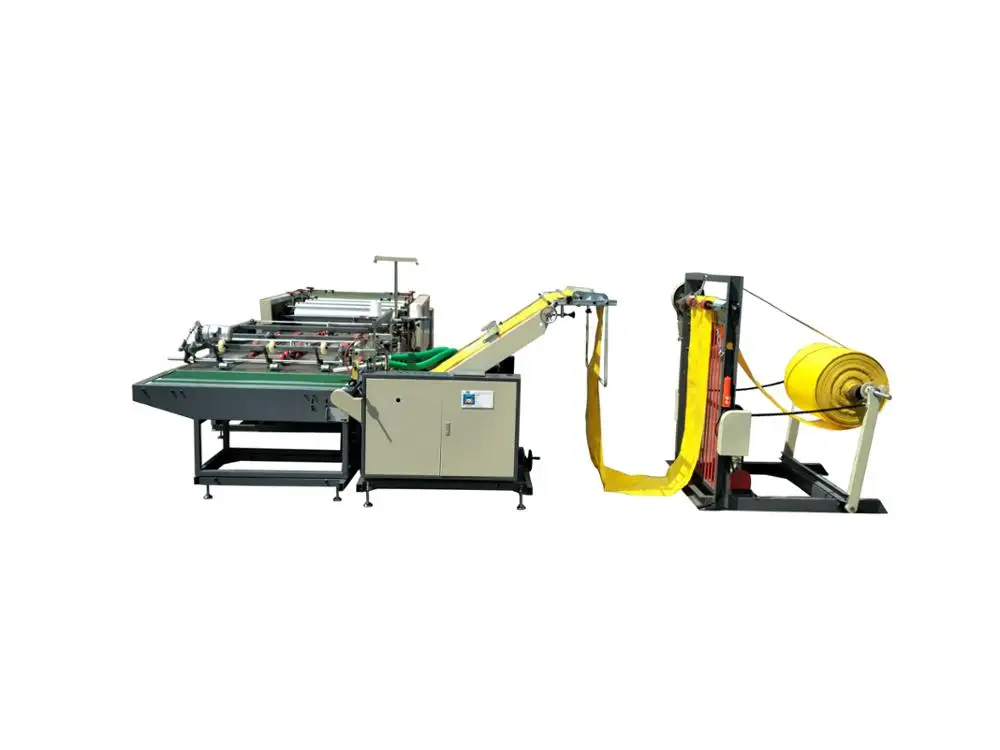

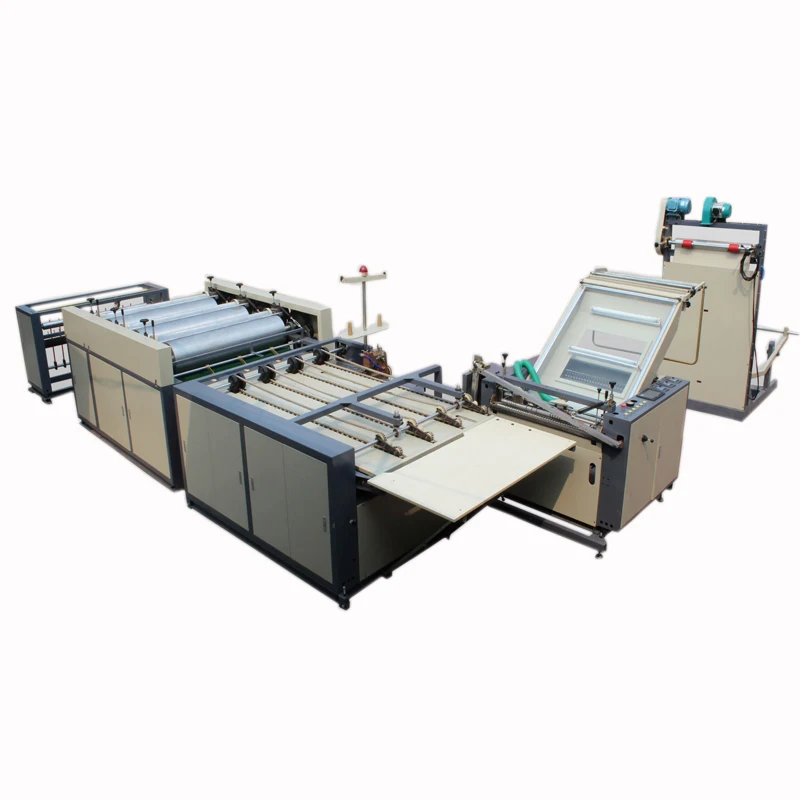

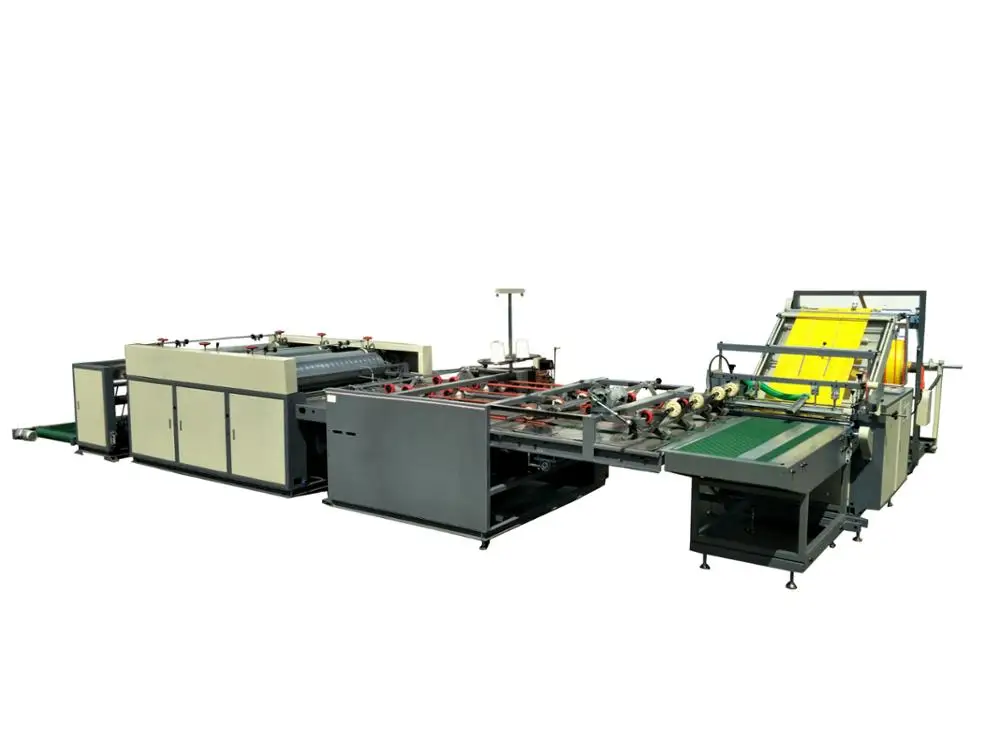

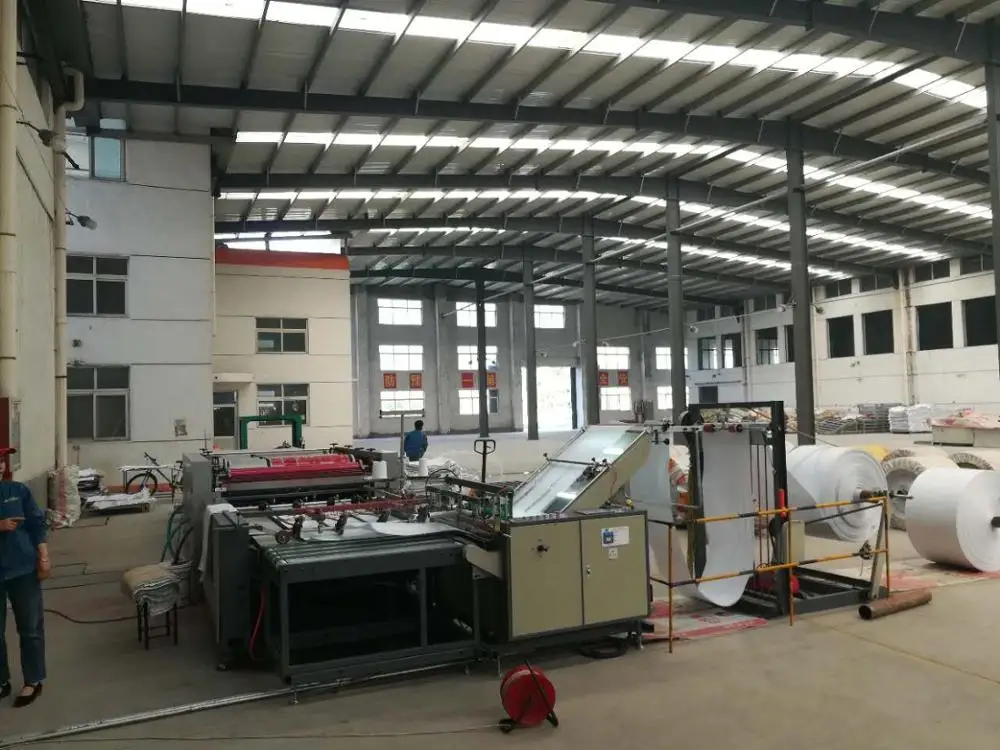

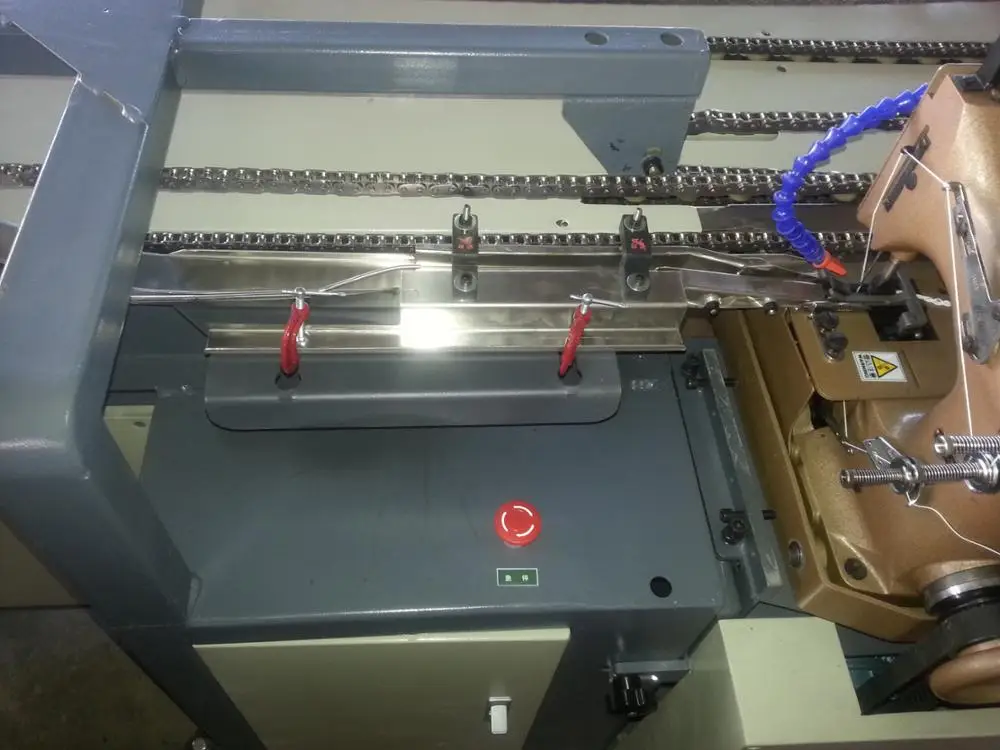

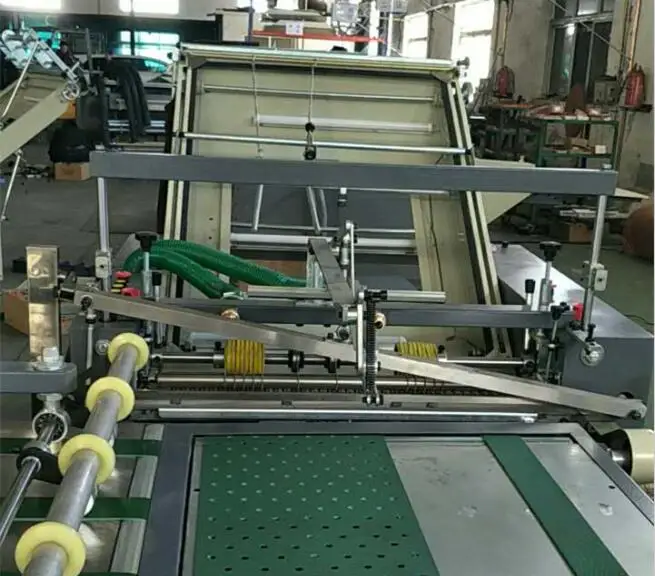

Machine Pics:
