12V to 5V 10A 24V to 5V 10A (12V/24V to 5V 10AMP) 50W DC DC Converter Charger For Phone Tablet Charging
- Category: >>>
- Supplier: Shenzhen Daygreen Technology Co. Ltd.
Share on (60774844111):
Product Overview
Description
Product Description

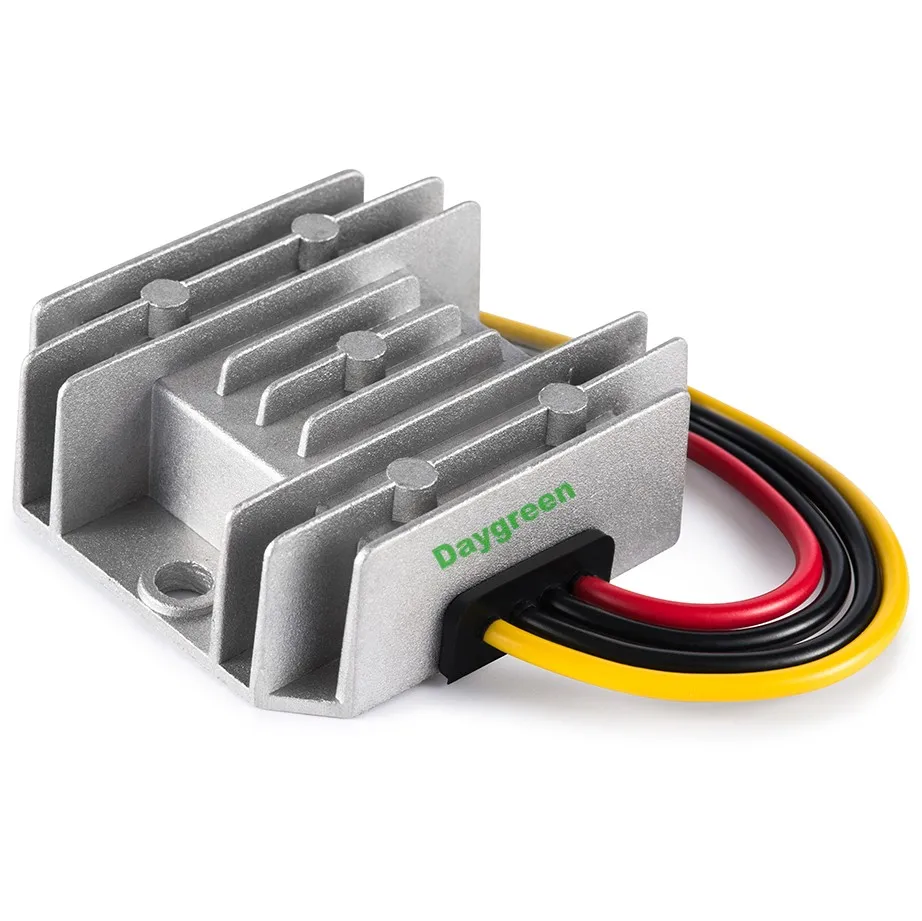

12/24V to 5V 10A DC/DC Converter
Wide input voltage from 10 to 30V
Stable output voltage is 5V
100% full rated power
100% full stable output current
100% burn-in test
Typical efficiency is 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2 years warranty
Over-current, over-voltage protections
Over-temperature protections
According to: EN 50498:2010 IP68
Daygreen P/N | D510 |
Efficiency | 95% |
Input Voltage | 10V-30VDC |
Output Voltage | 5VDC |
Output Current | 10A |
Ripple | 50mVp |
Line Regulation | ±0.2% |
Load Regulation | ±0.2% |
Voltage Accuracy | ±1.5% |
Enclosures | IP68 |
Dimension | 2.6*2.28*0.91 inch |
Net Weight | 0.154 lb |
Ambient temperature | -20~60°C |
Operation temperature | -40~80°C |
Warranty | 2 years |
