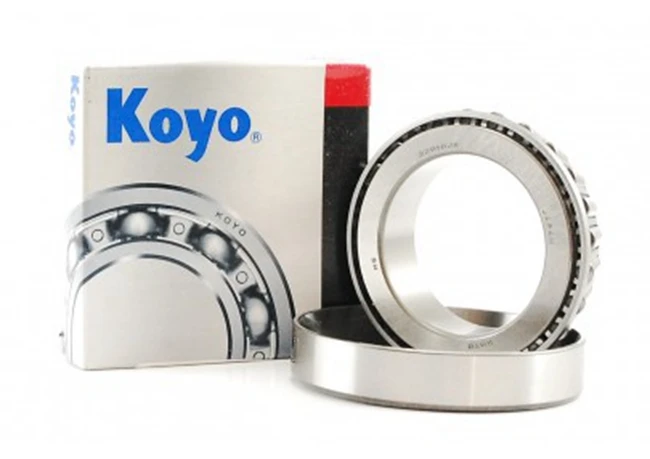

Japan Koyo 32005X Taper Roller Bearing
Product Description
Koyo 32005X Bearing has tapered inner,outer raceways and tapered rollers. They can take large radial load and axial load. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. Bearing capacity depends on the Angle of the outer ring raceway.
Koyo 32005X Bearing size chart
| Model | Dimensions(mm) | Weight(kg) | Model | Dimensions(mm) | Weight(kg) | ||||
| d | D | T | d | D | T | ||||
| 30202 | 15 | 35 | 11.75 | 0.053 | 32207 | 35 | 72 | 24.25 | 0.456 |
| 30203 | 17 | 40 | 13.25 | 0.079 | 32208 | 40 | 80 | 24.75 | 0.549 |
| 30204 | 20 | 47 | 15.25 | 0.127 | 32209 | 45 | 85 | 24.75 | 0.602 |
| 30205 | 25 | 52 | 16.25 | 0.157 | 32210 | 50 | 90 | 24.75 | 0.644 |
| 30206 | 30 | 62 | 17.25 | 0.238 | 32211 | 55 | 100 | 26.75 | 0.86 |
| 30207 | 35 | 72 | 18.25 | 0.34 | 32212 | 60 | 110 | 29.75 | 1.18 |
| 30208 | 40 | 80 | 19.75 | 0.438 | 32213 | 65 | 120 | 32.75 | 1.55 |
| 30209 | 45 | 85 | 20.75 | 0.488 | 32214 | 70 | 125 | 33.25 | 1.66 |
| 30210 | 50 | 90 | 21.75 | 0.558 | 32215 | 75 | 130 | 33.25 | 1.72 |
| 30211 | 55 | 100 | 22.75 | 0.736 | 32216 | 80 | 140 | 35.25 | 2.13 |
| 30212 | 60 | 110 | 23.75 | 0.93 | 32217 | 85 | 150 | 38.5 | 2.64 |
| 30213 | 65 | 120 | 24.75 | 1.18 | 32218 | 90 | 160 | 42.5 | 3.41 |
| 30214 | 70 | 125 | 26.25 | 1.3 | 32219 | 95 | 170 | 45.5 | 4.22 |
| 30215 | 75 | 130 | 27.25 | 1.43 | 32220 | 100 | 180 | 49 | 5.05 |
| 30216 | 80 | 140 | 28.25 | 1.69 | 32221 | 105 | 190 | 53 | 6.26 |
| 30217 | 85 | 150 | 30.5 | 2.12 | 32222 | 110 | 200 | 56 | 7.35 |
| 30218 | 90 | 160 | 32.5 | 2.6 | 32304 | 20 | 52 | 22.25 | 0.241 |
| 30219 | 95 | 170 | 34.5 | 3.13 | 32305 | 25 | 62 | 25.25 | 0.376 |
| 30220 | 100 | 180 | 37 | 3.78 | 32306 | 30 | 72 | 28.75 | 0.57 |
| 30221 | 105 | 190 | 39 | 4.52 | 32307 | 35 | 80 | 32.75 | 0.765 |
| 30222 | 110 | 200 | 41 | 5.28 | 32308 | 40 | 90 | 35.25 | 1.05 |
| 30224 | 120 | 215 | 43.5 | 6.28 | 32309 | 45 | 100 | 38.25 | 1.42 |
| 30226 | 130 | 230 | 43.75 | 6.83 | 32310 | 50 | 110 | 42.25 | 1.88 |
| 30302 | 15 | 42 | 14.25 | 0.098 | 32311 | 55 | 120 | 45.5 | 2.39 |
| 30303 | 17 | 47 | 15.25 | 0.134 | 32312 | 60 | 130 | 48.5 | 2.96 |
| 30304 | 20 | 52 | 16.25 | 0.172 | 32313 | 65 | 140 | 51 | 3.6 |
| 30305 | 25 | 62 | 18.25 | 0.27 | 32005X | 25 | 47 | 15 | 0.116 |
| 30306 | 30 | 72 | 20.75 | 0.403 | 32006X | 30 | 55 | 17 | 0.172 |
| 30307 | 35 | 80 | 22.75 | 0.538 | 32007X | 35 | 62 | 18 | 0.23 |
| 30308 | 40 | 90 | 25.25 | 0.758 | 32008X | 40 | 68 | 19 | 0.28 |
| 30309 | 45 | 100 | 27.25 | 1.01 | 32009X | 45 | 75 | 20 | 0.354 |
| 30310 | 50 | 110 | 29.25 | 1.28 | 32010X | 50 | 80 | 20 | 0.38 |
| 30311 | 55 | 120 | 31.5 | 1.63 | 32011X | 55 | 90 | 23 | 0.567 |
| 30312 | 60 | 130 | 33.5 | 2.03 | 32012X | 60 | 95 | 23 | 0.608 |
| 30313 | 65 | 140 | 36 | 2.51 | 32013X | 65 | 100 | 23 | 0.646 |
| 30314 | 70 | 150 | 38 | 3.03 | 32014X | 70 | 110 | 25 | 0.869 |
| 30315 | 75 | 160 | 40 | 3.63 | 32015X | 75 | 115 | 25 | 0.925 |
| 30316 | 80 | 170 | 42.5 | 4.27 | 32016X | 80 | 125 | 29 | 1.32 |
| 30317 | 85 | 180 | 44.5 | 5.08 | 32017X | 85 | 130 | 29 | 1.38 |
| 30318 | 90 | 190 | 46.5 | 5.67 | 32018X | 90 | 140 | 32 | 1.78 |

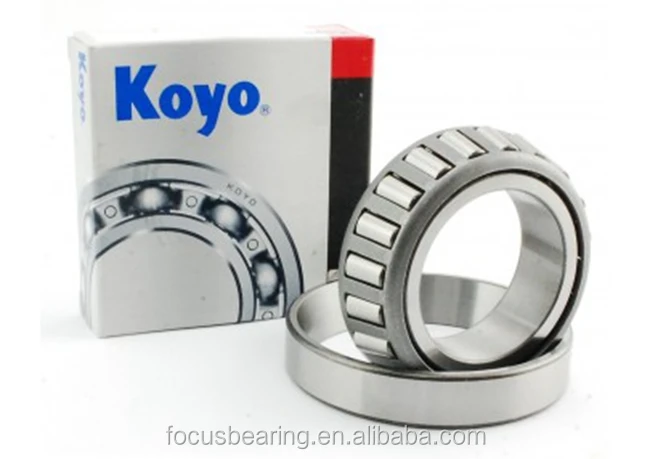

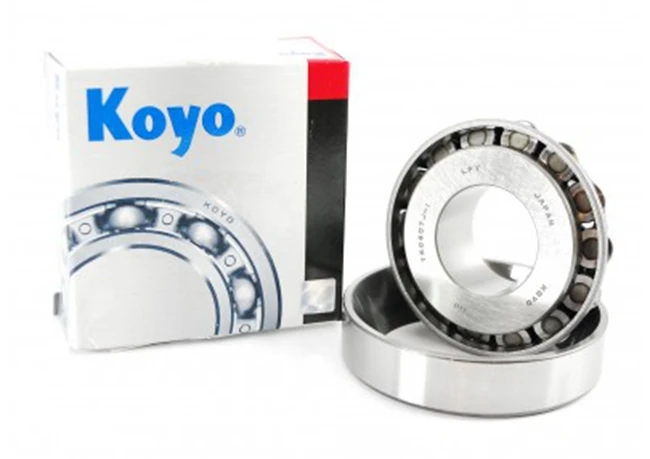

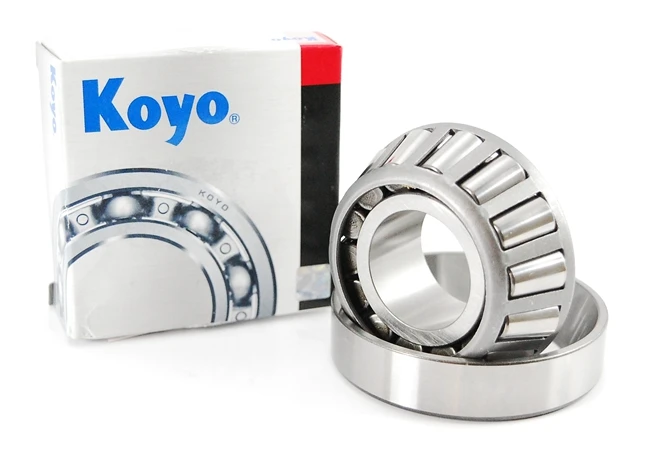

Product Show

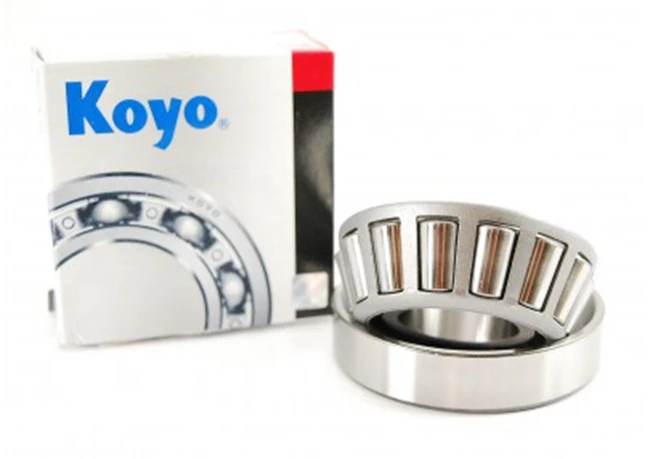

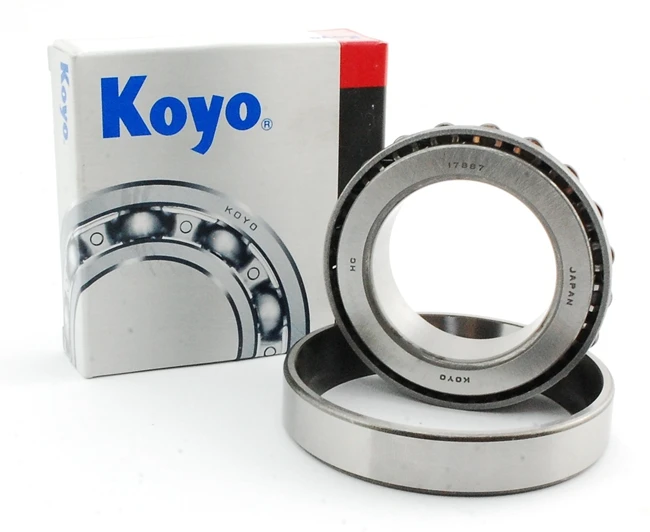

- Koyo 32005X Bearing
- Koyo 32005X Bearing
- Koyo 32005X Bearing
Hot Sale Products
Hot Sale Products Recommended
|
|
|
|

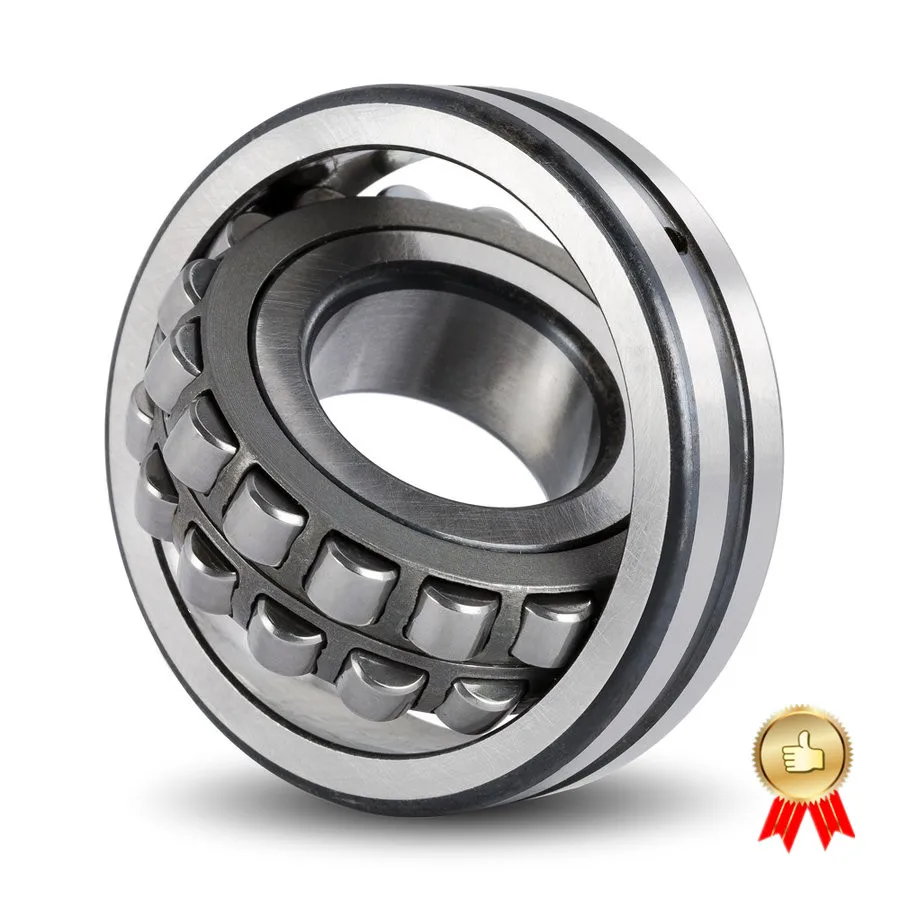

Spherical Roller Bearing |
|
|
|
Customer reviews
Company Information
FOCUS is a trustworthy bearings suppliers.Just like the name of our conmpany FOCUS.We focus on producing bearings more than ten years.We are a skillful and professional team.Our products are pre-tested, process controlled, final product re-inspected with considerate after-sales services.Strict and complete process ensure the quality of our product .Your requirements can be met in our company.
Packaging & Shipping
Packaging Details:
1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging:
a). plastic tube + carton + pallet;
b). plastic bag + craft paper + carton + pallet;
3. According to the requirement of customer.
Shipping:
1. Express Delivery: DHL,TNT,UPS,Fedex,EMS,ARAMEX ETC,2-4 working days to arrive if smooth
2. By Sea
3. By Air
