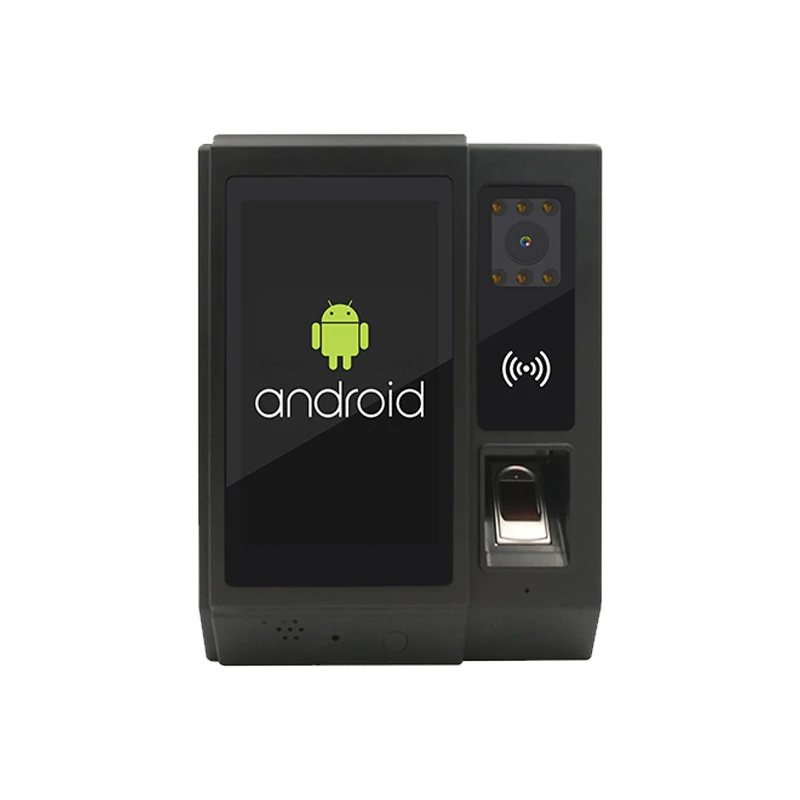

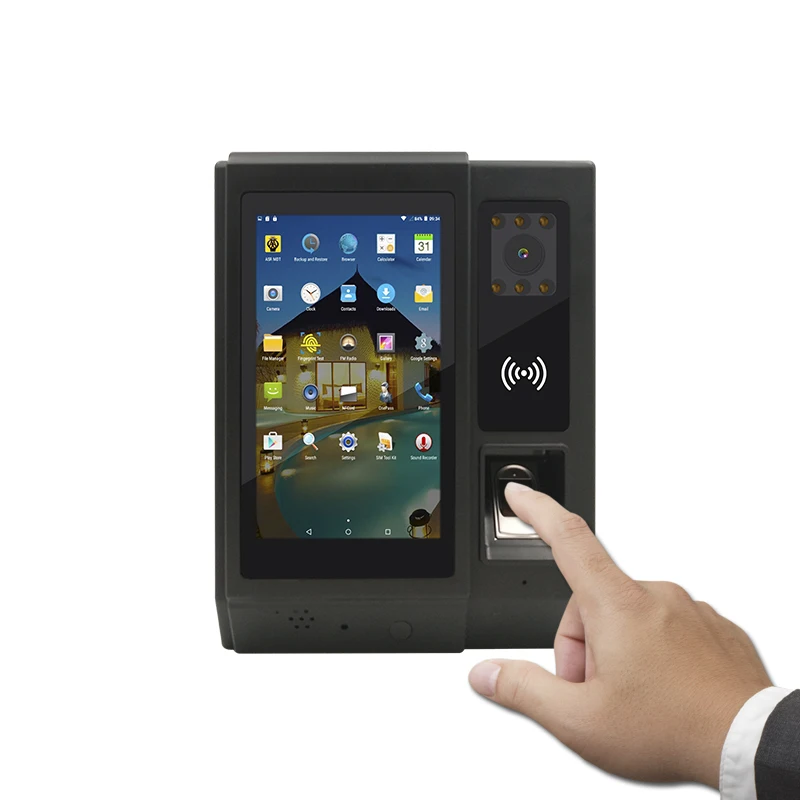

HF-A5 is one of best selling Android time attendance and access control device in HFSecurity. 5" touch screen, communication by Ethernet, 3G,WIFI and bluetooth, with fingerprint and RFID card recognition. You can check real time data in software, also we will offer free SDK for further development and 3rd part access control door lock function. It's widely use for company, government, banking, education, etc.
Specification
Hardware
Hardware
175(L)×78(W)×27(H)(mm)
RAM/ROM
1GB / 8GB
Storage Capacity
8G, can add 32GB SD card
WIFI/Bluetooth
Yes
TCP/IP
Yes, also support POE ( Power over Ethernet)
GPS
support for A-GPS
Bar-code
Support one-dimensional, two-dimensional bar code (optional)
RFID Card
Supports 125KHZ ID card, and 13.56MHZ Mifare/NFC Card
Front Camera
2.0 Mega( Infrared Camera can be developed as face recognition )
Support ( Can update firmware & app remotely via OTA function )
Battery
Lithium-polymer battery 4000mah, 3.7v
Operating temperature range
-20 ° C to + 70 ° C
Operating Humidity
0-95%
Working humidity
0-95%
Certification
CE, ISO9001, GSM TAC certificated
Package Accessories
Device bag, Screw driver, adapter, USB cable
Software
OS
Standard Android 6.0
Processor
Quad-core 1.5GHz
SDK
For free, come with sample package
Time Attendance & Access Control
Support with demo software
Extra support
Launcher APP for free ( Only allow to use the specific app, user cannot access other settings/apps on devices)
ODM logo
Can optional wall-mounted metal box
Fingerprint Sensor
Image Size
256 * 288 pixels
Image Resolution
500DPI
Image Standard
BMP, JPG, WSQ
Fingerprint Standard
Support ISO 19794-2 & ANSI378 template standard
Communication
Data link(1 SIM Card)
2G: GSM CDMA 850/900/1800/1900 MHz;
3G: WCDMA 2100/1900/900/850MHz ( Can do customization according to clients country details)
WIFI/Bluetooth
Yes
TCP/IP
Ethernet (TCP/IP) connection

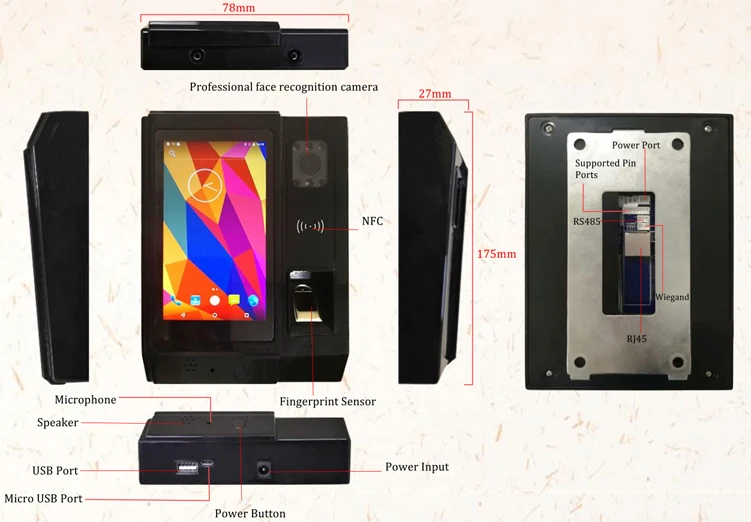

Details Images
We provide free SDK for you to integrate with your own system.

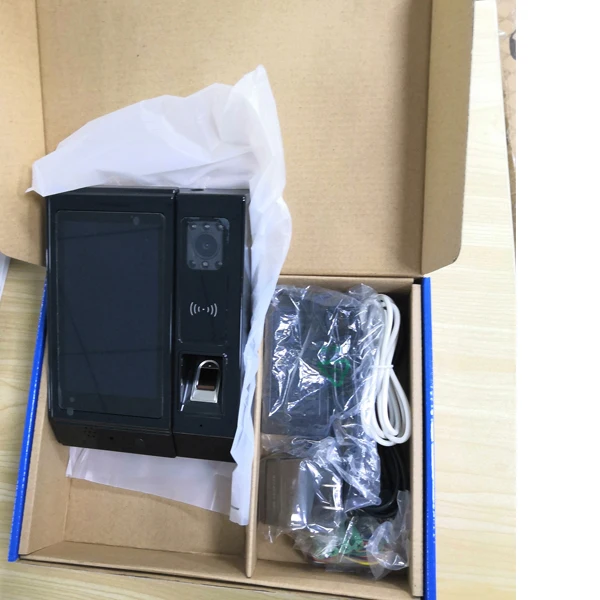

Package
In the package, there are device, two lines, one DC charger, other lines for access control. one plug.
Company Profile
Huafan Group is located in Chongqing city,Southwest of China.Her severalbrands,HFSecurity,BIO,Heystar,are widely in the field of interior decoration,light current,security and protection.We provide your one-stop solution in security and protection with the most professional and exprienced team in China(Shenzhen and Chongqing city),Pakistan,and United Kingdom.With professional attitude,we provide secure integration solution and products.Committed to the success of clients,we have server for more than thousands pf partners with 90% positive feedbacks in the last 10 years.We will keep going,creat interests of clients,create opportunities for staff,and create value for the society.
FAQ
Q:Do you offer warranty for the device? A:Yes,we offer one year warranty& lifelong technical support
Q:What is your MOQ A: :MOQ is 2pcs
Q: What is your payment term? A: :Paypal,T/T(Bank Transfer),Western Union,Cash, Visa and Credit Card via alibaba is preferred
Q: How to get software and SDK? A: Software and SDK is free. Will share download link via dropbox after you place order.
