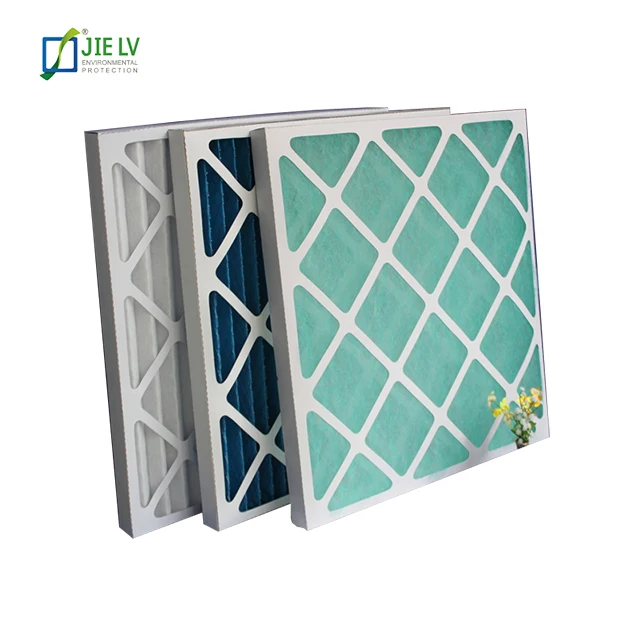

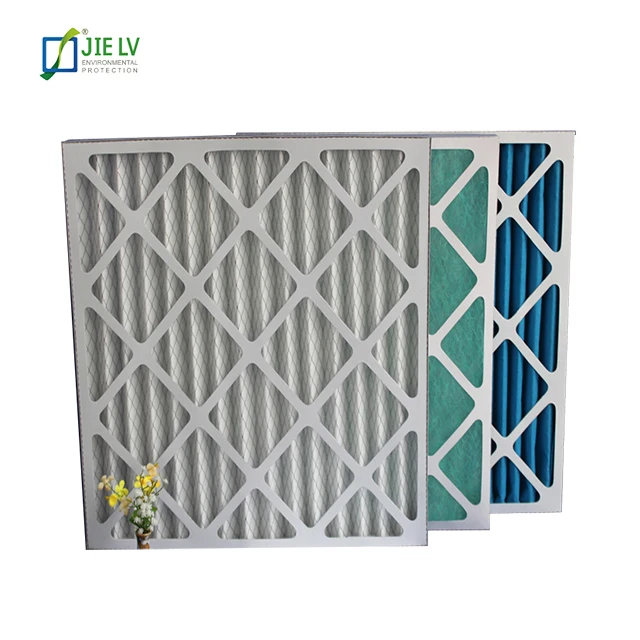

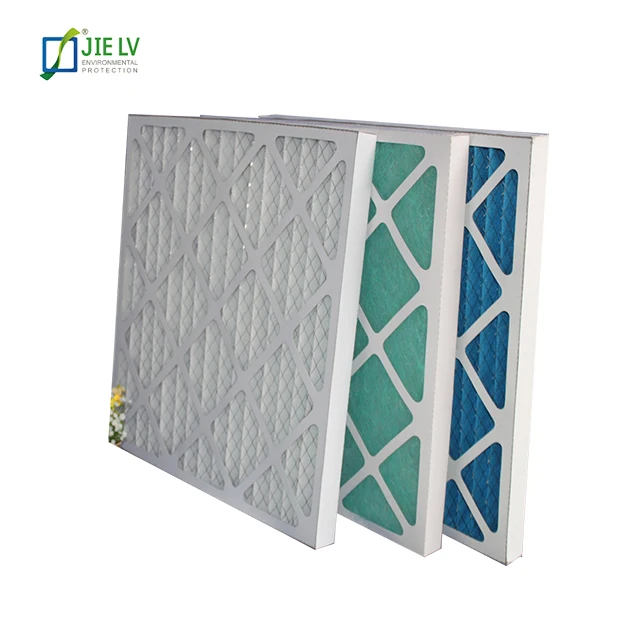

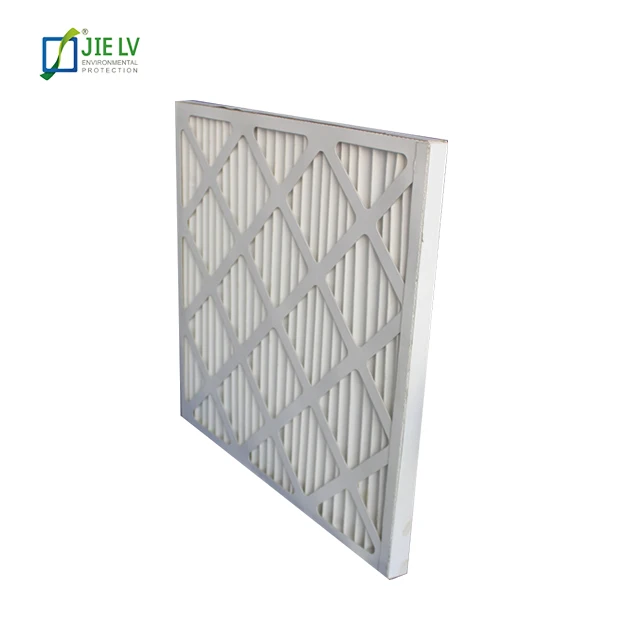

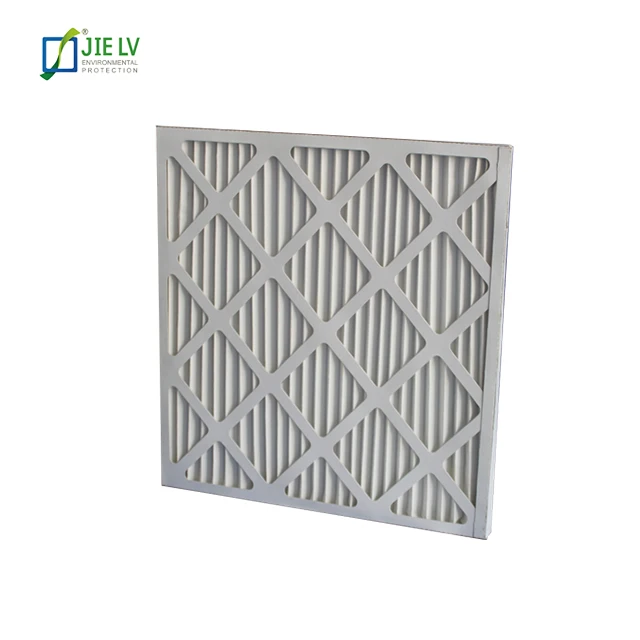

G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system
G4 Cardboard Frame Panel Filter pre filter for for air conditioning system

G4 Cardboard Frame Panel Filter pre filter for for air conditioning system

Share on (60774928542):


Price:$1.50 - $10.00

Quantity:


Product Overview

Description


Product Description
\t
Product name
\t
JLAF5G Cardboard frame pleated air pre-filter
\t
Material
\t
High quality polyester synthetic fiber / cotton fiber blended nonwoven filter material
\t
External Frame
\t
Heat-resistance waterproof paper frame
\t
Inner frame
\t
Welded steel wire protection mesh / spray cast iron wire set mesh
\t
Efficiency
\t
G4(EN799): Gravimetric efficiency≥90%
\t
Operating temperature
\t
≤70℃
\t
Humidity
\t
≤100%RH
\t
Recommended Max. Final Pressure
\t
250Pa
\t
Model
\t
Dimension(mm)
\t
Rated Air Flow
\t
EN799
\t
Color of filter material
\t
No. of pleat
\t

\t
width
\t
Height
\t
depth
\t
(m³/h&Pa)
\t

\t
\t
JL-GZZ6646
\t
595
\t
595
\t
46
\t
1700/35   3400/50
\t
G4
\t
Dark green
\t
15
\t
JL-GZZ6636
\t
290
\t
595
\t
46
\t
850/35    1700/50
\t
G4
\t
Dark green
\t
8
\t
JL-GZZ6695
\t
490
\t
595
\t
46
\t
1400/35   2800/50
\t
G4
\t
Dark green
\t
12
\t
JL-GZZ6395
\t
595
\t
595
\t
95
\t
1700/35   3400/50
\t
G4
\t
Dark green
\t
18
\t
JL-GZZ6595
\t
290
\t
595
\t
95
\t
850/32   1700/50
\t
G4
\t
Dark green
\t
8
\t
JL-GZZ6646
\t
490
\t
595
\t
95
\t
1400/32   2800/50
\t
G4
\t
Dark green
\t
12
\t
JL-GZZ6346
\t
290
\t
595
\t
46
\t
850/35     1700/50
\t
G4
\t
Dark green
\t
15
\t
JL-GZZ5646
\t
409
\t
595
\t
46
\t
1400/35   2800/50
\t
G4
\t
Dark green
\t
25

Product Advantage
Jielvfilter air Filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.

1.High Quality Control air filter
2.Rapidly delivery
3.Sufficient capacity supply of air filter
4.Customer's Designs and Logos on air filter boxes are welcome
5.Favorable price of air filter
6.Vireaty of Designs are allowed
7.Small Order of air filter are Acceptable
8. air filter OEM Accepted

Application: commercial and industrial, pre-filter air conditioning systems, stable performance. Clean room fresh air conditioning system. Automobile industry. Hotels, office buildings.

About Jielvfilter

Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.

Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....

Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..

Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.

Office

Team


Meeting room

Warehouse

Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Related Products

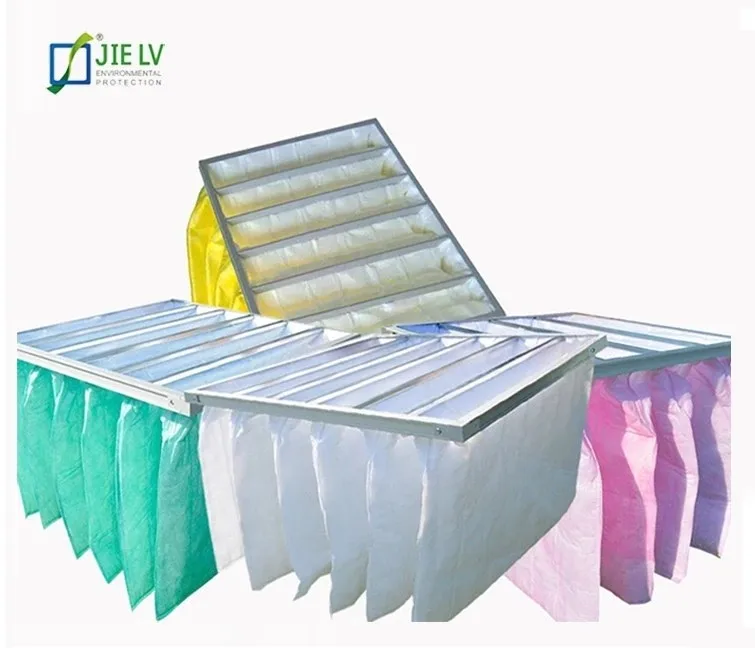

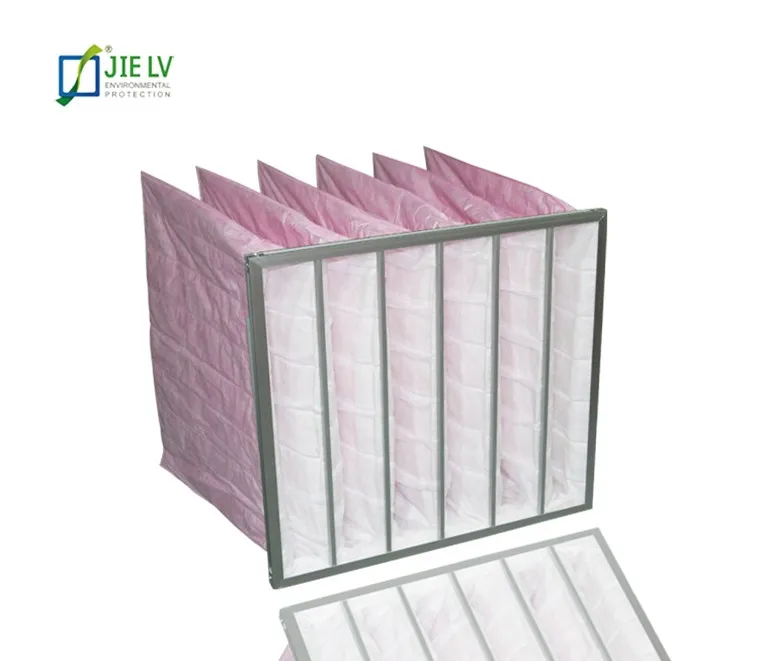

JL G3/G4 Bag Pre-filter For industry and Commercial

F7/F8/F9 Medium efficiency Synthetic Fiber Bag Air filter

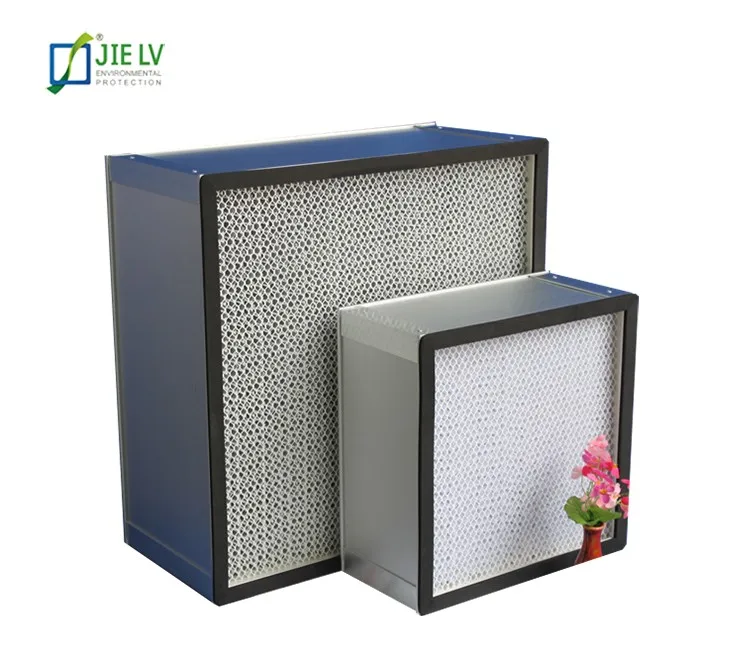

JieLv H11 H13 H14 Hepa Deep-pleat High Efficiency Filter Air Filter
