High tensile strength copper laminated flexible insulated bus bar contactor for electric lifter
- Category: >>>
- Supplier: Zhejiang Rhi Electric Co. Ltd.
Share on (60774956688):
Product Overview
Description
Product information

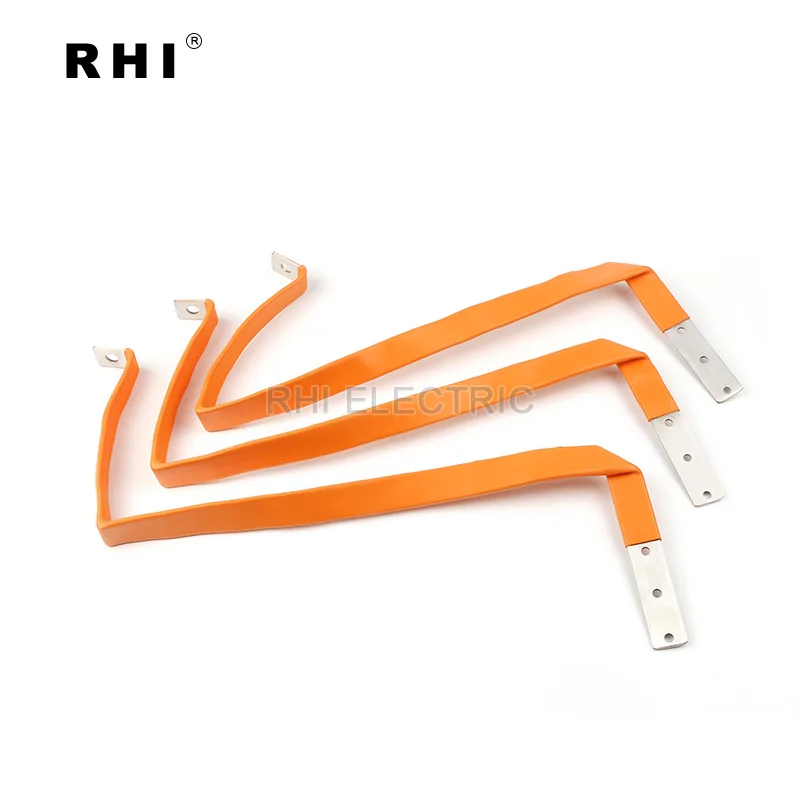

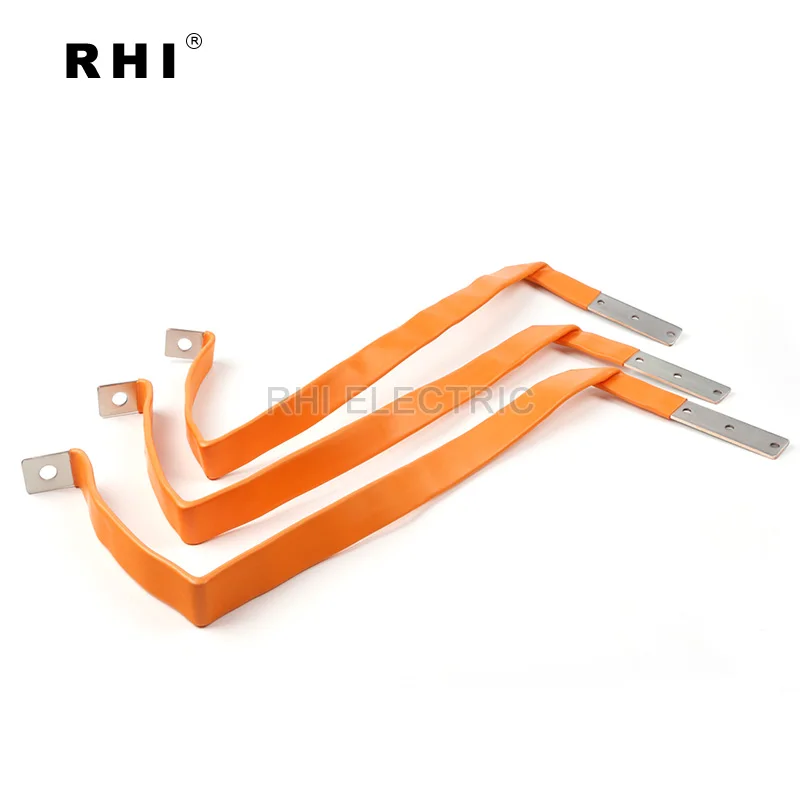

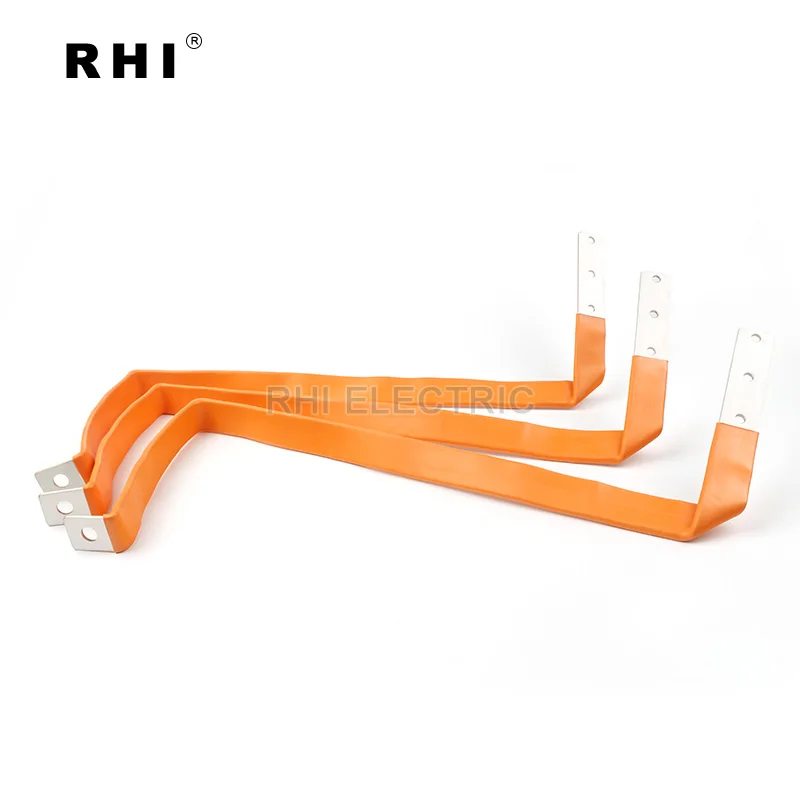

High tensile strength copper laminated flexible insulated bus bar for electric lifter
RHI specialize in custom designing and manufacturing bus bars for automotive, battery bank, power storage, switch gear etc. Custom bus bars can be plated in tin, nickel or silver to suit specific applications. Our technicians can assist customers in developing product design and develp prototypes from client drawings. With copper bus bars, customers can eliminate wiring errors and reduce assembly costs.
Bus Bar Performance:
Resistance: 0.00001Ω
Conductivity: 57%
Tension strength: ≥500N
Insulation flame retardant: UL94V-0.
Insulation temperature resistance: -45℃ to 150℃
Resistance to corrosion:It can pass 240H salt spray test in neutral environment.
Temperature rise: Depends on cross section area. RHI can provide temperature rise reports for all products.
Bending Testing: Bend 10000 times in 15 radian angle without breakage or fracture.
Flexible Busbar VS Rigid Busbar:
Press bonded laminations improve electrical conductivity.
The feature of flexible enable us to make flexible busbars in more types.
Flexible busbar can be made with longer length.
Flexible busbar is not easy to be broken after thousands times of bending.
 |  |
Busbar tester
Testing Capabilities
| Test Programs | Tester | Standard | Test Result |
| Endurance test | Endurance meter | upon your request | √ |
| Release force test | Universal material testing machine | upon your request | √ |
| Loop resistance,contact resistance test | Loop resistance testing equipment | upon your request | √ |
| Temperature rising test | Temperature rising tester | GB/T14048.1-2000 | √ |
| Electric conductivity test | Conductivity tester | YS/T478-2005 | √ |
| Salt spray test | Salt spraying tester | GB/T2423.17-2008 | √ |
| Thermal ageing, heat vibration test | Air exchange aging test machine | upon your request | √ |
| Coating thickness test | X-ray coating thickness tester | upon your request | √ |
| Voltage drop test | Voltage drop tester | upon your request | √ |
Customer feedback
Application
New energy vehicle; Battery packs; Power supply room; Power distribution equipments;New energy storage;Switchboards;Panel boards; Low voltage distribution; High current & control equipment; Busway systems etc
Our Services
1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document.
2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need.
3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester.
4.High production efficiency and low cost :10 year experience of production and complete production chain.
5.Highly intelligent production workshop: robot production line and high-precision machines.
