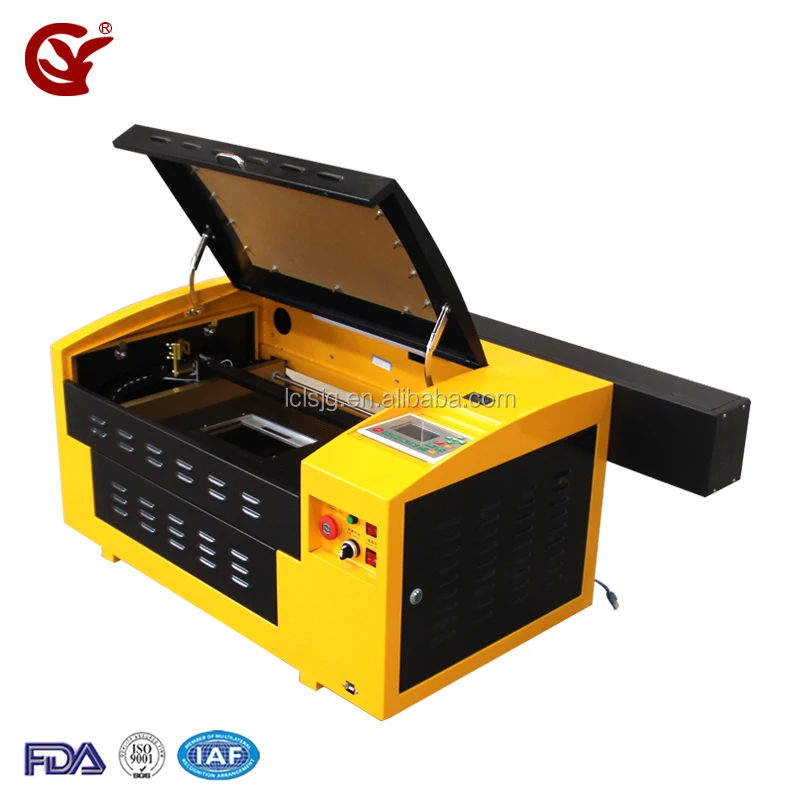

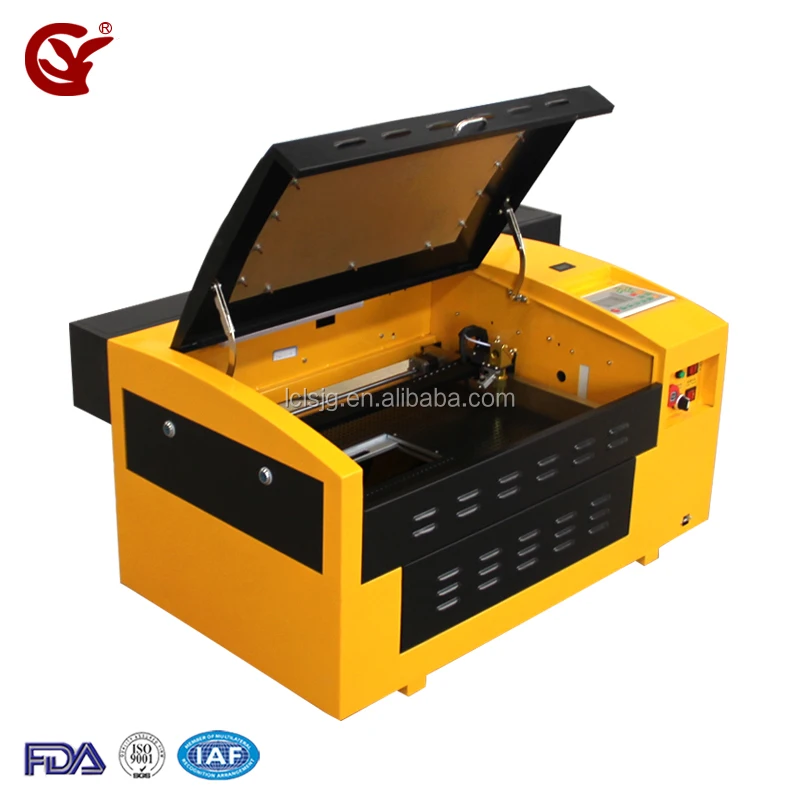

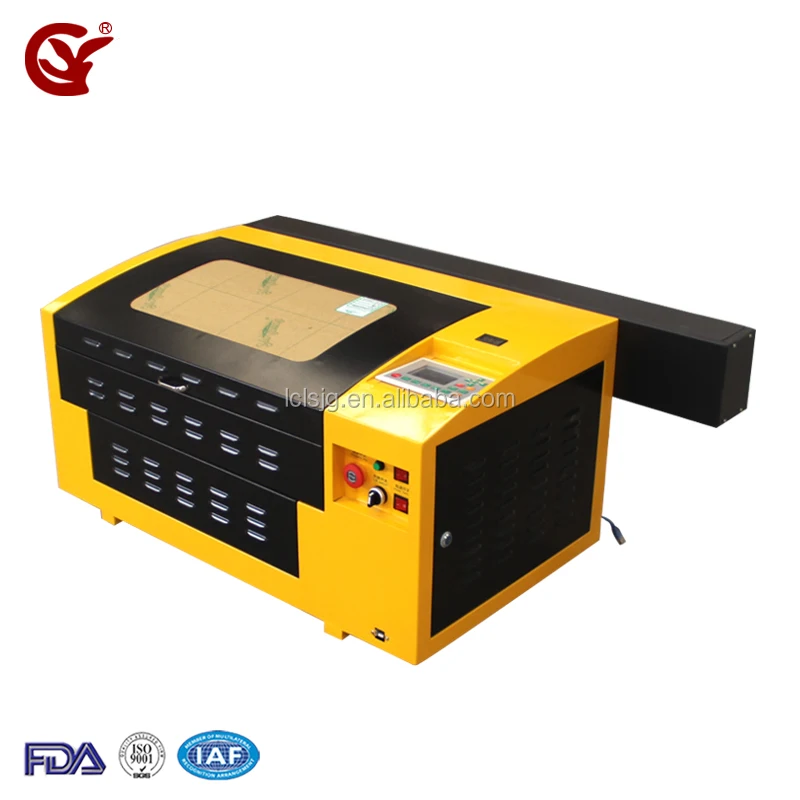

Mini laser cutting machine price 3050 4040 for wood acrylic paper laser engraving rubber sheet engraver machine

  Brand

  GuangYue

  Model

 GY-D3050

  Color

  Yellow- Black

  Type

  laser engraving machine

  Laser type

 CO2 sealed off glass laser,

  wavelength 10.64um

  Working area

  500*300(mm)

  Laser power

  40w/50w/60w

  Cutting speed

  0-3600mm/min

  Engraving speed

  0-30000mm/min

  Laser cooling way

  Pure water cooling

  Resolution

  1000dpi

  Lifting platform

  Knives platform/Honeycomb

  Platform(choose one)

 Interface Standard

  usb2.0

  Positioning way

  Any targeting (red light

  positioning)

  Lift range

 0-200mm

  Support software

 CorelDraw or DSP RuiDA

 Cutting thickness

 0-15mm(Depending on

  material)

  Roller rotary table

  (10-180)*260(mm)

 Minimum shaping

 character

  Chinese 2mm,

  English1mm

  Total Power

  ≥500w

  power supply

  AC110V-230V  50-60HZ

  machine size

 1120*640*453mm

  Total weight

  65kg

Attachment (water pump) parameters

  Power

  50w

 Flow

  2600L/H

  Lift area

  3w

  Power supply

  AC110V-230V  50-60HZ

Air pump parameter

  Power supply

 AC110V-230V  50-60HZ

   power

  45w

  Pressure

  0.03mpa

  gas displacement

  40L/min

weight

  1.6kg

Fan parameters

Power supply

AC110V-230V  50-60HZ

  power

30w

Optional configuration

 Cold water machine,

 chuck rotation

 Rotating rollers,

 profiled rotating

 Homing focus, laser

 warning

 Open cover protection

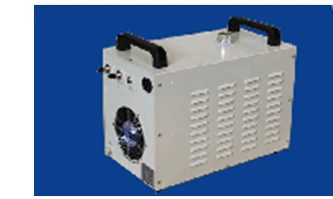

        Cold water machine

•  Work better to protect the laser tube,Extend the life of laser tube.

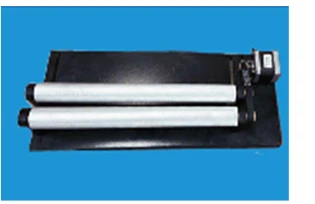

        Rotating rollers

•   It can engraving regular cylindrical material.

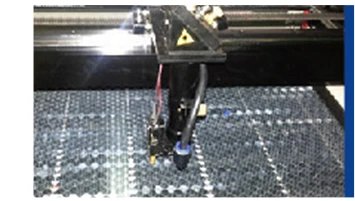

        Automatically search the focal

• According to different material surface height, can automatically search the focal length, the machine is suitable for the specified type.

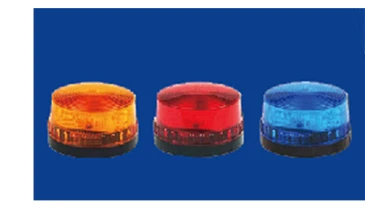

       Laser warning

• Laser work condition not is visible light, Warning lights hint laser at work.
