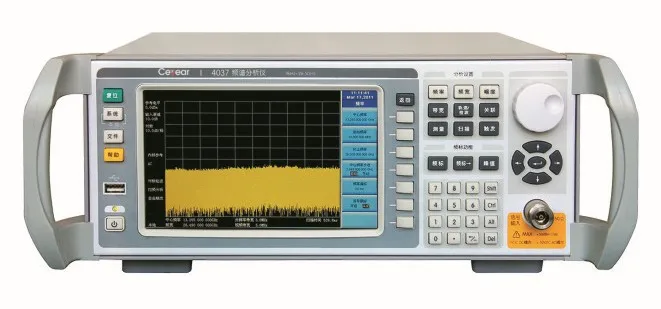

AV4037 Series Frequency Range 30Hz to26.5GHz Optical Spectrum Analyzer

Product Overview

Description

Product Overview
AV4037 series spectrum analyzer are middle high performance and portable device.

They adopt many advanced and mature technologies in the
design and have excellent comprehensive performance; they emphasize on such
aspects as flexibility of operation,portability and fast test speed; they have the
functions of self-test and self-calibration and also have good repeatability of test data;
with SCPI instruction set,VISA and IVI instrument driver library, they can improve
the efficiency of program development.

This product has ten models to meet your diverse demands and you can realize
the perfect match with your demand through adding or deleting options.
It has two operation interfaces including Chinese and English and 7–inch high
brightness color LCD which has high resolution,wide visual angle to adapt to various
environment. It adopts 3U height of portable and sturdy cabin. It is widely applied in
the fields of electronic product development,on-sit test on production line and
establishment of auto-test system.



Main Features
Excellent Comprehensive Performance

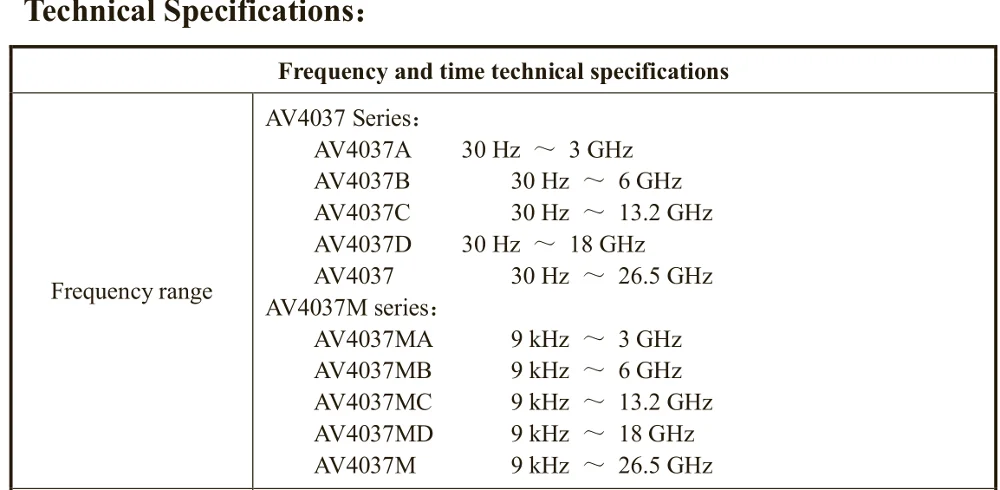

Wide frequency range, from 30Hz to26.5GHz

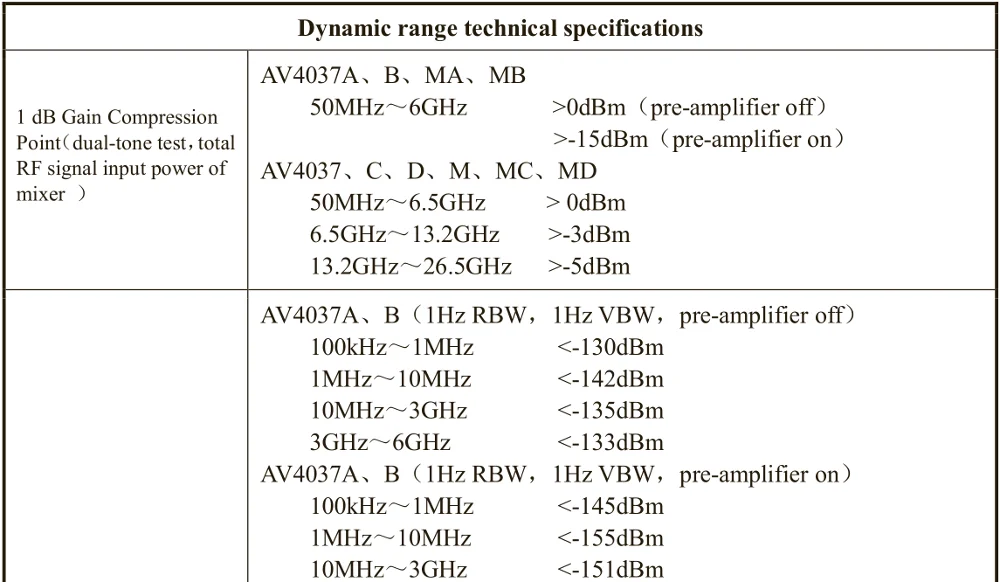

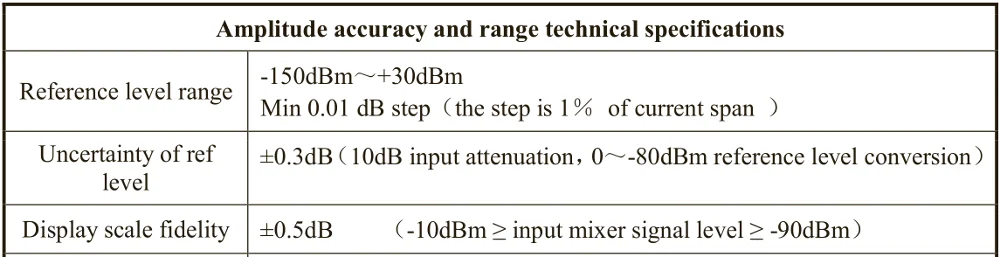

Big dynamic range,1dB compression point at 0dBm, TOI at +10dBm,

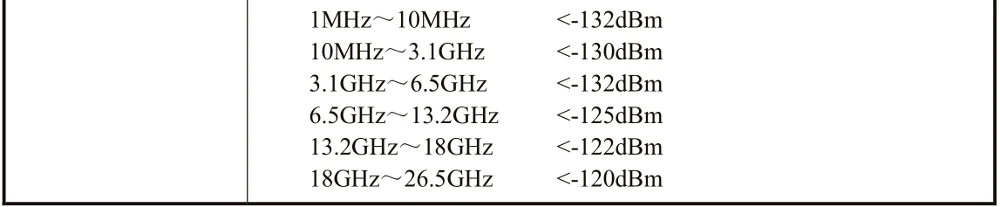

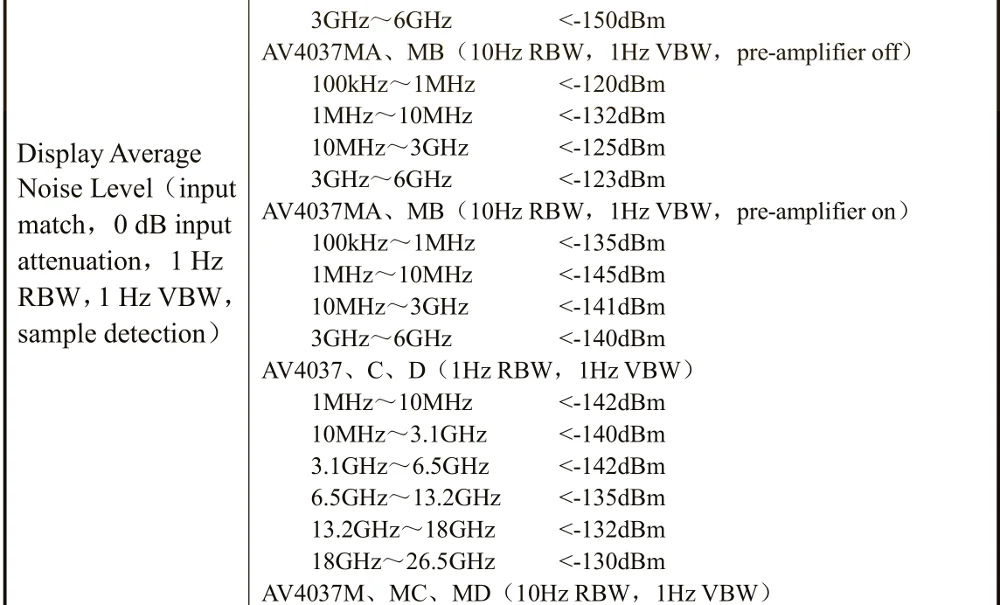

DANL better than -160dBm(with built-in pre-amplifier, typical value at 1GHz)

Good phase noise performance,at 10kHz offset, the phase noise

Sideband can reach -110dBc/Hz(with low phase noise option, typical
value)

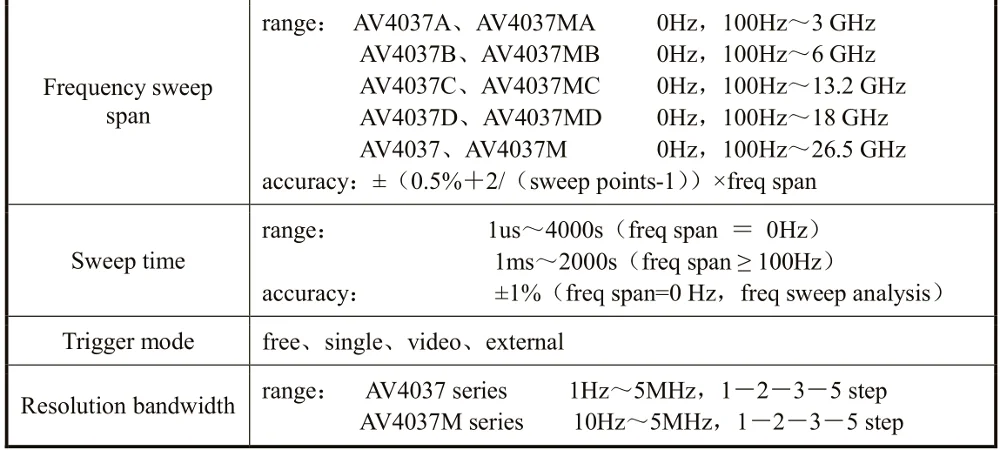

Wide sweep time range,non-zero span, 1ms~2000s,zero span 1us~4000s

High test speed, 90 times/s

All digital IF, high spectrum resolution, minimum resolution
bandwidth can reach 1Hz(FFT option)



Flexibility
Sweep frequency analysis and FFT analysis mode to optimize test
speed and dynamic range.

1-2-3-5 resolution bandwidth step, realize the optimal combination of
Frequency span and resolution bandwidth and optimize spectrum
resolution.

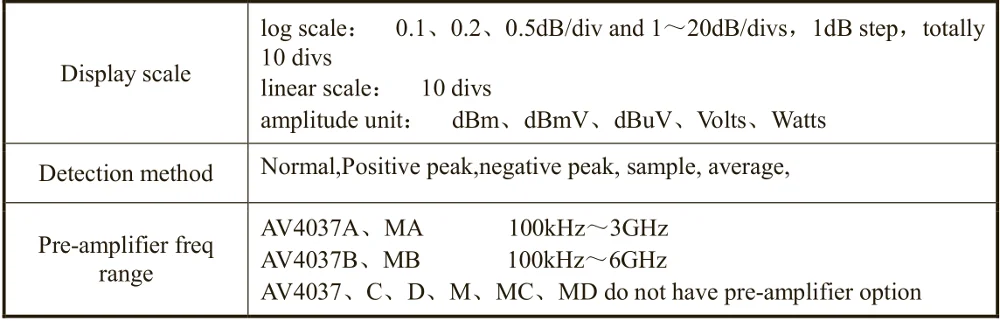

Normal,positive peak,negative peak,sample,average visual
detections,the users can make flexible choice to get wanted test
results.

Display up to 6 traces, support the synchronized test of multiple traces
under different visual detection ways; provide up to 12 markers,
flexible to read, support cross-trace marking of marker.

Embedded and multi-task system, flexible for the storage, print and
share of the measurement results.



User friendly interface
• Embedded and multi-task system, flexible for the storage, print and
share of the measurement results.

• 7-inch high brightness color LCD, high resolution,wide visual angle,
clear display under the sunshine.

• Easy menu operation,comprehensive parameter setup,support
external mouse,keyboard and VGA connection.

• 3 USB2.0 interfaces,support mobile storage equipment and plug and
Play peripherals.

• 10M/100M adaptive network connection.

• GPIB,LAN control,the control instruction set is in accordance with
SCPI 1999.0 regulation. Provide VISA and IVI instrument driver
library which is in accordance with the regulation and strictly tested,
easy for users to establish auto-test system.



Typical Applications
Test of various transmitters and oscillators
AV4037 series spectrum analyzer can be used in the research,manufacture ,
debugging and test of various LO of transmitter,signal sources and oscillators. It can
test such specifications as frequency,power,parasitic,harmonic distortion,phase

Noise and modulation.





Production line test ,outfield maintenance and repair of electronic products
AV4037 series spectrum analyzer are middle high class spectrum analyzer. They
have the characteristics of fast test speed,high accuracy and flexible reading of results
which makes them very suitable for on-site test for production line.
AV4037 series spectrum analyzer realize the perfect combination of test
performance and mechanical structure. They not only reduce the size ,weight and
power consumption of complete machine, but also keep high performance . They are
very suitable for outfield test applications, especially for on-site fault diagnosis and

maintenance.



Establishment of auto-test system
AV4037 series spectrum analyzer has great connectivity and its controlling
instruction set complies with SCPI 1999.0 regulation. It provides VISA and IVI
instrument driver library which is in accordance with the regulation and strictly
tested, easy for users to establish auto-test system
