VH MX21024B High Efficiency Laminate MDF Floor Click Profile CNC Double End Tenoner

Product Overview

Description

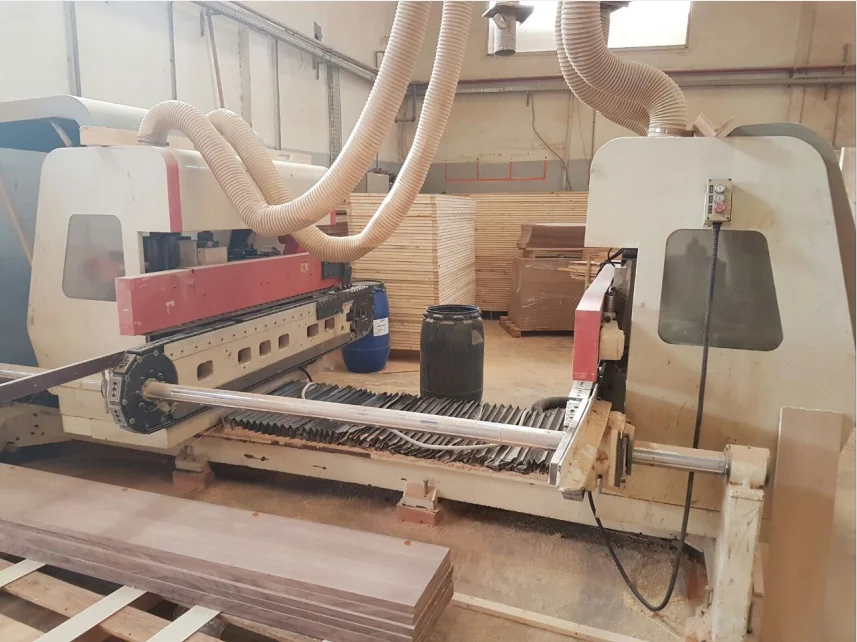

VH-MX21024B High Efficiency Laminate MDF Floor Click Profile  CNC Double End Tenoner

Professional Solution:

Applicable to real wood floor, multilayer floor, ect; Stepless speed regulation and high precision quasi conveyor chain edition guide feed system; Passive pressure on the strip; Double linear guide.

Specification and Model	MX21024B
Feeding speed (m/min)	6-30m/min
Min. Working width (mm)	100mm
Max. Working width (mm)	300mm
Min. Working length (mm)	300mm
Max. Working length (mm)	2400mm
Min. Working thickness (mm)	10mm
Max. Working thickness (mm)	25mm
Feeding motor power (kw)	3kw
Scoring saw motor power (kw)	3kw
Main saw motor power (kw)	3kw
Vertical spindle motor power (kw)	3kw x 2
Card buckle spindle motor power	2.2kw x 2
Maximum cutter diameter (mm)	Φ200mm
Max. saw blade diameter (mm)	Φ230mm
Extraction outlet size(mm)	Φ120mm
Sawing shaft diameter(mm)	Φ25.4mm
Wide adjusting motor power (kw)	0.75kw
Total power(kw)	32.65kw
Spindle speed	6000
Power take-off and landing(kw)	0.25kw
Air pressure(Mpa)	0.6Mpa
The length from feeding end of top pressing beam to dog(mm)	800mm
Swaing shaft rotation	2800
Bottow saw blade size(mm)	230mm
Top saw blade size(mm)	230mm
Main spindle dimension(mm)	Φ40mm
Vertical spindle rotation	6000



•

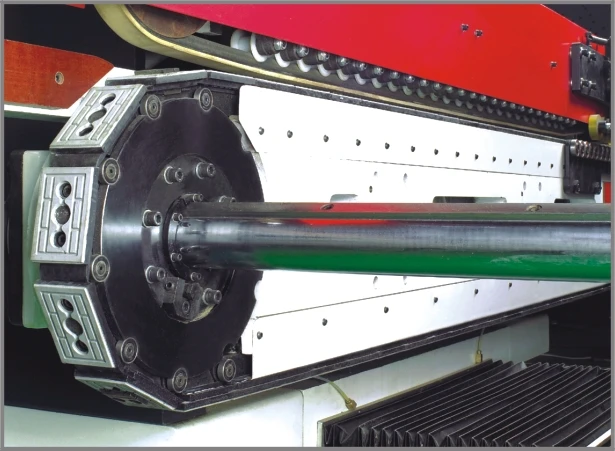

  The floor plates are sent into the runnig bearings of the machining track with the material feeder and delivery rubber rollers, and the guide rails are made with extra hard materials, ensuring the machining precision.





•


  With the imported PLC and the frequency conversion device, the double-end miller works very smooth.





•


  Forcefully feeding decelerator features speed regulation by frequency inverter.





•


  With the built-in cleaning brush wheel, the dust inside the track guide rail can be cleaned automatocally.





•

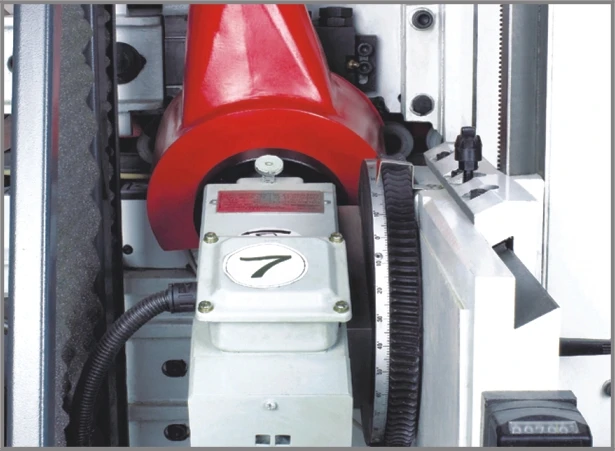

  With the compact sawing shaft mechanism, the cutters are closed to the pressing belt, ensuring the machining stability.





•


  Structure acting as ball-screw makes machine have more accurate adjustment.

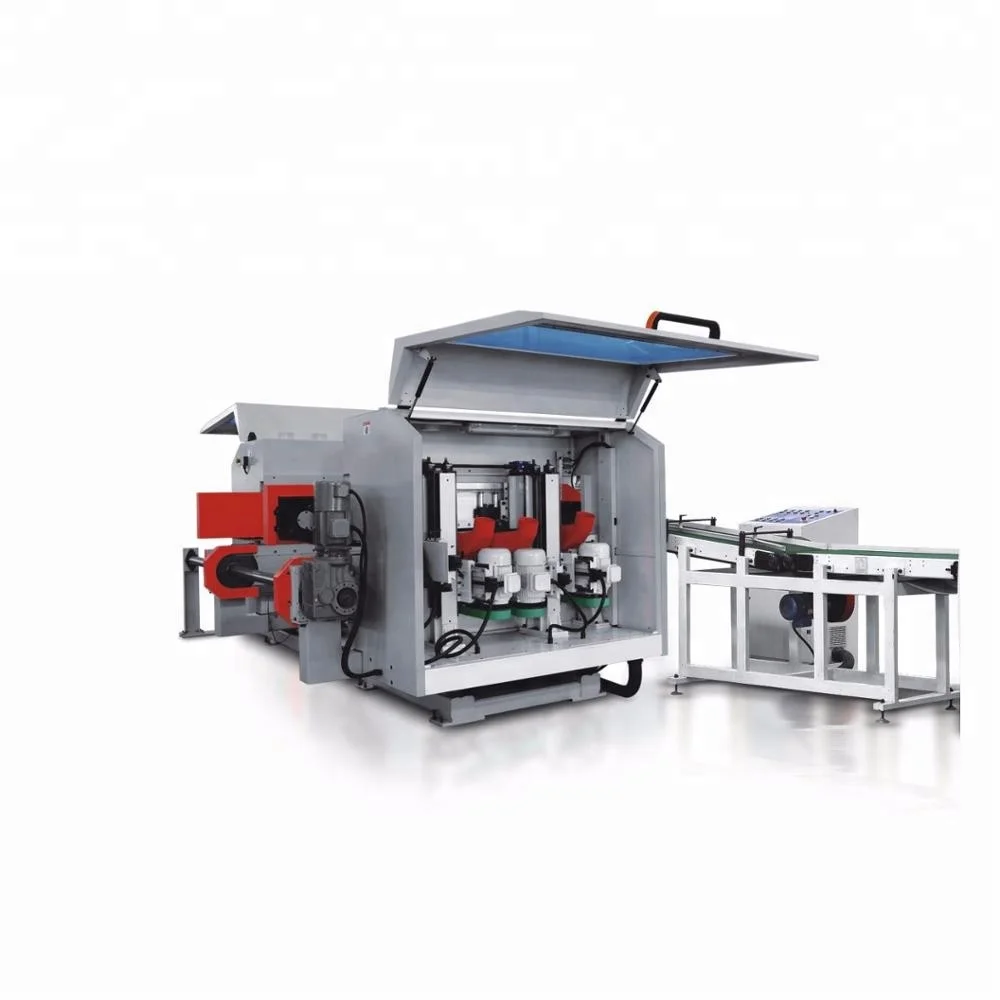

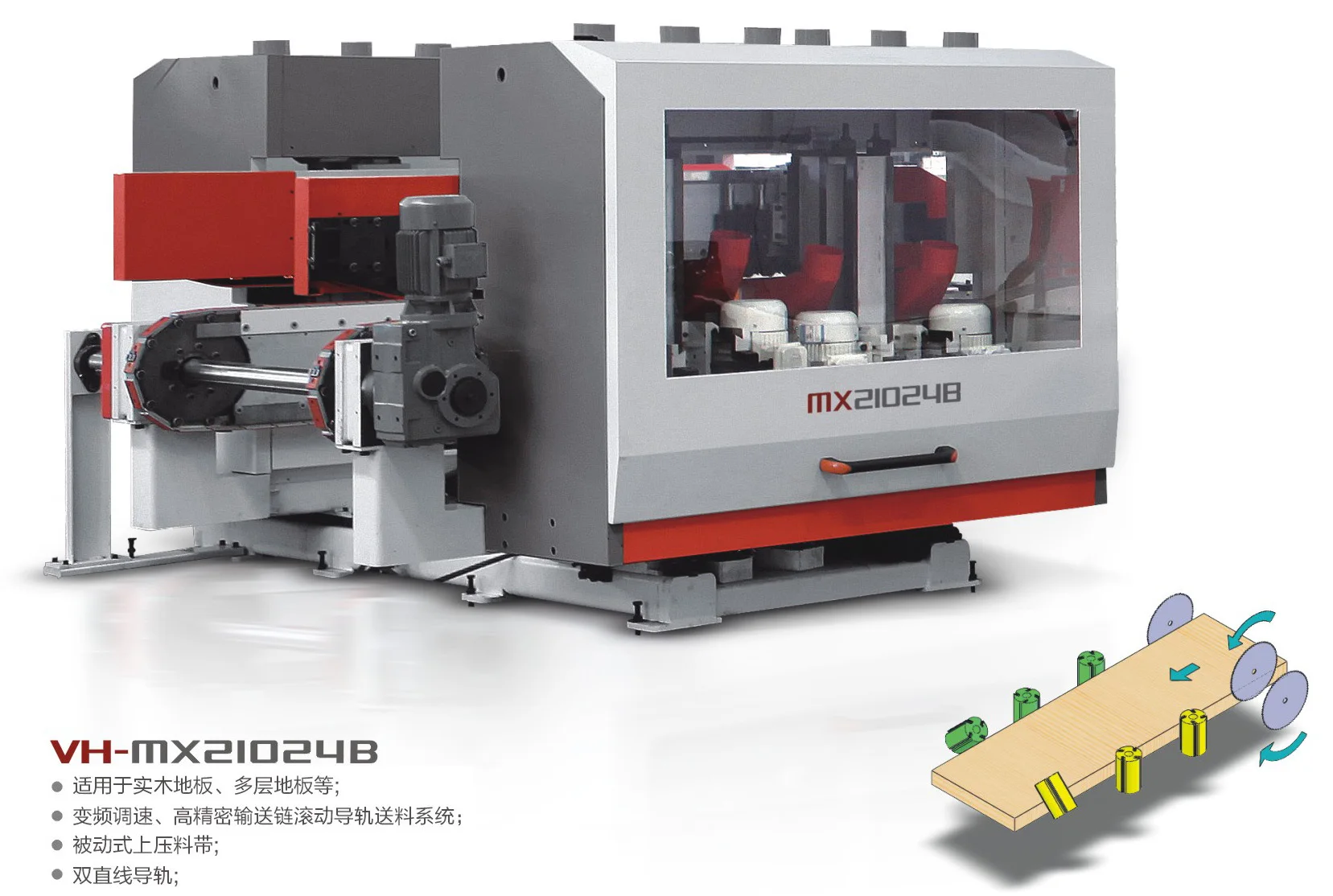

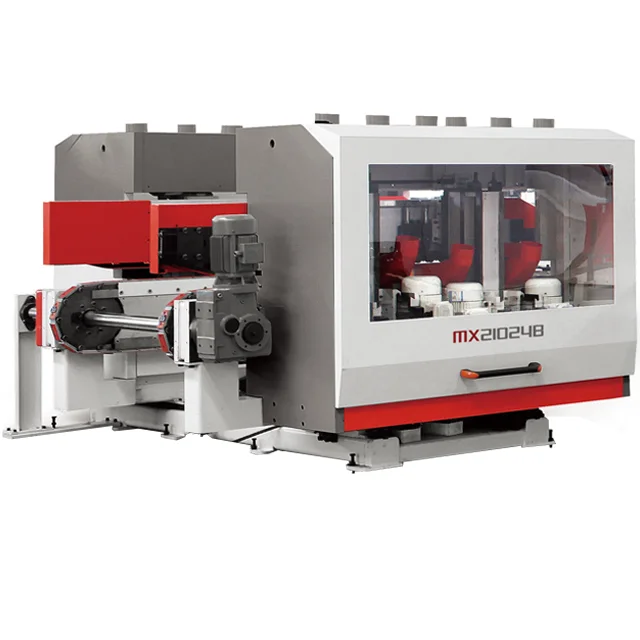

VH-MX21024B Double End Tenoner



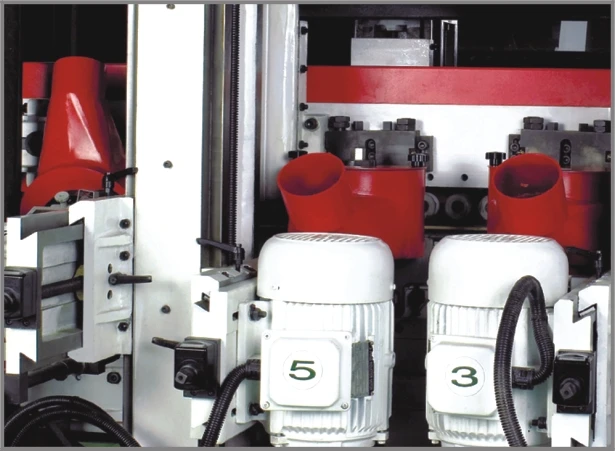

With high speed electric driven shaft, the clamp cutter can be frequency cinverted within the scope of 6,000-8,000r/min.

The floor plates are sent into the running bearings of the machining track with the material feeder and delivery rubber rollers, and the guiderails are made with extra hard materials, ensuring the machining precision.

With the pressing plate and extra hard supplementary work table, the floor machining is very precise.

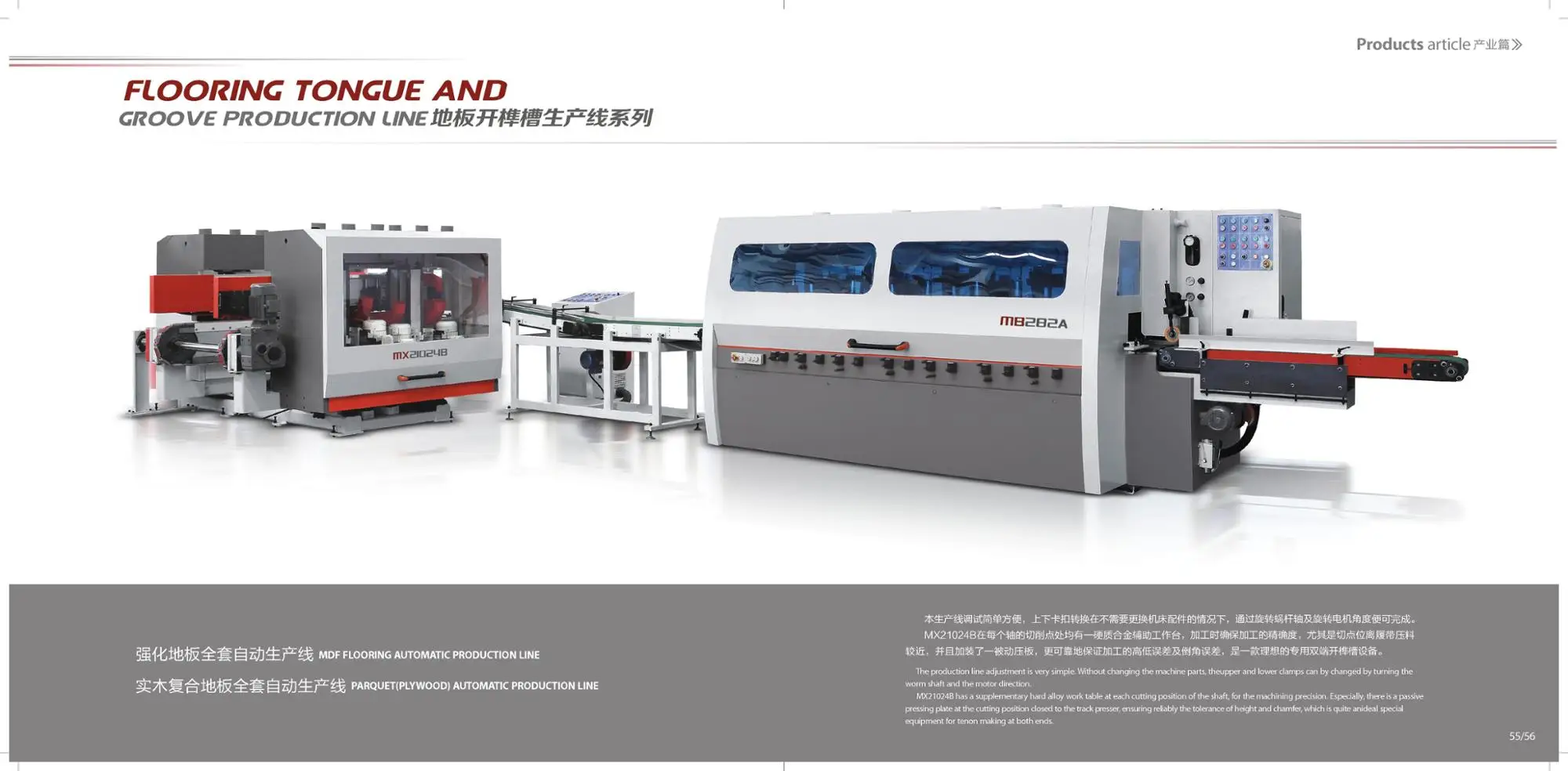

MDF Flooring Automatic Production Line (MB283A+MX21024B) - Panel Making Machines

Specification and Model	MB283A	MB21024B
Max. Working wiidth (mm)	300mm	300mm
Min. Working width (mm)	60mm	70mm
Max. Working length (mm)	2400mm	2400mm
Min. Working length (mm)	600mm	400mm
Feeding speed (m/min)	8-50m/min	10-40m/min
Vertical and click shaft revolution (r/min)	6000/6000-8000r/min	6000/6000-8000r/min
Vertical and click shaft diameter (mm)	Φ40mm	Φ40mm
Vertical milling cutter diameter (mm)	Φ160-200mm	Φ160-200mm
Click milling cutter diameter (mm)	Φ180mm	Φ180mm
Feeding rubber roller diameter (mm)	Φ180x12units
Vertical spindle motor power (kw)	4kwx4sets  3kwx2sets	3kwx6sets
Card buckle spindle motor power (kw)	2.2kwx2sets	2.2kwx2sets
Feeding motor power (kw)	5.5kw	3kw
Elevatory motor power (kw)	0.75kw	0.75kw
Lifting motor power (kw)	0.75kw	0.75kw (width openning motor)
Total power (kw)	35.4kw	26.9kw
Air pressure (MPa)	0.6MPa	0.6MPa
Physcial dimension (mm)	4880x1760x1810mm	3450x2600x1670mm

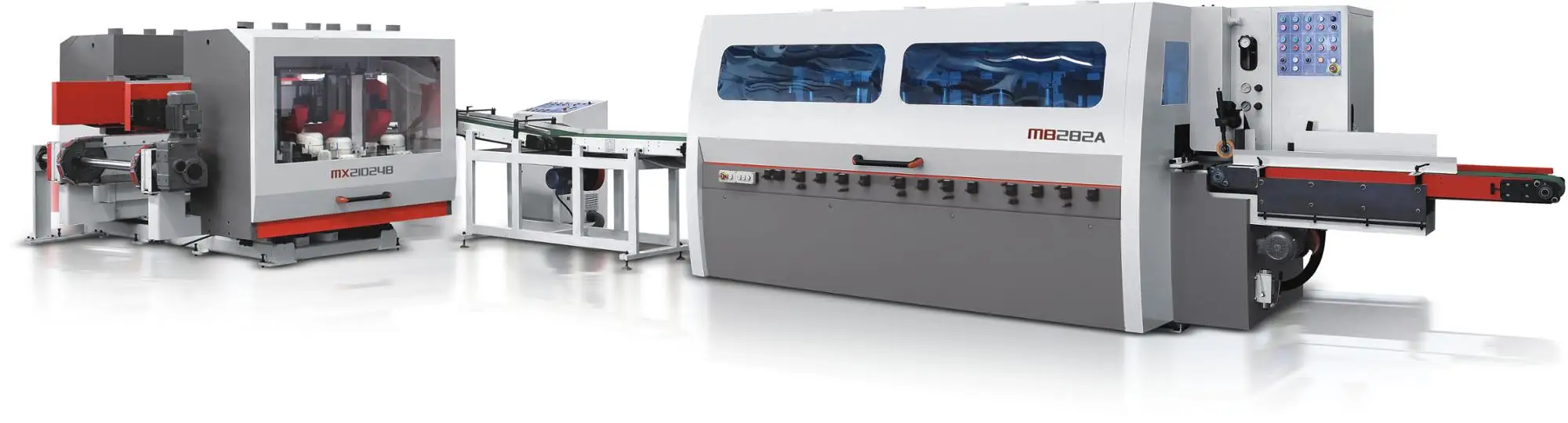

MDF Flooring Automatic Production Line (MB283A+MX21024B)

With conveyor belt for material delivery, the labour intensity of the operators can be reduced.

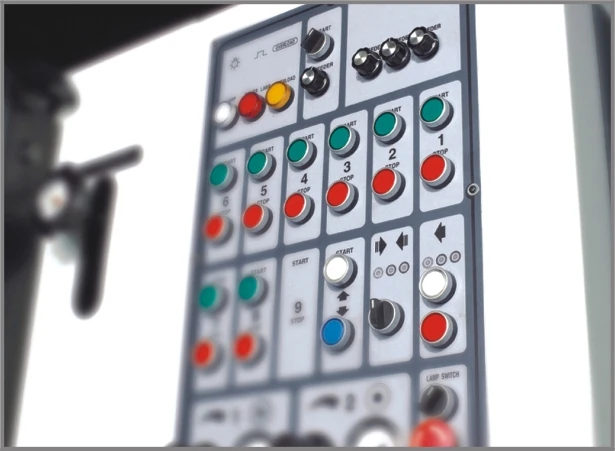

The material pressing pressure is shown on the panel, which is quite convenient for direct veiwing.

With high speed electric driven shaft, the motor can be adjusted within the scope of 6,000-8,000r/min.
