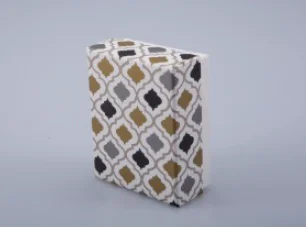

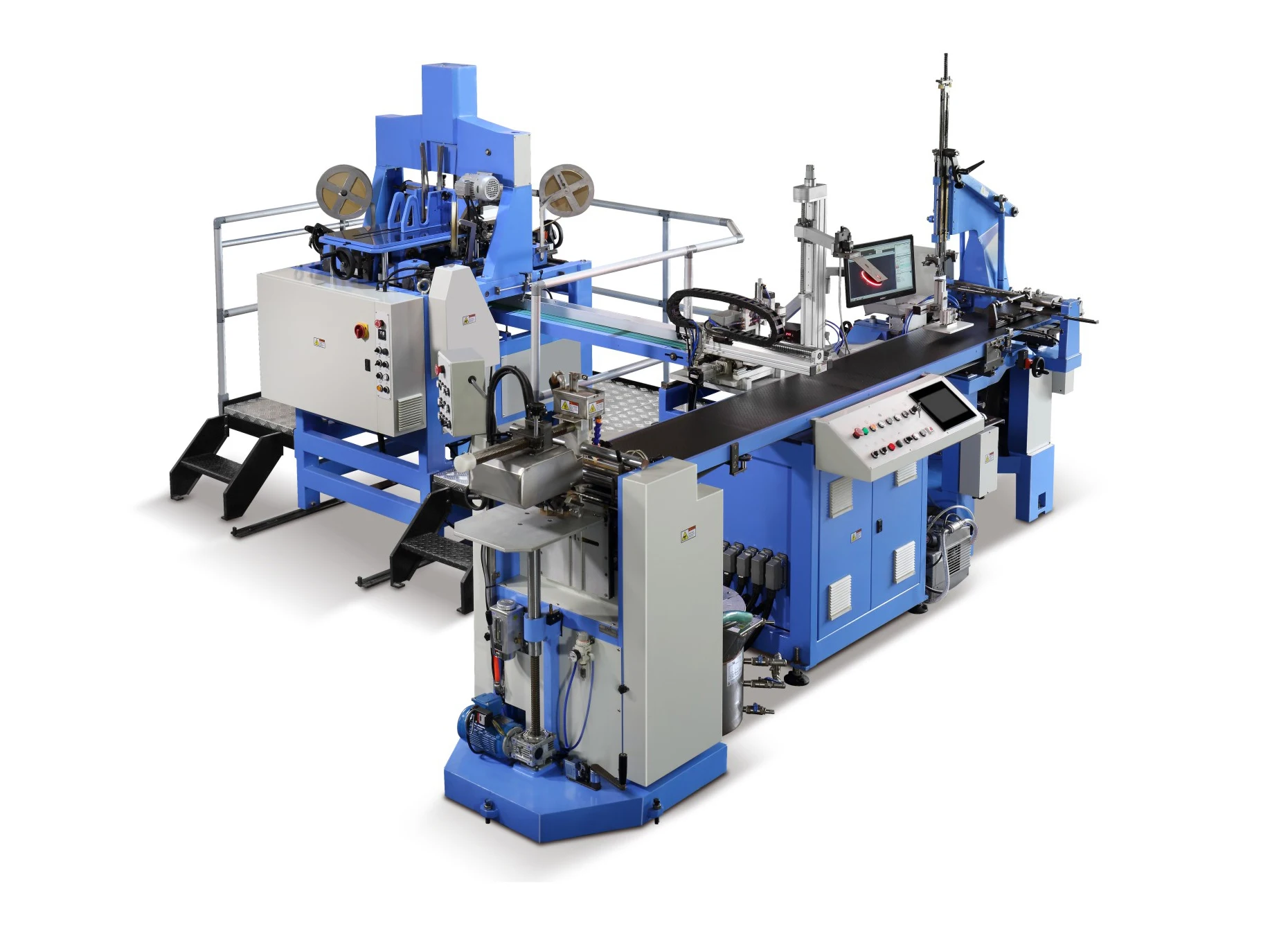

Automatic Rigid Box maker is a good equipment for making high-grade covered boxes for its fine design, reliable performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four angles of cardboard, positioning, and forming box in one time. It is applicable to make high-grade boxes for phones, cosmetics, Jewelry, etc.
MAIN SPECIFICATION:
Paper size(A×B)
Min.45×110mm
Max.305×450mm
Box size(W×L)
Min. 35×45mm
Max.160×240mm
Paper thickness
80-160g/m2
Cardboard thickness(T)
0.5~3mm
Box height(H)
12-80mm
Fold-in paper size(R)
8-20mm
Precision
±0.50mm
Speed
32sheets/min
Motor power
13kw/380v 3phase
Machine weight
3300kg
Machine dimension(L×W×H)
4500 × 4000 × 2600mm
Packaging & Shipping
Our Services
FAQ
1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method?
A:We usually use Fob, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C.
