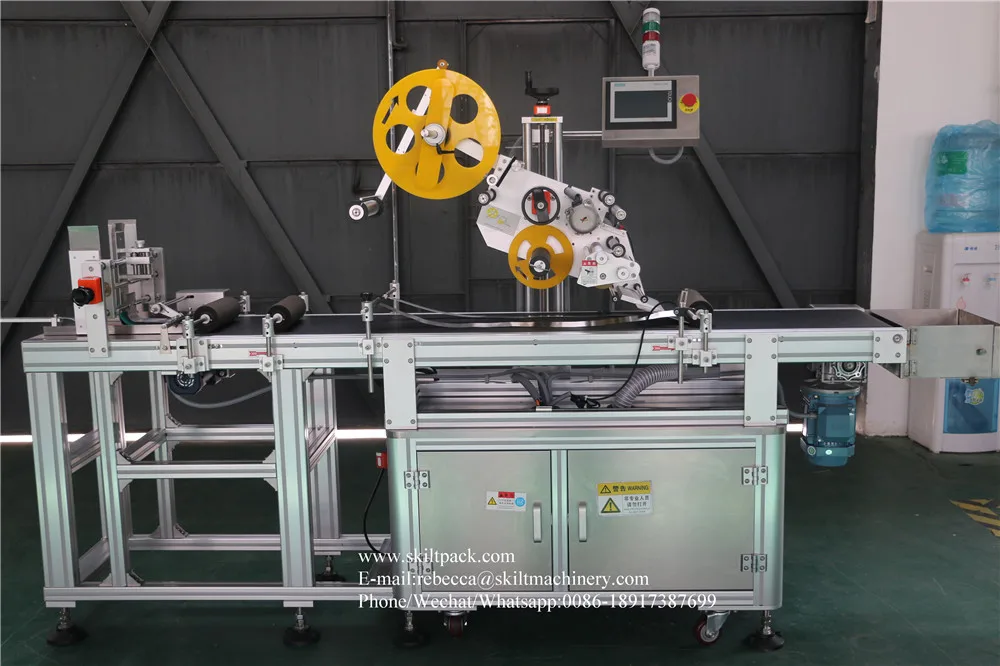

SKILT Automatic empty bag labeling machine label applicator with feeder manufacturer
- Category: >>>
- Supplier: Shanghai Skilt Machinery Equipment Co. Ltd.
Share on (60775053449):
Product Overview
Description
VR
SKILT Partner
Product Description
Machine Features Introduction
1.SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction
belting.
2.With different kinds auto outfeed for choose, to suit for client differnet kinds products, such as zip bag, pouch, food bag,
card;
3.This series labeling machine can store up to 20 different product profiles consisting of different label sizes,
speed and location of label placement within the machines memory for quick recall during changeover.
WHAT DOES IT HAVE?
Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed
Label Counter, Missing Label Detection and Auto Teach
+/- 1 mm Label Placement Accuracy
High Friction Conveyor Belt
Speed Encoder to lock label dispense speed with conveyor speed
Fully adjustable guide railing for quick changeover
WHAT COULD IT HAVE?
Up to 6″ Label width with the ALS206 label head
Up to 9″ Label Width with the ALS209 label head
Different kinds outfeed collection way for choose
Hot Stamp Coder or Inkjet Coder
Online Print Applicator
One more applicator for two stickers on bags
Conveyor width and length modification

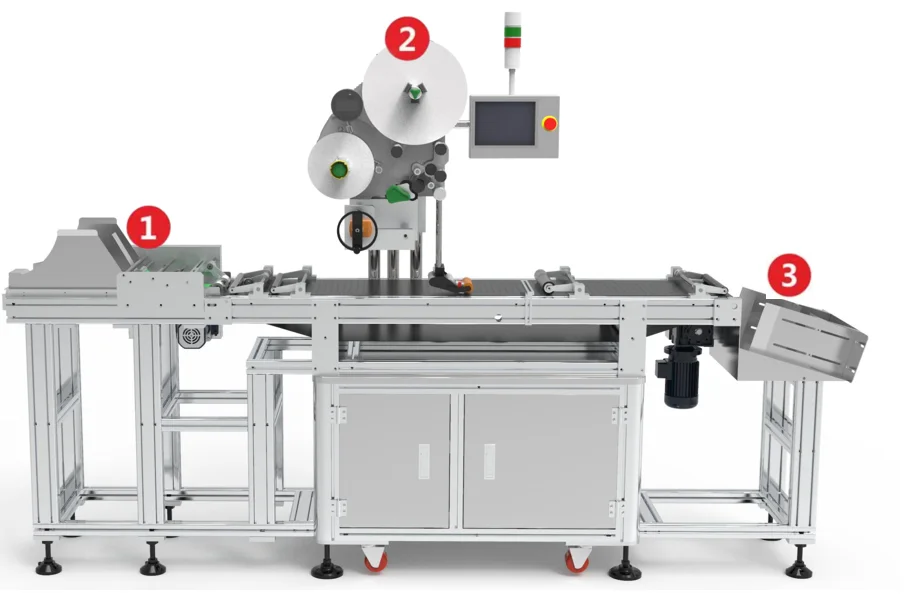

Machine Each function introduction :

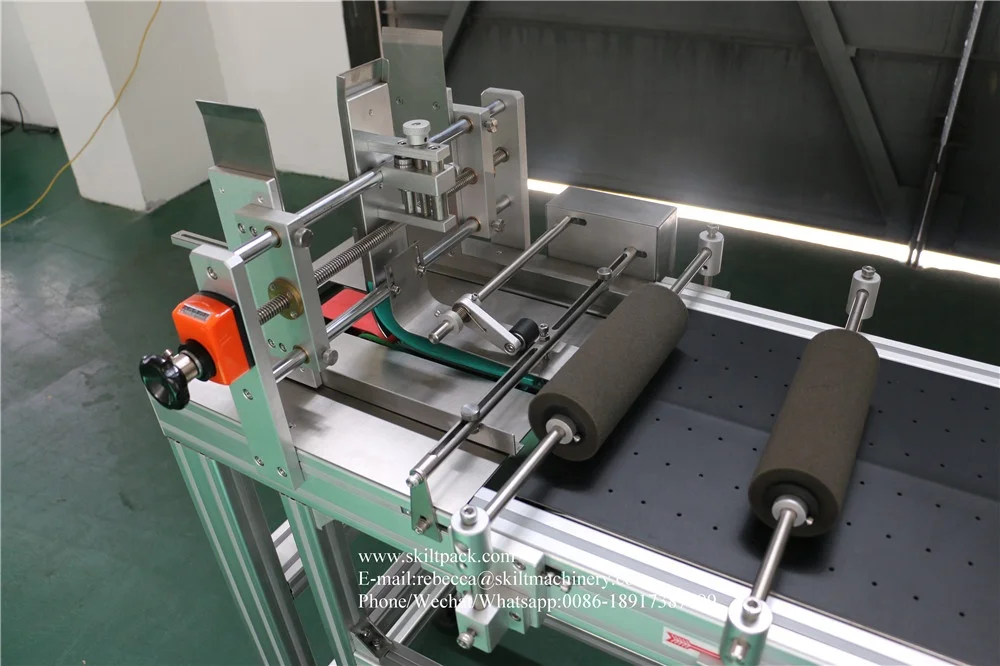

1.Feeder : Paging device, can put labeling objects （for example bag ) into feeder device, delivery out one by one；

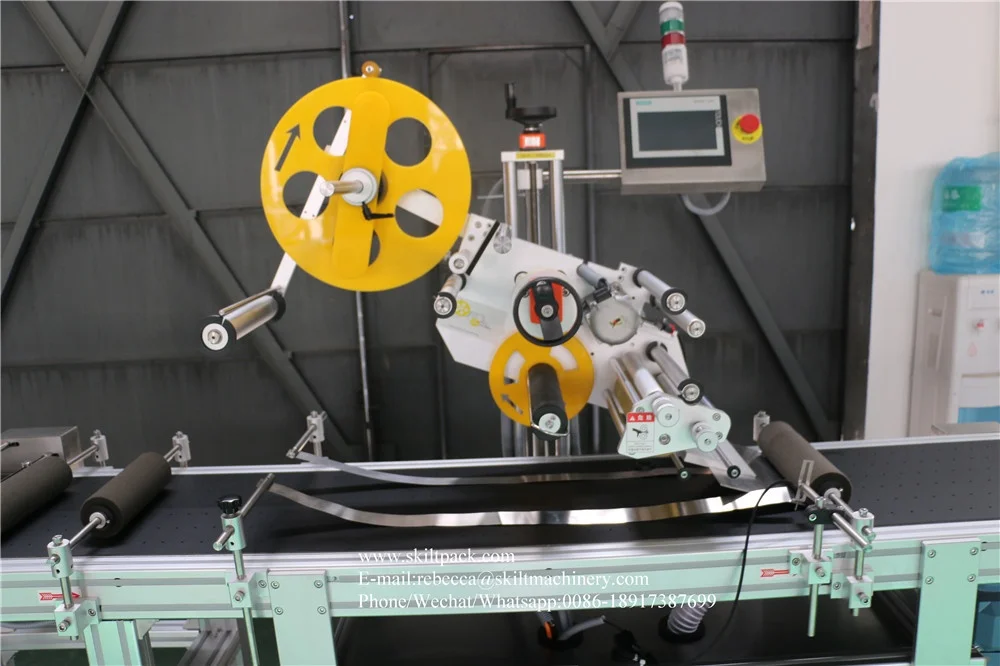

2.Labeling : When bag delivery to the labeling position, past sticker on bag surface directly;
Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.

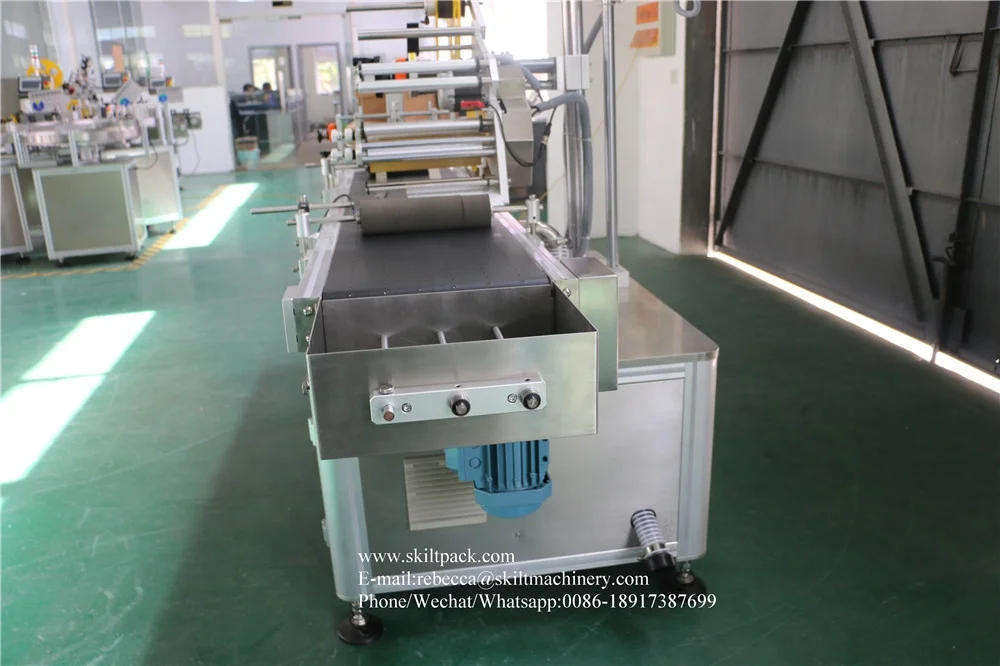

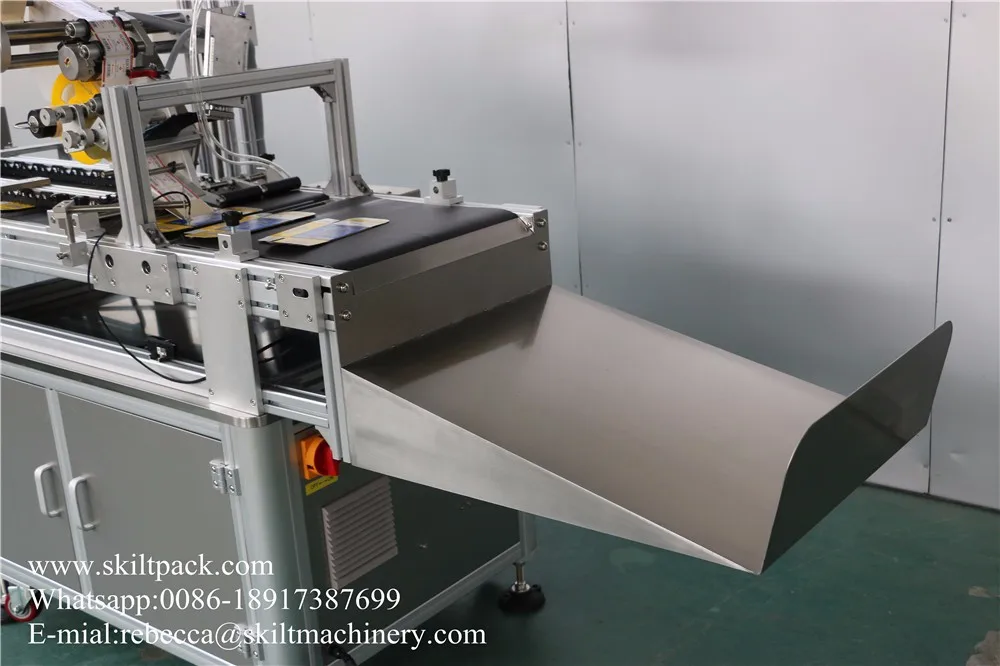

3.Collection : After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.
1.SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction
belting.
2.With different kinds auto outfeed for choose, to suit for client differnet kinds products, such as zip bag, pouch, food bag,
card;
3.This series labeling machine can store up to 20 different product profiles consisting of different label sizes,
speed and location of label placement within the machines memory for quick recall during changeover.
WHAT DOES IT HAVE?
Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed
Label Counter, Missing Label Detection and Auto Teach
+/- 1 mm Label Placement Accuracy
High Friction Conveyor Belt
Speed Encoder to lock label dispense speed with conveyor speed
Fully adjustable guide railing for quick changeover
WHAT COULD IT HAVE?
Up to 6″ Label width with the ALS206 label head
Up to 9″ Label Width with the ALS209 label head
Different kinds outfeed collection way for choose
Hot Stamp Coder or Inkjet Coder
Online Print Applicator
One more applicator for two stickers on bags
Conveyor width and length modification
Machine Each function introduction :
1.Feeder : Paging device, can put labeling objects （for example bag ) into feeder device, delivery out one by one；
2.Labeling : When bag delivery to the labeling position, past sticker on bag surface directly;
Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.
3.Collection : After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.
Technical Parameter
Model | PM-DPM-A & PM-DPM-ALS204 |
Driving Mode | Servo system & German Novexx |
Label material | Self-adhesive sticker, opaque or transparent label |
Yield（pcs/min） | 50-200pcs/min |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm |
Suitable label size | L:15-300mm，W:15-300mm |
Suitable bag size | L:20-300mm , W:30-300mm |
Voltage | 110V/220V/380V |
Machine size | 2200（L）× 800(W)× 1600 (H) mm |
No | Name | Brand |
1 | PLC control system | SIEMENS |
2 | Touch-screen | SIEMENS |
3 | sensor (Check object) | Japan KEYENCE |
4 | sensor (Check opaque label） | German Leuze |
5 | Labeling engine control system | PANISONIC & GERMAN NOVEXX |
6 | Main transport motor | German JSCC |
7 | Speed Controller | German JSCC |
Detailed Images
Machine Processing
FAQ
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (product picture with label on it is rather helpful), will suggest suitable machine for ref.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok .
