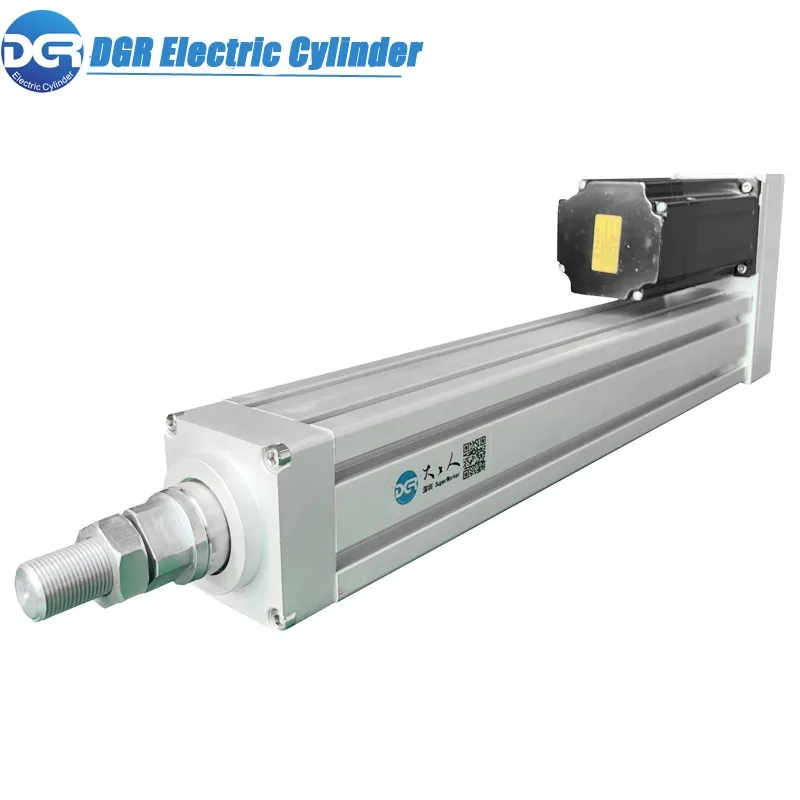

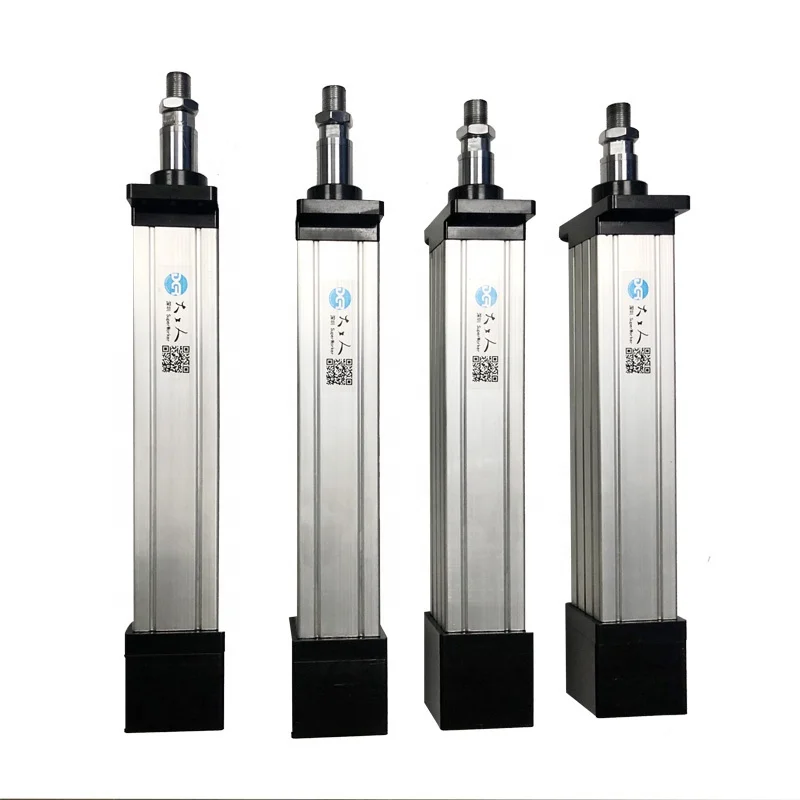

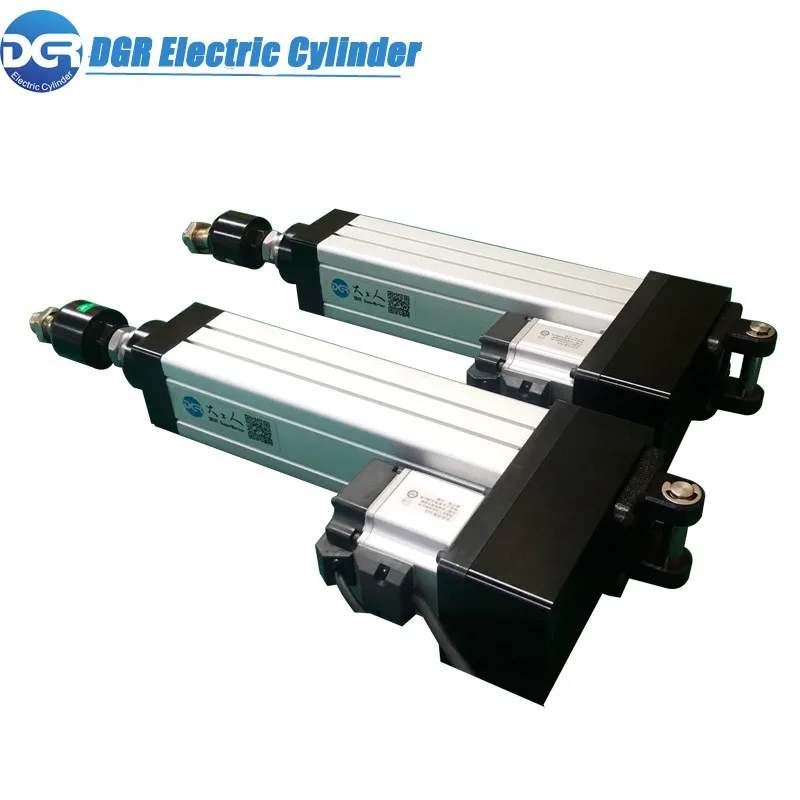

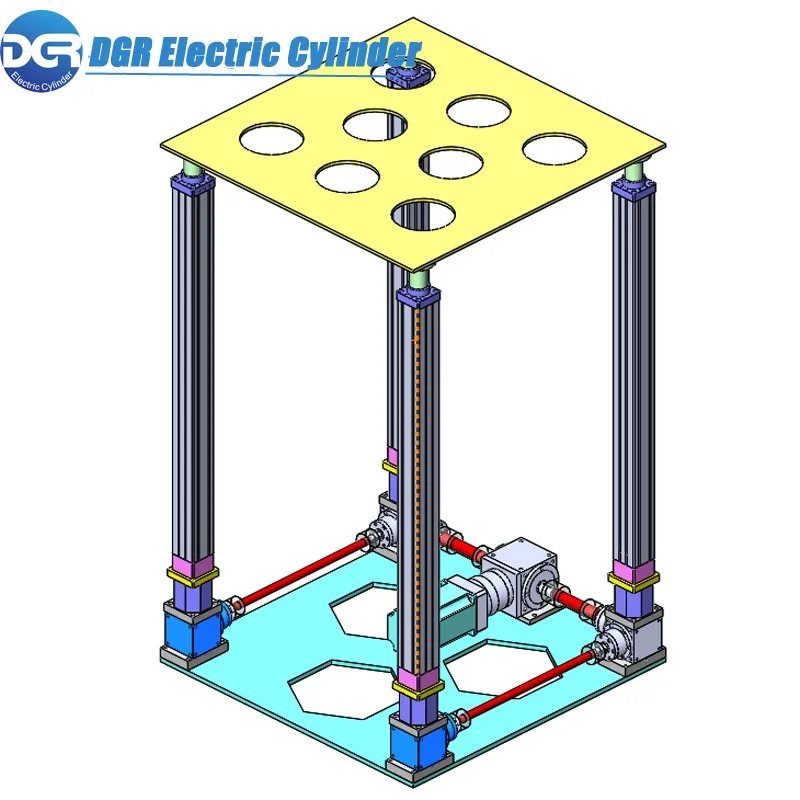

AC230V Electric Servo Actuator For 4DOF Motion Platform Description:
DGR-61-U high speed electric servo actuators manufactured by DGR Electric Cylinder Technology offer fast speed in many stroke options. These are great for applications where you want to move something quickly but the force is not an issue. It's of low cost but high efficient
Electric ball screw servo actuator Model designations:
DGR
61
T5
300
U
SM86
i1
Electric cylinder series
Cylinder bore
Screw Lead
T5=5mm T10=10mm
Stroke length in mm
Motor mount
Inline:I
Parallel:U
Motor Brand/Power
Stepper motor:SM
42/57/60/86/110
Panasonic 100=100W
Mitsubishi 400=400W
YASKAWA 500=500W
DELTA ........
Reduction ratio
i1=1:1
i1.5=1.5:1
i2=2:1
........
i100=100:1
Electric ball screw servo actuator Parameters:
Motor power(W)
400
750
Motor rated torque(N.m)
1.3
2.4
Drive Type
Grinding ball screw
Position repeatability(mm)
±0.02
Screw lead(mm)
5
10
5
10
Max.Speed(mm/s)
250
500
250
500
Max.Thrust(KG)
400KG=881.8 lbf
Effective stroke length(mm)
20-1000mm=39.3inch=3.3ft
Basic weight 0 stroke inline installation(KG)
3.4
Basic weight 0 stroke parallel installation(KG)
4
Weight per 100mm stroke (KG)
0.8
Magnetic sensor switch
Three-wire NPN/PNP Magnetic Switch x 3
Wire Length: 2m
If your requirements are beyond the specification chart above, please contact us directly, we can able to customize according to customers' requirements on the load (up to 20ton), speed(up to 2000mm/s) and stroke (up to 3000mm).

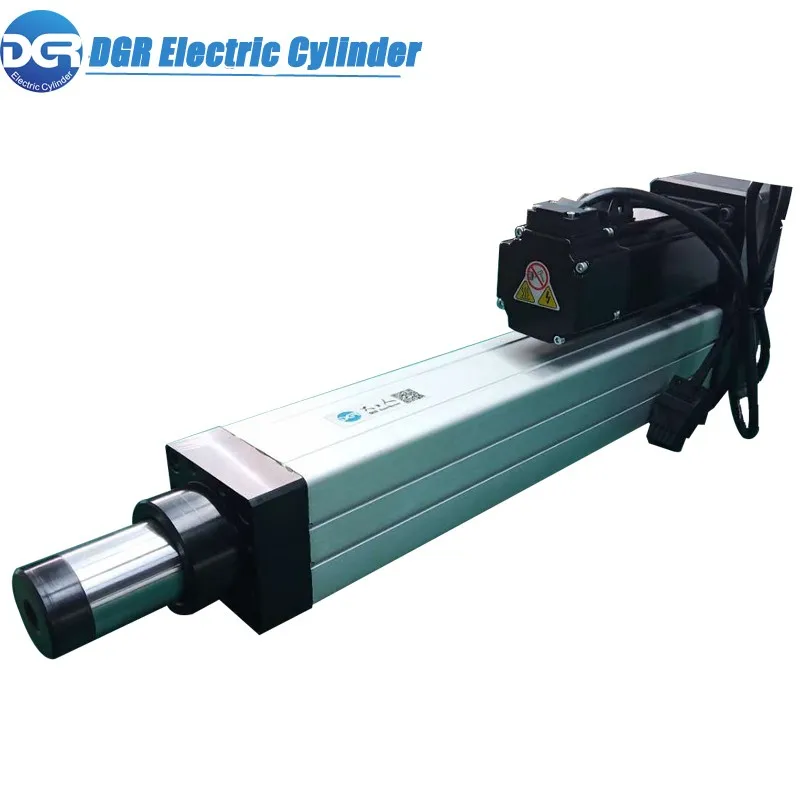

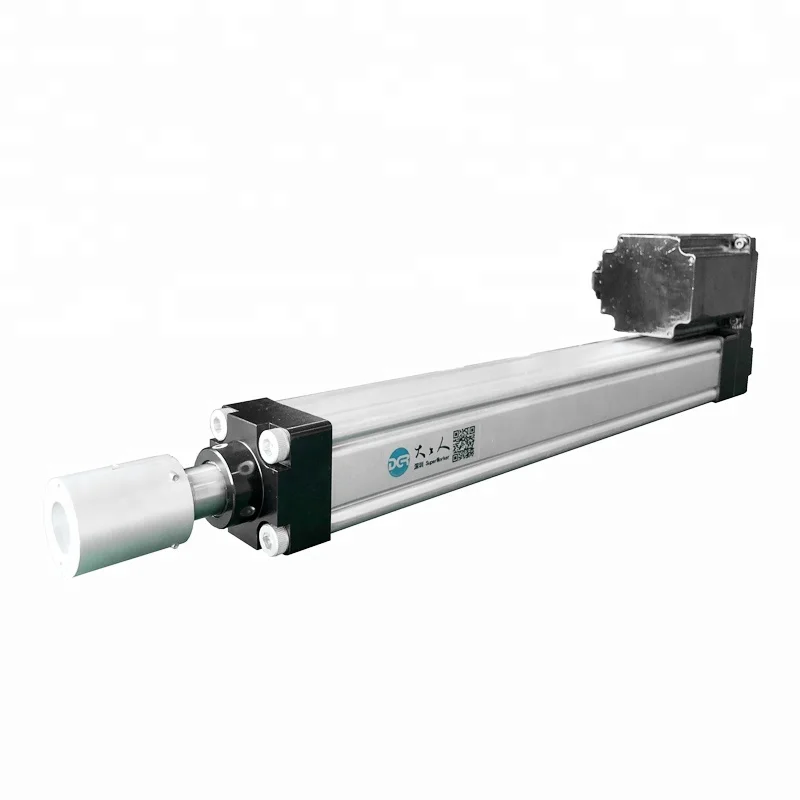

DGRST65 Industrial linear servo actuator Products Show

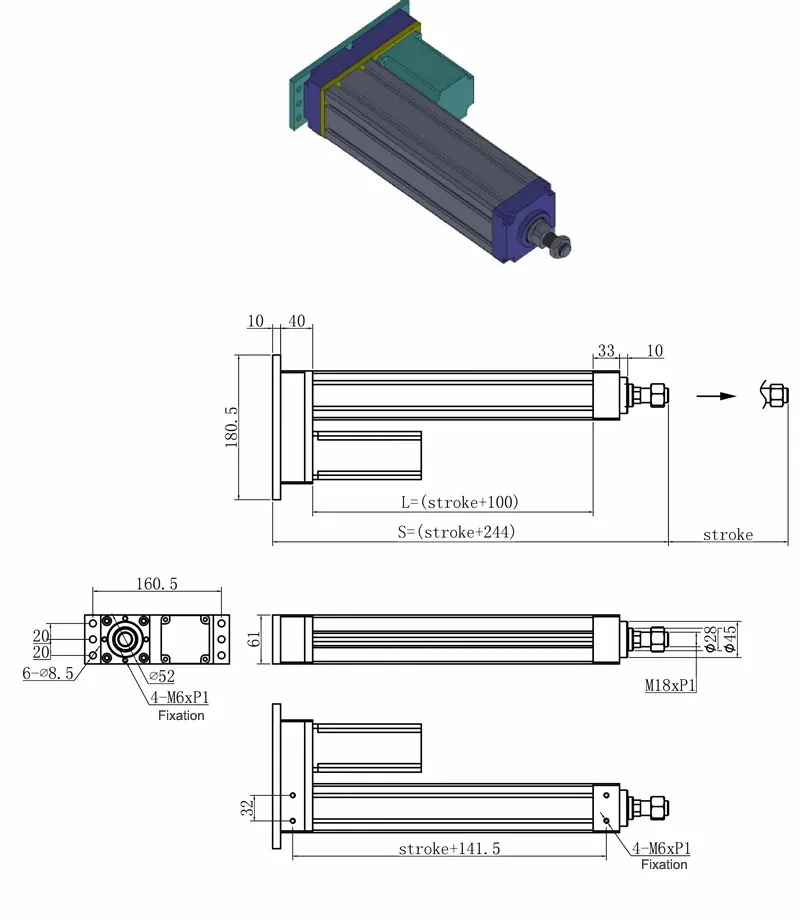

The dimension of DGR-61 U Electric Servo Actuator For 4DOF Motion Platform
Main Features Of DGR-60-U Electric Servo Actuator For 4DOF Motion Platform
Accuracy
High precision, repeatability up to 0.02mm.
Service life
Run over a distance of 100,000 km
Material Selection
1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body
2. Various surface treatment options (including: coating, azotizing, oxidation)
3.Selected internationally-famous brands of motor, ball screws, bearings and gears
Features
Rigid connection between the screw nut and the piston rod
Excellent Service
1.DGR Electric cylinders can be fully customized for customer's particular application and requirements.
2. 1 year warranty and lifetime technical services
Duty Cycle
The duty cycle is ensured to be greater than 50% or even 100% continuous operation.
Complete Testing
Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc.
Applications of DGR Electric Servo Actuator For 4DOF Motion Platform
DGR Electric Cylinder
1.Entertainment industry: multi-degree of freedom simulation, multi-degree freedom dynamic entertainment, mechanical arm and joints, dynamic seats, etc.
2.Industrial industries: machinery automation production line, steel continuous casting, petrochemicals, material handling , injection molding machine, mold control, valve control, precision machine tools, pharmaceutical machinery, precision machining of multiple degrees of freedom, mechanical lifting platform, food industry, etc.
3.Automotive industry: automotive presses, automotive manufacturing equipment, etc.
4. Military industry: analogue aircraft, Simulation, etc.
The six-degree-of-freedom motion platform is composed of six electric servo actuator, it's widely applied to various training simulators
Electric servo actuator is applied to the automatic steel strap packing machine, it controls the movement of the strapping head for more accurate positioning
Electric servo actuator press is widely used in precision press-fitting operations in various industries
Shenzhen DGR Electric Cylinder Technology Co., Ltd. is a high-tech innovative private enterprise specializing in design, manufacture and sales of linear motion products, including servo motor electric cylinders, stepper motor electric cylinders and electric push rods.
Since January 2014, Shenzhen DGR Electric Cylinder Technology Co., Ltd has introduced advanced technology and hired senior mechanical motion engineers for researching and developing linear motion system, the electric cylinder developed by the company featured high positioning accuracy, low noise, long life. It has received approvals and recognition from many famous enterprises.
