Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
Low price multicolor flexo printing machine with slotter and die cutter
- Category: >>>
- Supplier: Cangzhou Kingsun Imp.& Exp. Co. Ltd.
Share on (60775062663):
Product Overview
Description
Low price multicolor flexo printing machine with slotter and die cutter
Machine Groups
Auto feeder *1 group, Printer *4 groups, Die cutter*1 group , Slotter*1 group (7 groups total )

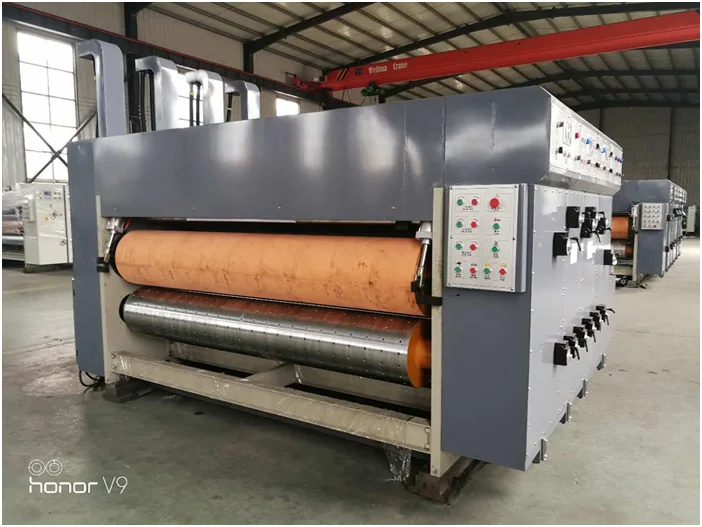

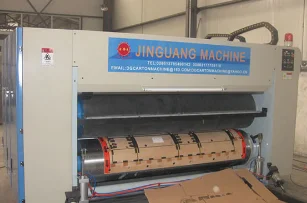

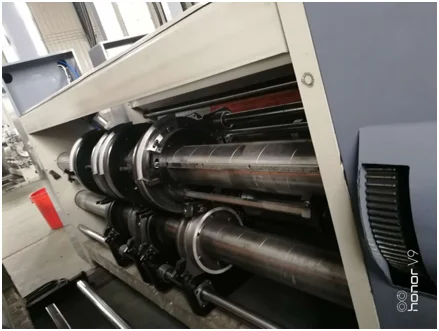

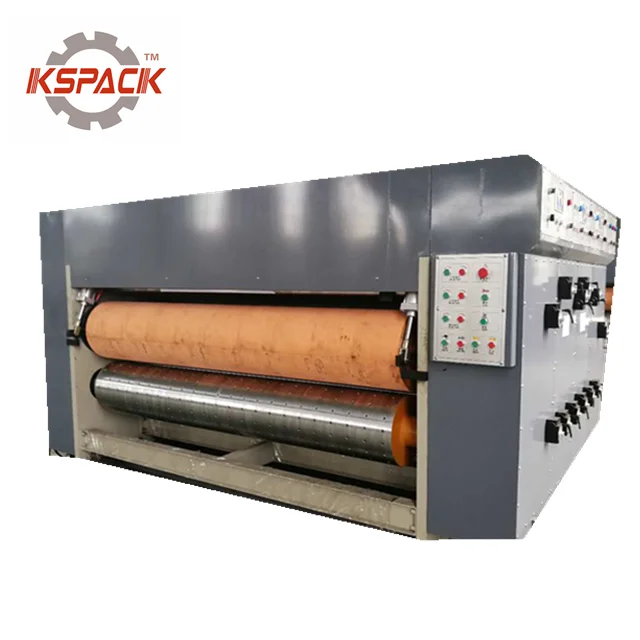

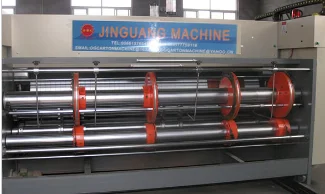

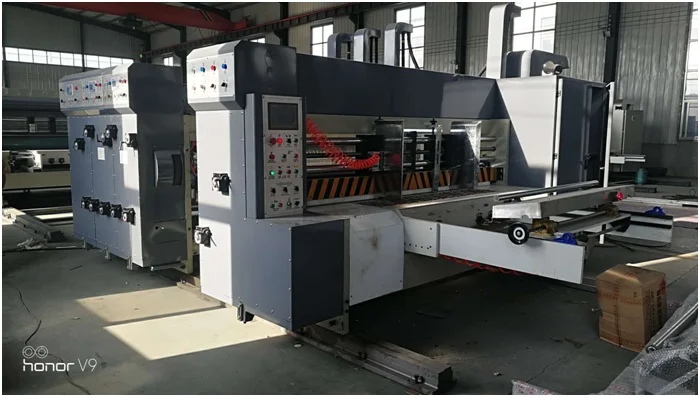

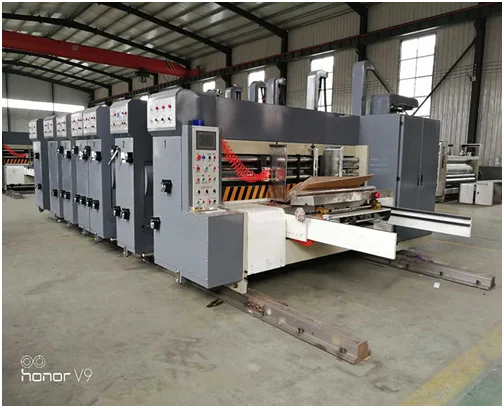

Machine photos
Technical parameter
MODEL | KYG-A Series Middle Speed Printer Diecutter |
PRINTER COLOR | 4 COLOR |
MNACHINE SIZE | WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM |
MACHINE DESIGN SPEED | DESIGN SPEED 120PCS /MIN |
WORK SPEED | 80-100PCS /MIN |
MACHINE WALL BOARD SIZE (mm) | 50 |
GERA THICKNESS (mm) | 50 |
MAX PASSING PAPER SIZE (mm) | (1200/1450) X(1800/2000/2200/2400/2600/2800MM) |
MIN PAPER PASSING SIZE (mm) | 400X860MM |
SKIP PAEER SIZE (mm) | 1400/ 1600X(1800/2000/2200/2400/2600/2800MM) |
MAX PRINT SIZE (mm) | 1200/1400X1600/1800/2000/2200/2400/2600MM |
THINKCNESS OF THE PLATE (mm) | 3.2-7.2 |
BOARD THICKNESS (mm) | 3-12 |
BOARD PRINT ACCURATE (mm) | PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 |
Production mnotor(km) | 30 |
Total motor(km) | 40 |
Chain type 1.work speed :40-50m/pcs ( not design speed ) 2.chain transport 3.manual feeder 4.1.2.3.4 5 color can choose 5.slotter and die cutter 6.Model : JGY-1 |
|
Chain type + one seperate feeder 1.work speed : 60m/pcs ( not design speed ) 2.chain transport 3.automatic seperate feeder 4.1.2.3.4 5 color can choose 5.slotter and die cutter 6.Model : JGY-2 |
|
Middle speed printer with auto feeder 1.work speed : 80-100 m/pcs ( not design speed ) 2.not chain transport 3.automatic feeder 4.1.2.3.4 5 color can choose 5.slotter and die cutter 6.Model : JGY-3 |
|
High speed printer with auto feeder 1.work speed : 120-150 m/pcs ( not design speed ) 2.not chain transport 3.automatic feeder 4.Change size automatic 5.1.2.3.4 5 color can choose 6.slotter and die cutter 6.Model : JGY-4 |
|
High definition high speed printer with dry and oil function 1.work speed : 120-150 m/pcs ( not design speed ) 2.not chain transport 3.automatic feeder 4.Change size automatic 5.High definition picture Model : JGY-5
|
|

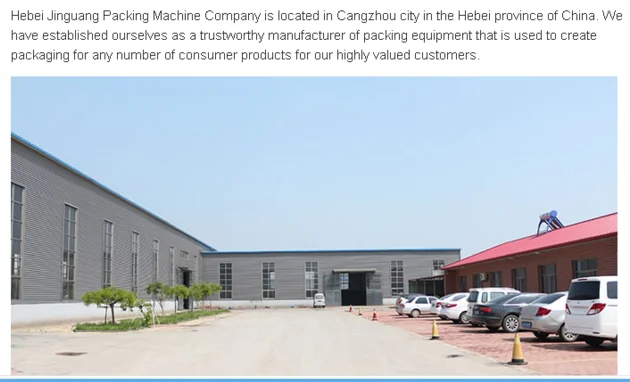

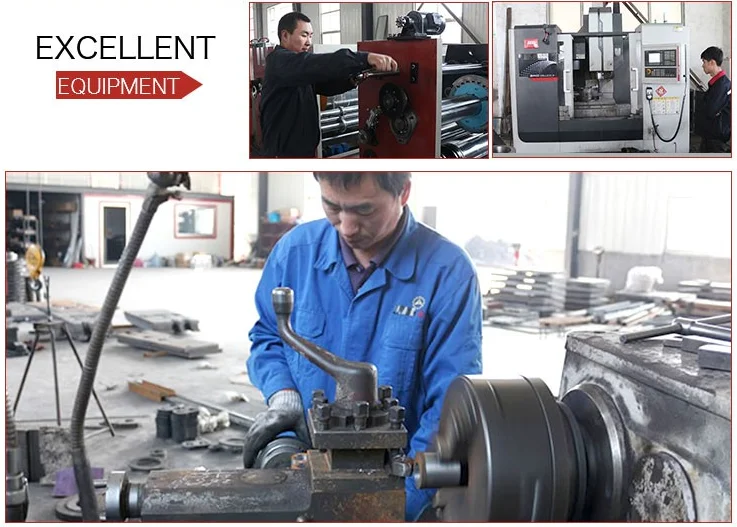

Company Introduction
