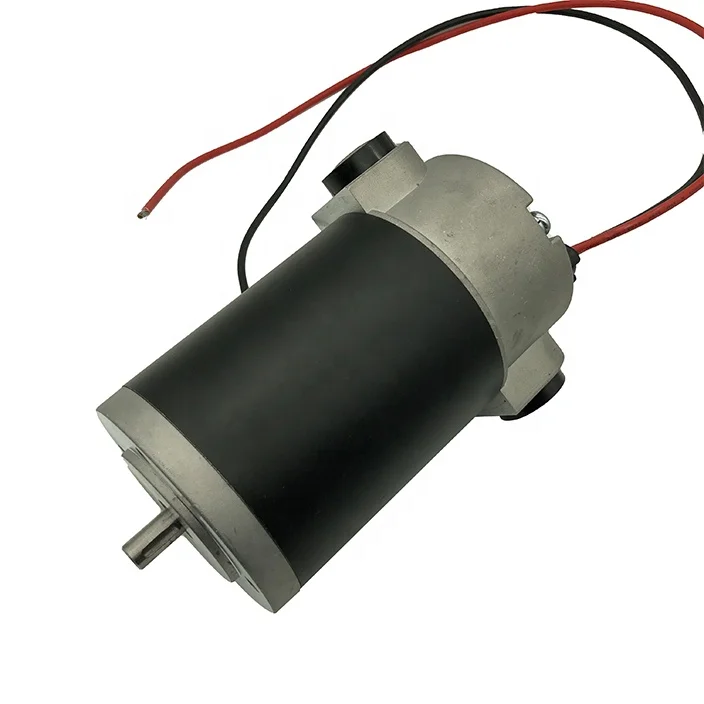

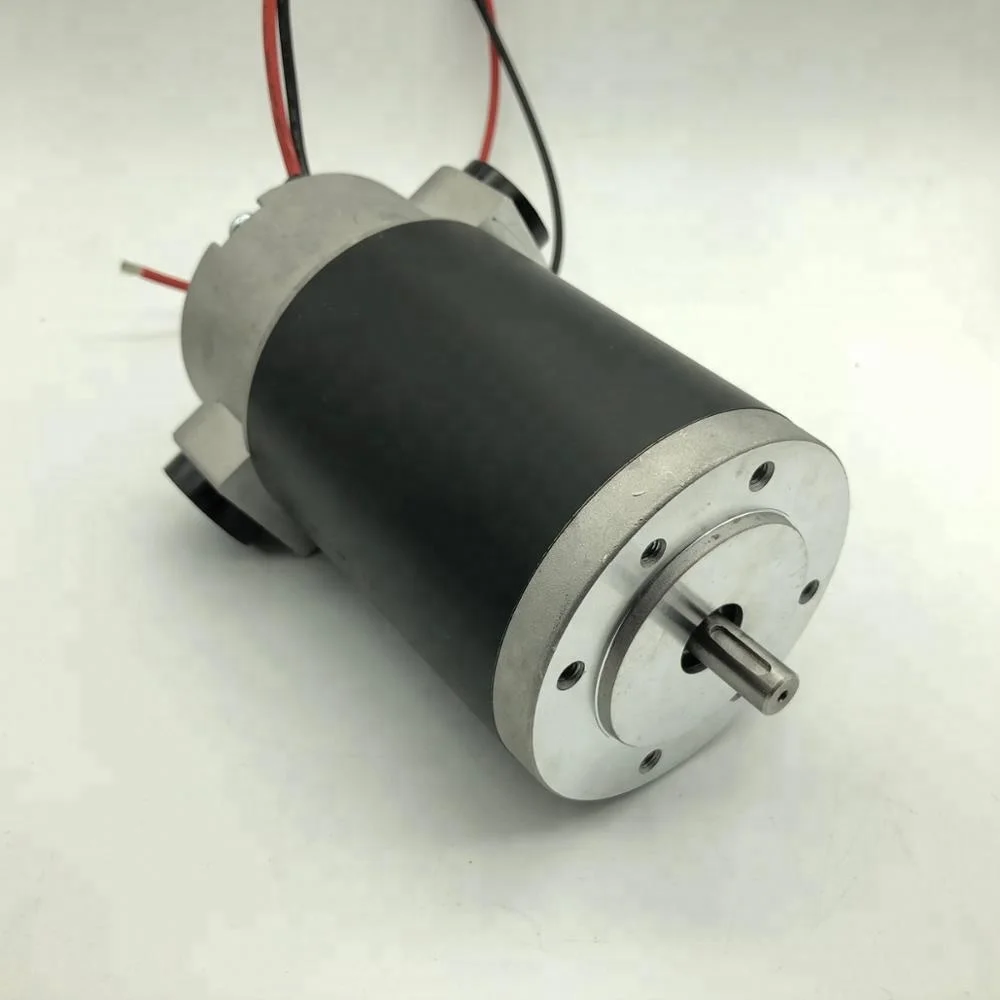

80ZYT R Series 12v 24v 38v 48v Dc Electric Motor wit Big Brush long life, replace TRANSTECNO Motor big torque
- Category: >>>
- Supplier: Changzhou Smart Automation Motor Manufacturing Co. Ltd.
Share on (60775066105):
Product Overview
Description

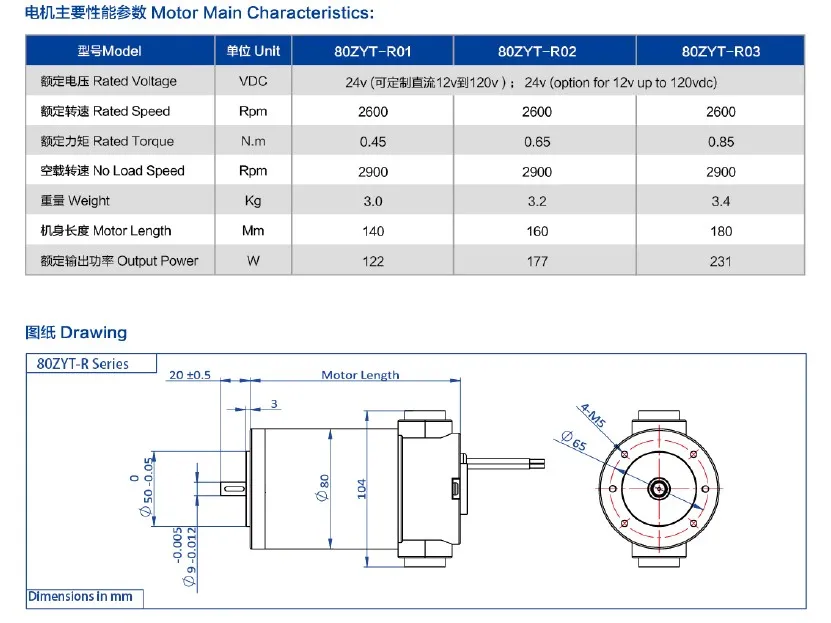

Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50 54
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
main applications of dc motor |
|
| |
|
|
|
|
Industry | Content | Industry | Content |
Medical equipment | Hand-held surgical instruments | Aerospace Industry | Electric seat adjustment post |
|
| ||
Surgical robot | Flight recorders | ||
|
| ||
Micro-injection pump; Peristaltic pump | Autopilot | ||
|
| ||
Dialyzer | Air-conditioning system | ||
|
| ||
Automatic dosing system | Space Robot | ||
|
| ||
Radiation therapy equipment |
| ||
|
| ||
Diagnostic equipment and testing instruments |
| ||
Robot | Humanoid robot | Auto industry | Adjustable shock absorbers |
|
| ||
Service robots | Emission abatement system | ||
|
| ||
Teaching Robots | Electronic steering | ||
|
| ||
| Electronic tachometer
| ||
Industrial Automation | Precision Positioning System | Communications Equipment | Antenna System |
|
| ||
Handling System | Copier / printer / plotter | ||
|
| ||
