NGW series planetary helical gear speed reducer with high quality
- Category: >>>
- Supplier: Zibo Boji Machinery Co. Ltd.
Share on (60775104183):
Product Overview
Description
Product Description
YOUR PROFESSIONAL MANUFACTURE
—— SINCE 1995

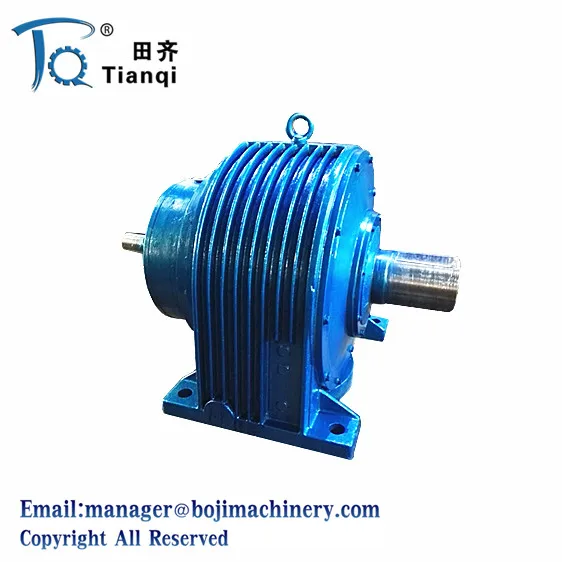

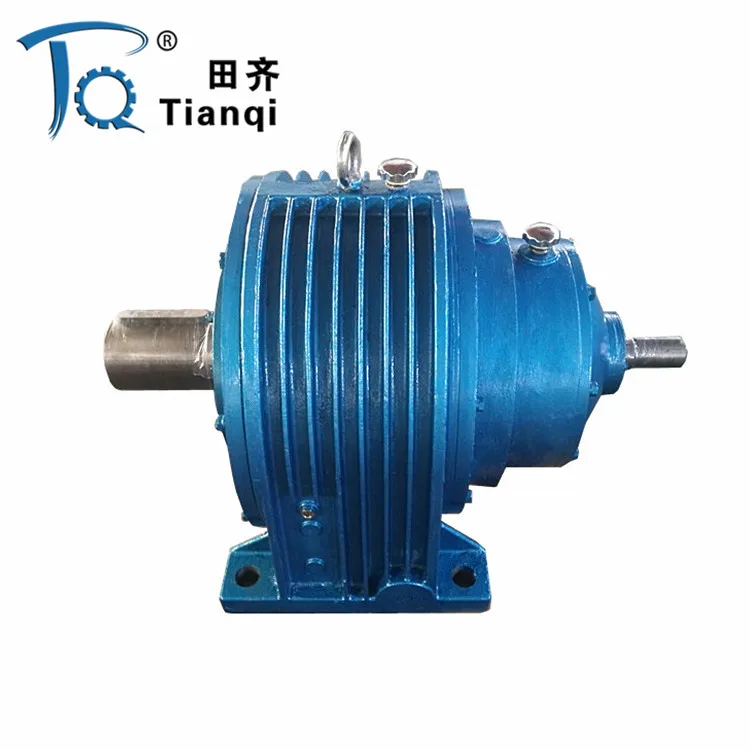

NGW / P Series Planetary Gear Speed Reducer
Sun Gear, Planetary Gear,Internal GearRing,Staging Gear

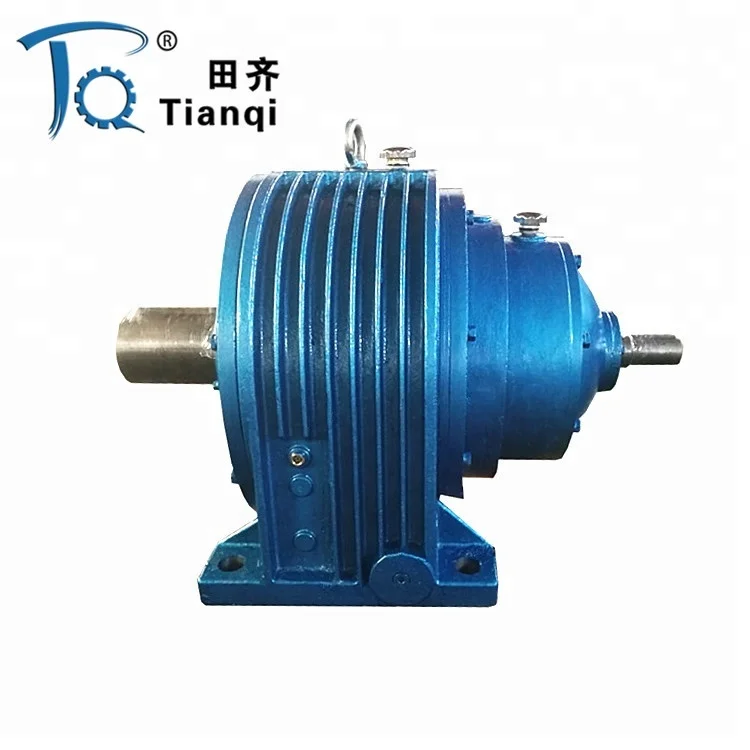

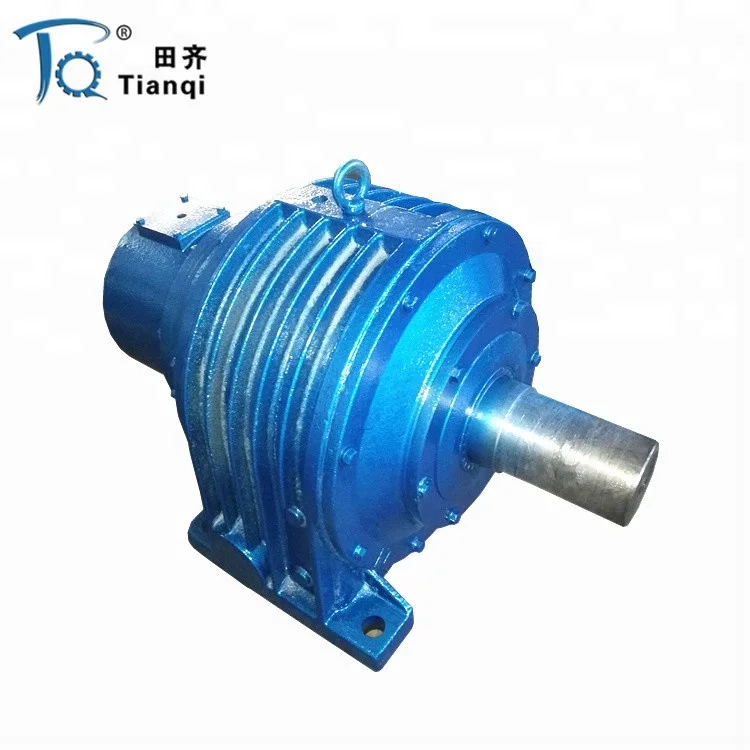

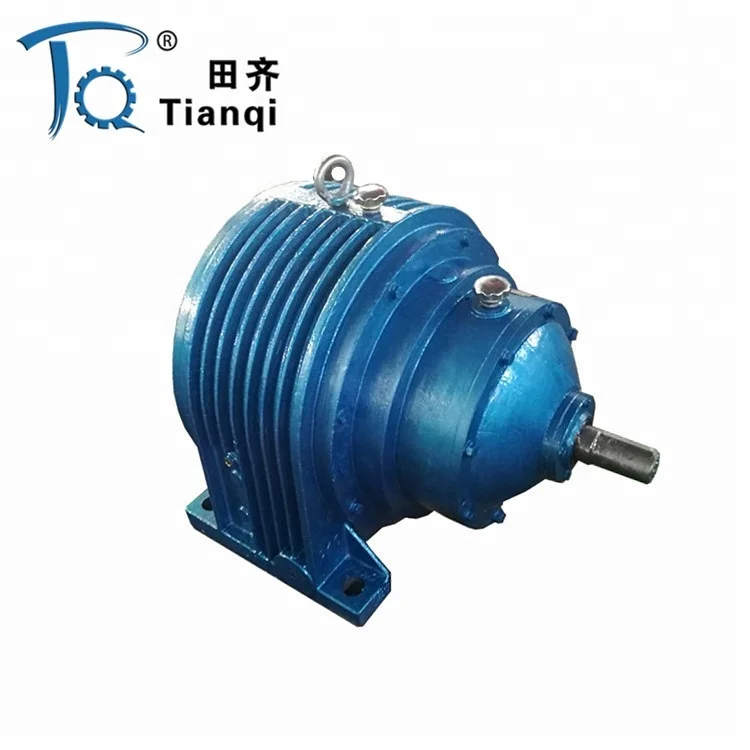

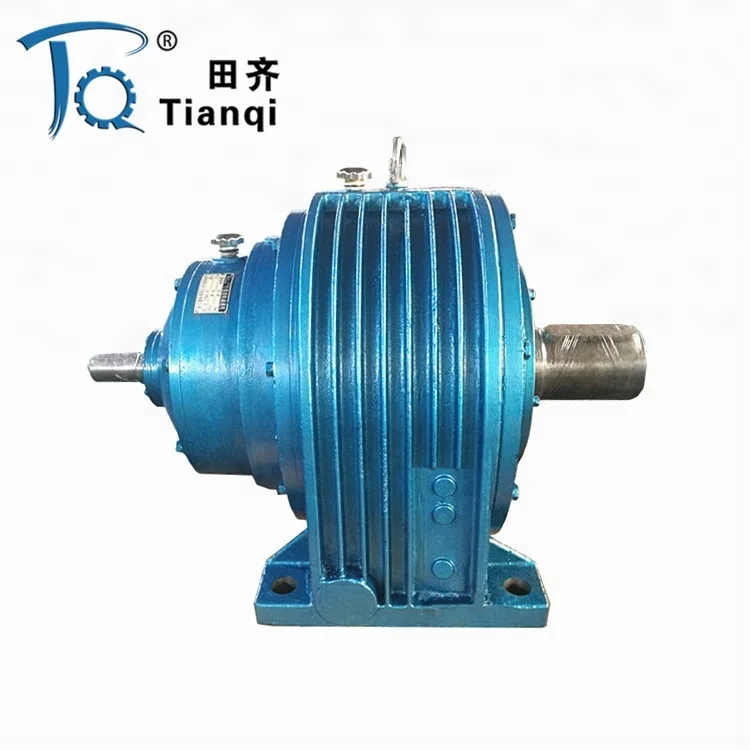

NGW series planetary helical gear speed reducer with high quality
Chinese Speed Reducer widely used in mining machinery, chemical industry,steel metallurgy, light industry,environmental protection, paper making, printing, lifting transport, food industry and so on.
NGW Series Mini Planetary Gearbox for concrete mixer including one-stage,two-stage and three-stage, it is suitable for the required speed ratio≤1500r/min, working temperature around -40~45℃, two runs alternative in direction.
P series Mini Planetary Gearbox for concrete mixer including two-stage and three-stage, it is suitable for the required speed ratio 25-4000, the ratio will be larger in combination with R,K series reducer.
Feature:
Modular design,right angle planetary gear box for slewing
Material: Cast iron HT 250 for housing; 20CrMnTi for Gear and Shaft
Sun gear, Planetary gear and Ring gear all c which will improve the efficiency and service life of the reducer.
Input mode: coaxial input, helical gear input, bevel-helical gear input
Output mode: internal involute spline, hollow shaft with shrink disk, external involute spline, solid shaft with flat key.Gearbox Factory Coaxial planetary gear speed reducer for travelling gear.
Mounting mode: Horizontal,Vertical,Torque-arm.planetary motor gearbox for concrete mixer
Specification

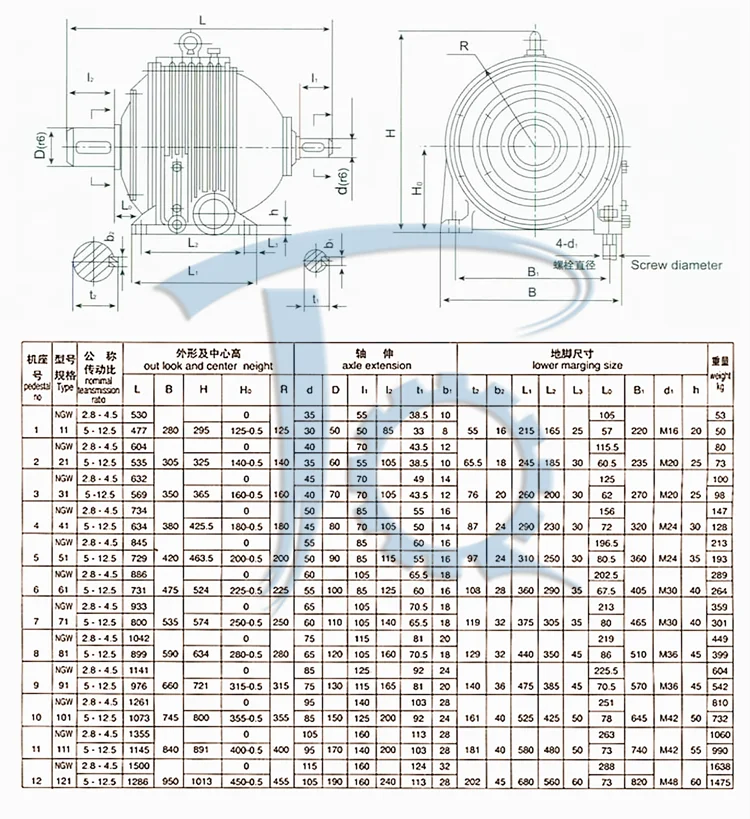

Mounting Diamensions of Planetary gear speed reducer:
(please contact us for more types & model)
| NGW Series Specification | ||||||||||||
| Size | NGW 11 | NGW 21 | NGW 31 | NGW 41 | NGW 51 | NGW 61 | NGW 71 | NGW 81 | NGW 91 | NGW 101 | NGW 111 | NGW 121 |
| Input Speed rpm | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 | 600-1500 |
| Input power rating(kw) | 2.7-38.6 | 3.9-57.3 | 5.5-89.4 | 7.6-126 | 10.8-179 | 15-249 | 21.7-336 | 31.1-472 | 43.7-668 | 74.2-680 | 85-964 | 124-1314 |
| Ratio | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 | 1-14 |
| Permissible torque N.m | 420-1600 | 590-1600 | 820-228- | 1150-3240 | 1580-4680 | 2270-6490 | 3160-9050 | 4330-12490 | 6000-17660 | 8400-24980 | 11370-35720 | 17020-50420 |
Model selection of right angle planetary gear speed reducer:
Closely using the ideal reduction ratio.
Reduction ratio = servo motor speed / reducer output shaft speed
Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.
The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide.planetary motor gearbox for concrete mixer.modular construction high torque planetary gearbox components.NGW series planetary helical gear speed reducer with high quality.
Company Information

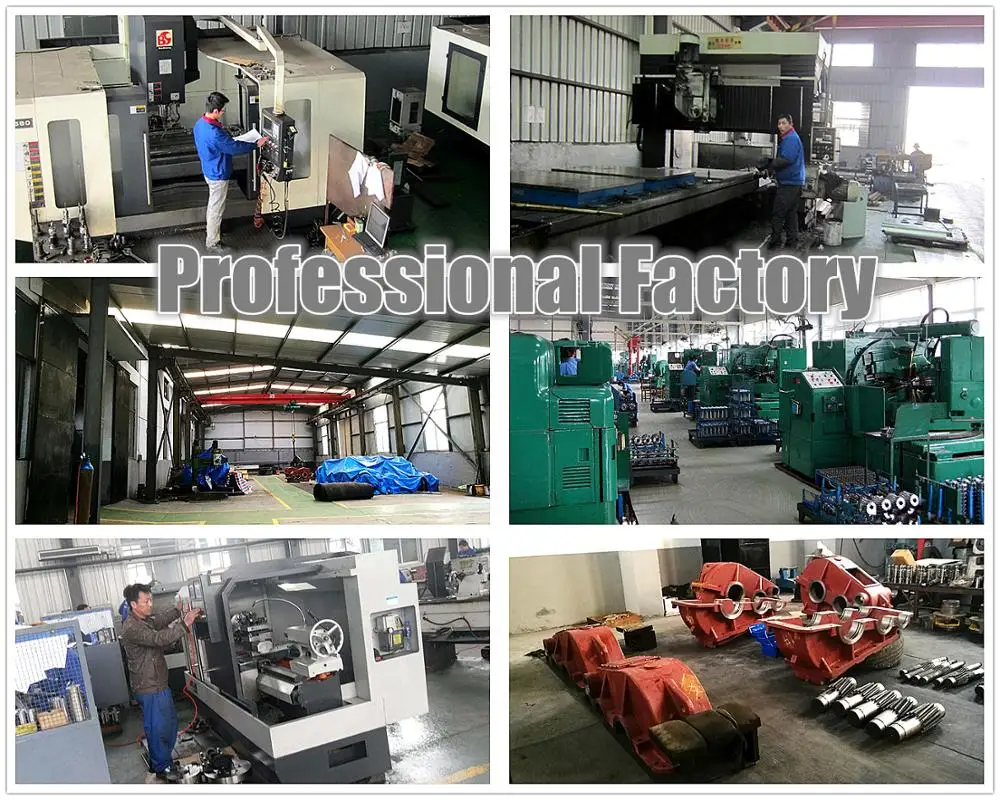

Founded in 1995, Zibo Boji Power machinery Co.,Ltd has 22 years of reducer production experience and credibility. The company has professional engineer team, advanced technology production and skilled workers, with located in Zibo of Shandong province which has solid industrial base and developed transportation.
Our Services

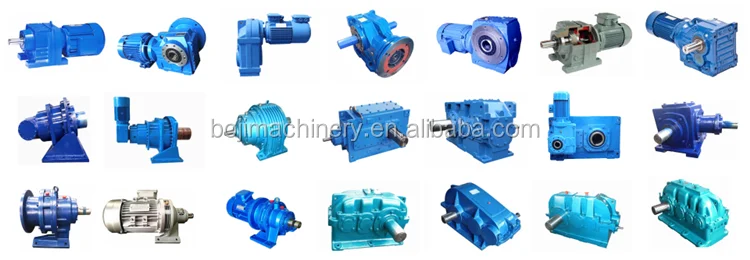

Chinese Speed Reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.
In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery, electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products. Mini Planetary Gearbox for concrete mixer. NGW series planetary helical gear speed reducer with high quality.
Packaging & Shipping
FAQ
1.Q:Are you the factory or trading company?
A:We are the professional Factory with 22 years of experience.
2.Q:Can you customize according to our requirements?
A:Yes, we can design nonstandard products according to customer's drawing and sample.
3.Q:How long is the delivery date?
A:10-20 working days.
4.Q:Where is your factory?
A:We are in Zibo of Shandong Province, you can get here by high speed train or fly to Jinan.
Welcome to visit us!
