Горячая Распродажа 3 тонный ручной/ручной цепной тали/подъемники для отрасли строительной конструкции передачи Подъемные Инструменты

Product Overview

Description

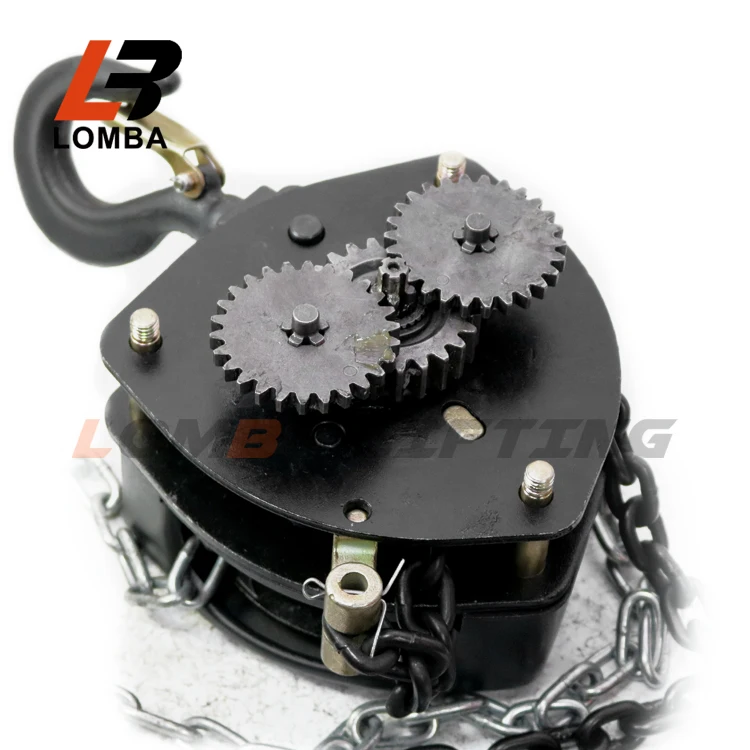

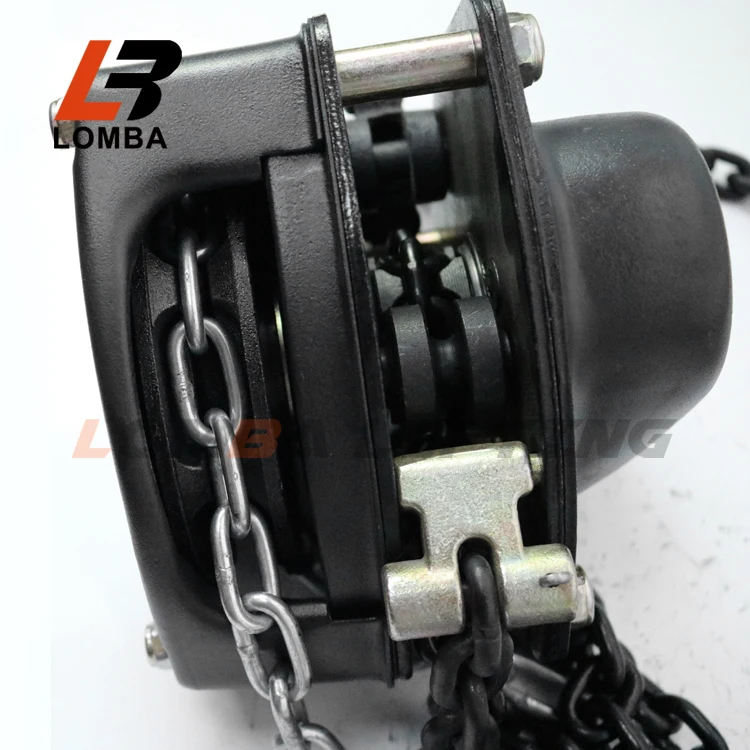

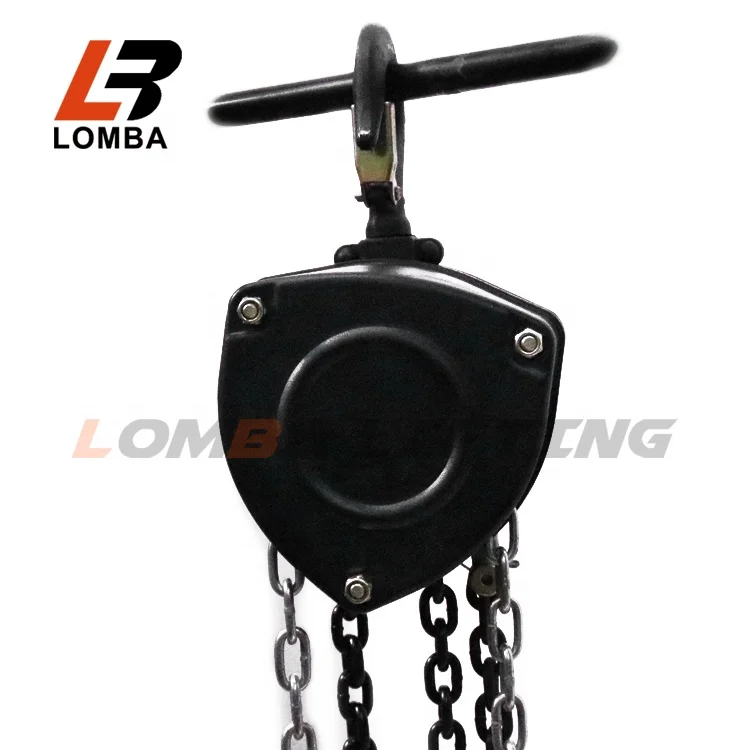

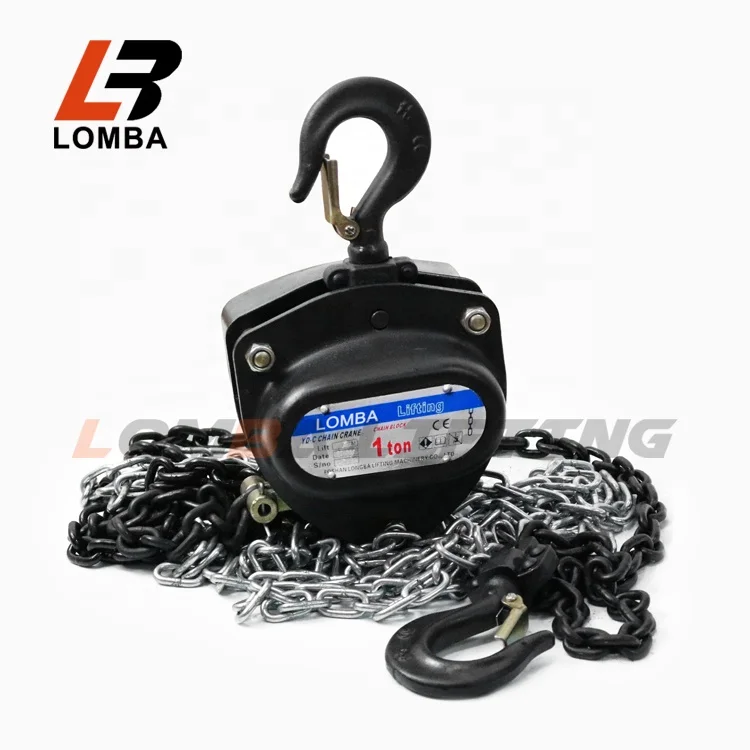

Hot Sale 3 ton Manual/hand chain pulley block/Hoists for industry building construction handing lifting tools





Technical Benefits



1. Automatic double pawl braking system;

2. Light weight robust construction;

3. Low effort to lift maximum load;

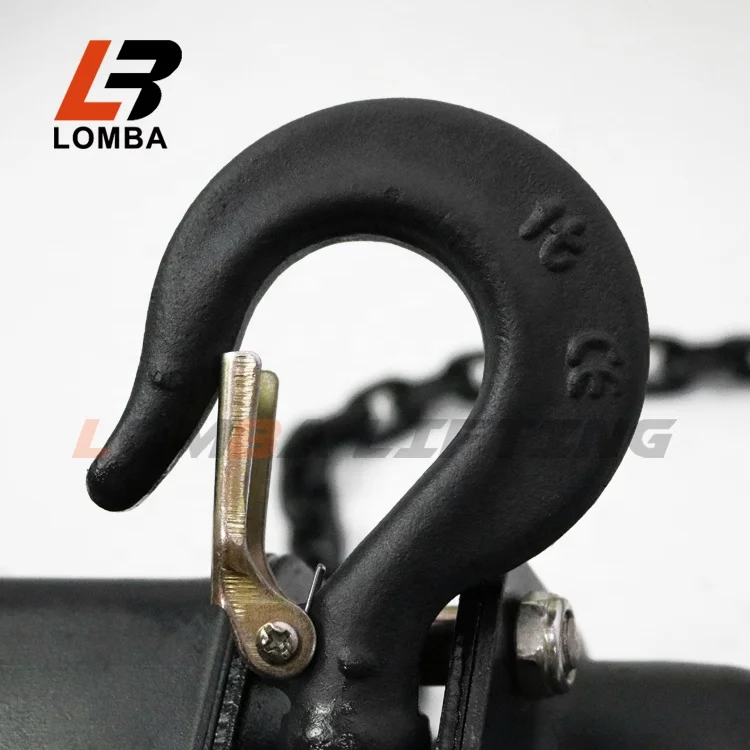

4. Fully forged hooks;

5. Fully machines lift wheel;

6. ISO high grade alloy chain;

7. Zinc plated hand chain as standard;

8. Double cover protection;

9. Durable baked enamel paint protection;

10. Overload protection device available upon request.





Model		SLH-D025	SLH-D050	SLH-D100	SLH-D150	SLH-D200	SLH-D300	SLH-D500
Capacity(kg)		250	500	1000	1500	2000	3000	5000
Lifting height(m)		2.5	2.5	2.5	2.5	2.5	3	3
No. of falls		1	1	1	1	1	1	2
Load chain Dia. x Pitch(mm)		4x12	5x15	6x18	7x21	8x24	10x30	10x30
Hand chain		5x23.7-18
Force(N)		235	240	250	265	335	372	380
Net weight(kg)		6.5	9.3	12.2	16.5	19.5	32	43
Dimensions(mm)	A	121	148	172	196	210	255	280
	B	114	132	151	173	175	189	205
	C	19	23	26	29.5	34	37.5	41
	D	31	35	40	45	50	55	65
	Hmin	280	345	376	442	470	580	690
