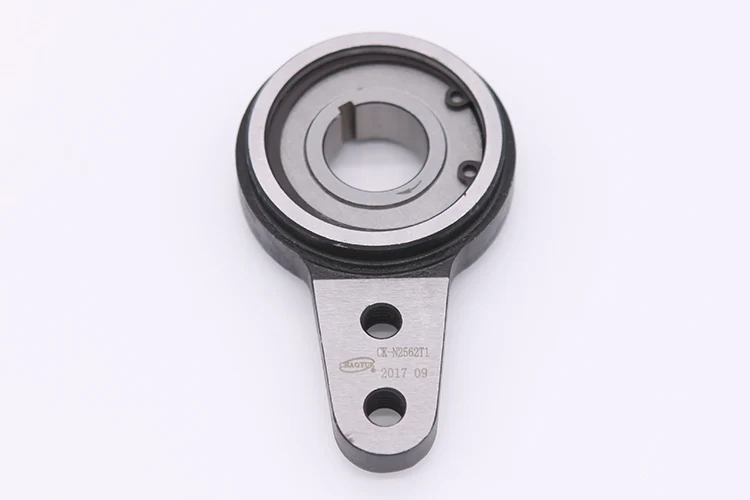

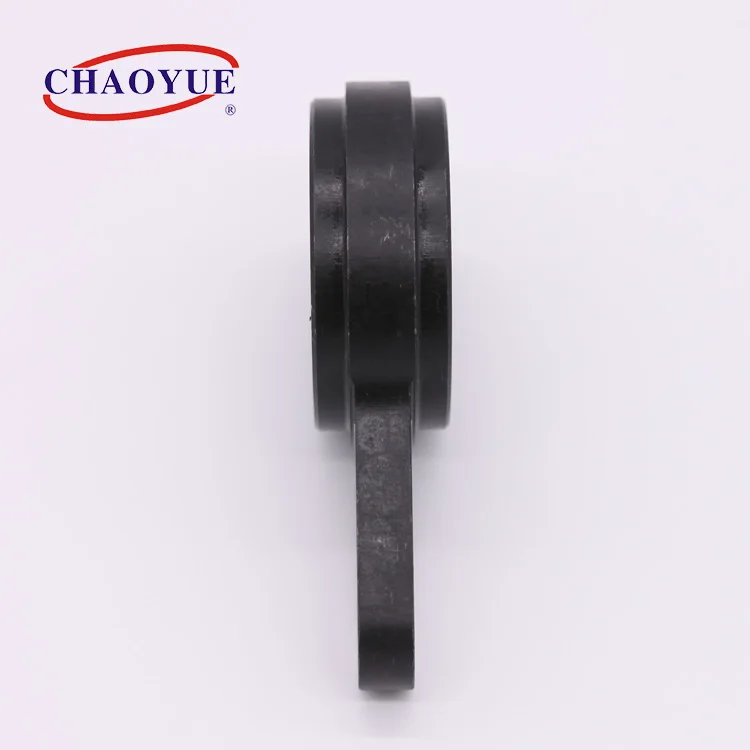

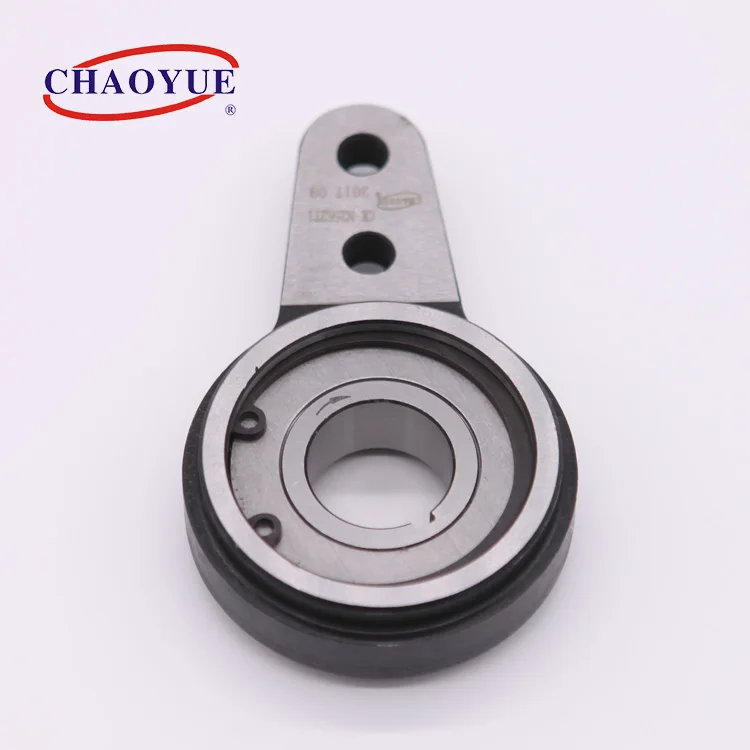

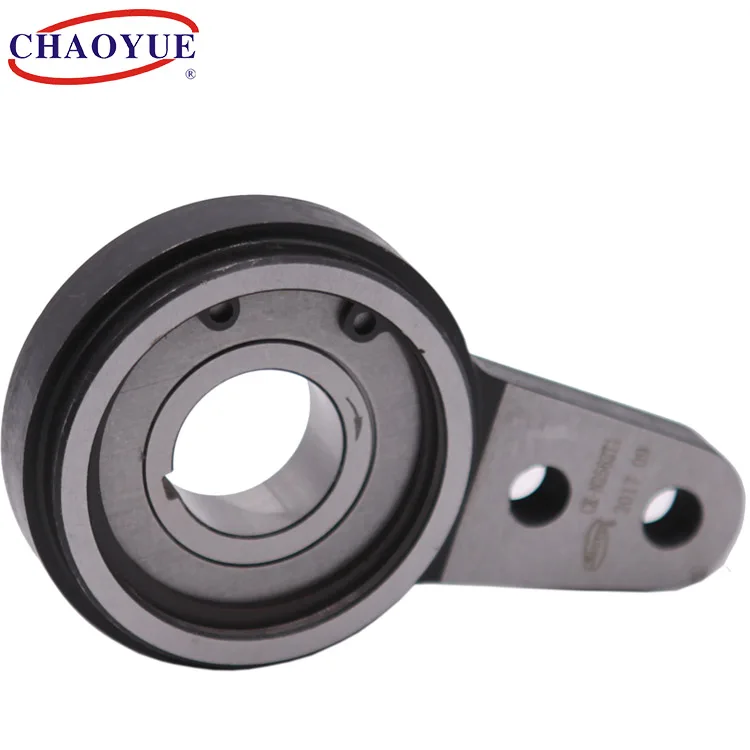

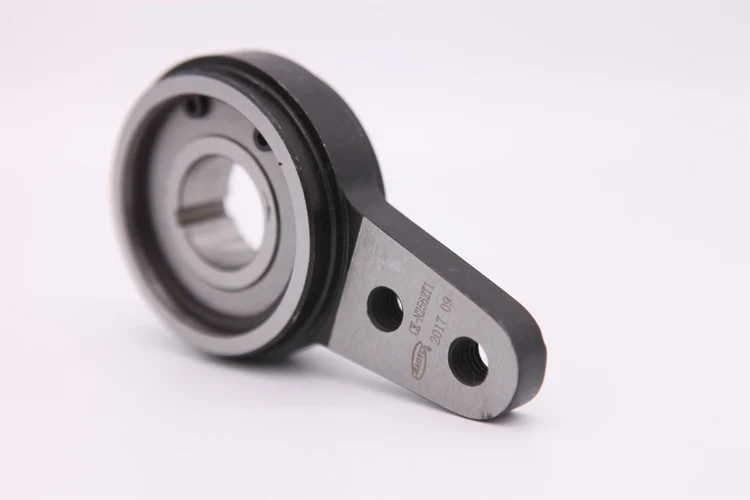

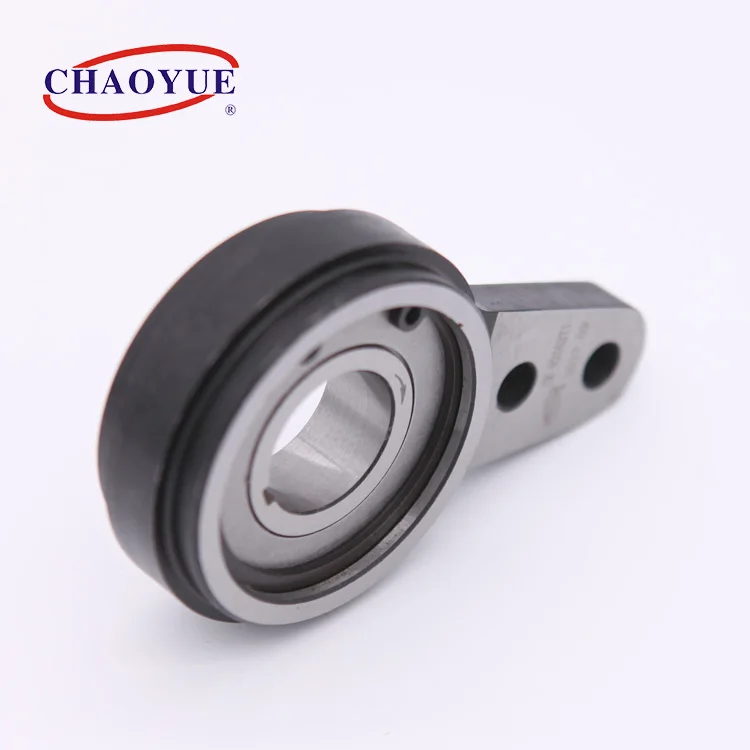

Freewheel Backstop One Way Rotation Bearings AV30

Description:
Type CK-N is sprag type one-way clutch integrate without supporting bearing and oil seal, and is suitable to application at low running speed.

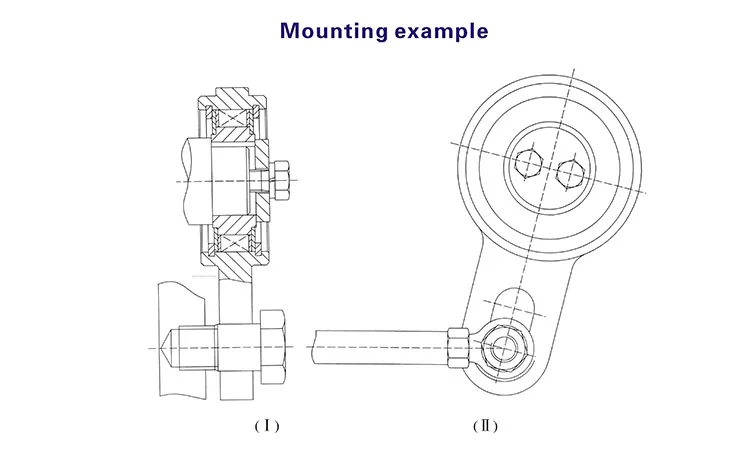

A bolt,secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1% of the slot width. The torque arm and the bearings must not be prestressed.

Unit primarily used as a backstop or indexing clutch in packing and printing. This type provides a high torque capacity with a minimum space requirement.

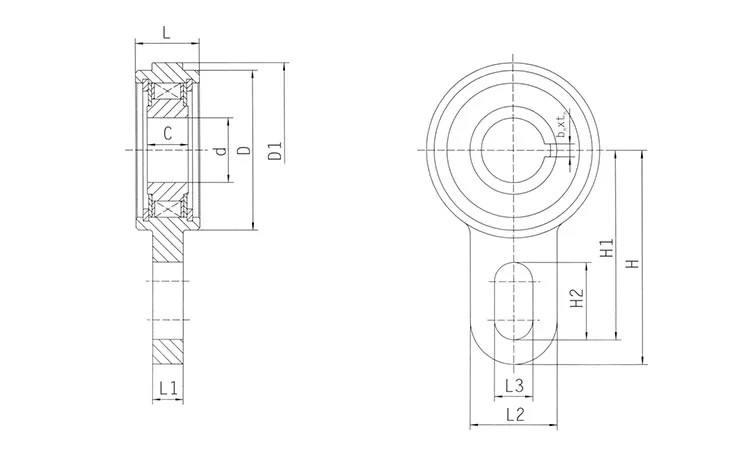

Parameter of Freewheel Backstop One-Way Rotation Bearings AV30

Q: Are you factory or trading company ?

A : Xianyang CHAOYUE Clutch Co., Ltd was founded in 1999. We are a professional locking assembly & clutch manufacture with 20 years' experance of R&D.

Q: How to get price ?

A: Kindly info us with the product type and we will quote you ASAP.

    If you are not sure about these details , pls just tell us :

    Inner diameter is       mm, outer diameter is       mm, width is       mm, torque range is        kN·m,

Q:  What's the MOQ ?

A:   The minimum order quantity for most of our product is 1 pcs.
