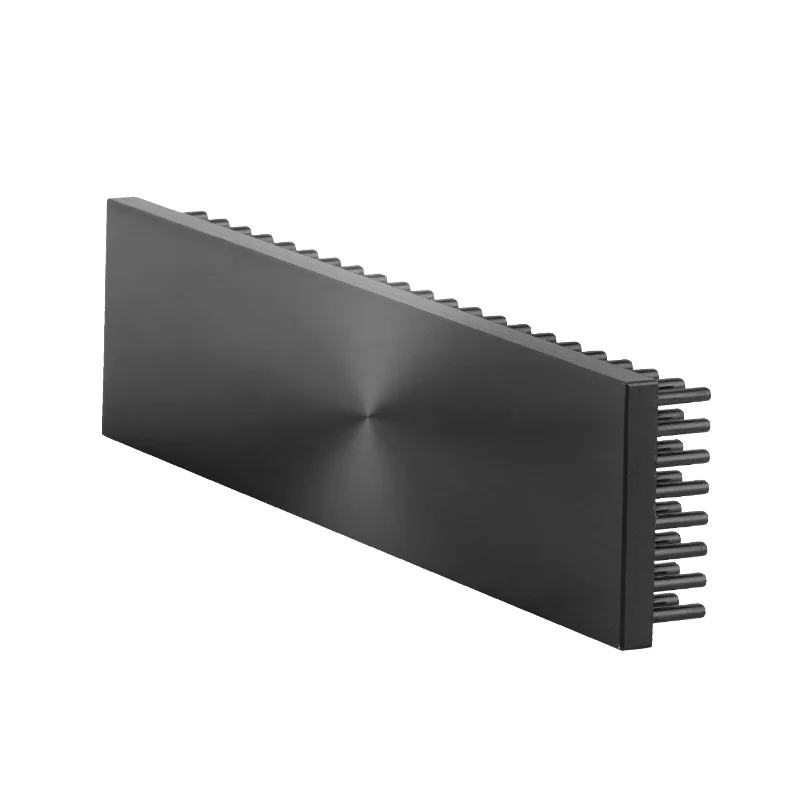

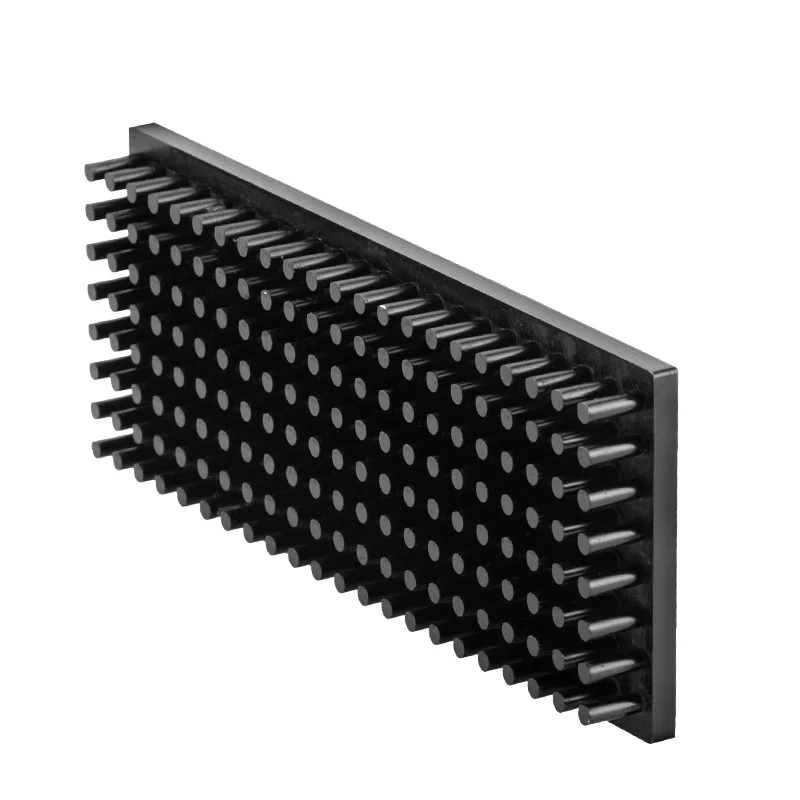

7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm
7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm

7W Length Width 150*60mm And Height 20mm Black Anodizing rectangle Led Light Aluminum Pin Fin Small Heatsink 60mm

Share on (60775150294):


Price:

Quantity:


Product Overview

Description



Hot Products




Products Description




Features:
• Solid one-piece forged aluminum construction for maximum thermal conductivity.
• Pin fin design maximizes surface area and provides omni-directional cooling to eliminate concerns about orientation of the heat sink (unlike a linear extrusion).
•Precision-machined flat base ensures consistent contact between the heat sink, interface and LED substrate to maximize heat transfer.
• Standard 10mm base thickness allows for full recommended depth for mounting holes.

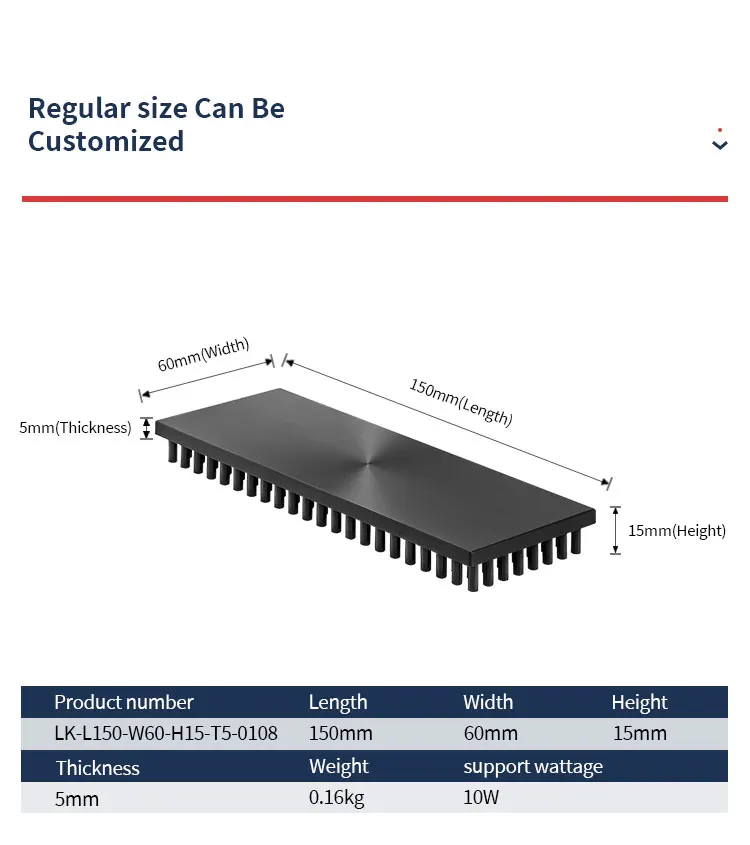

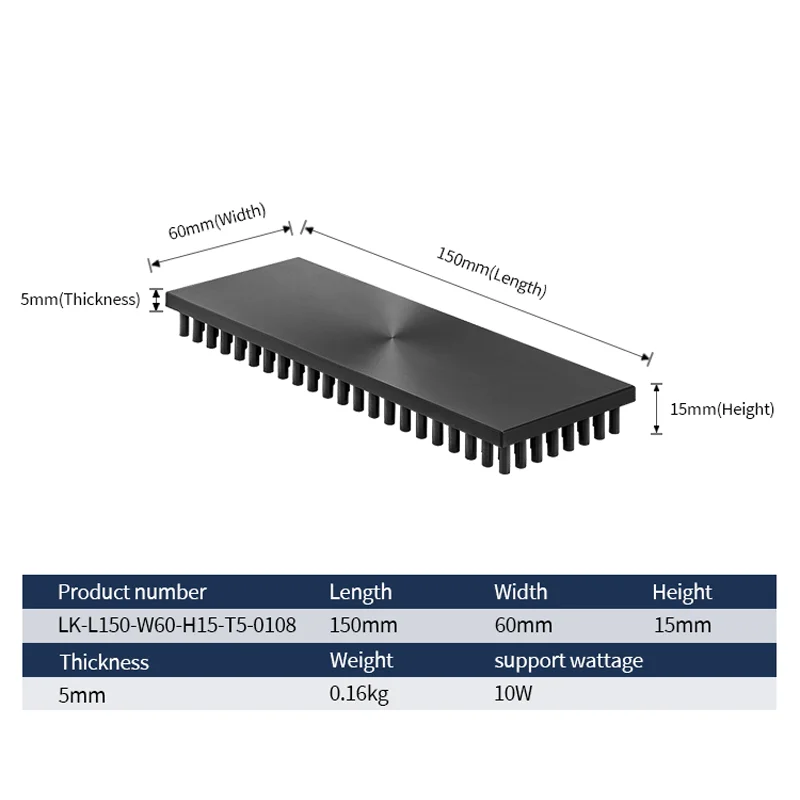

Specification


product number
LK-L150-W60-H15-T5-0108
Length
150mm（5.905inch）
width
60mm（2.362inch）
Height
15mm（0.590inch）
Thickness
5mm（0.196inch）
Weight
0.16kg
Power
10w

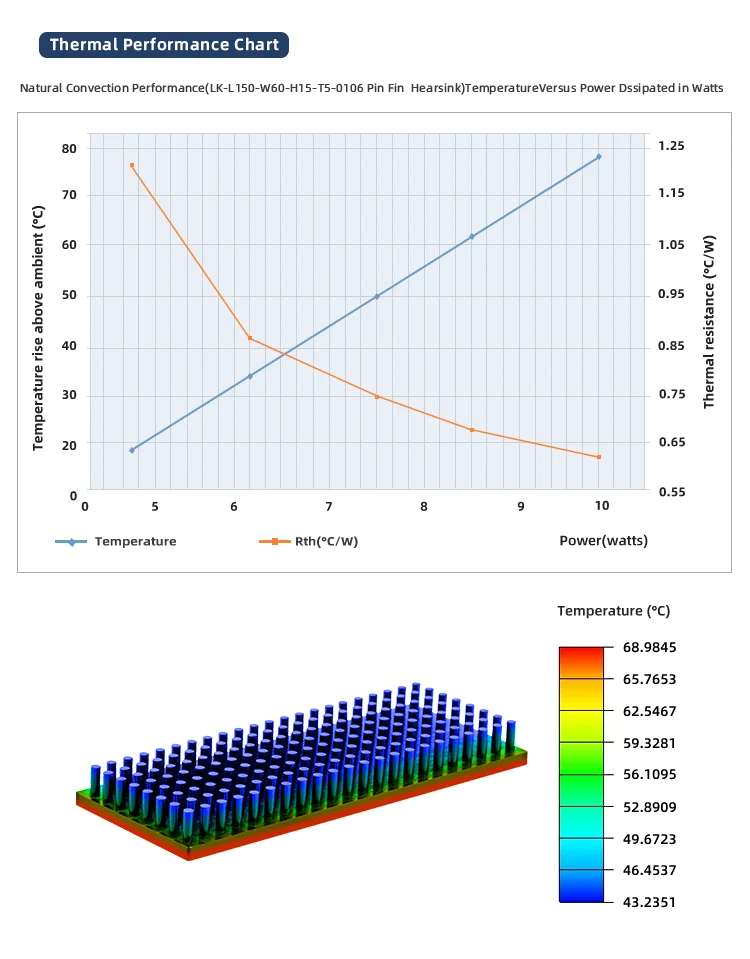

Thermal Resistance
0.8
Material
AL1050
processing
Cold forging, CNC,Drilled, Threaded
Finish
Anodizing
Color
Black
Application
LED light,Track Lighting,high pole lights,high bay light

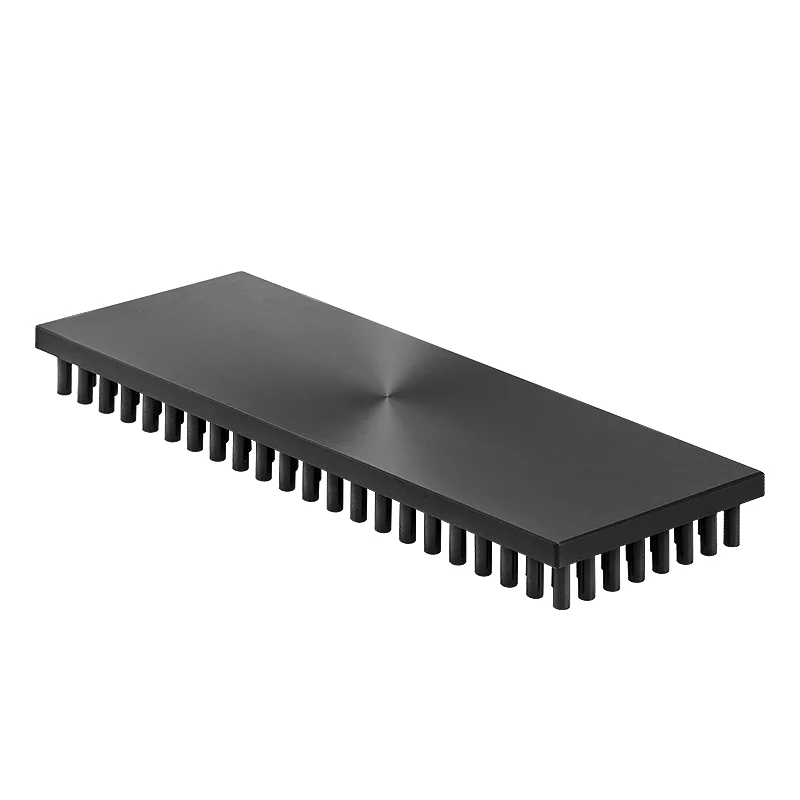

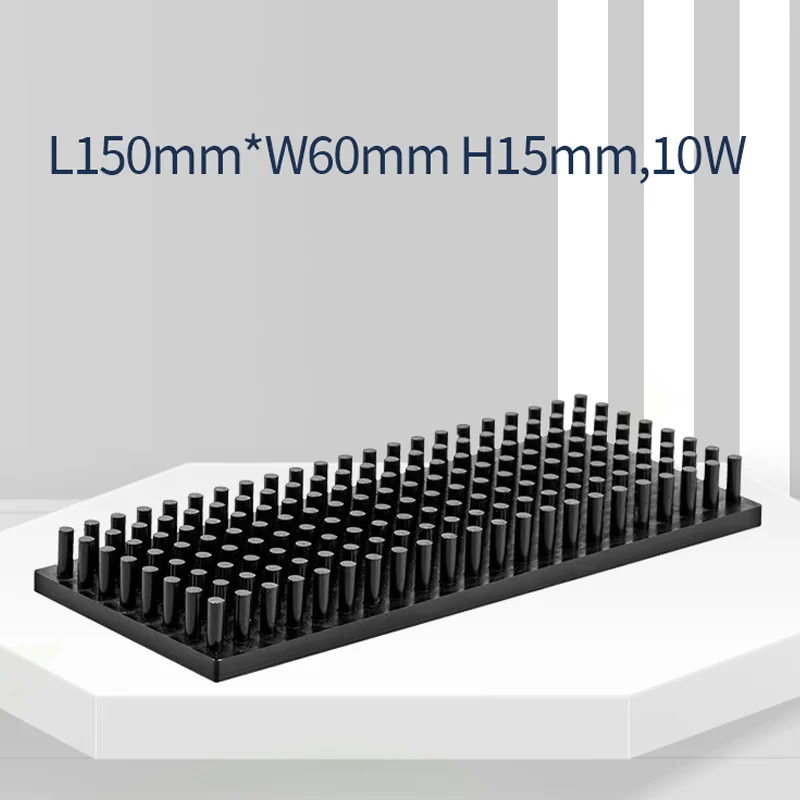

Details Images

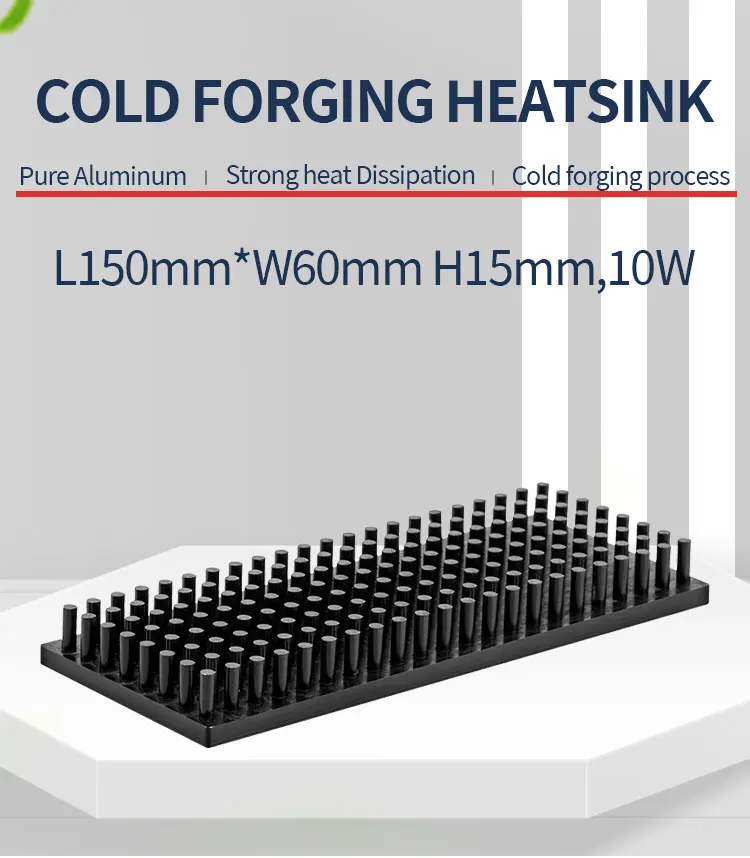

Why choose cold forging process:
Generally, heatsink has three types: die casting, extrusion and cold forging. Because the material is different,the heat dissipation coefficient obtained is also different. Under the same size conditions, the power supported by cold forging heatsink is 2.35 times that of die casting and 1.45 times that of extruded profiles.
That is to say, when the user wants to get the same power, the cold forged heatsink will be smaller and lighter. The risk of hoisting is also reduced. Shipping costs are also lower.

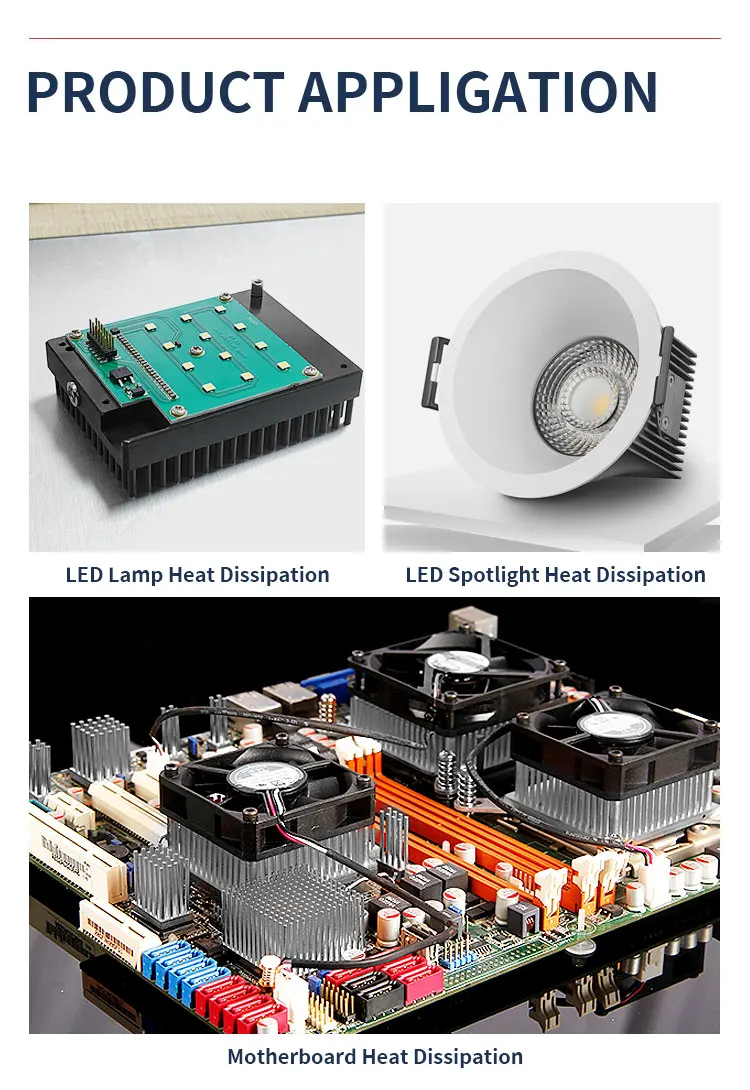

Applications
