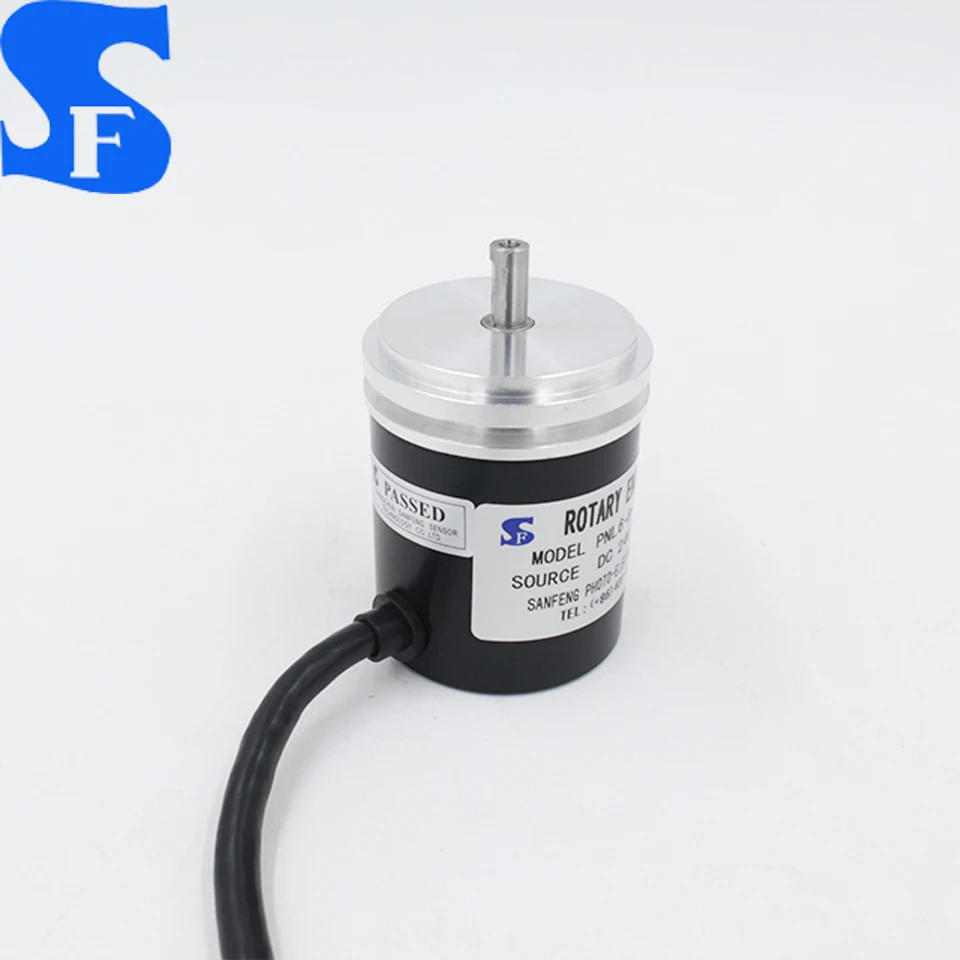

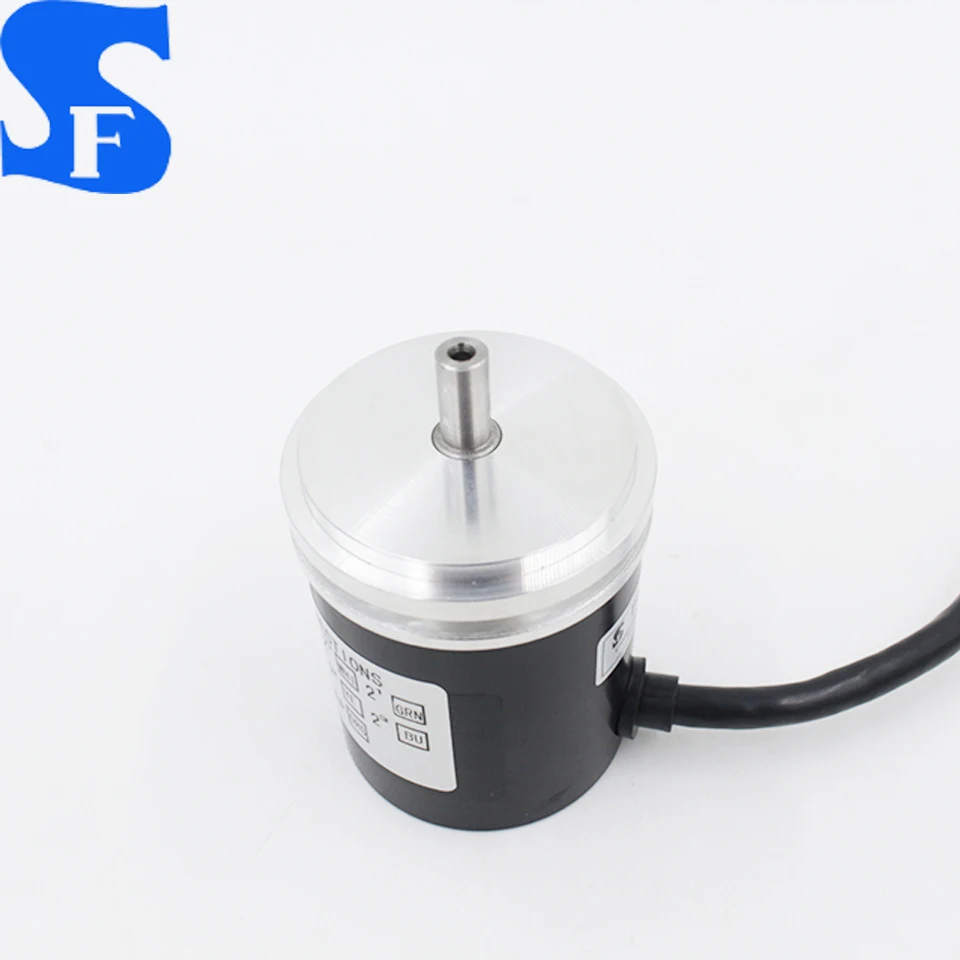

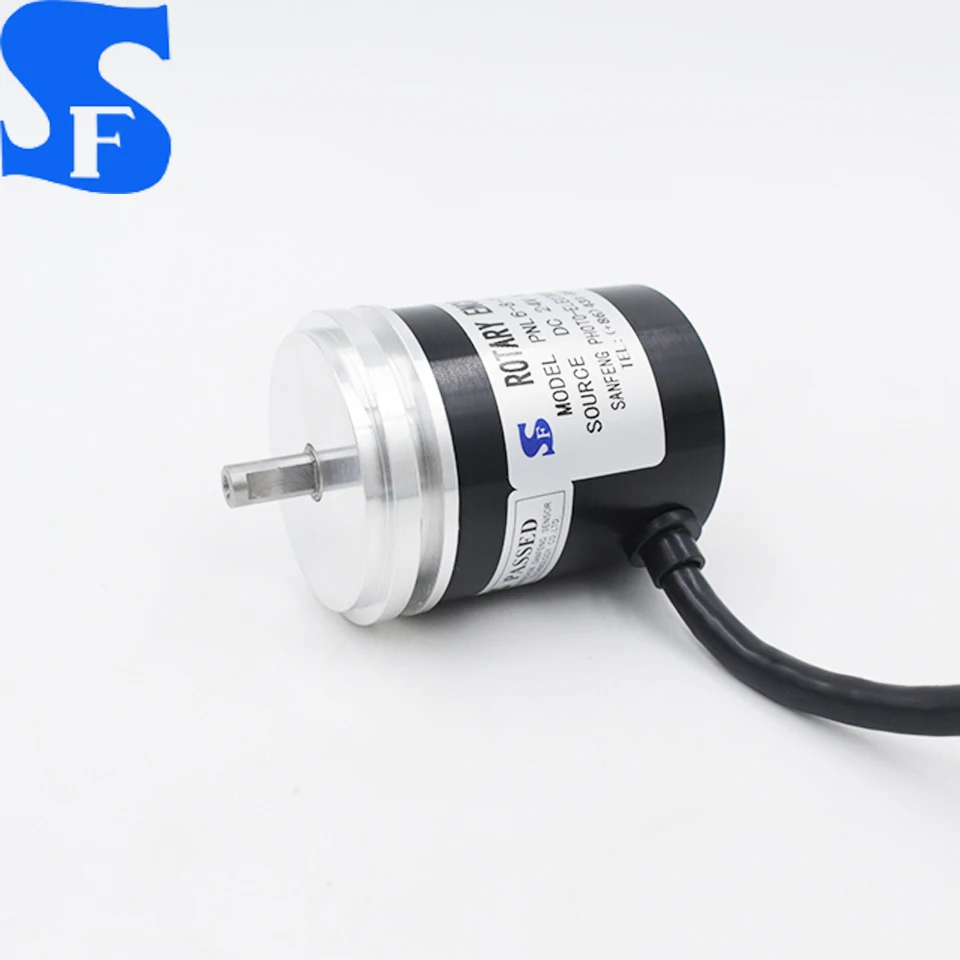

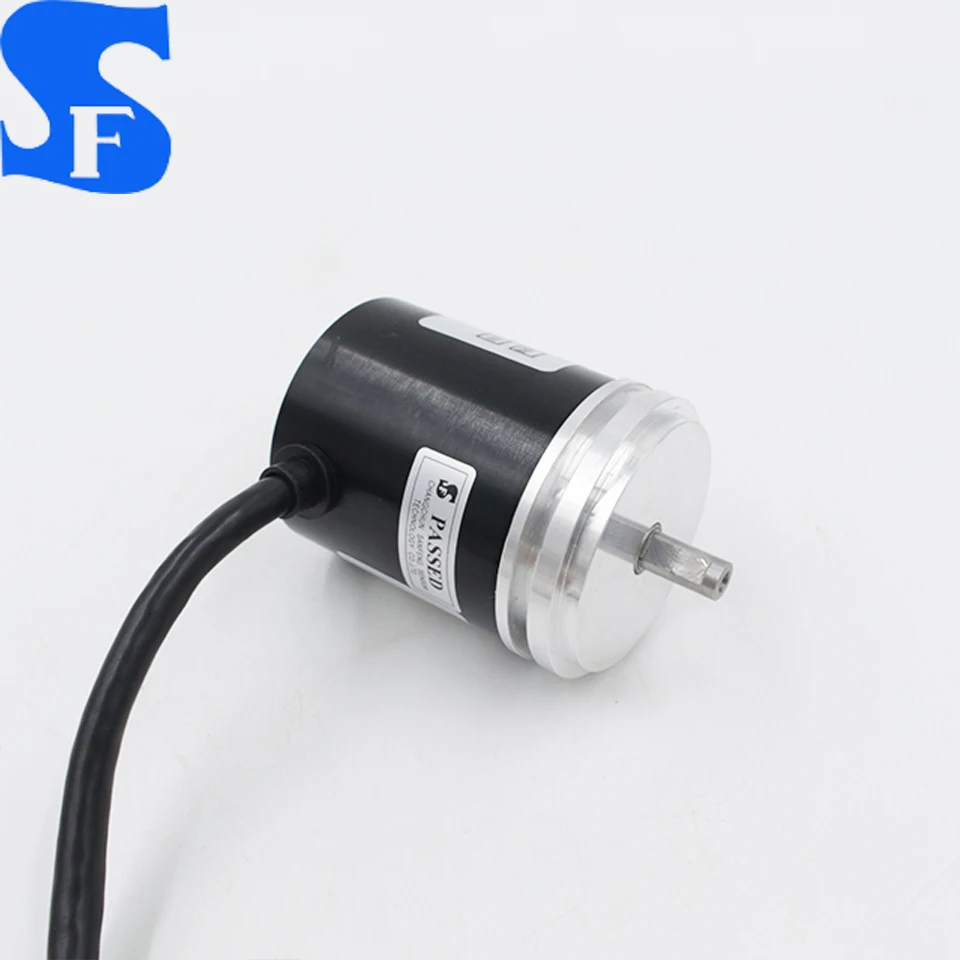

PNL6 8 Y G24P A Positive Logic PNP outpout absolute encoder
- Category: >>>
- Supplier: Changchun Sanfeng Photo-Electronics Instrument Manufacturing Co. Ltd.
Share on (60775169659):
Product Overview
Description
PNL6-8-Y-G24P-A Positive Logic PNP outpout absolute encoder
Resolution | 4,6,8,10,12 Division | |||
Output Logic | Positive Logic | |||
Output Code | Pure Binary | |||
Supply Voltage | DC24V±5% | |||
VH Output Voltage | ≥Vcc*70% | |||
VL Output Voltage | ≤0.5V | |||
Current Consumption | ≤60mA | |||
Frequency Response | 5kHz Max | |||
Rise / Fall Time | - | |||
Injection Current | ≤50mA | |||
Measurement Range | 0~360° | |||
Measurement Error | ±20” | |||
Starting Torque | 1.5*10-3N*m(+25℃) | |||
Shaft Loading | Radial | 20N | Axial | 10N |
Rotating Inertia | 2*10-7Kg*m2 | |||
Max Rotating Speed | 180r/min | |||
Vibration Resistance | 50m/s2(10~200Hz)2 Hours in xyz Direction | |||
Shock Resistance | 980m/s2 3 Times in xyz Direction,continue 6 mS | |||
Protection | IP65 | |||
Operating Temperature | -10℃~+70℃ | |||
Storage Temperature | -20℃~+80℃ | |||
Operating Humidity | 30~85%RH | |||
Weight(no cable) | Around 0.2Kg | |||
Accessories | SE/PE Coupling | |||

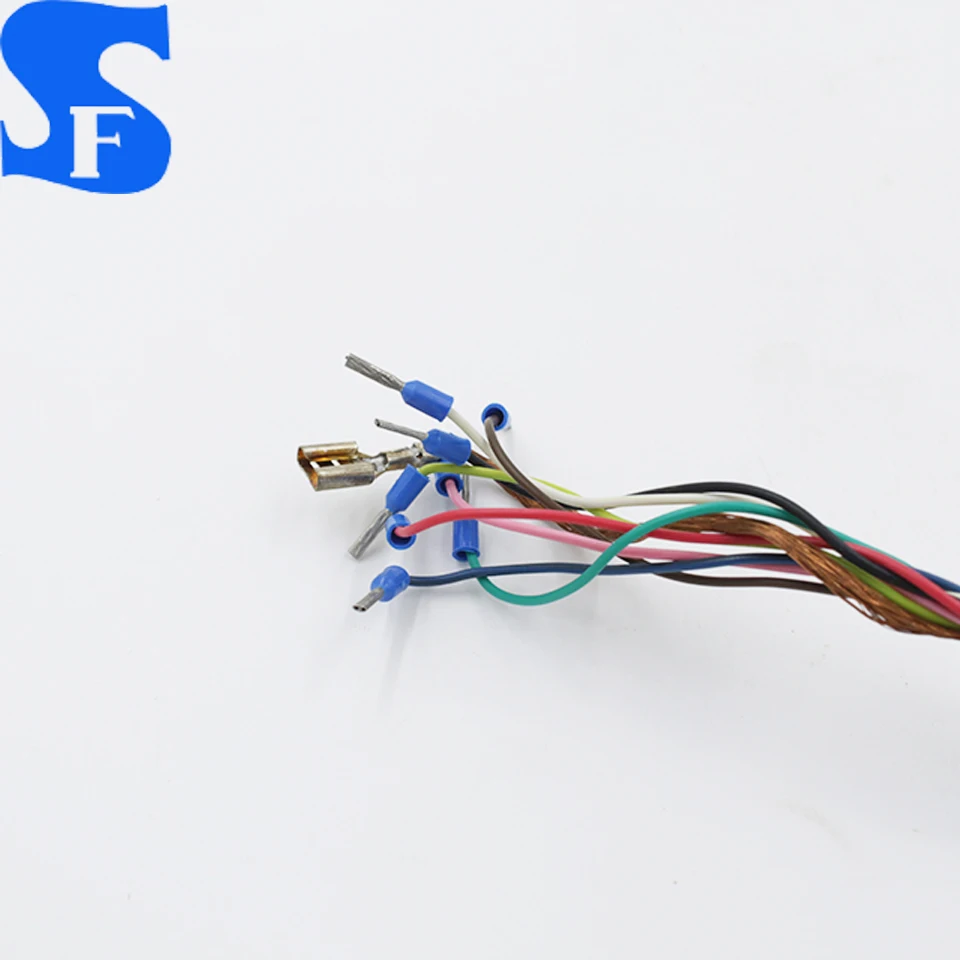

Cable Color | Red | Black | Brown | White | Green | Yellow | Blue | Pink | Shield |
Signal | DC 24V | 0V | TP | 20 | 21 | 22 | 23 | EP | FG |
Station | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
Output Signal
| TP | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
20 | 1 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | |
21 | 0 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | |
22 | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 1 | |
23 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 1 | |
EP | 1 | 1 | 0 | 1 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | |
If you have any question,feel free to contact me.
Are you a trading company or a manufacturer? |
We are a manufacturer of 20 years experience. |
Do you accept OEM brand? |
Accept large OEM brand customers, or a large number of customers. |
Does your product have a factory inspection? |
Every product we send is strictly factory inspection. |
How long will you ship the goods? |
Our delivery time ranges from 3 days to 3 weeks. |
Can you provide free samples? |
Regular products provide samples according to the original price. Customized products are provided at cost price. |
What kind of packing do you send? |
We use high-quality corrugated paper packing box, internal environmental protection buffer material. |
What is our loading port? |
Dalian port, or apply for other ports. |
How long is your quality guarantee period? |
The guarantee period for our products is one year. |
