syringe making machine plastic making machine charger cable making machine

Product Overview

Description

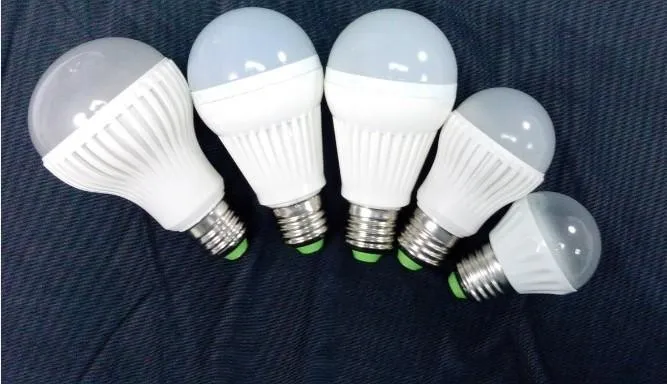

injection blow molding machine price for hot product led bulb light





angle tie bar less Plastic injection molding machine Double sliding

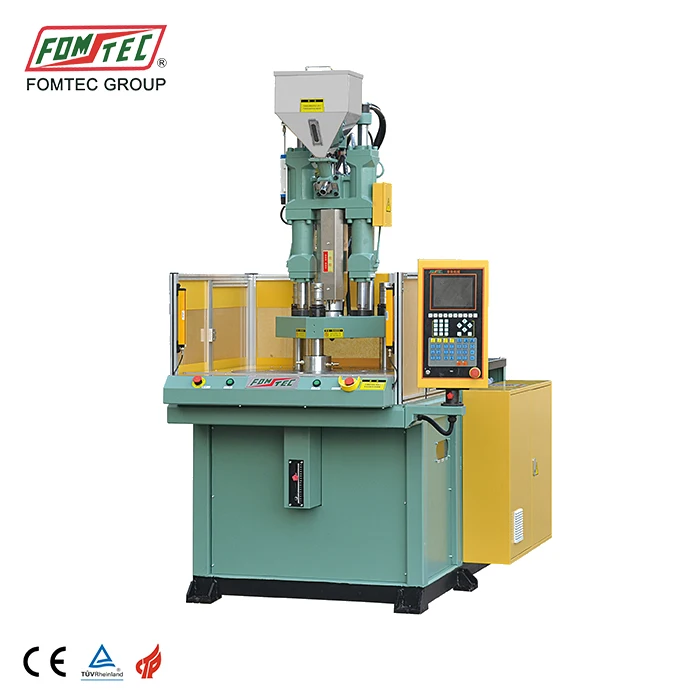

Vertical Injection Molding Machine for Toothbrush

FEATURES

 vertical injection molding machine price , servo plastic injection molding machinery

l  Vertical clamping and injection design, especially suitable for the insert molding production

Plastic Injection Molding MACHINE, SMALL VERTICAL INJECTION MOLDING MACHINE

l Single sliding platen, effective to increase production flexibility and machine safety factor

SERVO VERTICAL MOLDING MACHINE,DOUBLE SHUTTLE INJECTION MACHINE

l  User-friendly LCD display shows various functions with 66 sets of mold memory

TOOTH PASTE TUBE PLASTIC TUBE HEAD,SOFT TUBE HEAD AND SHOULDER,OVER MOLDING INJECTION

l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting and accurate processing

AUTOMATIC SOFT TUBE HEADING,AUTOMATIC SCREW DRIVER INJECTION,LAMINATED TUBE PLASTIC HEADING

l  The P.I.D temperature control is accurate for every section

VERTICAL INJECTION MOLDING MACHINE,SHUTTLE TABLE INJECTION MACHINE

l  Dual injection and carriage design provides smooth movement and precision molding

máquina de fabricación de plástico,    máquina de moldeo por inyección vertical

l  Professional designed screw and barrel, suitable for various plasticizing demands

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High torque screw motor ensures superior plasticizing ability Bakelite machine for plastic

máquina de moldeo por inyección de plastic,    mesa corrediza

l  Oil-less bushings used on all moving units for better cleanness and easy maintenance

Vertical Injection Molding Machine PRICE, plastic Injection Molding Machine PRICE

l  High-rigid frame structure assures stable and smooth sliding movement

 Rotary table injection machinery, shoes sole molding machine





 SPECIFICATION



INJECTION UNIT	Screw Diameter	mm	φ32	φ36	φ42
	Maximum Injection Pressure	Bar	2051	1620	1190
	Theoretical Shot Volume	cm3	113	143	194
	Maximum Shot Weight(PS)	g	104	132	179
		oz	3.7	4.6	6.3
	Injection Rate	cm3/sec	63	80	109
CLAMPING UNIT	Clamping Force	ton	40
	Top Platen Size	mm	610×460
	Slide Table Size	mm	450×490
	Slide Stroke	mm	500
	Mold Size	mm	460×310
	Minimum Mold Thickness	mm	200/300
	Opening Stroke	mm	250
	Open Daylight	mm	450/550
	Ejector Force	ton	2
	Ejector Stroke	mm	65
OTHERS	Hydraulic System Pressure	Bar	140
	Oil Tank Volume	L	245
	Electric Power	hp(kW)	10(7.5)
	Barrel Heating Power	kW	5.55
	Total Wattage	kW	13.05
	Machine Dimensions(approx.)	m	2.2×1.1×3.0
	Machine Weight(approx.)	ton	2.3



15TON 20TON 40TON 60TON 80TON HOT SALES micro injection molding machine

Single slider 80 Ton Hydraulic Vertical plastic molding injection moulding
