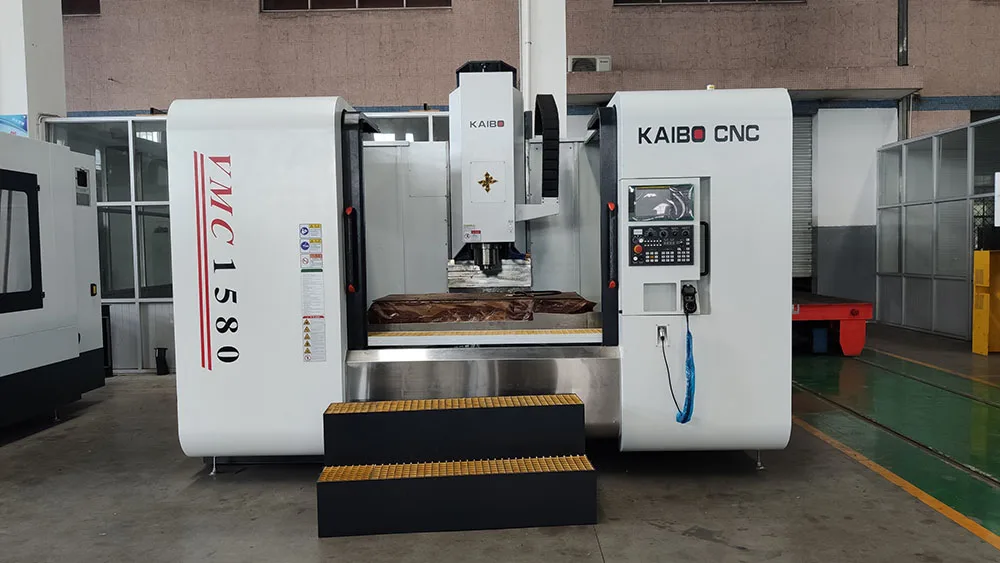

3 axis 4 axis 5 axis Vertical CNC Machining Center metal alloy processing Mold Making milling machine VMC
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60775181816):
Product Overview
Description
PRODUCT FEATURES
C-frame structure
X/Y/Z axis travel: 1500/800/700mm
BT50 spindle
Optional for the bear box to increase the torque
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
X/Y/Z axis travel: 1500/800/700mm
BT50 spindle
Optional for the bear box to increase the torque
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
PRODUCT PARAMENTERS
Parameter/Model | FH1580L | ||
Accuracy | Positioning accuracy | 0.01mm | |
Repeat positioning accuracy | 0.005mm | ||

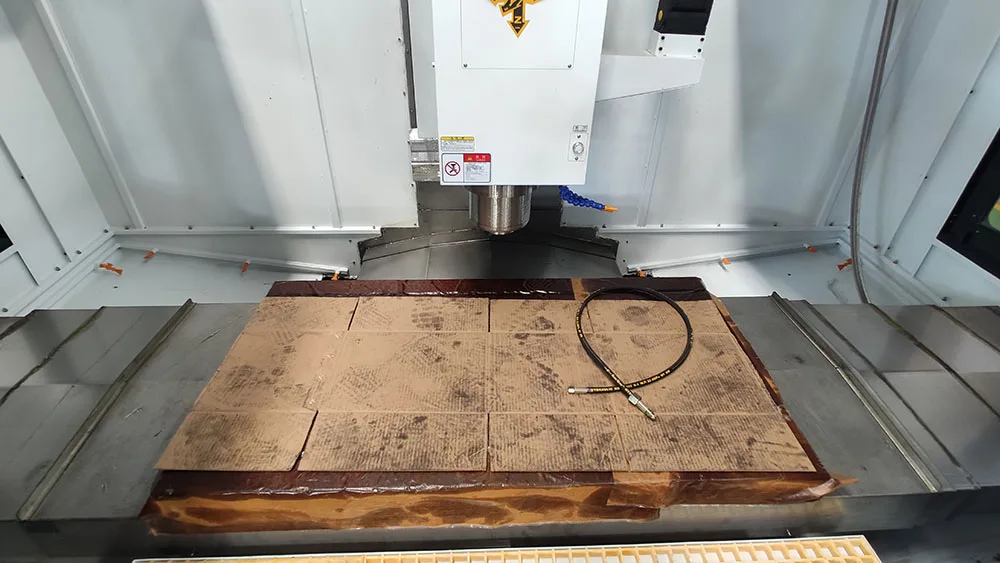

Worktable | Worktable size | 1500*800mm | |
T-slot size | 6T-18-125mm | ||
Max. load | 3000kg | ||
Travel | X/Y/Z axis travel | 1500*800*700mm | |
Spindle nose to worktable | 110-810mm | ||
Spindle center to Column | 850mm | ||
Feed | Max. feeding speed G00 | 20-20-15m/min | |
Max. working speed G01 | 8m/min | ||
X/Y/Z axis motor power | 4.4/4.4/4.4kw | ||
Spindle | Drive type | Direct type | |
Spindle motor power | 18.5-22kw | ||
Spindle Max. speed | 6000rpm | ||
Tool holder | BT50 | ||
Tool Magazine(Opt.) | ATC type | Arm type | |
ATC capacity | 24pcs | ||
Common | Power supply and total capacity | 3P/380V/50Hz/40KVA | |
Machine weight | 12000kg | ||
Dimension | 4000*3000*3200mm | ||

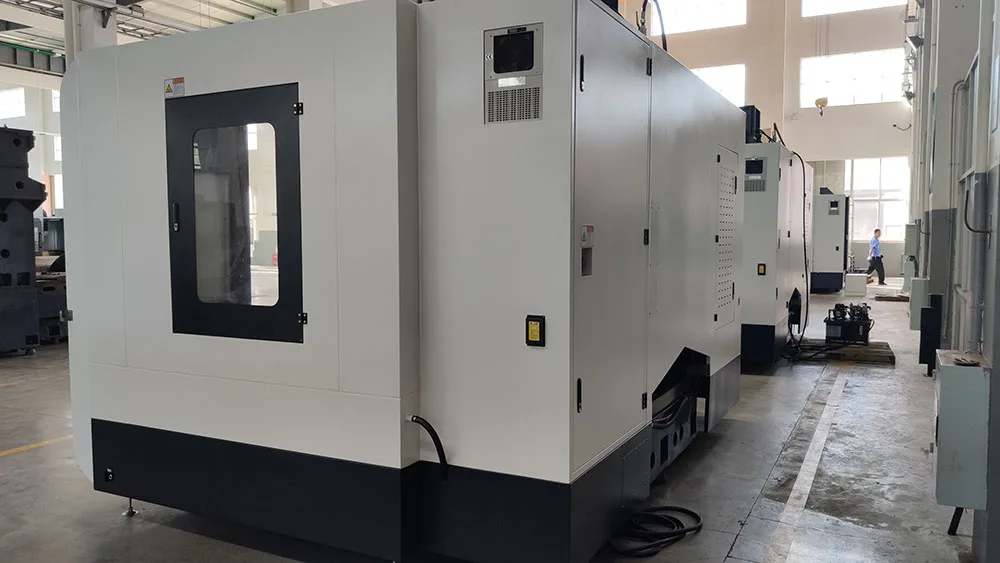

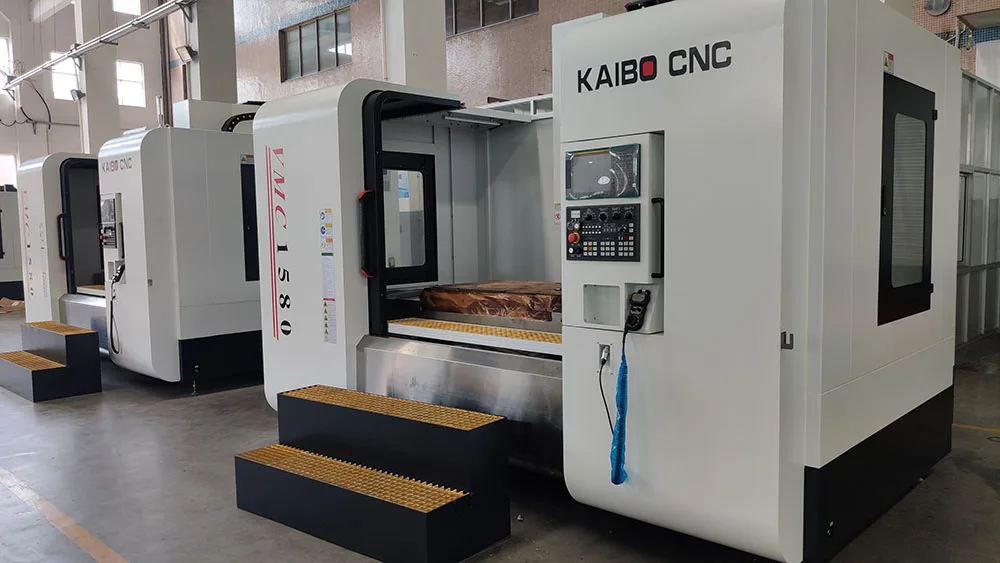

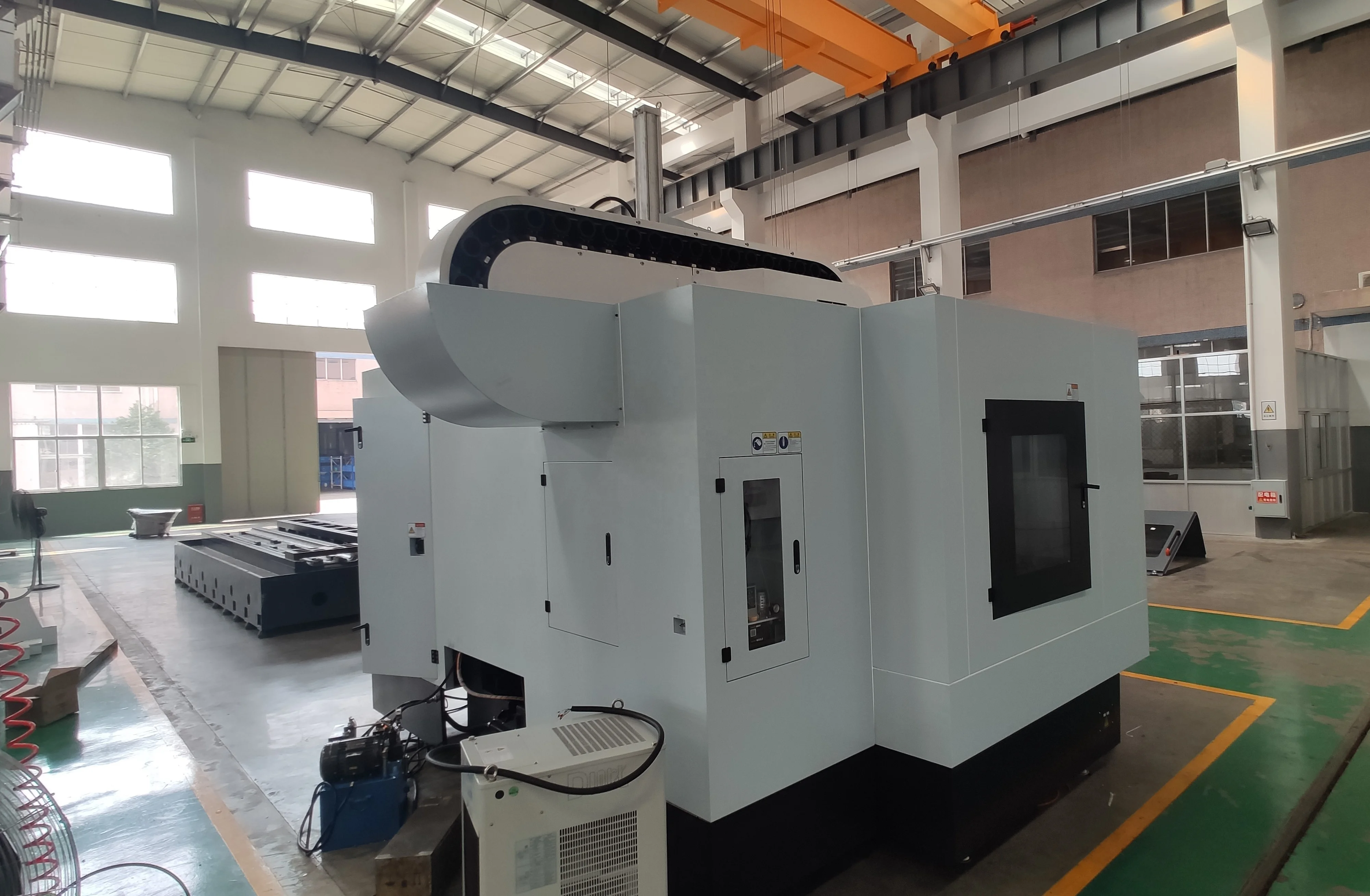

PRODUCT DETAILS
Ningbo Kaibo CNC Machinery Co., Ltd.
FAQ
1. What is workpiece size?
A: If Workpiece is 300x500, Just need to choose the worktable is greater than or equal to 300x500mm machining type.
2. what is Parts material?
A: Such as steel,aluminium alloys,metal, etc.
3. What is the processing process?
A: Our company's CNC machine tool products, different models have different characteristics, such as DC6060 suitable for shoe mould processing, DC1090 widely applicable.
4. How to choose the best fit for your machine?
A: If you have special request for the machine tool configuration,And the budget is limited,We can also according to your request to change the configuration.
Thus please provide your machining drawing, we are very glad to design a specific process solution for you and recommend a proper cnc machine model.
5. Does your company accept customized offer, we have special need?
A: KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
A: If Workpiece is 300x500, Just need to choose the worktable is greater than or equal to 300x500mm machining type.
2. what is Parts material?
A: Such as steel,aluminium alloys,metal, etc.
3. What is the processing process?
A: Our company's CNC machine tool products, different models have different characteristics, such as DC6060 suitable for shoe mould processing, DC1090 widely applicable.
4. How to choose the best fit for your machine?
A: If you have special request for the machine tool configuration,And the budget is limited,We can also according to your request to change the configuration.
Thus please provide your machining drawing, we are very glad to design a specific process solution for you and recommend a proper cnc machine model.
5. Does your company accept customized offer, we have special need?
A: KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
