VH M521 V hold Hot Sell 5 Spindles Floor&Door Frame Processing Four Side Planer And Moulder

Product Overview

Description

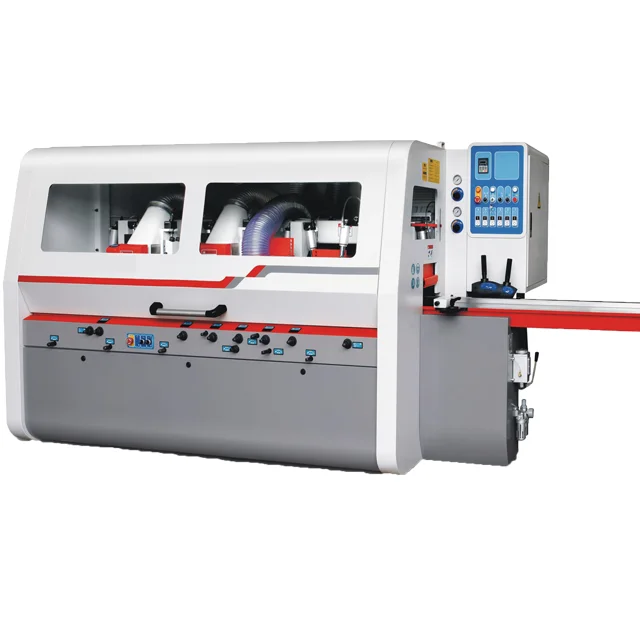

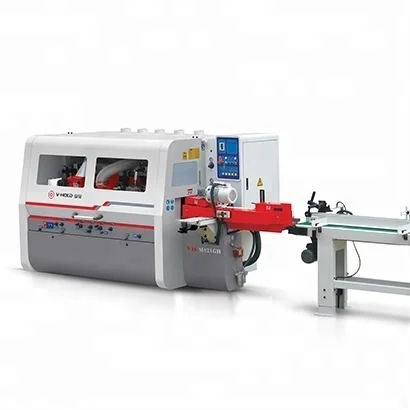

VH-M521 V-hold Hot Sell 5 Spindles Floor&Door Frame Processing Four Side Planer And Moulder



Professional Solution

Processing Medium cutting capacity strip, MDF strip, HDF strip, floor, doors, Solid wood furniture and Square boards.



Model		VH-M621	VH-M521

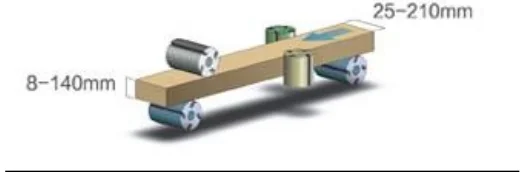

Specification	Working width	25-210	25-210
	Working thickness	8-140	8-140
	Working table length	1970	1700
	Feeding speed	6-36	6-36
	Mian spindle diameter (mm)	Φ 40	Φ 40
	Main spindle revolution(r/min)	6500	6500
	Air pressure (Mpa)	0.6	0.6
Motor power(KW)	1st LowerShaft	5.5kw/7.5HP	5.5kw/7.5HP
	Right vertical spindle	5.5kw/7.5HP	5.5kw/7.5HP
	Left vertical spindle	5.5kw/7.5HP	5.5kw/7.5HP
	1st UpperShaft	5.5kw/7.5HP	5.5kw/7.5HP
	2nd UpperShaft	5.5kw/7.5HP
	2nd Lower Shaft	5.5kw/7.5HP	5.5kw/7.5HP
	Feeding beam lifting	0.55kw/0.75HP	0.55kw/0.75HP
	Feedingmotor	4kw/5.5HP	4kw/5.5HP
	Total power	39.55kw/54.3HP	34.05kw/46.26HP
Cutter diameter	1st Lower Shaft	Φ 125	Φ 125
	Right Vertical spindle	Φ 125-Φ 180	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180	Φ 125-Φ 180
	2nd Upper Shaft	Φ 125-Φ 180
	2nd Lower Shaft	Φ 125-Φ 200	Φ 125-Φ 200
Remark	Feeding wheel diameter (mm)	Φ140	Φ140
	Dust outlet diameter(mm)	Φ140	Φ140

Heavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracy.

Every spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindle ensure the finished surface without any roughness.

Rapidly flip-short feeding device This mechanism effectively enhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated.

Moveable working table on the last bottom spindle, Making easy working on changing cutters.

Exquisite production technology, internal precision machinery.





Our Customers:





Our Big Family:



















Warranty?



Mechanical parts one year,Electrical parts three months





Any aftersale support available?



Yes we have, Engineers available to service machinery overseas





Payment:



TT 30% advanced payment,70% balance remitted before shipment.







Shrink film,plywood case packing will have extra cost.



















Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please let me know.
