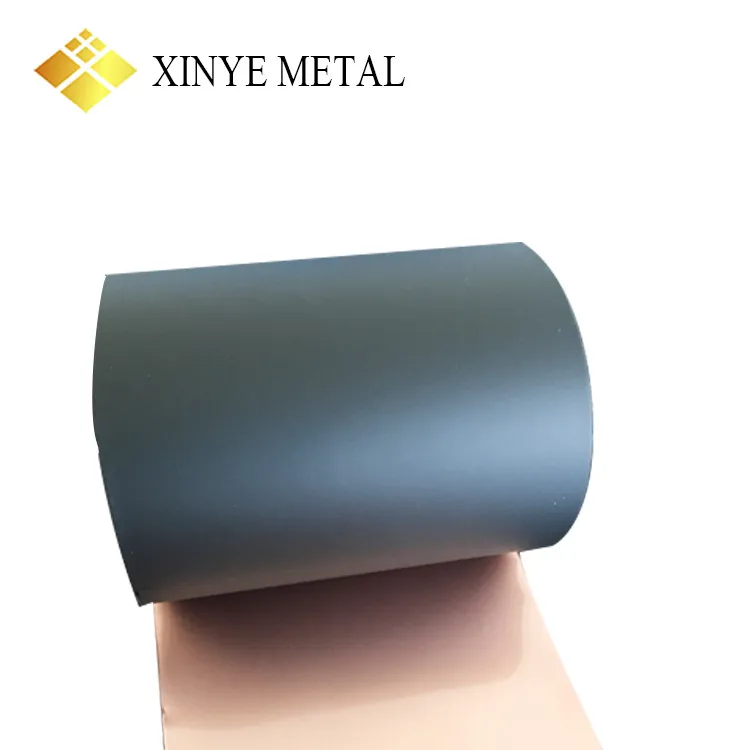

Черная медная фольга 12 мкм для гибкой печатной платы
- Category: Copper Strips >>>
- Supplier: Shanghai Xinye Metal Material Co. Ltd.
Share on (60775194241):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
GB | ISO | ASTM | JIS |
TU1 | Cu-OF | C10200 | C1020 |
TU2 | Cu-OF | C10300 | C1020 |
T2 | Cu-RTP | C11000 | C1100 |
TP1 | Cu-DLP | C12000 | C1201 |
TP2 | Cu-DHP | C12200 | C1220 |
GB | Composition(%) | ||||||||
Cu | P | O | Other | ||||||
TU1 | 99.97 | 0.002 | less than 0.002 | balance | |||||
TU2 | 99.95 | 0.002 | less than 0.003 | balance | |||||
T2 | 99.9 | - | - | balance | |||||
TP1 | 99.9 | 0.004-0.012 | - | balance | |||||
TP2 | 99.9 | 0.015-0.040 | - | balance | |||||
ASTM | Composition(%) | ||||||||
Cu | P | O | Other | ||||||
C10200 | 99.95 | 0.001-0.005 | - | balance | |||||
C11000 | 99.9 | - | - | balance | |||||
C12000 | 99.9 | 0.004-0.012 | - | balance | |||||
C12200 | 99.9 | 0.015-0.040 | - | balance | |||||
Classification/um | 12 | 18 | 35 | ||||
Width/mm | 520 | 520 | 520 | ||||
Purity(%) | ≧99.9 | ||||||
Density(g/m³) | 8.89 | ||||||
Area Weight(g/㎡) | 107±3 | 160±5 | 311±6 | ||||
Tensile Strength(N/㎜²) | Normal | ≧370 | ≧370 | ≧370 | |||
180℃30Min | ≧150 | ≧150 | ≧170 | ||||
Elongation(%) | Normal | ≧0.5 | ≧1.0 | ≧1.0 | |||
180℃30Min | ≧5 | ≧7 | ≧10 | ||||
Roughness | Ra(μm) | ≦0.35 | |||||
Rz(μm) | ≦2 | ||||||
Anti-oxidization | 200℃,≧90Minnondiscolouring | ||||||
temperature85℃,humidity85%,nondiscolouring | |||||||
Solder Resistance | 288℃/10S no bubbles | ||||||
Peel Strength (N/㎜) | ≧1.0 | ≧1.0 | ≧1.0 | ||||
Chemical Resistance(%) | ≦5 | ||||||
Surface Quality | No wrinkles, no color difference, no scratches, no convex and concave points | ||||||
Storage Condition | Temperature0℃≦t≦25℃,RH≦60%,90 days | ||||||
Blackening is a kind of technology process. It means a blackened coating on the surface of the rolled copper foil when the rolled copper foil is applied to a high-end flexible printed circuit board (FPC). It can help to meet the performance requirements, such as the peel strength, corrosion resistance, and high temperature oxidation resistance.
\t\t\t\t\t\t\t\t\tProduct show \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tTechnology \t\t\t\t\t\t\t
Professional equipments guarantee the products' quality. And we provide the customized service.
\t\t\t\t\t\t\t\t\tOur Certification \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is within 15 days if the goods are in stock. or it is less than 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance before shippment. And the price depends on the material and the quantity.
