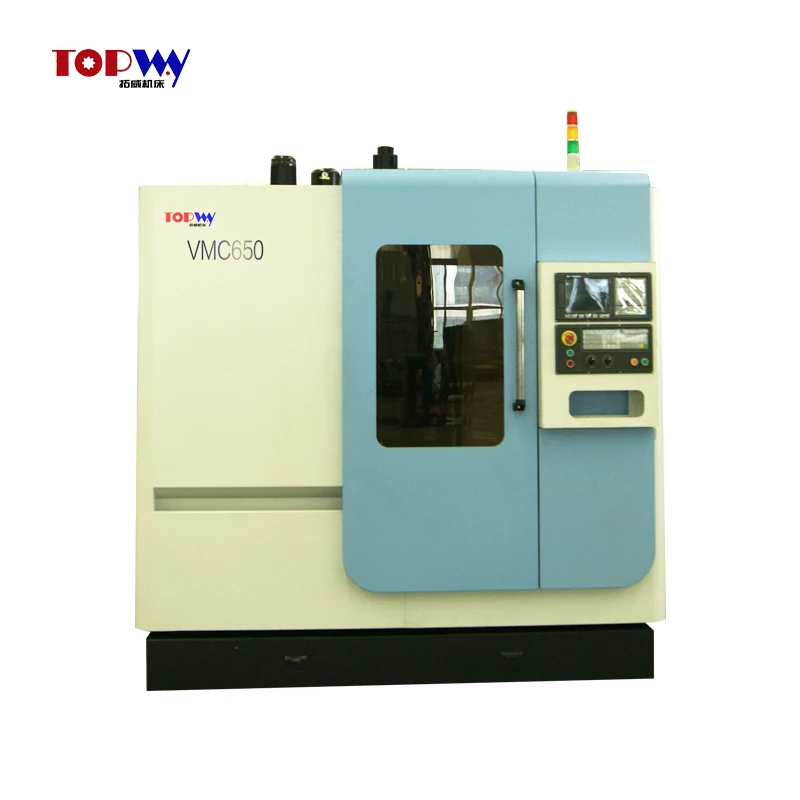

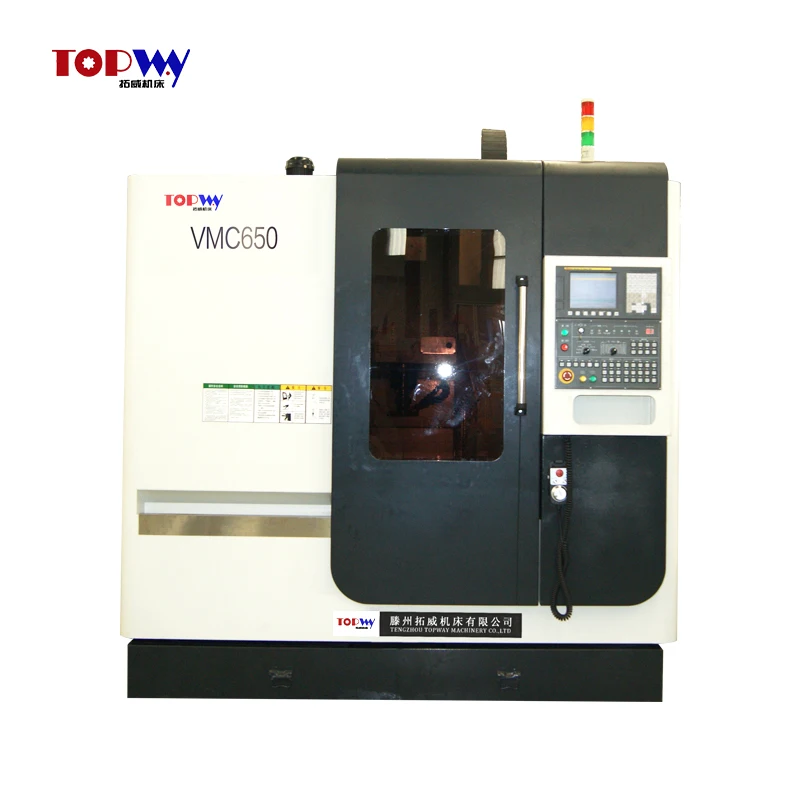

conventional cnc vertical machining center VMC 650 VMC 640 CNC Milling Machine
- Category: >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (60775284770):
Product Overview
Description
Conventional cnc vertical machining center VMC 650 VMC640 CNC Milling Machine
VMC CNC Center Description:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
VMC CNC Center Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
Standard : Optional :
* Siemens 808D controller * FANUC, SIEMENS828D, GSK , KND
* BT40 Armless type ATC with 16 tools * Arm type ATC
* Taiwan spindle, screw and locking nut, linear, cylinder . * 4th axis
* Japan NSK bearing * Automatic chip convey
* Germany R+W coupling
* Automatic lubrication system
* Cool-heat exchanger
* Tri-color alarm lamp
* Full splash guard
* spindle taper hole cleaning system
* cooling system
VMC CNC Center Specification :
| Specification | Unit | VMC840(640) | VMC650 |
| Table size | mm | 800×420 | 800×420 |
| T-solt(NO.×width×pitch) | mm | 5×18×80 | 5×18×80 |
| Max. table load | kg | 500 | 500 |
| Guide rail type | -- | X/Y/Z axis linear | X/Y/Z axis linear |
| X/Y/Z axis travel | mm | 650×450×510 | 800×450×510 |
| Distance from spindle nose to worktable | mm | 150-660 | 150-660 |
| Distance from spinde center to colum | mm | 564 | 564 |
| Spindel taper | -- | BT40 | BT40 |
| Spindle speed | rpm | 100-8000 | 100-8000 |
| Spindle motor | kw | 5.5 | 5.5 |
| X/Y/Z axis motor | NM | 7.5/7.5/15 | 7.5/7.5/15 |
| X/Y/Z Ballscrew (diameter×pitch) | mm | 4012/4012/4012 | 4012/4012/4012 |
| X/Y/Z axis rapid feed speed | mm/min | 24/24/20 | 24/24/20 |
| X/Y/Z axis cutting feed rate | m/min | 10 | 10 |
| Magazine type | -- | Armless/Disc | Armless/Disc |
| Magazine capacity | -- | BT40-16/24 | BT40-16/24 |
| Max. tool length | mm | 200 | 200 |
| Max. tool weight | kg | 5 | 5 |
| Electricity supply required | KVA | 15 | 15 |
| Air pressure required | kgf/cm² | 5-7 | 5-7 |
| Positioning accuracy | mm | ±0.007 | ±0.007 |
| Repositioning accuracy | mm | ±0.003 | ±0.003 |
| Overall size(L×W×H) | mm | 2300×2200×2400 | 2300×2200×2400 |
| Machine weight | T | 4.3 | 4.4 |

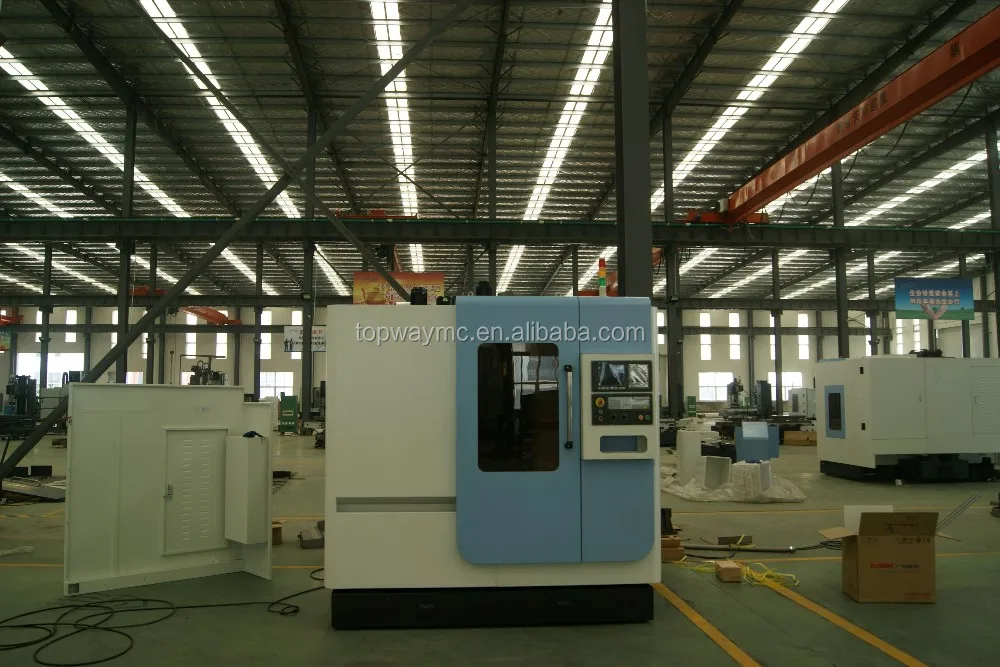

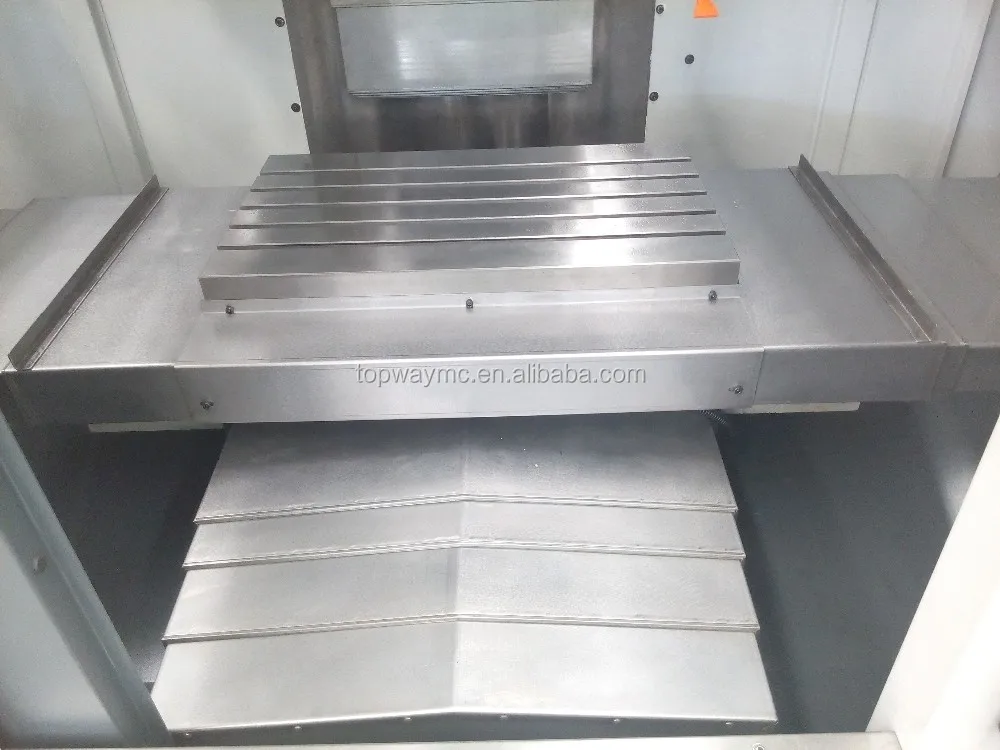

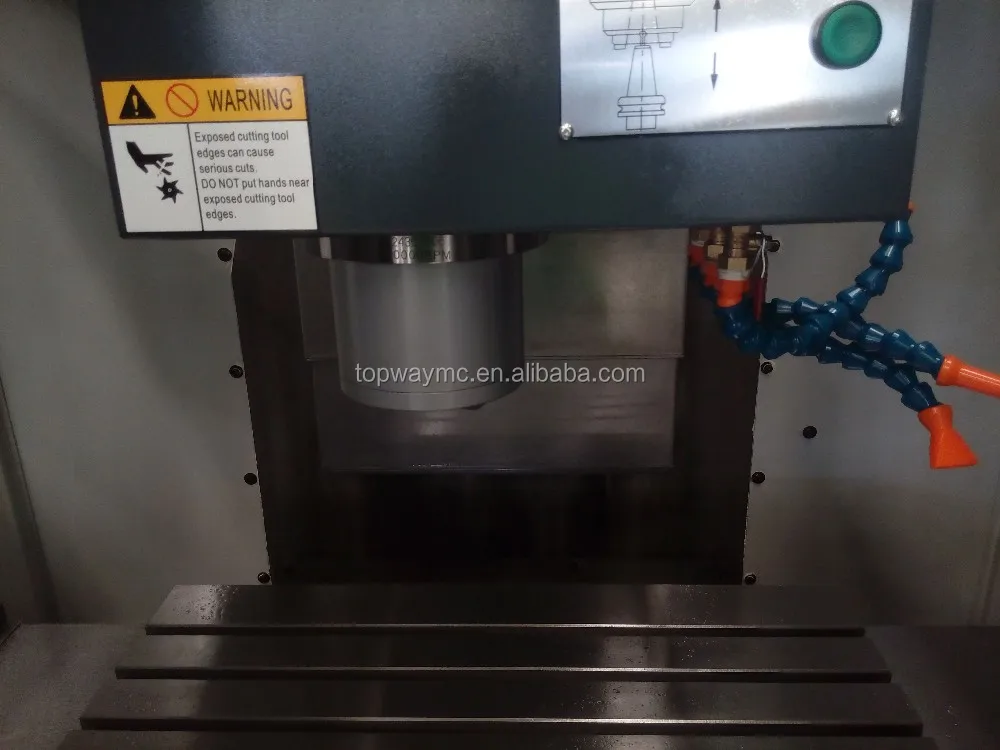

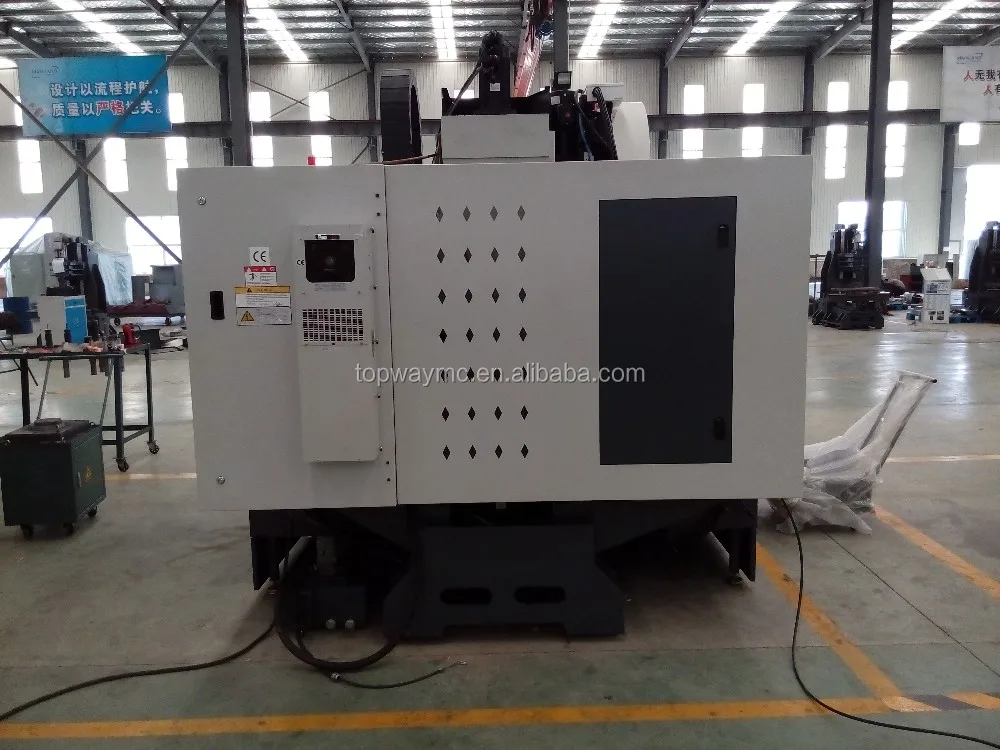

VMC CNC Center Details :
