vertical shoes sole manufacturing machine
- Category: >>>
- Supplier: Dongguan City Honking Machinery Equipment Co. Ltd.
Share on (60775311678):
Product Overview
Description
vertical sole manufacturing machine
Product Description
Featues:
1.This machine is suitable for injecting 1/2 color soles such as TR,TPR,TPU,PVC etc.
2.Adopting Electrical cabinet integrated and hydraulic systems integration, man machine interface,
display of touch screen, operate easily
3.The barrel temperature controlled with P.I.D,ensuring constant temperatur and high quality product
4.The straight pressure hydraulic system, which is very strong, fast mold locking system,
Mould thickness adjusting automatic.
5.When the moulding cycle is completed, the mould would be open on top, take it out easily.
Specifications:
Machine model | HM-118-2 | |
Mould-clamping Unit | ||
Work station | 2 | |
Clamping force | TON | 150-200 |
Opening stroke | MM | 350 |
Mould dimension | MM | 500*500 |
Mould height | MM | 100-200/150-250 |
Height of injection nozzle | MM | 60/110 |
Injection Unit | ||
Injector | SET | 2/2*2 |
Screw diameter | MM | 65 |
Screw L/D ratio | L/D | 13 |
Max.injection volume | CC | 1000 |
Injection pressure | Kg/cm² | 650 |
Injection speed | Cm/s | 10 |
Screw rotation speed | R.P.M | 0-185 |
Electricity Consumption | ||
Heating power of injector | KW | 13 |
Hydraulic unit motor | KW | 22.5 |
Total electric consumption | KW | 36 |
Oil tank volume / | L | 500 |
Temperature control | Section | 4 |
Dimension and Weight | ||
Machine dimension | (L*W*H)MM | 5000*4000*2800 |
Machine weight | KGS | 8000 |
Detailed Images
vertical shoe sole manufacturing machine
please click on the links below to watch the machine working video on YOUKU
(Please copy and paste in broswer)
//v.youku.com/v_show/id_XNTU0NTM4MzQw.html

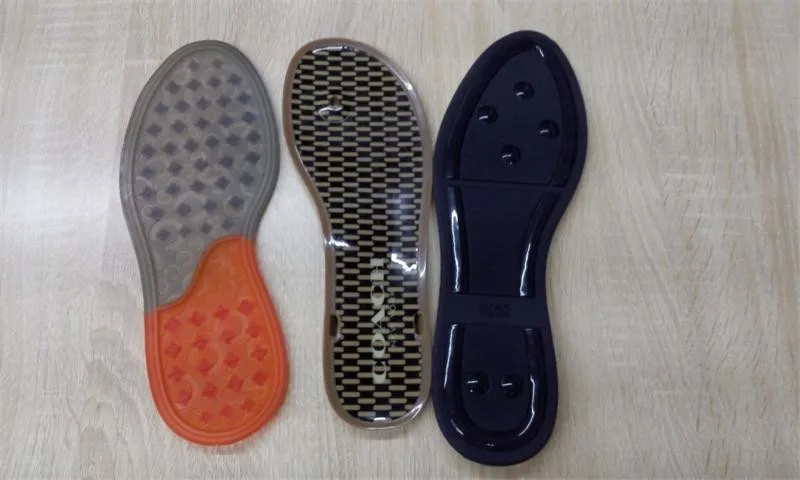

outsole produced by vertical shoe sole manufacturing machine
Certifications
Trade Shows
FAQ
Q1:Are you trading company or manufacturer?
We are manufacturer of shoes machine and related equipment.
Q2. Do you have quality certificate?
Yes we have CE, SGS etc.
Q3. What's the delivery time?
Around 20~30days after we receiving your deposit payment.
however,it base on the order
Q4. What about your machine warranty?
Our machine warranty is 1 year (from the installation date)for all machine parts.
Exception:consumable machine parts such as screw,motor and ect.Damage caused by mis-operation
Q5. What's payment terms ,trade terms you accept ?
Usually we accept T/T 30% deposit , then 70% balance is paid before shipment
we usually offer FOB SHENZHEN price ,but we also accept other way like L/C ,and do CFR&CIF etc.
Q6. Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate,and we will arrange our engineer to install your machine
and train your workers to operate the machine.Also we will send you manual and video.
If there is something goes wrong,you can call us,video-chat,email us.
And we will give solutions within 36 hrs.
Q7. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable along with the shipment
we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well.
our quality is good ,in case it broken within one year ,we will sent you for free.
| Contact Name | Corre Lei |
| whatsapp/skype/Mob | +86 13926871808 |
