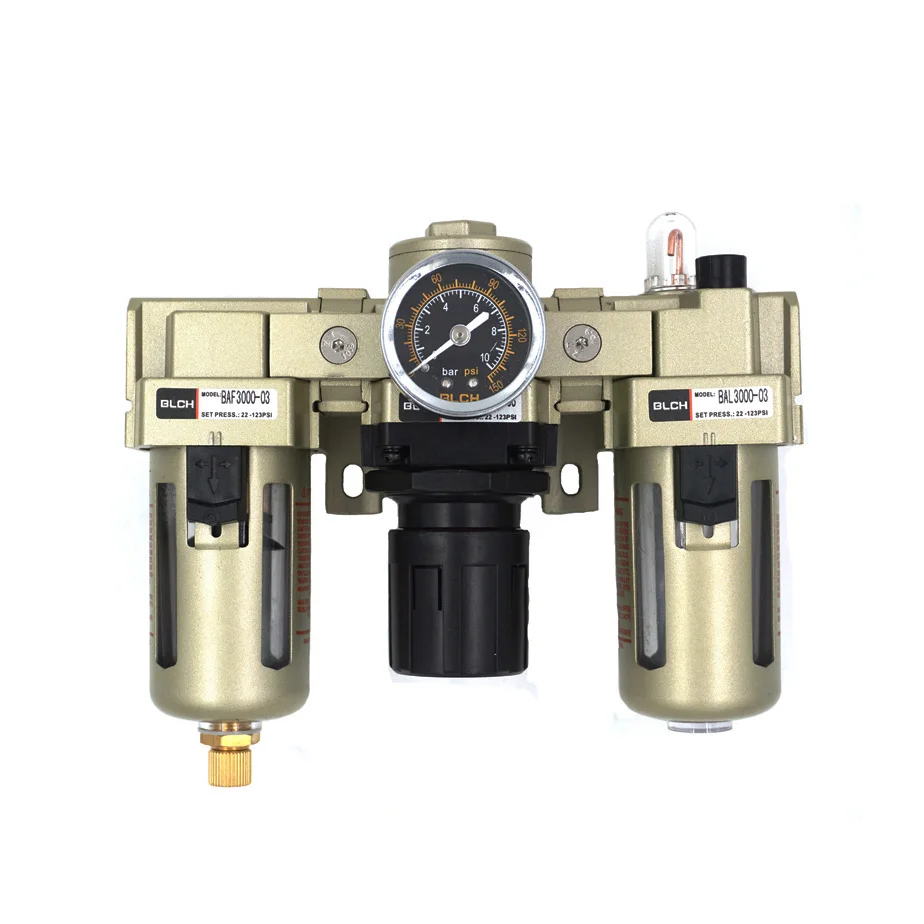

Серия AC/AF автоматический комбинированный фильтр FRL, регулятор, смазка, пневматический блок очистки источника воздуха
- Category: Pneumatic & Hydraulic >>>
- Supplier: BLCH Pneumatic Science & Technology Co. Ltd.
Share on (60775313338):
Product Overview
Description
Product Description

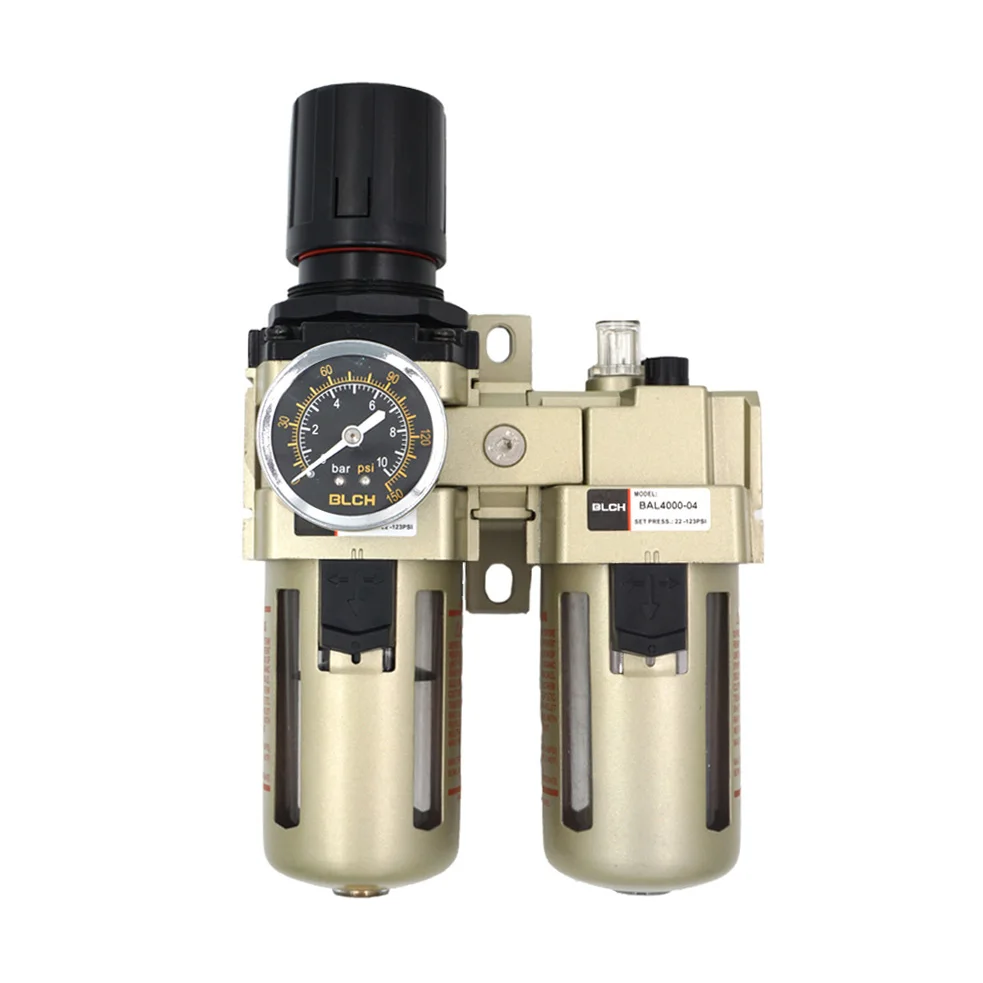

| Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
| AC1010-M5D | AC2010-01D | AC2010-02D | AC3010-02D | AC3010-03D | AC4010-03D | AC4010-04D | AC4010-06D | AC5010-06D | AC5010-10D | ||

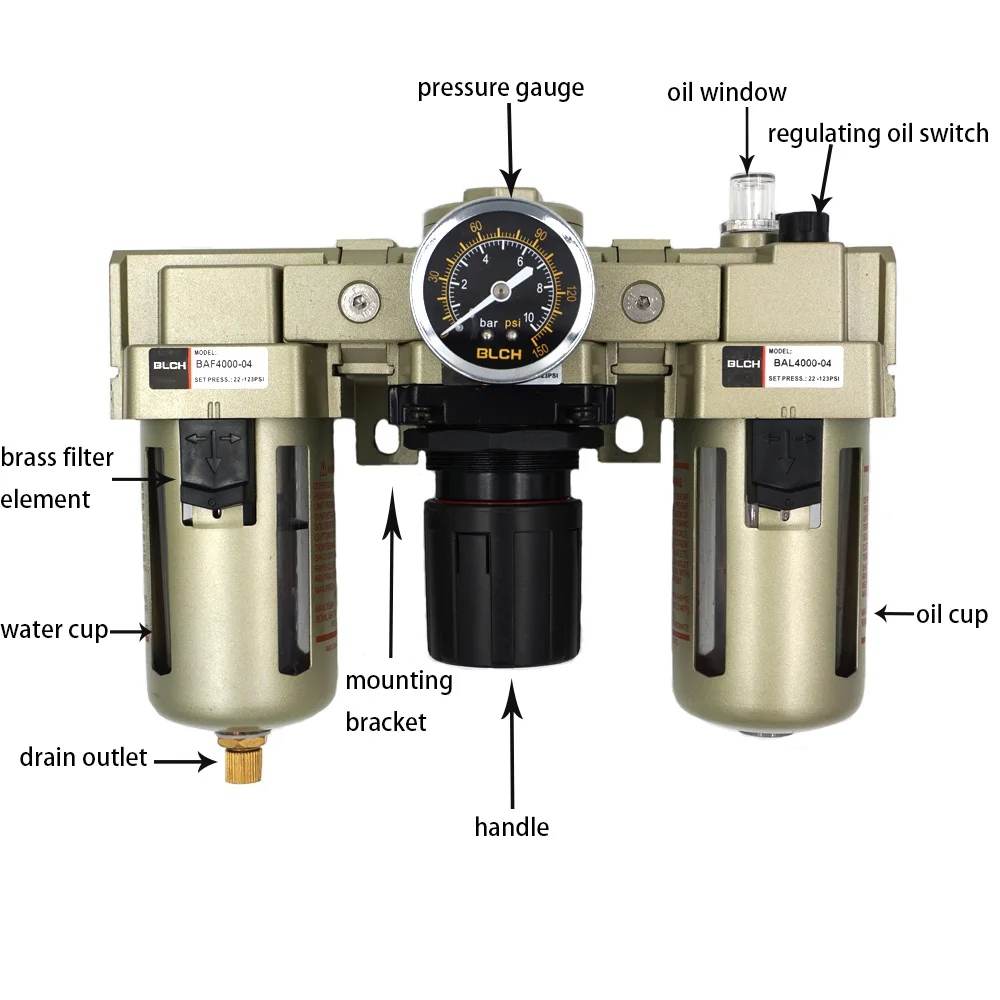

| Components | Filter-Regulator | AW1000 | AW2000 | AW2000 | AW3000 | AW3000 | AW4000 | AW4000 | AW4000 | AW5000 | AW5000 |
| Lubricator | AL1000 | AL2000 | AL2000 | AL3000 | AL3000 | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | |
| Port size Rc(G) | M5 x 0.8 | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ | 3/4″ | 3/4″ | 1″ | |
| Pressure gauge port size | M5 x 0.8 | 1/8″ | 1/8″ | 1/8″ | 1/8″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | |
| Pressure gauge | Y20 | Y40 | Y40 | Y40 | Y40 | Y50 | Y50 | Y50 | Y50 | Y50 | |
| Max. Flow L/min(ANR) | 90 | 500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 5000 | 5000 | |
| Working pressure Range | 0.15-0.7 Mpa | 0.15-0.85 Mpa | |||||||||
| Max pressure (Mpa) | 1.0 MPa | ||||||||||
| Ambient temperature | - 5~60℃ | ||||||||||
| Filter accuracy | 40um ( standard) 5um (optional) | ||||||||||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | ||||||||||
| Material of main part | Body | Aluminum alloy | |||||||||
| Bowl | PC | ||||||||||
| Bowl guard | AC1010~ AC2010 : without , AC3010~ AC5010: With (Iron) | ||||||||||
