Product Overview

Description


About CCS

CCS is an innovative and cutting-edge manufacturer in embedded panel computer and touch solutions technology. With excellent R&D team, leading design philosophy and cost-effective solutions, CCS enjoys a high reputation in domestic and oversea customers from Industry Process Automation, Outdoor Digital Signage,Transportation and Kiosk.

Our Vision
To be the better and smarter Panel Computer and Touch Display Manufacturer.
Our Mission
We strive for saving time for customers in offering:
Excellent Quality, Reasonable Price, Short Lead time and Fast Response



Product Details

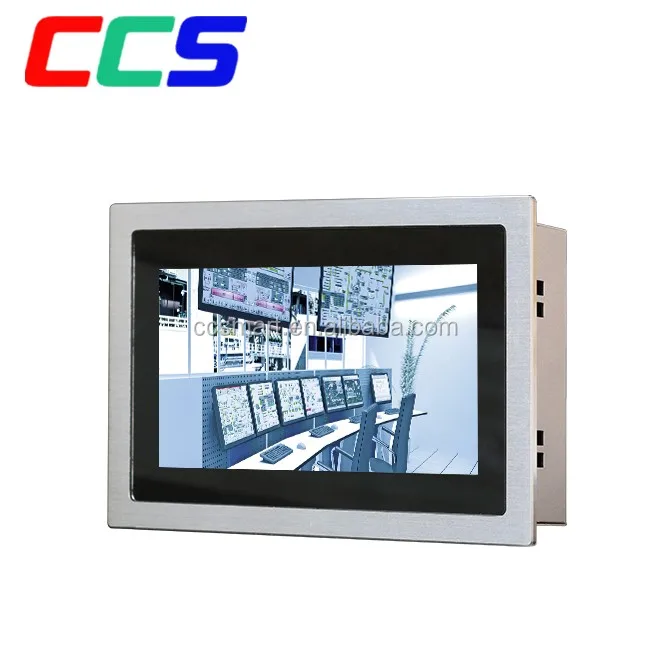

CCS 7 10.1 12.1 13.3 inch Touch Screen lcd monitor waterproof

Leading Touch Panel Computing Solutions
CCS leadership are experienced specialists on computer, touch and electromagnetism technology. The professional leadership always provide the most suitable solutions for tailor-made and standard product,CCS combined with best electronic and mechanical design for our customers.
Quality Control
From components incoming quality control, assembly process,burn-in test and pre-shipment inspection.Our QC system throughout the whole leadtime and manage to let our customers enjoy the perfect operation.

\t
Screen Size
\t
7"
\t
10.1"
\t
12.1"
\t
13.3"
\t
Panel
\t
TFT LCD A+ Grade with LED Backlight  industrial type
\t
Resolution
\t
1024x600
\t
1366x768
\t
1280x800
\t
1920x1080
\t
Aspect Ratio
\t
17:10
\t
16:9
\t
16:10
\t
16:9
\t
Contrast
\t
500:1
\t
800:1
\t
800:1
\t
800:1
\t
Brightness
\t
300nit
\t
350nit
\t
400nit
\t
300nit
\t
Optional
\t
1000~1500 nit High Brightness, Direct Sunlight Readable
\t
View Angle
\t
160/170
\t
170/170
\t
170/170
\t
160/170
\t
Active Area(mm)
\t
155.6x92
\t
222.5x125.1
\t
261x163
\t
293.7x165.2
\t
Display Color
\t
16.7M
\t
16.7M
\t
16.7M
\t
16.7M
\t
Touch Screen Technology
\t
Projected Capacitive Multi Touch      Knock Times More Than 50 Million Times  USB Connector
\t
Optional
\t
5 Wire Resistive Touch Screen ; COM Connector
\t
Signal
\t
LVDS
\t
LVDS
\t
LVDS
\t
edp
\t

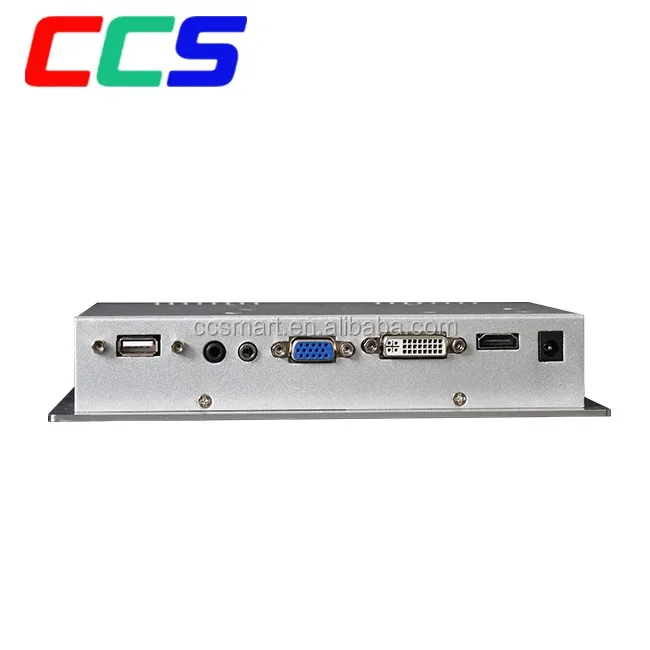

Video Interface
\t
VGA+DVI
\t
VGA+DVI
\t
VGA+DVI
\t
VGA+DVI
\t
Optional
\t
DP, HDVI, BNC, AV,SDI,DVB-T, Line in
\t
Speakers
\t
Optional
\t
Voltage Input
\t
100~240V 50-60Hz to DC12V4A by External Power Adapter
\t
Optional
\t
9~36V Input
\t
Power Output
\t
Less than 35W
\t
Operating Temperature
\t
-10°~ 60°
\t
-10°~ 60°
\t
-10°~ 60°
\t
-10°~ 60°
\t
Operating Humidity
\t
10%~95%
\t
10%~95%
\t
10%~95%
\t
10%~95%
\t
Mount Method
\t
Flexible Mounting: VESA, Wall Mount, Panel Mount,Desktop, Arm
\t
IP Grade
\t
IP65 Front
\t
Housing Material
\t
Aluminum Alloy Front Bezel, Anodized & Brushed Process
\t
Enclosure Material
\t
High Strength Alu Sheet for Backplate
\t
Accessory
\t
AC Cable, Power Adapter, Wall Mount Bracket, Panel Mount Clips,USB Cable, VGA Cable

Industrial All in One Touch Screen Panel PC

Processor:
-Fanless- Intel Atom D2550 Intel Celeron J1900 Intel(R) Core(TM) i3
Intel(R) Core(TM) i3,i5 (Mobile Version)
Intel(R) Core(TM) i3,i5,i7 (Desktop Version)
Memory: 2gb~16gb SO-DIMM
Storage: 32gb~256gb SSD or 1TB HDD
OS:Windows 7/8/10,Linux
Options:Dual Lan, 8*USB,6*Com,3G/4G,9~36V Input,Full IP65

Industrial Touch Screen Monitor

Screen Size:
6.2" 16:9 800*480 7" 17:10 1024*600 8" 4:3 800*600
10.1" 16:10 1280*800 10.4" 4:3 1024*768
12" 4:3 1024*768 12W" 16:10 1280*800 13.3" 16:9 1920*1080
15" 4:3 1024*768 15.6" 16:9 1920*1080
17" 4:3 1280*1024 17.3" 16:9 1920*1080
18.5" 16:9 1366*768 19" 5:4 1280*1024 19" 16:10 1440*900
21.5" 16:9 1920*1080 23.6" 16:9 1920*1080


Material&Process

CNC Processing

All of our Panel PC and Touch Monitor Product is with CNC Aluminum Alloy Bezel. With the  precision to be sealed, to meet IP65 Grade.

Metallic Lustre

The Metallic Lustre is perfectly showed by brushed wire and anodized process

Certifications
Packing & Delivery
Warranty

Fast Response on Service

CCS konw the anxious mood when computer in malfunction.Our professional engineer would take action once receiving complaint in 4 hours. It's our basic responsibility to keep customers and ownership enjoy the best service experience. Any questions welcome to contact with us today on: sales(at)cc-s.cn
