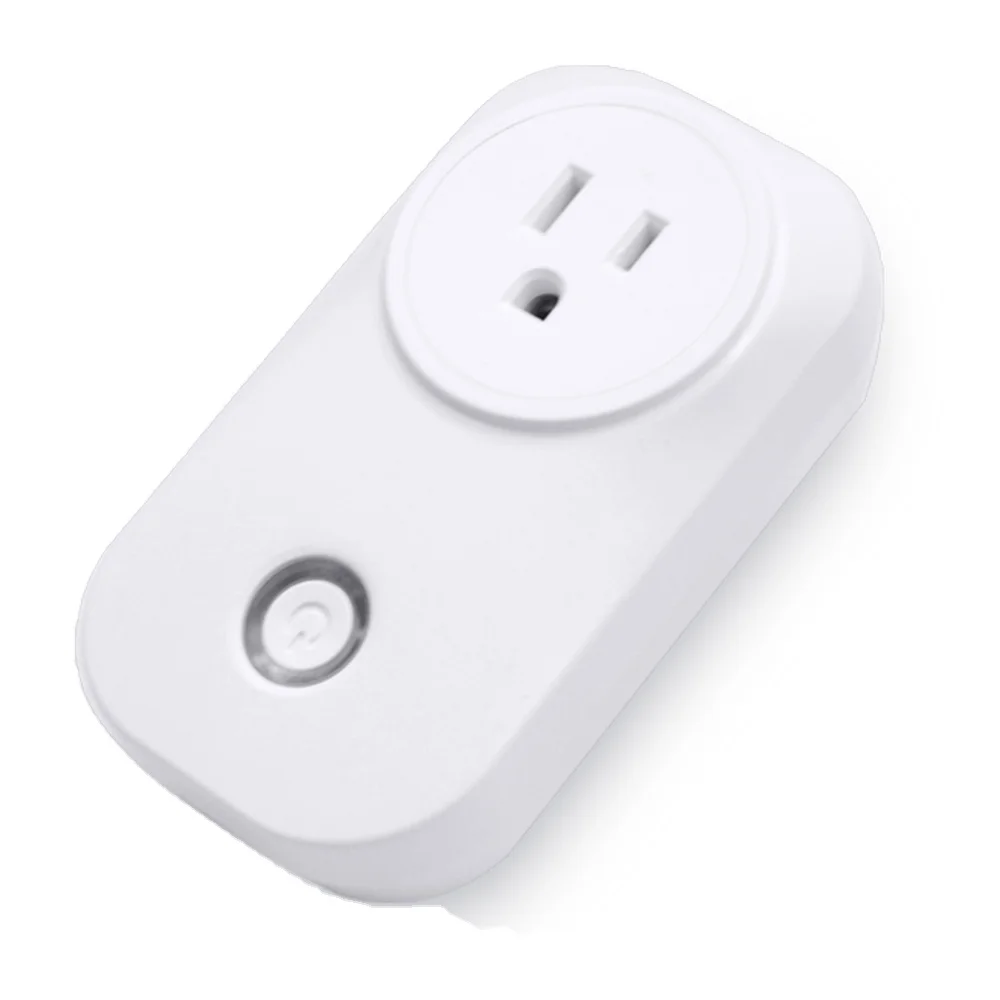

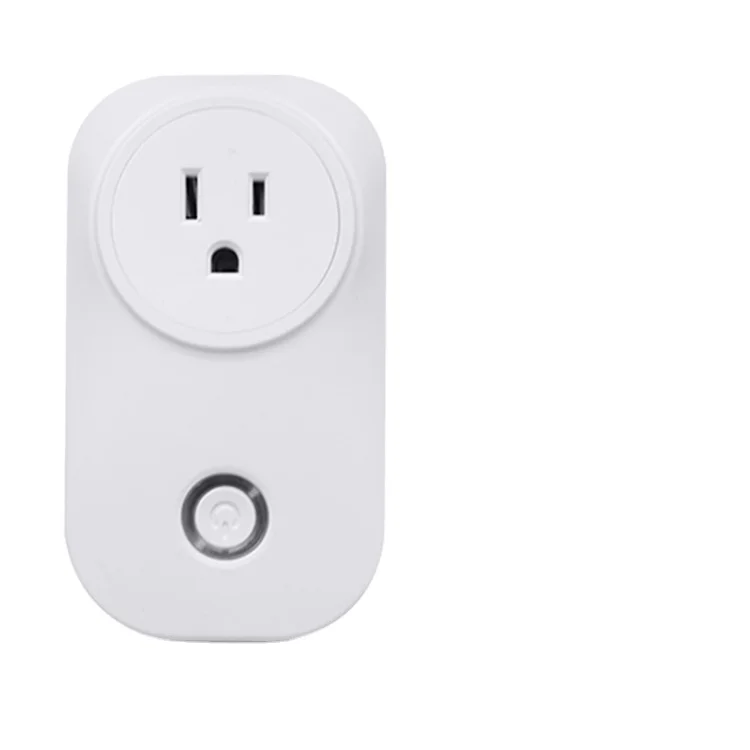

Type B USA Standard Gateway 16A Wireless Power Socket Outlet for Smart House
1.Introduction

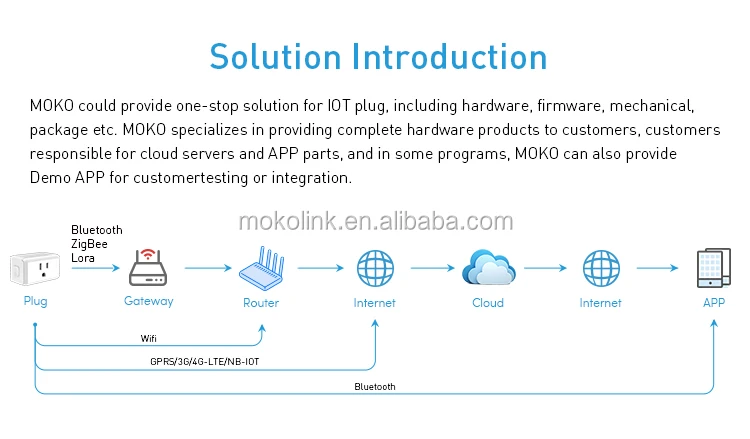

MK103 is a small bluetooth gateway integrated bluetooth and WIFI wireless communication technology.With the shape of ordinary plug,you can use it whenever it connects to power.MK103 can scan BLE devices nearby to gather some location information via bluetooth,and then update these messages to the cloud servers by WIFI,so as to realize location tracker in room and environment monitoring.
2.Features
- Built in ESP32 module, support BLE& WiFi communication
- Support many countries with different types: AU/US/UK/EU/FR/Brazil/Japan/Israel etc
- Support different encryption modes, no authentication / one-way authentication / two-way authentication
- The maximum scanning distance of bluetooth can reach 130m
- OTA firmware upgrade
- MOKO standard firmware and APP(MokoScanner) can be used directly, the APP can be downloaded from Googleplay or APP store

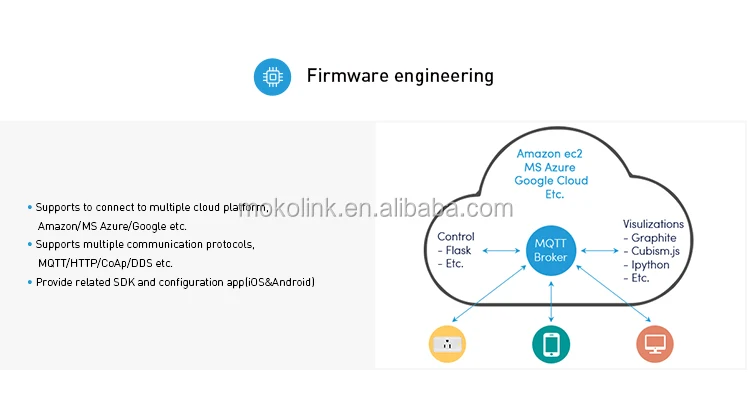

- Support multiple server platforms such as EMQTT, AWS, ALI,and also provide configuration protocol for customers to access their own server platform
- Provide IOS and android SDK for customers to develop their own APP
- Schematic diagrams are available for customers to develop firmware
3 Basic parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Wireless technology | BLE&WIFI | |
| 2 | Input voltage | 90V-240VAC | |
| 3 | Output voltage | 90V-240VAC | |
| 4 | Max load current | 16A | |
| 5 | Max load | 3520W | |
| 6 | Operation temperature& humidity | 0ºC~40 ºC/10%~90% | |
| 7 | Plug type | US/UK/EU/AU/FR | |
| 8 | Dimensions | 110x62.3x34.9mm |
4 Technology parameter
4.1 WiFi
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | WIFI protocol | 802.11b/g/n | |
| 2 | Frequence band | 2.4GHz-2.5Ghz(2400MHz-2483.5MHz) | |
| 3 | Coverage | <100m | Open and no shielding space |
| 4 | Transmission power | 11n MCS7 13dB,11b 18.5dB |
4.2 Bluetooth
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Bluetooth standard | Bluetooth V4.2 | |
| 2 | Max scanning distance | 130m | Open and no shielding space |
| 3 | Max scanning devices quantity | 300/min | |
| 3 | Bluetooth scanning rate | 150 times/s | Quantity of broadcast frames scanned per second |
| 4 | Receiving sensitivity | -97dB |
4.3 Hardware parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | ESP32 | BLE&WiFi | |
| 2 | RGB | Different colors used to distinguish the device status | |
| 3 | Button | Reset&control bluetooth broadcast on/off |
4.4 Software parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Communication protocol | MQTT V3.1.1 | |
| 2 | Encryption protocol | TLS V1.2 | |
| 3 | Encryption mode | OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK | |
| 4 | Firmware upgrade mode | OTA | |
| 5 | Software development | Standard firmware supports MQTT servers, also provide schematic diagrams for customers to develop firmware connecting to their own server | |
| 6 | User configuration | IOS&Android with MOKO Scanner |
4.5 Indicator status
| NO. | Indicator status | Description | Remark |
|---|---|---|---|
| 1 | Blue and green light flash alternately once | Factory reset successfully | |
| 2 | Indicator light is off | Device is not powered/Device is powered but bluetooth is off | |
| 3 | Flash green | Bluetooth is on and broadcasting data | |
| 4 | Solid green | APP successfully connected to the device bluetooth | |
| 5 | Flash blue | Configuring MQTT information and connecting to router | |
| 6 | Solid blue | Device is successfully connected to server |
4.6 Product Appearance
This following appearances and product models are currently commonly used.we can also provide Israeli/Brazilian/Japanese/India types.

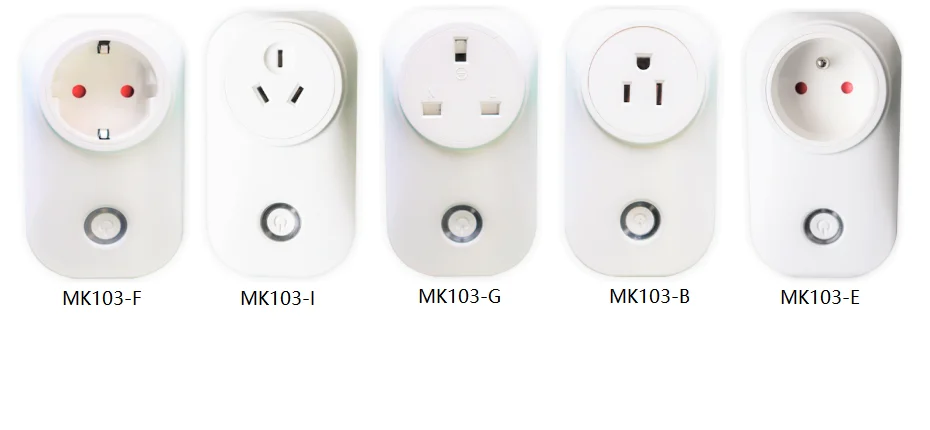

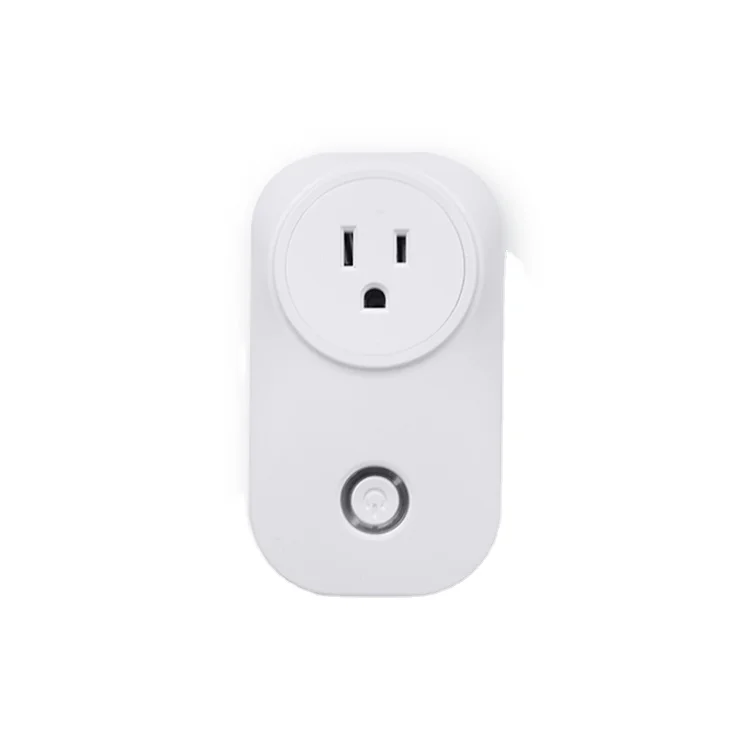

4.6.1 Appearance Picture

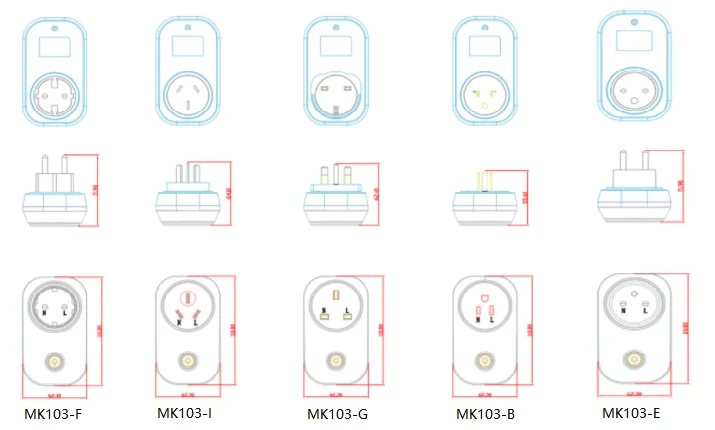

4.6.2 Production Dimensions
| Mode | MK103-I | MK103-G | MK103-Bl | MK103-F | MK103-E |
|---|---|---|---|---|---|
| Plug Type | AU | UK | US | EU | FR |
| Length(mm) | 62.3 | 62.3 | 62.3 | 62.3 | 62.3 |
| Width(mm) | 110.00 | 110.00 | 110.00 | 110.00 | 110.00 |
| Thickness(mm) | 64.1 | 62.4 | 55.6 | 71.9 | 71.9 |
Dimensions Picture:
