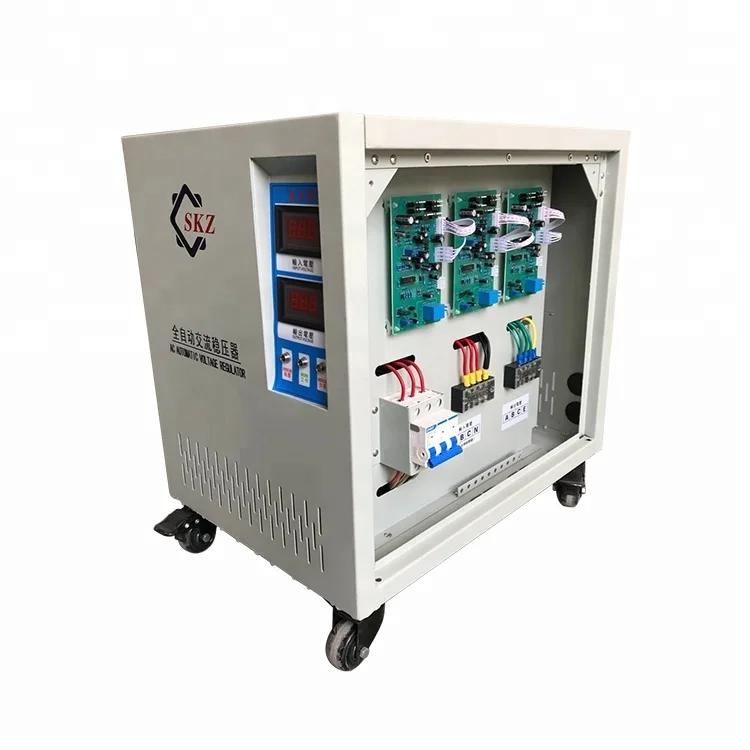

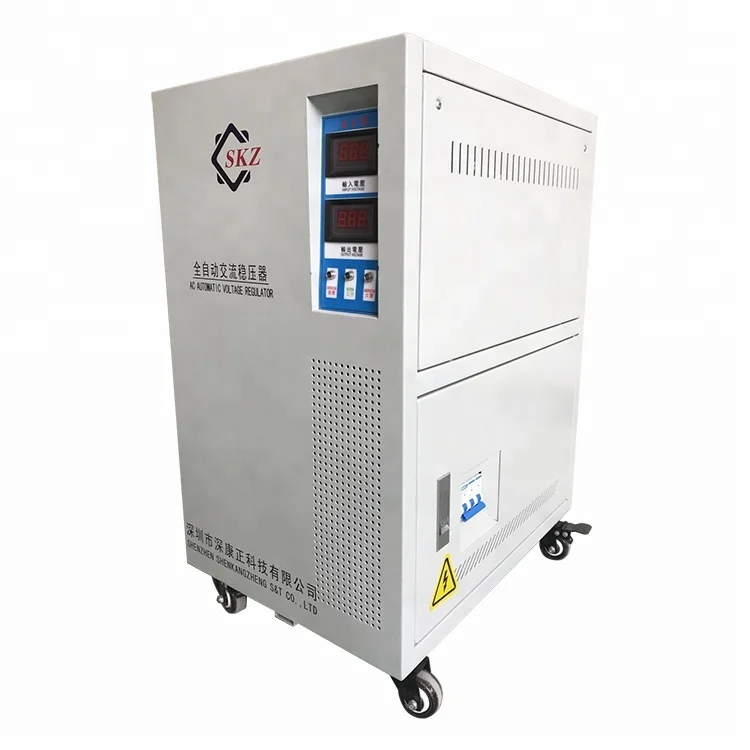

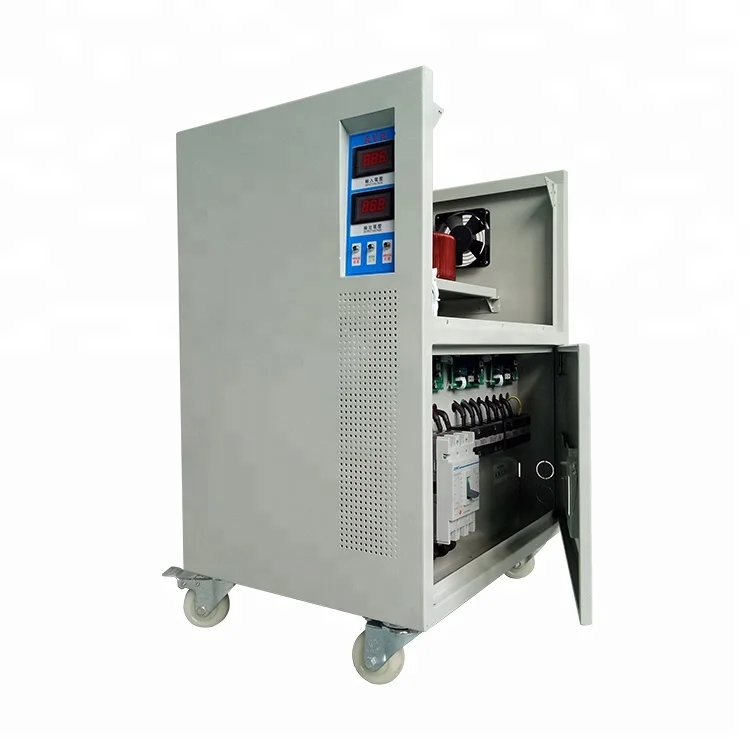

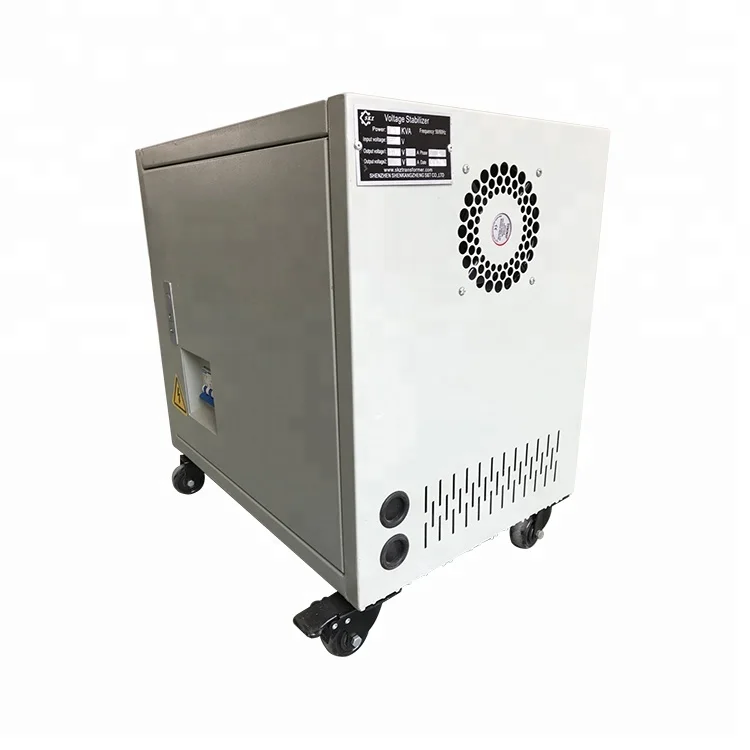

Electrical Equipment Three Phase 20KVA Voltage Stabilizer

Three-Phase 20KVA Voltage Stabilizer

Power Rating

20KVA

Control Method

Servo Motor(Microprocessor CPU)

Input

Rated Voltage

Three Phase/Single Phase(Customization According to Your Local Voltage)

Voltage Range

±20%~±45%(Can be Customized)

Frequency

50Hz/60 Hz

Output

Rated Voltage

Three Phase/Single Phase

Stabilizing Accuracy

 ±1%~ ±5%(Can be Customized)

Power Factor

PF≥0.8

Efficiency

≥98%

Response time

≤0.5S

Delay time(When it is turned on)

≤5s(Optional)

Waveform Distortion

≤1%

System Protection

Over Voltage

The output voltage is higher than 10%(adjustable),cut off the input in 3~5s

Under Voltage

The output voltage is lower than 15%(adjustable),cut off the input in 3~5s

Overload

If over current,cut off the input in 3~5s

Phase Dislocation

When there is phase dislocation, it will ring the alarm and cut off the input power

Phase Loss

When there is phase loss, it will ring the alarm and cut off the input power.

Short Circuit

When the load device is short circuited, cut off the input power

Bypass

When the voltage stabilizer is repaired, the power can transfer to bypass manually

LCD Screen

Input Voltage

Real-time display of the input voltage

Output Voltage

Real-time display of output voltage

Output Current

Real-time display of working current

Working Status

Bypass, Fuse Blown, Over-voltage, Under-voltage,Over-load etc.

Others

Cooling System

Air

Insulation Resistance

≥2MΩ

Voltage-endurance

The whole machine has no breakdown and no
arcing phenomena  for 2000VAC/ min.

Noise

<65dB/m

Working Environment

Ambient Temperature

0℃-45℃ ( No condensation )

Working Humidity

20%-90%

Product specifications are subject to change without further notice.
